Experience seamless asset tracking with the Granding R16-8DB UHF long-range reader/writer. Boost efficiency and accuracy. Order from NEOTECH UAE today!
Overview

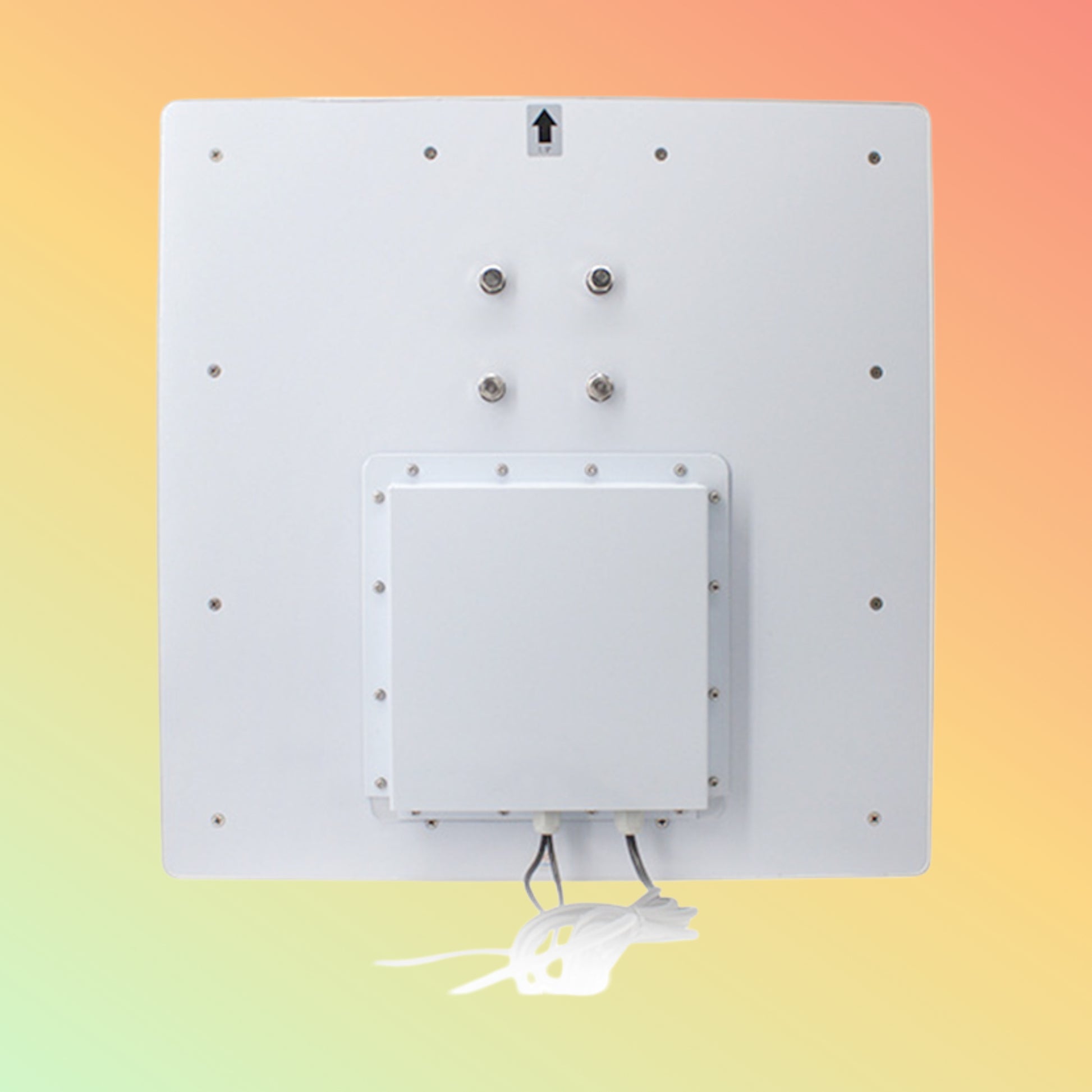

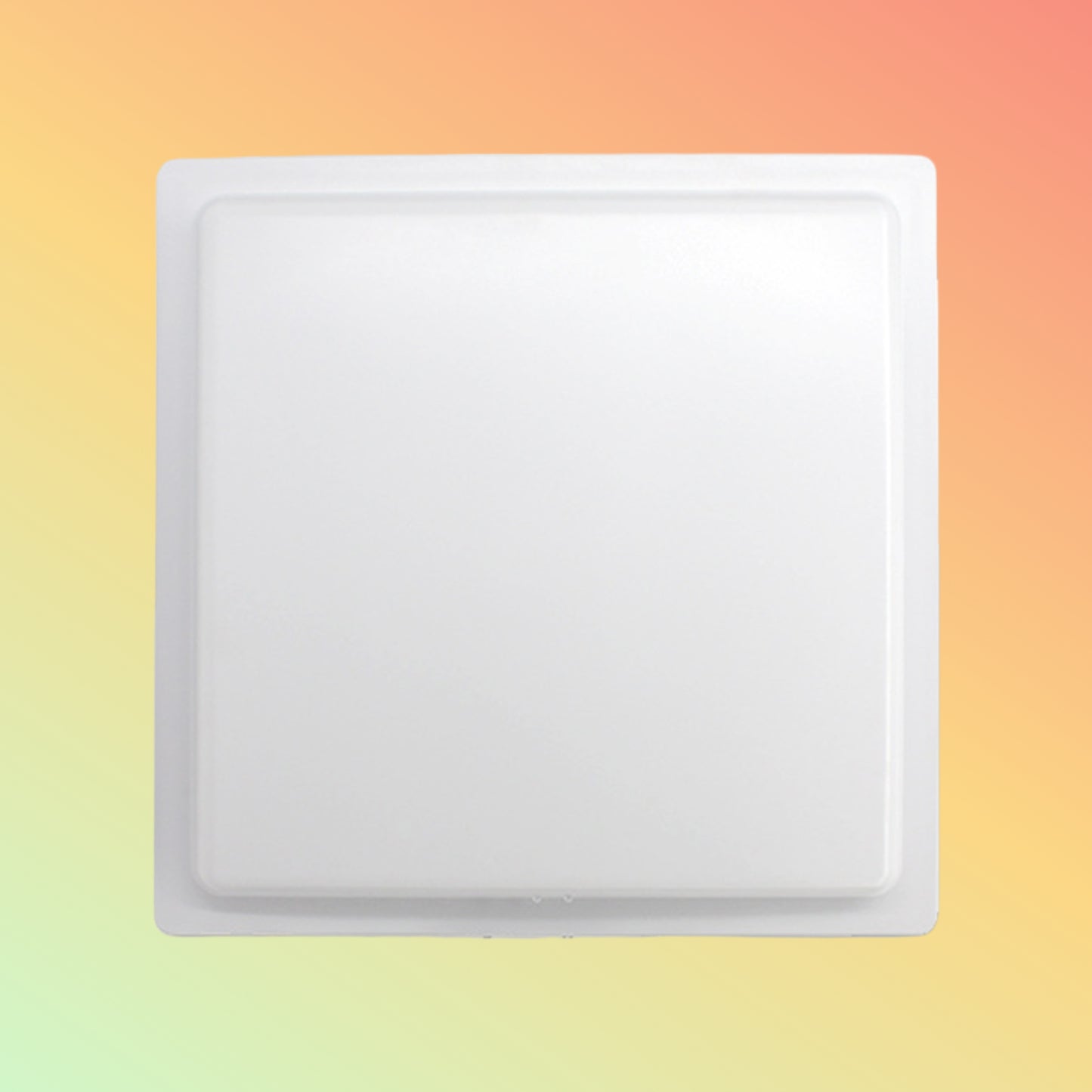

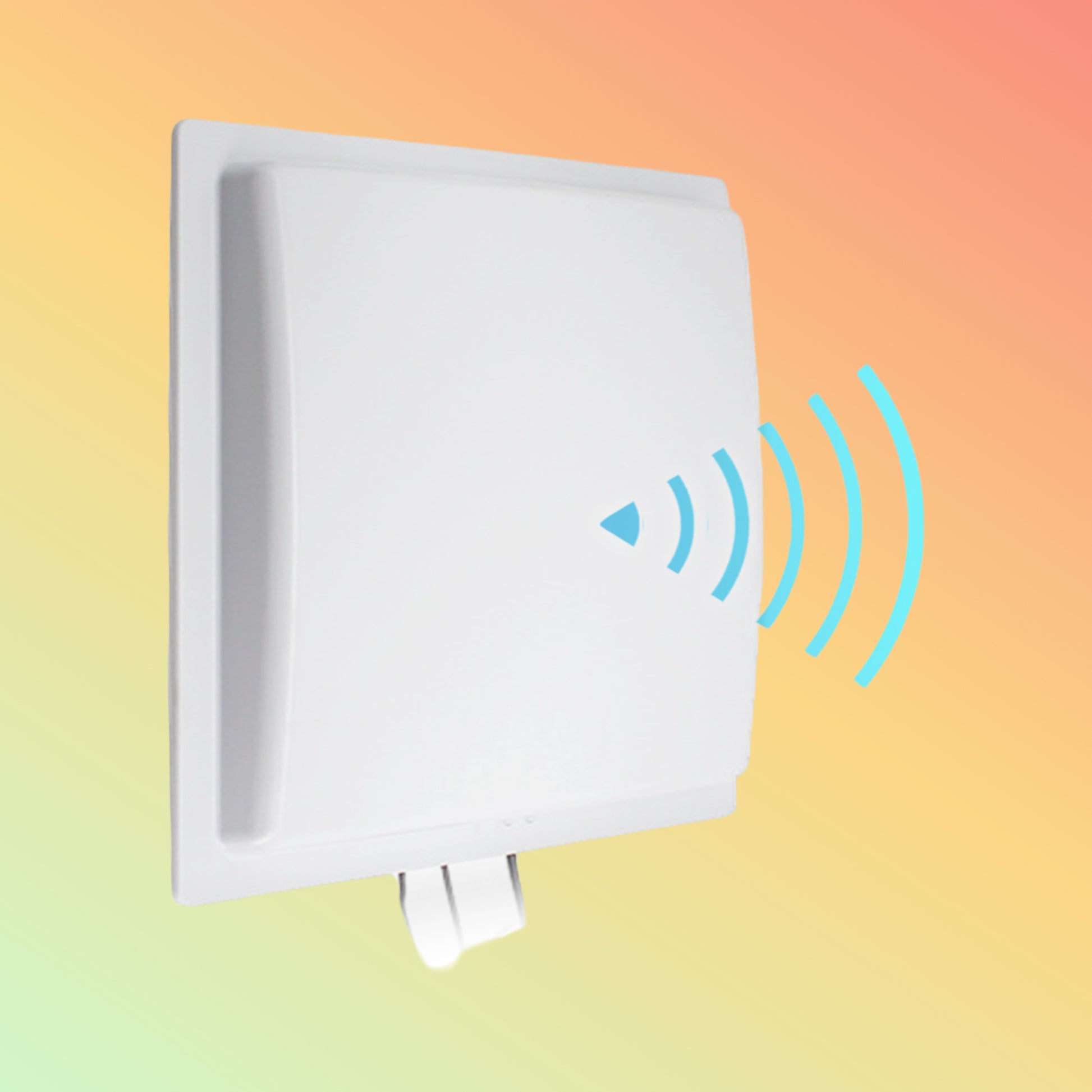

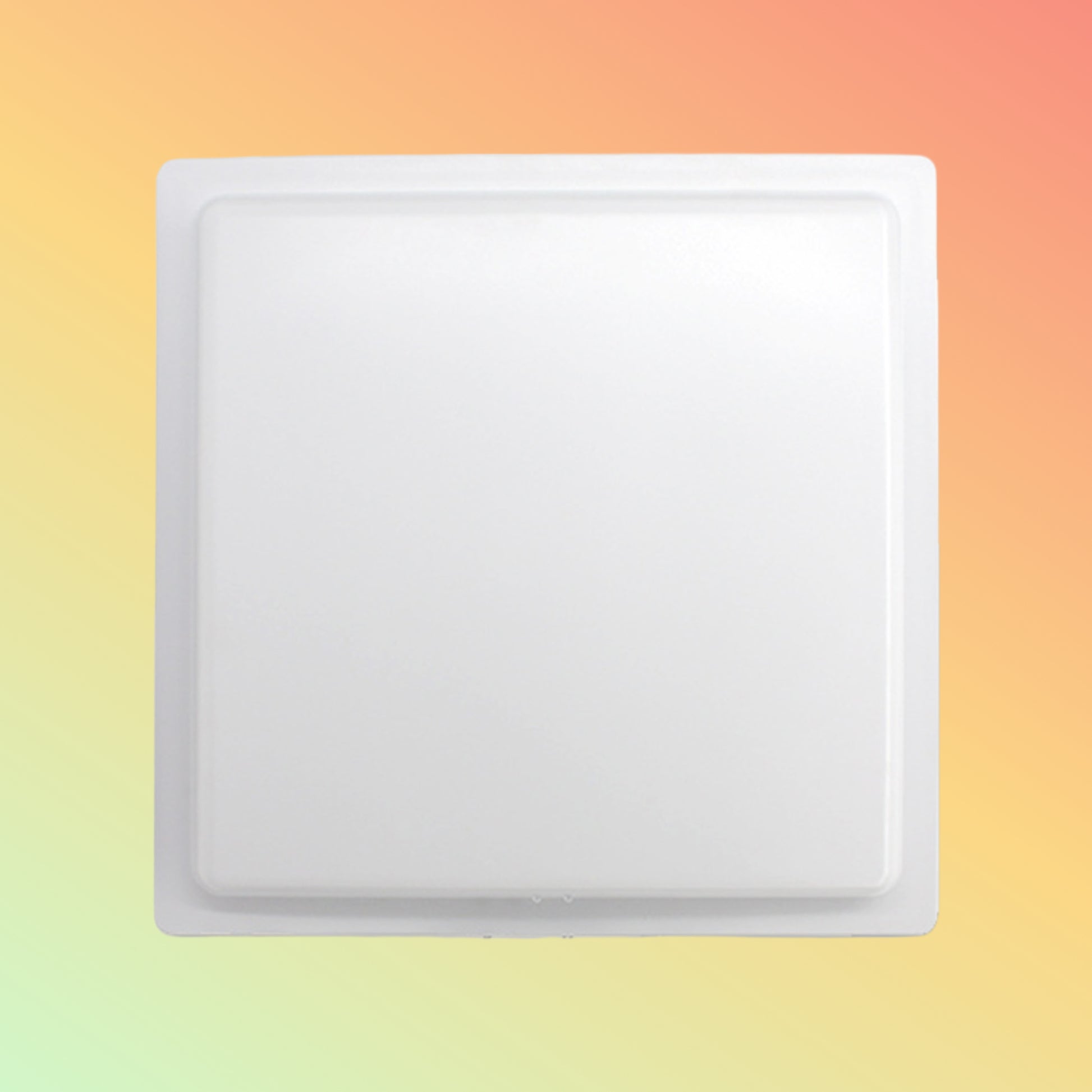

The Granding R16-8DB is a fully integrated long-range UHF RFID reader/writer. Its eight-dBi antenna array delivers reliable reads up to 15 meters. Designed for warehouses, yards, and industrial yards, it powers fast, hands-free data capture without extra peripherals.
Product Description
The R16-8DB combines a high-performance Impinj R2000 chipset with a rugged aluminum housing. Plug it into your network or a host PC via Ethernet. Its onboard reader supports simultaneous multi-tag reads at ultra-low power draw. With auto-tuning and anti-collision logic, it locks onto tags in noisy RF environments. Firmware updates and SDK libraries let you tailor scanning workflows.
Key Features
-
8 dBi integrated circular-polarized antenna
-
Impinj R2000 UHF RFID engine for long-range reads
-
Ethernet (PoE+) and RS-232 interfaces
-
Auto-tuning RF front end for stable performance
-
Anti-collision and noise-filtering logic
-
Field-upgradeable firmware via web UI
-
Mounting brackets for indoor/outdoor installations
-
IP65-rated enclosure for dust/water protection
-
LED status indicators for power, link, and read events
-
SDK support for Windows and Linux platforms
Specifications
-
Frequency: 865–928 MHz UHF band
-
Read Range: Up to 15 meters (tag-dependent)
-
Output Power: 0 dBm to +30 dBm, configurable
-
Interfaces: 10/100 Mbps Ethernet (PoE+), RS-232, GPIO In/Out
-
Antenna Gain: 8 dBi (circular polarization)
-
Dimensions: 210 × 210 × 50 mm
-
Weight: 1.2 kg
-
Ingress Rating: IP65 dustproof and water-resistant
-
Operating Temperature: −20 °C to 55 °C
-
Power Supply: PoE+ (802.3at) or 12 VDC, 2 A adapter
-
Certifications: CE, FCC, UL listed
Supported OS / Application / Industries
Operating Systems: Windows 10/11, Linux Ubuntu/Fedora.
Applications: Asset management, yard tracking, automated inventory, gate control.
Industries: Warehousing, logistics, manufacturing, agriculture, transportation, port operations.
Benefits & Compatibility
The R16-8DB’s long-range reads cut manual scans and speed stock counts. Its integrated antenna and PoE+ power eliminate extra cables. Anti-collision logic ensures accurate tag reads in dense environments. It plugs into your existing NEOTECH Centralized Access Management Platform or custom WMS via standard APIs for seamless data flow.
Purpose of Use
Deploy the R16-8DB to automate pallet tracking at receiving docks, monitor yard inventory, or secure high-value assets. It replaces handheld scanners and mobile carts, cutting labor costs and human error.
How to Use
-
Mount the reader at the desired location using included brackets.
-
Connect PoE+ Ethernet or 12 VDC power and network cable.
-
Access the web-based UI to configure RF settings and read zones.
-
Enroll tag lists and define triggers (e.g., GPIO events).
-
Integrate with your host system using the provided SDK or MQTT feed.
-
Monitor real-time reads via the dashboard and adjust as needed.
Packaging / Weight / Dimensions
-
Packaging: Heavy-duty export carton with foam inserts
-
Included: R16-8DB unit, PoE+ injector (if ordered), mounting kit, quick-start guide
-
Dimensions: 210 mm × 210 mm × 50 mm
-
Weight: 1.2 kg
Warranty & FAQs
Warranty: 1-year limited hardware warranty (extended plans available).
FAQs:
-
Q: Does it work outdoors?
A: Yes—IP65 enclosure handles rain and dust.
-
Q: Can I change read power remotely?
A: Yes—via web UI or SNMP commands.
-
Q: How many tags per second?
A: Up to 1 000 tags/sec depending on environment.
-
Q: Is SDK available?
A: Yes—Windows and Linux SDK with sample code.
Performance, Quality, Durability & Reliability
Engineered to industrial standards, the R16-8DB operates in −20 °C to 55 °C. Its aluminum housing and conformal-coated PCB resist corrosion. Built-in diagnostics monitor RF health and link quality, ensuring continuous uptime in mission-critical deployments.
