Track assets seamlessly with the Granding R16-7DB UHF reader/writer. 7 dBi antenna, 12 m range, plug-and-play. Order now from NEOTECH UAE!
Overview

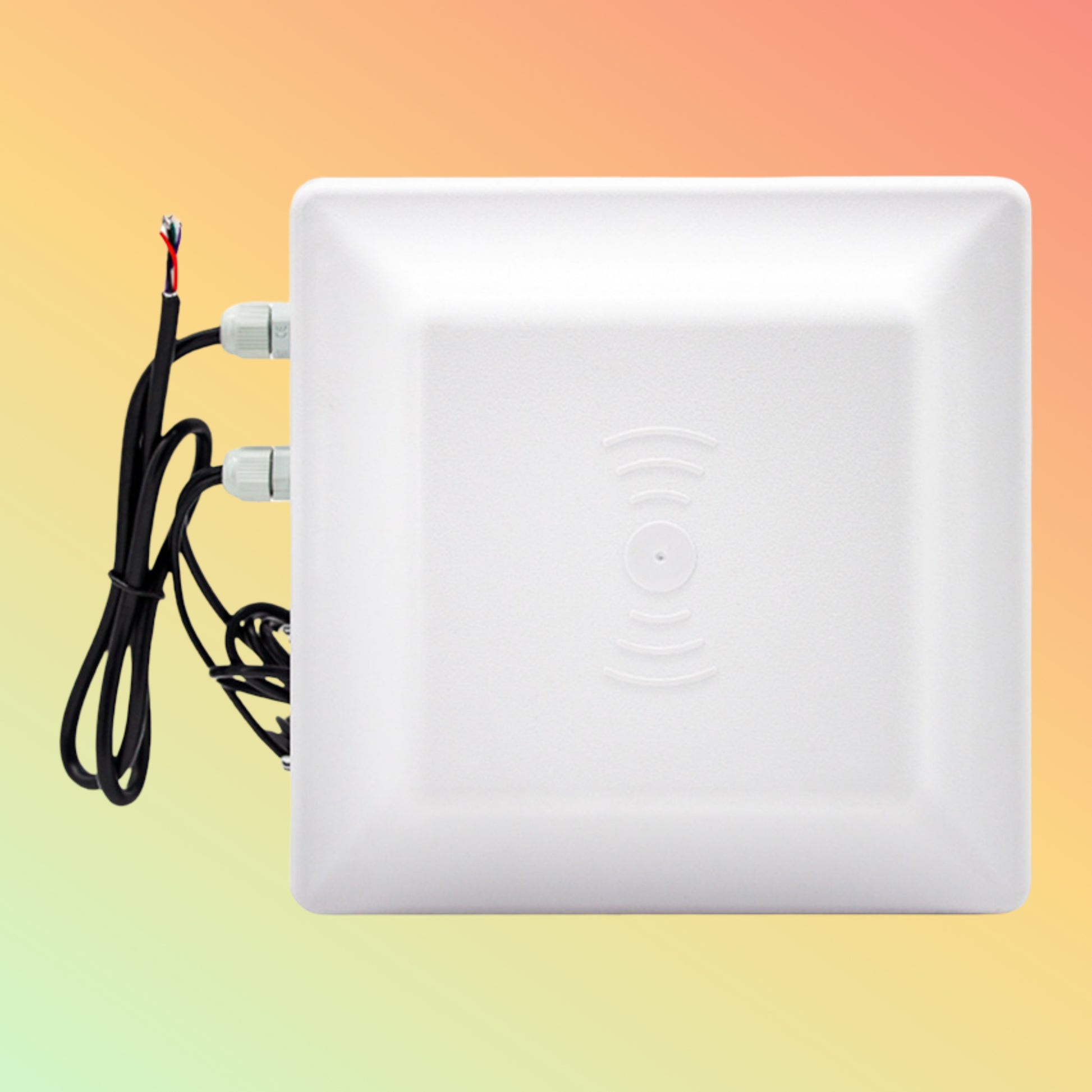

The Granding R16-7DB is a high-performance, integrated UHF RFID reader/writer with a 7 dBi circular-polarized antenna. It delivers reliable reads up to 12 meters. Ideal for dock doors, yards and industrial zones, it enables automated, hands-free tag capture without extra kit.
Product Description
Built around an industry-leading Impinj R2000 chipset, the R16-7DB packs reader, antenna and RF front-end into a weather-proof IP65 enclosure. It auto-tunes to variable conditions and filters RF noise. You get multi-tag anti-collision, configurable power up to +30 dBm, and a web-UI for firmware updates. PoE+ or 12 V input powers both reader and antenna.
Key Features
-
Integrated 7 dBi circular-polarized antenna
-
Impinj R2000 UHF reader engine for stable long-range reads
-
Configurable output: 0 dBm to +30 dBm
-
PoE+ (802.3at) and 12 VDC power options
-
Ethernet (10/100 Mbps) + RS-232 interfaces
-
Auto-tuning RF front-end and anti-collision logic
-
Field-upgradeable firmware via web interface
-
IP65-rated aluminum housing for indoor/outdoor use
-
LED indicators for power, network and read activity
-
SDK support for Windows and Linux development
Specifications
-
Frequency: 865–928 MHz UHF band
-
Read Range: Up to 12 m (tag- and environment-dependent)
-
Antenna Gain: 7 dBi, circular polarization
-
Power: PoE+ (802.3at) or 12 VDC @2 A
-
Interfaces: 10/100 Mbps Ethernet, RS-232, 2× GPIO
-
Dimensions: 210 × 210 × 48 mm
-
Weight: 1.1 kg
-
Operating Temp.: −20 °C to +55 °C
-
Ingress: IP65 dust/water protection
-
Certifications: CE, FCC, RoHS
Supported OS / Application / Industries
Operating Systems: Windows 10/11, Linux (Ubuntu, CentOS).
Applications: Yard management, dock door automation, asset tracking, gate control.
Industries: Warehousing, logistics, manufacturing, agriculture, transportation.
Benefits & Compatibility
-
Simplifies deployments with built-in antenna and PoE+ power
-
Anti-collision ensures clean multi-tag reads at speed
-
Auto-tune adapts to changing RF conditions for stability
-
Integrates seamlessly into NEOTECH’s Centralized Access Management Platform
-
Works alongside handhelds like the K40 Rugged PDA for hybrid workflows
Purpose of Use
Deploy the R16-7DB at choke points to capture pallets, containers and tagged assets as they pass. It replaces manual scanning and mobile carts, cutting labor and errors.
How to Use
-

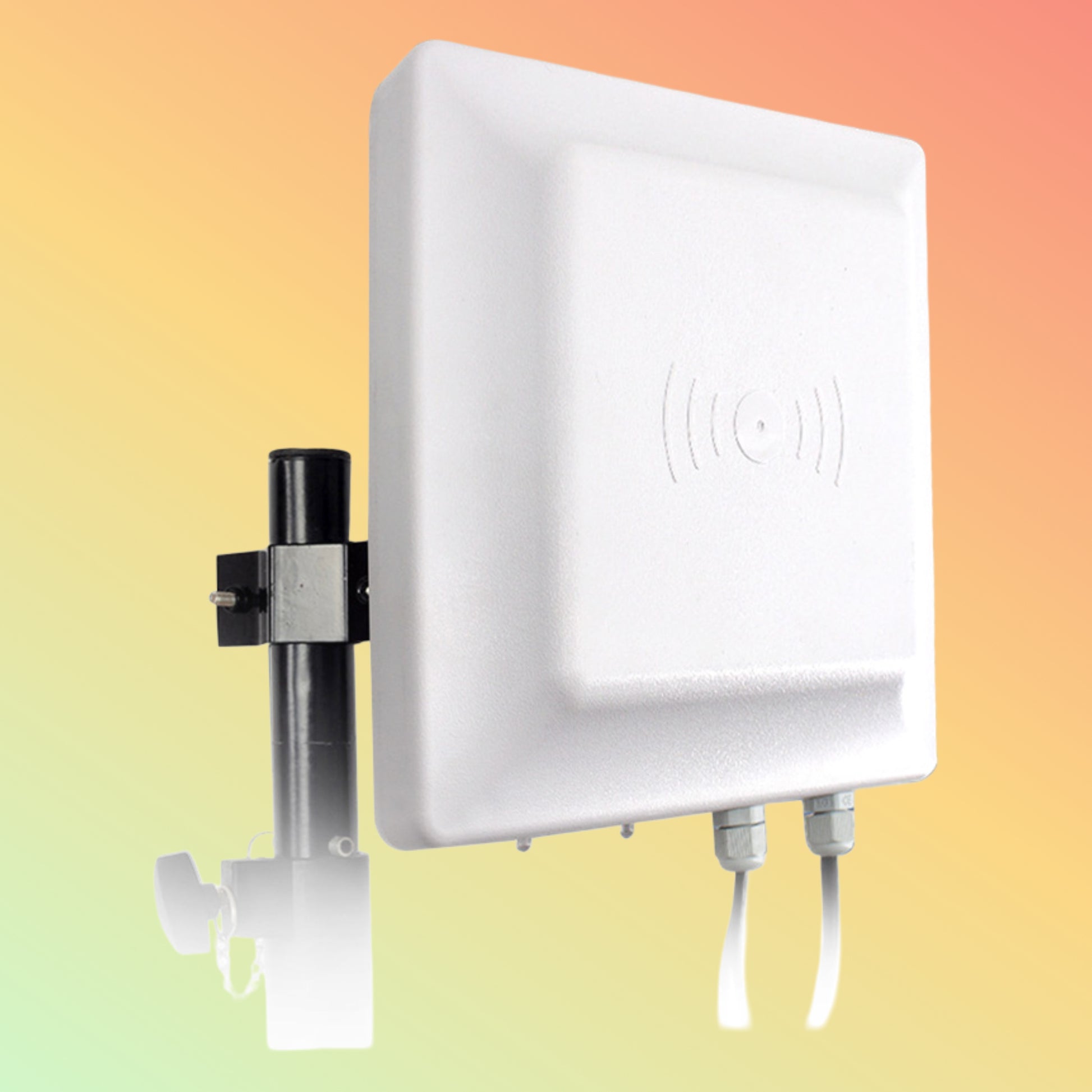

Mount via the included bracket near gates or dock doors.
-
Connect PoE+ Ethernet or 12 VDC power and network.
-
Access the reader’s web UI to set RF power and region.
-
Enroll tag list and configure triggers or GPIO outputs.
-
Integrate with host system via SDK or MQTT feed.
-
Monitor read stats and adjust settings as needed.
Packaging / Weight / Dimensions
-
Packaging: Export-grade carton with protective foam
-
Included: R16-7DB unit, PoE+ injector (optional), mounting kit, quick-start guide
-
Dimensions: 210 × 210 × 48 mm
-
Weight: 1.1 kg
Warranty & FAQs
Warranty: 1-year limited hardware warranty; extended plans available.
FAQs:
-
Outdoor use? Yes, IP65 rated for rain and dust.
-
Remote power control? Adjust power via web UI or SNMP.
-
Tag read rate? Up to 800 tags/sec in optimal conditions.
-
SDK availability? Yes, for Windows and Linux.
Performance, Quality, Durability & Reliability
Engineered to MIL-STD-810G shock standards, the R16-7DB runs in −20 °C to 55 °C. Its aluminum housing and conformal-coated PCB stand up to harsh environments. Built-in diagnostics alert you to RF anomalies for proactive maintenance.
Best Price Guarantee
NEOTECH matches or beats any qualified UAE quote on the Granding R16-7DB. Keep your project costs low with our price-beat promise.
Shop Today & Receive Your Delivery Across the UAE
Order the R16-7DB for priority dispatch from NEOTECH’s UAE warehouse. Enterprise rollouts get pre-configuration, logistics support, and on-site commissioning options.
Request for Customer Reviews and Testimonials
Deploying the R16-7DB in your operation? Share your experience. Your insights help peers choose confidently and guide NEOTECH enhancements.
After Sales Support
From installation to troubleshooting, NEOTECH’s RFID specialists are available via email, phone, or live chat. We provide firmware updates, config assistance, and field service.
Get in Touch
Need integration assistance, site survey, or volume pricing? Contact NEOTECH RFID experts for tailored guidance and rapid quotes.
Stock Availability
✔ In Stock – Ships from UAE warehouse
⏳ Limited units available; confirm availability for bulk orders before purchasing.
Disclaimer
Specifications subject to change without notice. Images are illustrative. Confirm final specs and pricing with NEOTECH sales prior to purchase.
