Granding C2 Smart Controller for 2-door secure access. Supports RFID & biometrics. Trusted for building security. Shop NEOTECH UAE now.
Overview
The Granding C2-Smart Access Controller is your compact solution for secure access control across two doors. Designed with advanced logic, real-time monitoring, and high compatibility, it connects seamlessly with RFID readers, biometric terminals, and keypad devices — all while delivering solid performance for commercial and residential security needs.
Built to scale with you, the C2-Smart ensures that managing users and entry points is simple, safe, and reliable.
Product Description

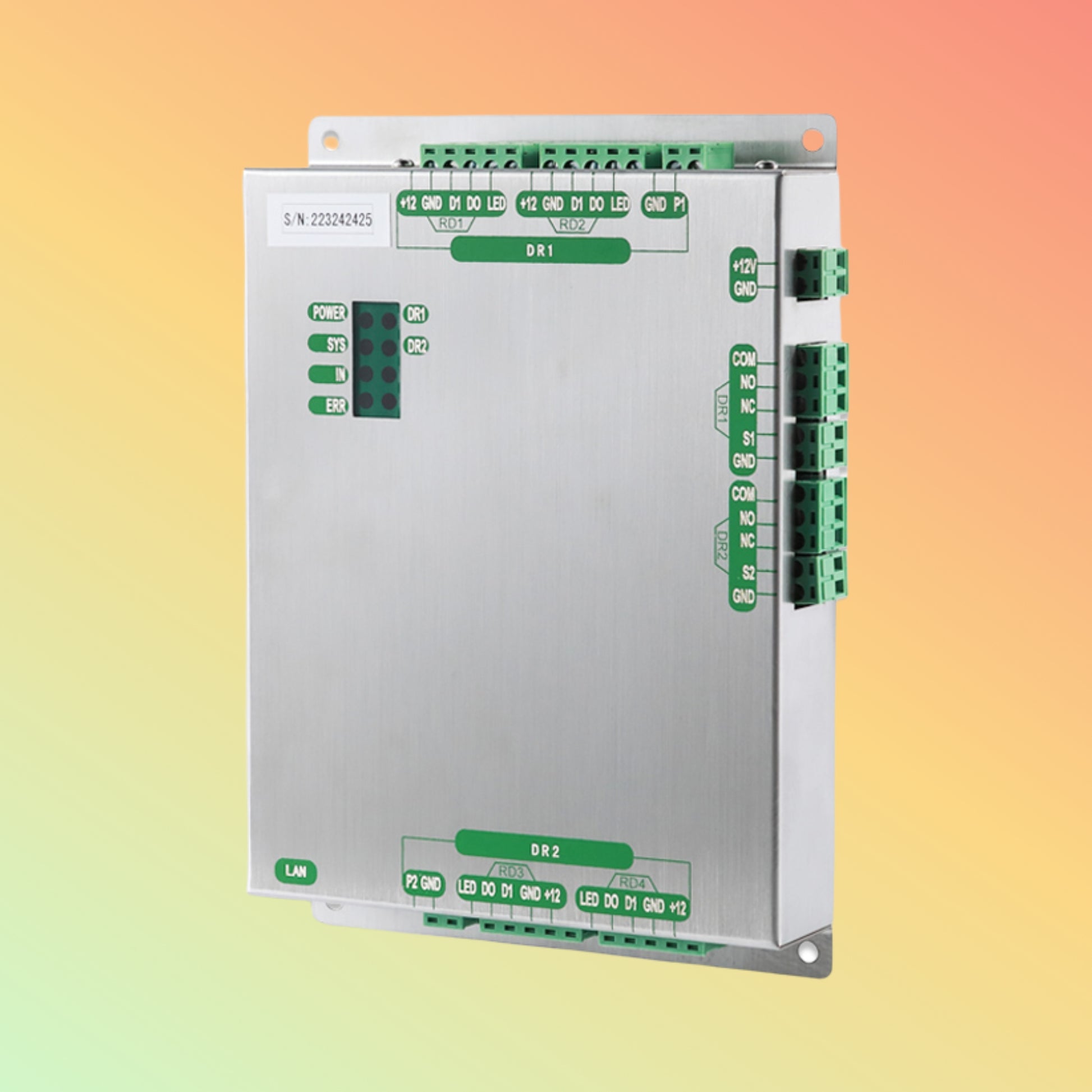

Compact yet powerful, the Granding C2-Smart Controller is a centralized 2-door access control unit that manages up to 4 reader terminals. It supports real-time communication via TCP/IP and RS485 and stores thousands of user records and logs for quick retrieval.
Compatible with all major access control technologies — including RFID cards, fingerprint readers, and PIN input — the C2 controller is ideal for small-to-mid-sized offices, apartment complexes, clinics, retail outlets, and more.
Key Features
-
Supports 2-door, 4-reader control
-
Works with RFID, fingerprint, and keypad terminals
-
Stores up to 30,000 cardholders and 100,000 logs
-
Communication via TCP/IP and RS485
-
Advanced functions: anti-passback, multi-door interlock
-
Supports door sensor, exit button, alarm input
-
Real-time event push and remote monitoring
-
Compatible with Granding WebServer & client software
-
Fire alarm link and time zone settings for flexible access rules
Specifications
-
Control Capacity: 2 Doors / 4 Readers
-
User Capacity: 30,000
-
Event Logs: 100,000
-
Supported Readers: Wiegand 26/34-bit (RFID, biometric, keypad)
-
Communication: TCP/IP, RS485
-
Inputs: Door Sensor, Exit Button, Fire Alarm
-
Outputs: Lock Relay, Alarm Output
-
Power Supply: DC 12V/3A
-
Dimensions: 260 × 210 × 60mm
-
Temperature Range: -10°C to +55°C
-
Mounting: Wall-mountable metal case
-
Software: WebServer or ZKAccess compatible
Supported OS / Application / Industries
Software Platforms:
Ideal Applications:
-
Retail Stores
-
Apartment Buildings
-
Healthcare Clinics
-
Warehouses
-
Educational Facilities
-
Server Rooms
-
Secure Zones in Offices
Benefits & Compatibility
-
Easy setup and installation for two doors
-
Ideal for mid-size security networks
-
Fully compatible with NEOTECH RFID readers, fingerprint scanners, and door locks
-
Real-time monitoring and user record tracking
-
Remote admin access via browser or networked software
Purpose of Use
Use the Granding C2 Smart Controller for:
-
Entry control to 2-door zones
-
Attendance monitoring via access terminals
-
Emergency door unlocking during fire alarm triggers
-
Anti-passback-controlled entries
-
Managing visitor/staff movement
How to Use
-
Mount the controller and connect readers, locks, and sensors
-
Link it to a network using TCP/IP or RS485
-
Log in to WebServer software
-
Register users and assign permissions
-
Monitor and manage access events in real time
Packaging / Weight / Dimensions
-
Box Includes: Granding C2-Smart Controller, Mount Kit, Power Adapter, User Guide
-
Dimensions: 260 × 210 × 60mm
-
Weight: Approx. 1.85kg
-
Packaging: Shockproof industrial-grade case
