Compact 1-door Granding C1 Smart Controller with RFID & PIN support. Easy install, robust security. Buy now at NEOTECH UAE!
Overview

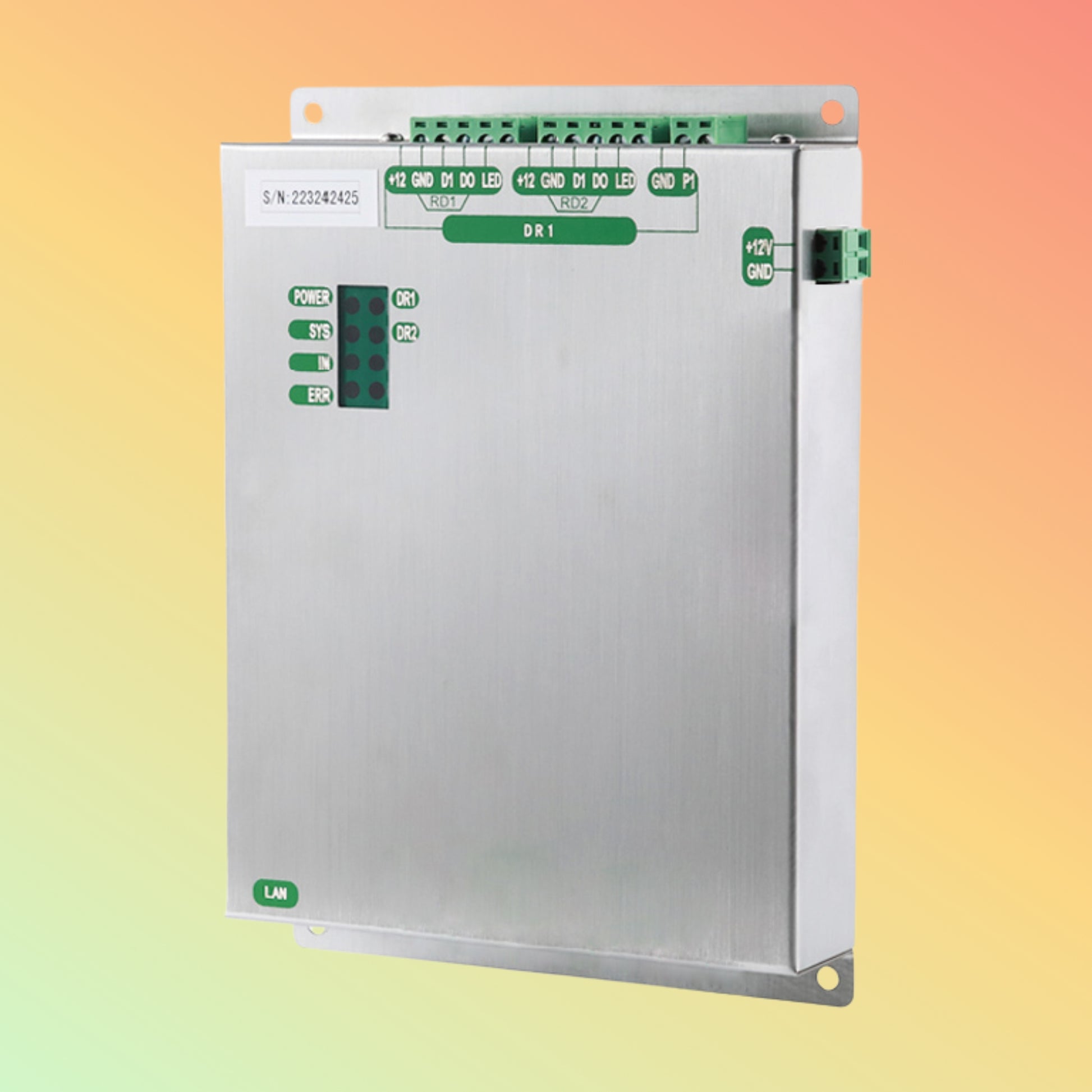

The Granding C1-Smart Access Controller delivers enterprise-grade security for a single door in a sleek, easy-to-install unit. Ideal for small offices, retail outlets, clinics, or home offices, it supports RFID cards and PIN pads for fast, contactless entry.
Product Description
This all-in-one 1-door controller combines Wiegand input, TCP/IP communication, and on-board log storage in a compact housing. Program up to 30,000 users, link with NEOTECH RFID readers or PIN keypads, and manage access via web or client software. Rugged enough for daily commercial use, it’s perfect when you need reliable security without extra bulk.
Key Features
-
Single-door / 2-reader support
-
Works with RFID cards & PIN keypads
-
TCP/IP + RS485 network connectivity
-
Stores 30,000 users & 100,000 events
-
Anti-passback & time-zone scheduling
-
Fire-alarm and exit-button inputs
-
WebServer & ZKTeco software compatible
-
Compact metal enclosure
Specifications
-
Doors / Readers: 1 Door / 2 Readers
-
User Capacity: 30,000
-
Log Capacity: 100,000 events
-
Reader Interface: Wiegand 26/34-bit
-
Comm Protocols: TCP/IP, RS485
-
Inputs: Door sensor, exit button, fire alarm
-
Outputs: Lock relay, alarm output
-
Power: DC 12V/3A
-
Size: 200 × 160 × 50 mm
-
Temp Range: -10 °C to +55 °C
Supported OS / Application / Industries
Software: Granding WebServer, ZKTeco ZKAccess, optional SDK
Use Cases:
-
Small offices & shops
-
Clinics & labs
-
Residential gates
-
Secure storerooms
-
Server room entry
Benefits & Compatibility
-
Plug-and-play setup for one-door zones
-
High compatibility with NEOTECH RFID readers and PIN keypads
-
Scales easily if you upgrade to 2- or 4-door systems
-
Remote management via browser or LAN
-
Ideal for tight budgets and fast deployments
Purpose of Use
Use the C1-Smart for:
-
Employee or visitor door entry
-
Time attendance logging
-
Emergency unlock on fire alarms
-
Integration with alarms and sensors
How to Use
-
Mount controller near your door lock
-
Connect card reader and PIN keypad
-
Link to network (TCP/IP or RS485)
-
Configure via WebServer or ZKAccess
-
Enroll users, set schedules, and go live
Packaging / Weight / Dimensions
-
Includes: C1 controller, power adapter, mounting kit, quick guide
-
Dimensions: 200 × 160 × 50 mm
-
Weight: ~1.2 kg
-
Box: Protective industrial-grade carton
After Sales Support
From setup to troubleshooting, our tech team is on call via email, phone or live chat. We’ve got your back post-purchase.
Get in Touch
Need help with your access control setup? Contact our security experts for personalized advice and fast replies.
Stock Availability
Stocks update daily. For urgent orders, confirm availability before checkout. Bulk requests may need 10–15 business days.
Disclaimer
All details are for general info and may change without notice. Images are illustrative. Verify specs and pricing with our sales team before ordering.
