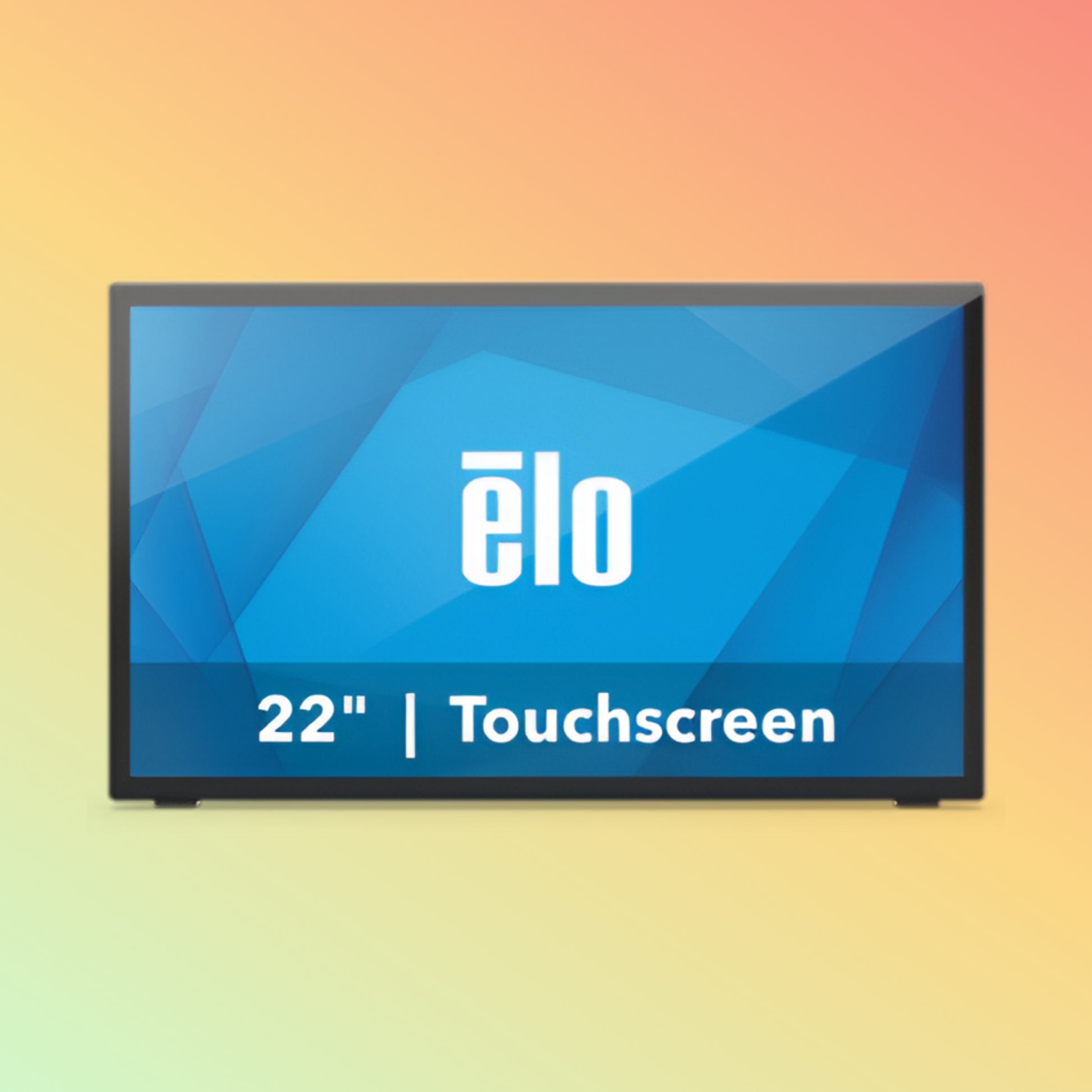

Elo 2270L: 22″ Full HD PCAP touch with ultra-thin bezel, IP54 front seal, USB-C video/touch/power. Sleek, resilient, and ready for retail or kiosks.
Overview
The Elo 2270L redefines interactive displays with its ultra-narrow bezel and 22″ Full HD PCAP touchscreen. Offering 10-point multi-touch, edge-to-edge glass, and an IP54-rated front, it delivers seamless, spill-proof engagement in retail, hospitality, and self-service environments.
Product Description
Built for nonstop commercial use, the Elo 2270L features optical bonding to boost contrast and eliminate internal glare. Its tempered, anti-glare front glass resists scratches and splashes, while the projected-capacitive sensor reads gloved or bare-finger inputs with sub-10 ms response. Connectivity is streamlined via a single USB-C cable carrying video, touch, and up to 60 W power delivery, with HDMI and DisplayPort options plus USB-A for peripherals. A VESA 100×100 mm mount allows flexible installation on walls, stands, or counters—because the bezel just got smaller, and the impact got bigger.
Key Features
-
Ultra-Thin Bezel – Maximizes screen real estate for immersive UX
-
22″ Full HD – 1920×1080 resolution at 250 cd/m² brightness
-
10-Point PCAP Touch – Fast, accurate multi-touch for any fingertip or glove
-
Optical Bonding – Enhanced contrast; no condensation or glare
-
IP54-Rated Front – Dust and splash protection for busy venues
-
Single-Cable USB-C – Video, touch, and power (60 W PD) in one link
Specifications
| Specification |
Details |
| Display |
22″ TFT LCD, 1920×1080 (16:9) |
| Touch Tech |
Projected-capacitive, 10-point multi-touch |
| Brightness |
250 cd/m² |
| Contrast Ratio |
1000:1 |
| Viewing Angles |
178° H × 178° V |
| Glass |
4 mm bonded, anti-glare tempered |
| Front Seal |
IP54 |
| Video Inputs |
USB-C ×1 (video/touch/PD), HDMI 1.4 ×1, DP 1.2 ×1 |
| USB Ports |
USB-A ×2 |
| Mounting |
VESA 100×100 mm |
| Dimensions (W×H×D) |
511 × 327 × 47 mm |
| Weight |
4.5 kg |
| Power |
100–240 VAC in; USB-C PD out up to 60 W |
| Operating Temp |
0 °C – 40 °C |
Supported OS / Applications / Industries
-
OS Compatibility: Windows, Linux, Android (HID-compliant)
-
Applications: POS terminals, self-service kiosks, digital signage, wayfinding
-
Industries: Retail, hospitality, healthcare, banking, transportation
Benefits & Compatibility
-
Rapid Deployment: USB-C single-cable cuts install time in half
-
Low Maintenance: Sealed front and bonded glass resist spills and dust
-
Enhanced Engagement: True multi-touch drives customer self-service adoption
-
Versatile Mounting: Standard VESA mount works on counters, walls, and stands
Purpose of Use
Perfect for:
-
Retail checkout and line-busting stations
-
Interactive menu ordering in cafés and restaurants
-
Self-check-in kiosks in clinics and hotels
-
Digital directories and information kiosks
How to Use
-
Mount via VESA 100×100 bracket or compatible stand.
-
Connect video/touch/power via USB-C or use HDMI/DP & USB-A.
-
Calibrate touch in your OS settings if needed.
-
Deploy your POS, kiosk, or signage application.
Packaging / Weight / Dimension
-
Includes: Elo 2270L monitor, power adapter, USB-C cable, HDMI cable, quick-start guide
-
Packed Weight: 6.0 kg
-
Box Size: 580 × 380 × 140 mm
Warranty and FAQs
FAQs:
-
Can I use portrait mode? Yes—supports 90° rotation via VESA mount.
-
Is it glove-compatible? Yes; PCAP reads gloved and bare-finger touches.
-
Does USB-C carry power? Yes, up to 60 W PD over the USB-C port.
Performance, Quality, Durability & Reliability
Tested for 24/7 operation, the Elo 2270L meets ISO 9241-307 for touch durability and MIL-STD-810G for shock. Optical bonding prevents condensation and ghost touches, ensuring consistent uptime in busy environments.
