Elo 2470L: 24″ Full HD PCAP touch with ultra-thin bezel, edge-to-edge glass, IP54 front seal, USB-C video/touch/power. Sleek, durable. Order today!
Overview

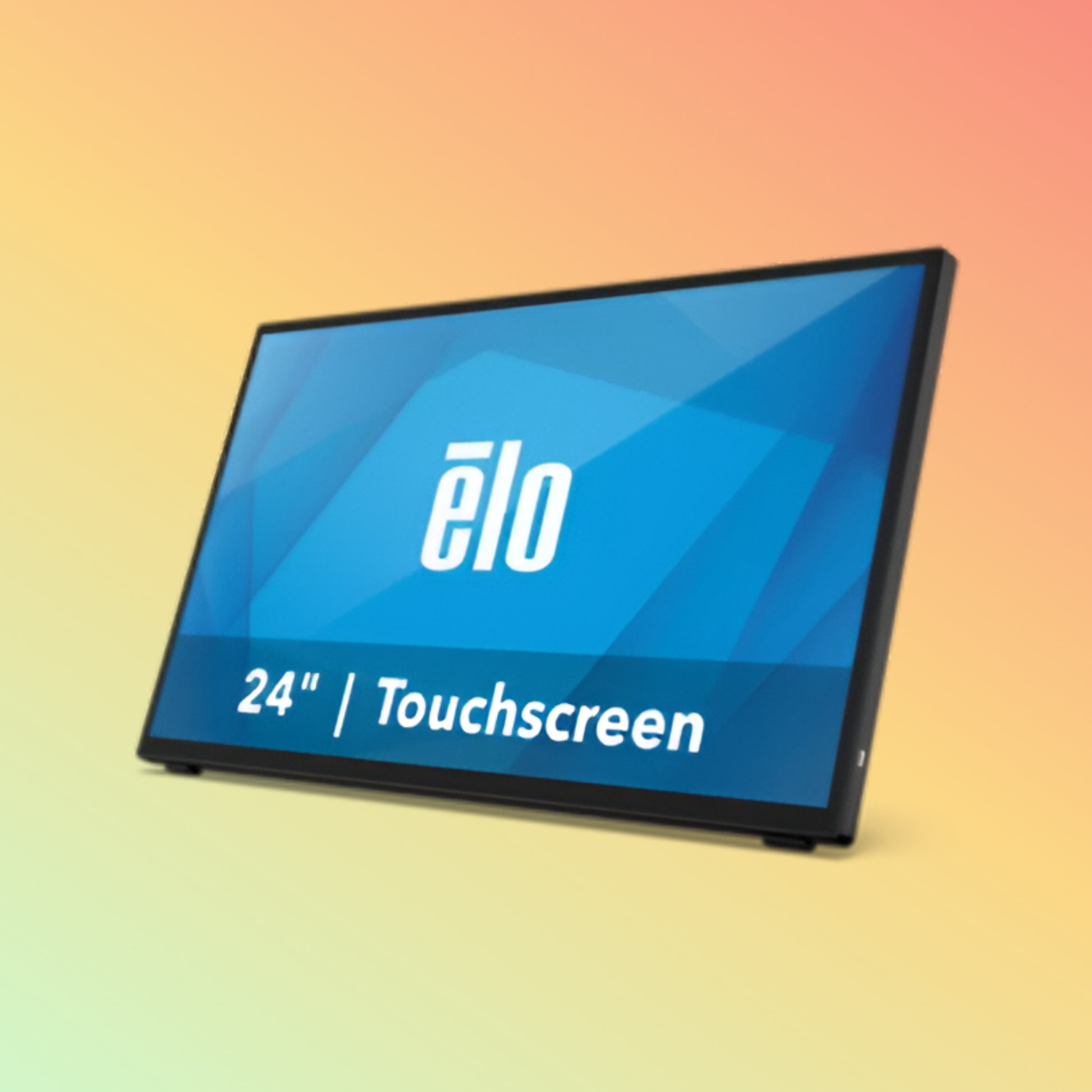

The Elo 2470L brings a stunning 24″ Full HD display with a bezel so slim you’ll barely notice it. With 10-point PCAP multi-touch, edge-to-edge bonded glass, and an IP54-sealed front, it’s built to resist spills and dust in retail, hospitality, kiosks, and collaborative spaces.
Product Description
Designed for round-the-clock use, the Elo 2470L fuses optical bonding for peak contrast with tempered, anti-glare glass that stands up to scratches and splashes. Its projected-capacitive sensor tracks gloved or bare-finger taps in under 10 ms. Plug in via a single USB-C cable for video, touch, and up to 60 W power delivery, or use HDMI/DisplayPort plus USB-A for legacy devices. Mount it anywhere using the VESA 100×100 mm pattern on walls, arms, or counters—deployment is a breeze.
Key Features
-
Ultra-Thin Bezel – Maximizes visible screen for immersive viewing
-
24″ Full HD – 1920×1080 resolution at 300 cd/m² brightness
-
10-Point PCAP Touch – Fast, precise multi-touch gestures
-
Optical Bonding – Boosts contrast; eliminates internal glare
-
IP54-Sealed Front – Shields against dust and water sprays
-
Single-Cable USB-C – Video, touch, and power (60 W PD) in one link
Specifications
| Spec |
Details |
| Display Size |
24″ diagonal TFT LCD |
| Resolution |
1920×1080 (16:9) |
| Touch Technology |
Projected-capacitive, 10-point |
| Brightness |
300 cd/m² |
| Contrast Ratio |
1000 : 1 |
| Viewing Angles |
178° horizontal/vertical |
| Glass |
4 mm bonded, anti-glare tempered |
| Front Seal |
IP54 |
| Video Inputs |
USB-C ×1 (video/touch/PD), HDMI ×1, DP ×1 |
| USB Ports |
USB-A ×2 |
| Mounting |
VESA 100×100 mm |
| Dimensions (W×H×D) |
556 × 341 × 46 mm |
| Weight |
5.4 kg |
| Power |
100–240 VAC in; USB-C PD out up to 60 W |
| Operating Temp |
0 °C – 40 °C |
Supported OS / Applications / Industries
-
OS: Windows, Linux, Android (HID-compliant)
-
Applications: POS terminals, self-service kiosks, digital signage, wayfinding
-
Industries: Retail, hospitality, healthcare, banking, corporate
Benefits & Compatibility
-
Quick Setup: USB-C single-cable simplifies installation
-
Robust Design: Bonded glass and sealed front cut maintenance calls
-
Engaging UX: True multi-touch drives smooth self-service
-
Flexible Mounting: Works with any VESA 100×100 mm bracket
Purpose of Use
Ideal for:
-
High-volume retail checkouts & line-busters
-
Self-order kiosks in cafés, restaurants & hotels
-
Patient check-in desks & digital signage in clinics
-
Interactive directories & meeting-room scheduling
How to Use
-
Mount via VESA 100×100 mm bracket or stand.
-
Connect USB-C for video, touch & power—or HDMI/DP + USB-A.
-
Calibrate touch in your OS settings if needed.
-
Launch your POS, kiosk UI, or signage app.
Packaging / Weight / Dimensions
-
Includes: Elo 2470L monitor, power adapter, USB-C cable, HDMI cable, quick-start guide
-
Packed Weight: 7.5 kg
-
Box Size: 680 × 440 × 140 mm
Warranty & FAQs
FAQs:
-
Can I mount it portrait? Yes—supports 90° rotation via VESA.
-
Does it work with gloves? Yes; PCAP reads through gloves.
-
Is USB-C powered? Yes—up to 60 W PD.
Performance, Quality, Durability & Reliability
Engineered for 24/7 operation, the Elo 2470L meets ISO 9241-307 for touch durability and MIL-STD-810G for shock. Optical bonding prevents condensation and ghost touches for consistent uptime.
Best Price Guarantee
Spotted a lower UAE price on the Elo 2470L? We’ll match it—guaranteed.
Shop Today & Delivery Across the UAE
Next-day shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates. Secure checkout and live tracking ensure on-time delivery.
Request Customer Reviews & Testimonials
Deploying the Elo 2470L? Share your experience to guide peers. Submit a review
After-Sales Support
From setup tips to firmware updates, our Elo specialists are on call via email, phone, or live chat—keeping your touchscreen fully operational.
Get in Touch
Need deployment advice or volume quotes? Contact our Elo experts for tailored solutions and rapid responses.
Stock Availability
Stocks update daily. For urgent orders, confirm availability with our sales team before checkout. Custom bezel or glass options may require 7–10 business days.
Disclaimer
All specifications and pricing are for general informational purposes and subject to change without notice. Product images are illustrative. Verify final details with our sales team before ordering.
