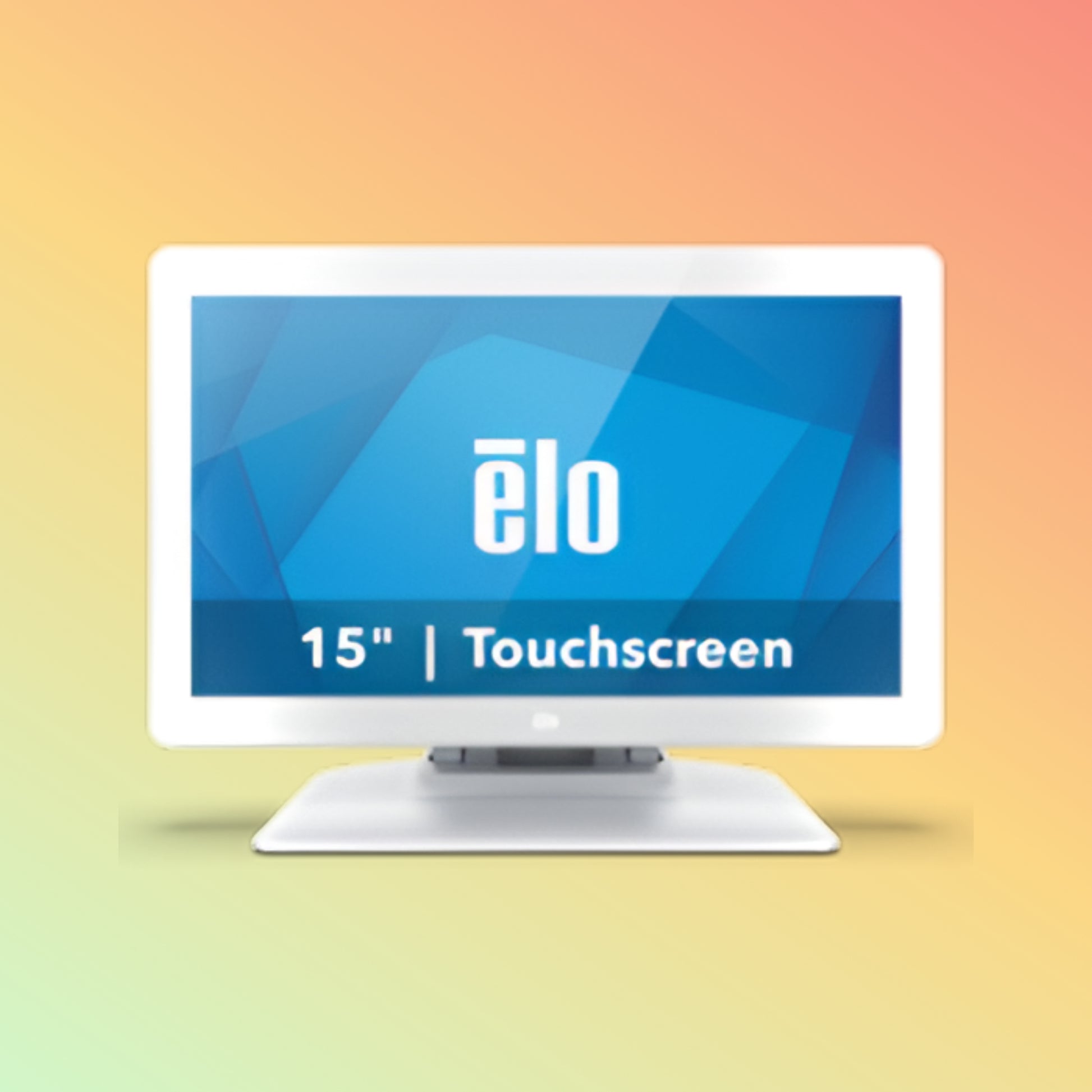

Elo 1502LM: 15″ Full HD DICOM-calibrated PCAP touch with bonded glass, IP54 front, USB-C video/touch/power. Durable, hygienic for clinical settings.
Overview
The Elo 1502LM is a 15″ Full HD, DICOM-calibrated medical-grade touchscreen designed for point-of-care and diagnostic environments. Its edge-to-edge bonded glass and IP54-sealed front withstand rigorous cleaning protocols, while 10-point PCAP touch ensures responsive interaction—even with gloves.
Product Description
Built for 24/7 clinical use, the Elo 1502LM combines factory DICOM® Part 14 grayscale calibration with a lightning-fast projected-capacitive touch sensor. A uniform 300 cd/m² backlight and 1000:1 contrast deliver crisp imaging, and the bonded anti-glare glass defends against fluids and disinfectants. One USB-C cable carries video, touch data, and up to 60 W power; legacy interfaces include HDMI and USB-A. Standard VESA 75×75 mm mounting fits medical carts, arms, and desktops.
Key Features
-
DICOM® Part 14 Calibration – Consistent grayscale accuracy for diagnostics
-
15″ Full HD Display – 1920×1080 resolution at 300 cd/m² brightness
-
10-Point PCAP Touch – Responsive gloved or bare-finger input
-
Bonded Anti-Glare Glass – Smooth, easy-clean surface for infection control
-
IP54-Sealed Front – Protection against splashes and disinfectant sprays
-
USB-C Single-Cable – Video, touch data, and power (60 W PD) in one link
Specifications
| Specification |
Details |
| Display Size |
15″ diagonal TFT LCD |
| Resolution |
1920×1080 (16:9) |
| DICOM® Calibration |
Part 14 factory-set, 10-bit grayscale |
| Brightness |
300 cd/m² |
| Contrast Ratio |
1000 :1 |
| Touch Tech |
Projected-capacitive, 10-point |
| Glass |
4 mm bonded, anti-glare |
| Front Seal |
IP54 |
| Video Inputs |
USB-C ×1 (video/touch/power), HDMI 2.0 ×1 |
| USB Ports |
USB-A ×2 |
| Mounting |
VESA 75×75 mm |
| Dimensions (W×H×D) |
370 × 280 × 45 mm |
| Weight |
2.8 kg |
| Power |
100–240 VAC in; USB-C PD out up to 60 W |
| Operating Temp |
0 °C – 40 °C |
Supported OS / Applications / Industries
-
OS: Windows, Linux, Android (HID-compliant)
-
Applications: PACS review, EMR charting, bedside diagnostics, tele-medicine
-
Industries: Hospitals, clinics, imaging centers, labs
Benefits & Compatibility
-
Clinical Confidence: DICOM®-calibrated display ensures diagnostic consistency
-
Hygienic Design: Smooth glass and sealed front simplify disinfection
-
Streamlined Cabling: USB-C single-cable for video, touch, and power
-
Flexible Mounting: Fits medical arms, carts, and desktop stands
Purpose of Use
Ideal for:
-
Radiology and PACS image review
-
Bedside ultrasound and ultrasound guidance
-
Tele-medicine consultations
-
Electronic charting and order entry
How to Use
-
Mount on a VESA 75×75 mm arm or stand.
-
Connect USB-C for video, touch, and power.
-
Calibrate per hospital protocol using built-in utility.
-
Launch your diagnostic or charting application.
Packaging / Weight / Dimensions
-
Includes: Elo 1502LM monitor, power adapter, USB-C cable, HDMI cable, quick-start guide
-
Packed Weight: 4.2 kg
-
Box Size: 460 × 330 × 120 mm
Warranty and FAQs
FAQs:
-
How often to recalibrate? Recommended monthly or after firmware updates.
-
Can it withstand disinfectants? Yes—glass resists hospital-grade cleaners.
-
Does USB-C carry power? Yes, up to 60 W PD.
Performance, Quality, Durability & Reliability
-
Backlight Uniformity: ± 5 %
-
Touch Durability: ISO 9241-307 certified for 24/7 use
-
Ingress Protection: IP54 front; IK06 impact rating
