Elo 2210L: 22″ Full HD PCAP touch, edge-to-edge bonded glass, IP54 front seal, USB-C video/touch/power. Sleek, durable for POS & kiosks. Order today!
Overview

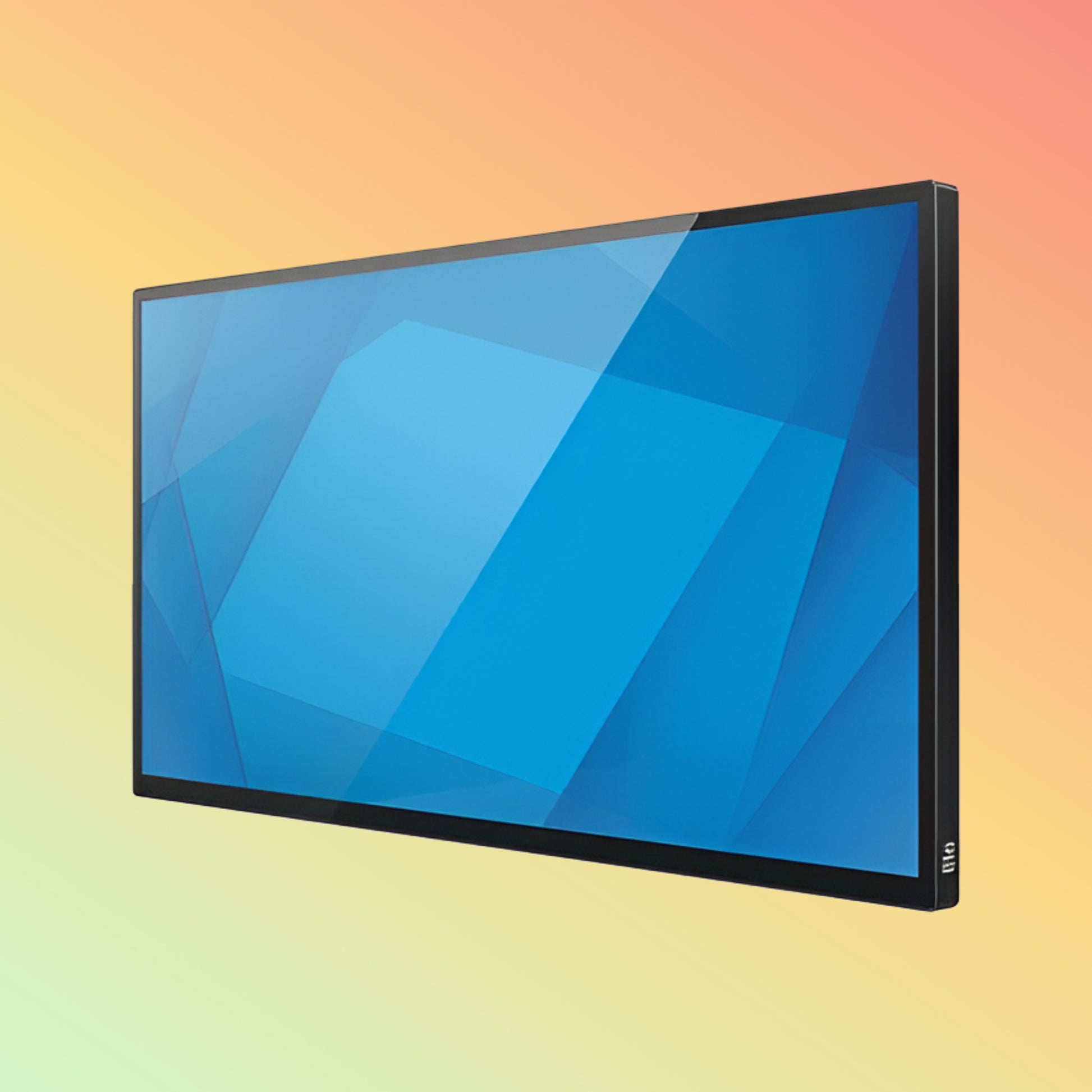

The Elo 2210L delivers a vibrant 22″ Full HD touchscreen in a razor-thin bezel. Its luxury bonded glass and IP54-sealed front ensure spill-proof, glove-friendly interaction—perfect for high-traffic retail checkouts, self-service kiosks, and hospitality stations.
Product Description
Built for 24/7 commercial use, the Elo 2210L combines optical bonding for superior contrast with tempered anti-glare glass that resists scratches and liquids. The projected-capacitive sensor supports up to 10 simultaneous touches with sub-10 ms responsiveness. Connect via a single USB-C cable for video, touch, and up to 60 W power delivery—or choose HDMI/DisplayPort plus USB-A for legacy devices. A standard VESA 100×100 mm mount lets you deploy it on walls, arms, or counters.
Key Features
-
22″ Full HD Display – 1920×1080 resolution at 300 cd/m²
-
10-Point PCAP Touch – Fast, precise multi-finger gestures
-
Ultra-Thin Bezel – Maximum viewable area, modern look
-
Optical Bonding – Enhanced contrast, no internal glare
-
IP54-Sealed Front – Dust and splash protection
-
USB-C Single-Cable – Video, touch & power (60 W PD)
Specifications
| Specification |
Details |
| Display Size |
22″ TFT LCD, 16:9 |
| Resolution |
1920×1080 |
| Touch Technology |
Projected-capacitive, 10-point |
| Brightness |
300 cd/m² |
| Contrast Ratio |
1000:1 |
| Viewing Angles |
178° H × 178° V |
| Glass |
4 mm bonded, anti-glare tempered |
| Front Seal |
IP54 |
| Video Inputs |
USB-C ×1 (video/touch/PD), HDMI ×1, DP ×1 |
| USB Ports |
USB-A ×2 |
| Mounting |
VESA 100×100 mm |
| Dimensions |
511 × 327 × 47 mm (W×H×D) |
| Weight |
4.5 kg |
| Power |
100–240 VAC in; USB-C PD out up to 60 W |
| Operating Temp |
0 °C – 40 °C |
Supported OS / Applications / Industries
-
OS: Windows, Linux, Android (HID-compliant)
-
Applications: POS terminals, self-service kiosks, digital signage, wayfinding
-
Industries: Retail, hospitality, healthcare, banking, corporate environments
Benefits & Compatibility
-
Streamlined Deployment: USB-C single-cable reduces clutter and speeds setup
-
Durable Design: Bonded glass and sealed front cut maintenance calls
-
Engaging UX: True PCAP multi-touch drives self-service adoption
-
Flexible Integration: VESA mount and versatile I/O fit any installation
Purpose of Use
Ideal for:
-
High-volume retail checkouts and line-busting
-
Self-order kiosks in cafés, restaurants & hotels
-
Patient check-in desks in clinics & hospitals
-
Interactive directories and meeting-room booking screens
How to Use
-
Mount via VESA 100×100 mm bracket or tabletop stand.
-
Connect video & touch via USB-C—or HDMI/DP plus USB-A.
-
Calibrate touch through your operating system if needed.
-
Launch your POS, kiosk, or signage application.
Packaging / Weight / Dimensions
-
Includes: Elo 2210L monitor, power adapter, USB-C cable, HDMI cable, quick-start guide
-
Packed Weight: 6.0 kg
-
Box Size: 580 × 380 × 140 mm
Warranty and FAQs
FAQs:
-
Can I use portrait orientation? Yes—supports 90° rotation via VESA mount.
-
Is it glove-compatible? Yes—PCAP reads through gloves.
-
Does USB-C deliver power? Yes—up to 60 W PD.
Performance, Quality, Durability & Reliability
Engineered for continuous operation, the Elo 2210L meets ISO 9241-307 for touch durability and MIL-STD-810G for shock. Optical bonding prevents condensation and ghost touches, ensuring reliable performance day after day.
Best Price Guarantee
Found a lower UAE price for the Elo 2210L? We’ll match it—guaranteed.
Shop Today & Delivery Across the UAE
Next-day shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates. Secure checkout and live tracking ensure on-time delivery.
Request for Customer Reviews and Testimonials
Deploying the Elo 2210L? Share your experience to help others decide. Submit a review
After Sales Support
From setup assistance to firmware updates, our Elo specialists are on call via email, phone, or live chat—keeping your touchscreen fully operational.
Get in Touch
Need deployment advice or volume quotes? Contact our Elo experts for tailored solutions and rapid responses.
Stock Availability
Stocks update daily. For urgent orders, confirm availability with our sales team before checkout. Custom bezel or glass options may require 7–10 business days.
Disclaimer
All specifications and pricing are for general informational purposes and subject to change without notice. Product images are illustrative. Verify final details with our sales team before ordering.
