Extend your Elo I‑Series touchscreen with USB‑C, serial, and Ethernet ports. Easy install. Optimized for Android 10.1″ & 15.6″ systems.
Overview

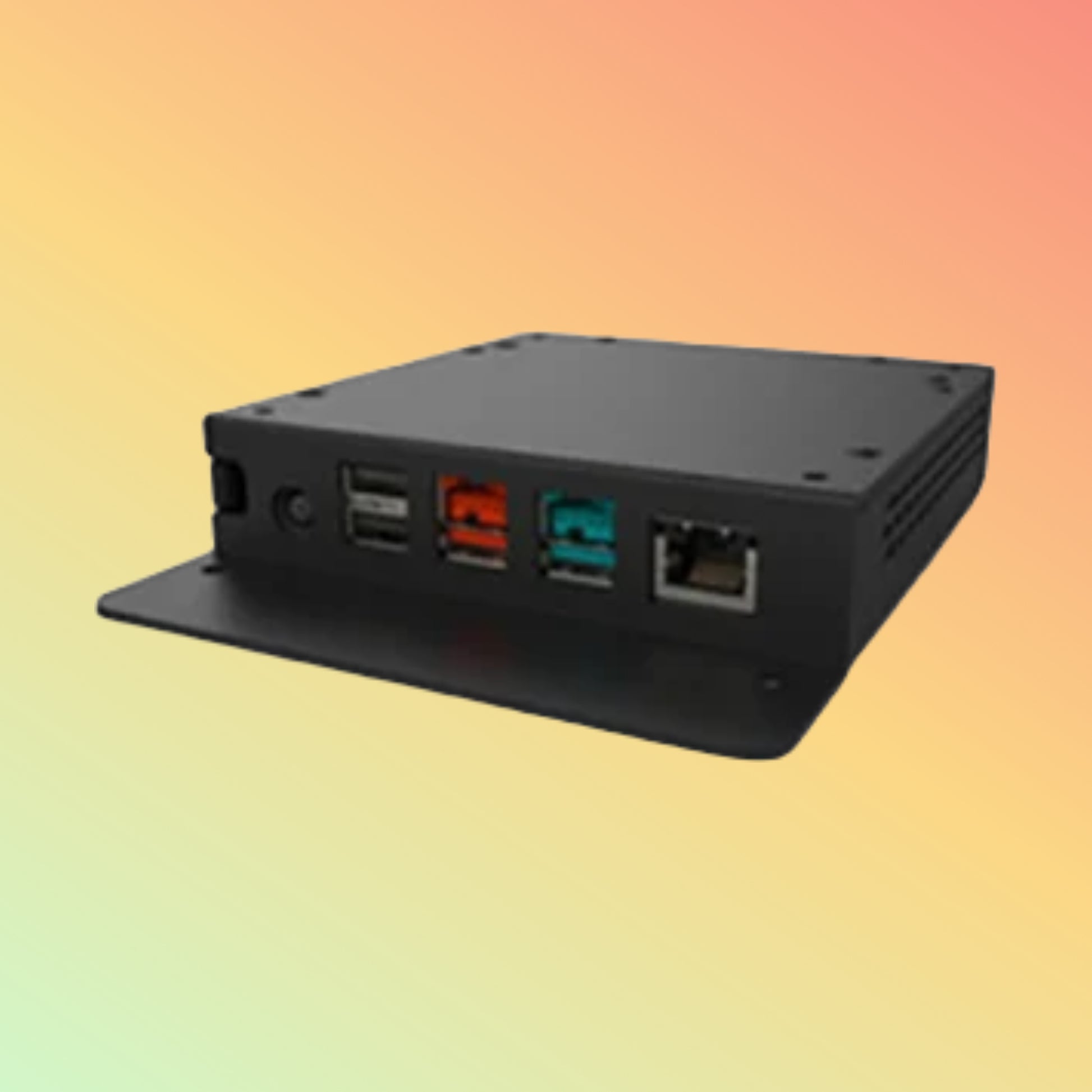

The Elo Touch Expansion Module for I‑Series Android adds versatile connectivity to 10.1″ and 15.6″ Elo I‑Series panel computers. It delivers additional USB‑C, serial, and Gigabit Ethernet ports in a compact, tool‑free enclosure that seamlessly integrates behind your display.
Product Description
Specifically engineered for Elo I‑Series Android devices, this module plugs directly into the display’s expansion slot. It supplies two USB‑C ports (5 Gbps), one RS‑232 serial port, and one Gigabit RJ‑45 LAN jack. No external power is required—everything is bus‑powered. The module’s robust metal housing and vibration‑resistant connectors ensure a stable connection in retail kiosks, hospitality terminals, and industrial control stations.
Key Features
-
USB‑C Ports: 2× high‑speed (5 Gbps) for peripherals
-
Serial Port: 1× RS‑232 DB‑9 for legacy equipment
-
Ethernet: 1× Gigabit RJ‑45 for wired LAN
-
Tool‑Free Installation: Quick‑attach bracket for behind-display mount
-
Bus‑Powered: No extra power cables needed
-
Compatibility: Elo I‑Series 10.1″ & 15.6″ Android models
-
Rugged Housing: Metal enclosure, IP30 rated
-
Plug‑and‑Play: Drivers auto-install on Android 8–11
Specifications
| Attribute |
Details |
| USB Ports |
2× USB‑C (5 Gbps) |
| Serial Port |
1× RS‑232 DB‑9 |
| Ethernet |
1× 10/100/1000 Mbps RJ‑45 |
| Power |
Bus‑powered from host device |
| OS Support |
Android 8.0 – 11.0 |
| Mounting |
Tool‑less bracket, VESA‑compatible |
| Enclosure Rating |
Metal, IP30 |
| Dimensions (WxDxH) |
110×60×25 mm |
| Weight |
0.2 kg |
Supported Systems / Applications / Industries
-
Compatible Elo I‑Series Models: Android 10.1″ and 15.6″ panel computers
-
Applications: Retail POS, self‑service kiosks, digital signage, industrial HMI
-
Industries: Retail, hospitality, manufacturing, healthcare, education
Benefits & Compatibility
-
Expanded I/O: Connect printers, scanners, keyboards, scales, and legacy devices.
-
Seamless Integration: Elo‑certified ensures full compatibility and warranty compliance.
-
Space‑Saving: Installs neatly behind the display, no extra desk space required.
-
Durable Construction: Metal housing and locking connectors prevent accidental disconnection.
-
Future‑Ready: Compatible with Android security updates and Elo’s lifecycle policy.
Purpose of Use
Ideal for installations that require more ports than the base Elo I‑Series provides. Use it to add network connectivity, legacy serial devices, and USB‑C peripherals without bulky hubs or external boxes.
How to Use
-
Power off the Elo I‑Series panel.
-
Attach the tool‑free mounting bracket to the display’s expansion slot.
-
Plug the module’s ribbon cable into the host connector.
-
Secure the module to the bracket.
-
Power on—the module ports become immediately available.
Packaging / Weight / Dimensions
-
Includes: Expansion module, tool‑free bracket, quick‑start guide
-
Module Size: 110×60×25 mm
-
Shipping Weight: 0.3 kg
-
Packaging: Recyclable box with foam insert
Warranty & FAQs
Warranty:
FAQs:
Q: Does it work with Elo Windows I‑Series?
A: No, this module is only compatible with Android I‑Series models.
Q: Are drivers required?
A: Android auto-detects and installs the necessary drivers on version 8.0 and above.
Q: Can I install multiple modules?
A: Each display has only one expansion slot—one module per panel.
Performance, Quality, Durability & Reliability
Tested to Elo’s industrial standards, the module withstands continuous operation in 24/7 kiosk and POS environments. Its metal enclosure and secure connectors resist vibration and repeated use.
Best Price Guarantee
NEOTECH offers the most competitive UAE pricing on Elo expansion modules. Find a lower price? We’ll match or beat it, plus include local support.
Shop Today & Receive Your Delivery Across the UAE
Order before 2 PM UAE time for same‑day processing. Delivery in 2–3 days across Dubai, Abu Dhabi, Sharjah, and all Emirates with secure packaging and tracking.
Request for Customer Reviews and Testimonials
Installed the Elo I‑Series expansion module? Share your experience to help others upgrade their systems.
After Sales Support
NEOTECH’s UAE‑based team provides:
-
Live chat and phone assistance
-
Firmware and driver updates
-
RMA and warranty processing
-
On‑site installation guidance
Get in Touch
Need help expanding your Elo touchscreen solution? Contact our experts for fast, personalized recommendations and demos.
Stock Availability
In stock now. Limited quantities—order today to upgrade your Elo systems without delay.
Disclaimer
Specifications subject to change without notice. Verify compatibility with your specific Elo I‑Series model before purchase.
