Overview

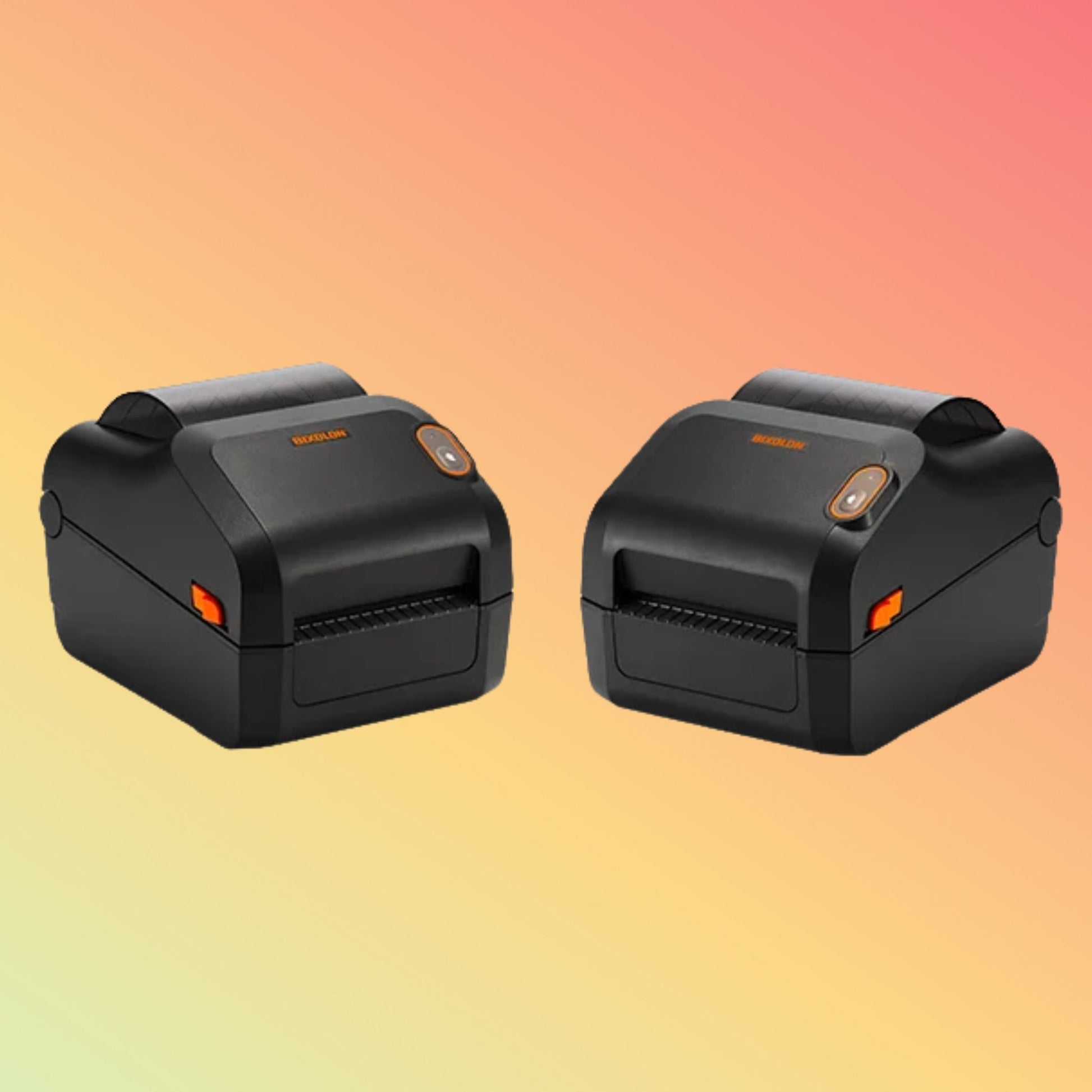

The XD3 Series delivers dependable, high-speed label printing for industrial settings. Choose between direct-thermal (XD3-40) or thermal-transfer (XD3-40t) modes to suit your workflow. With tool-free media loading and a rugged metal frame, these printers keep your lines moving without costly downtime.
Product Description
Built for around-the-clock operation, each XD3 model handles rolls up to 104 mm wide and runs labels up to 4 000 mm long. The XD3-40 (direct-thermal) offers simplicity and speed, while the XD3-40t (thermal-transfer) adds ribbon support and an optional 300 dpi print head for fine graphics. Standard USB, Serial and Gigabit Ethernet connections cover most setups; optional Wi-Fi and Bluetooth modules free you from cables. Backed by 512 MB SDRAM and 512 MB flash, these printers devour large batch jobs without hiccups.
Key Features
-
Dual Variants: XD3-40 (direct-thermal) & XD3-40t (thermal-transfer)
-
Tool-Free Loading: Drop-in labels and ribbons in seconds
-
Flexible Resolution: 203 dpi standard; 300 dpi option (XD3-40t)
-
High Throughput: Up to 8 ips (203 mm/s) for fast label output
-
Rugged Chassis: Metal housing resists dust, shocks and vibration
-
Universal I/O: USB, Serial, Gigabit Ethernet; optional Wi-Fi/Bluetooth
-
Large Memory: 512 MB SDRAM, 512 MB flash for complex jobs
Specifications
| Model |
Print Method |
Resolution |
Speed |
Media Width |
Memory |
| XD3-40 |
Direct Thermal |
203 dpi |
Up to 8 ips |
104 mm |
512 MB SDRAM, Flash |
| XD3-40t |
Thermal-Transfer |
203 dpi (300 dpi opt.) |
Up to 8 ips |
104 mm |
512 MB SDRAM, Flash |
-
Max Print Length: 4 000 mm
-
Media Roll Ø: ≤ 203 mm; Core Ø 38.1–76.2 mm
-
Power: 100–240 V AC adapter
-
Dimensions (W×D×H): 269 × 490 × 324 mm
-
Weight: ~14 kg
Supported OS / Applications / Industries
-
OS: Windows, macOS, Linux (CUPS)
-
Software: BPL-Z™, BPL-E™, SLCS™, BarTender® UltraLite
-
Use Cases: Shipping labels, inventory tags, asset tracking, compliance stickers
-
Industries: Warehousing, manufacturing, logistics, retail, healthcare, government
Benefits & Compatibility
-
Streamlines labeling with direct-thermal or ribbon-based workflows
-
Integrates with ERP/WMS via standard drivers or API
-
Tool-free maintenance minimizes operator intervention
-
Scalable deployment—add wireless modules or accessories as needed
Purpose of Use
Ideal for on-demand printing of shipping tags, product labels, asset barcodes and compliance warnings in high-volume industrial environments.
How to Use
-
Mount on bench or rack.
-
Drop in label roll (+ ribbon for XD3-40t); close cover.
-
Connect via USB/Ethernet or add Wi-Fi/Bluetooth.
-
Calibrate media via the front panel.
-
Send jobs from your host software; peel or cutter optional.
Pro Tip: Keep spare media loaded in a standby unit and swap instantly to eliminate wait time.
Packaging / Weight / Dimensions
-
Includes: XD3 Series printer, AC adapter, power cord, starter labels (and ribbon for XD3-40t), quick-start guide
-
Box Dimensions: 580 × 380 × 420 mm
-
Net Weight: ~14 kg
Warranty and FAQs
Warranty: 1 year parts & labor coverage.
FAQs:
-
Can I upgrade to 300 dpi? Yes—order the 300 dpi printhead for XD3-40t.
-
Does it support peel mode? Add the optional peeler accessory.
-
How often to clean the printhead? After every 30 km of media for best performance.
Performance, Quality, Durability, and Reliability
Rated for 25 km of media; cutter life of 500 000 cycles. Operates in 5 °C–40 °C. Sealed electronics and metal housing ensure uptime in dusty, challenging environments.
