Explore Bixolon XD5 Series: direct-thermal, thermal-transfer & RFID label printers. Rugged 4″ design, up to 8 ips, touchscreen. Shop at NEOTECH UAE!
Overview

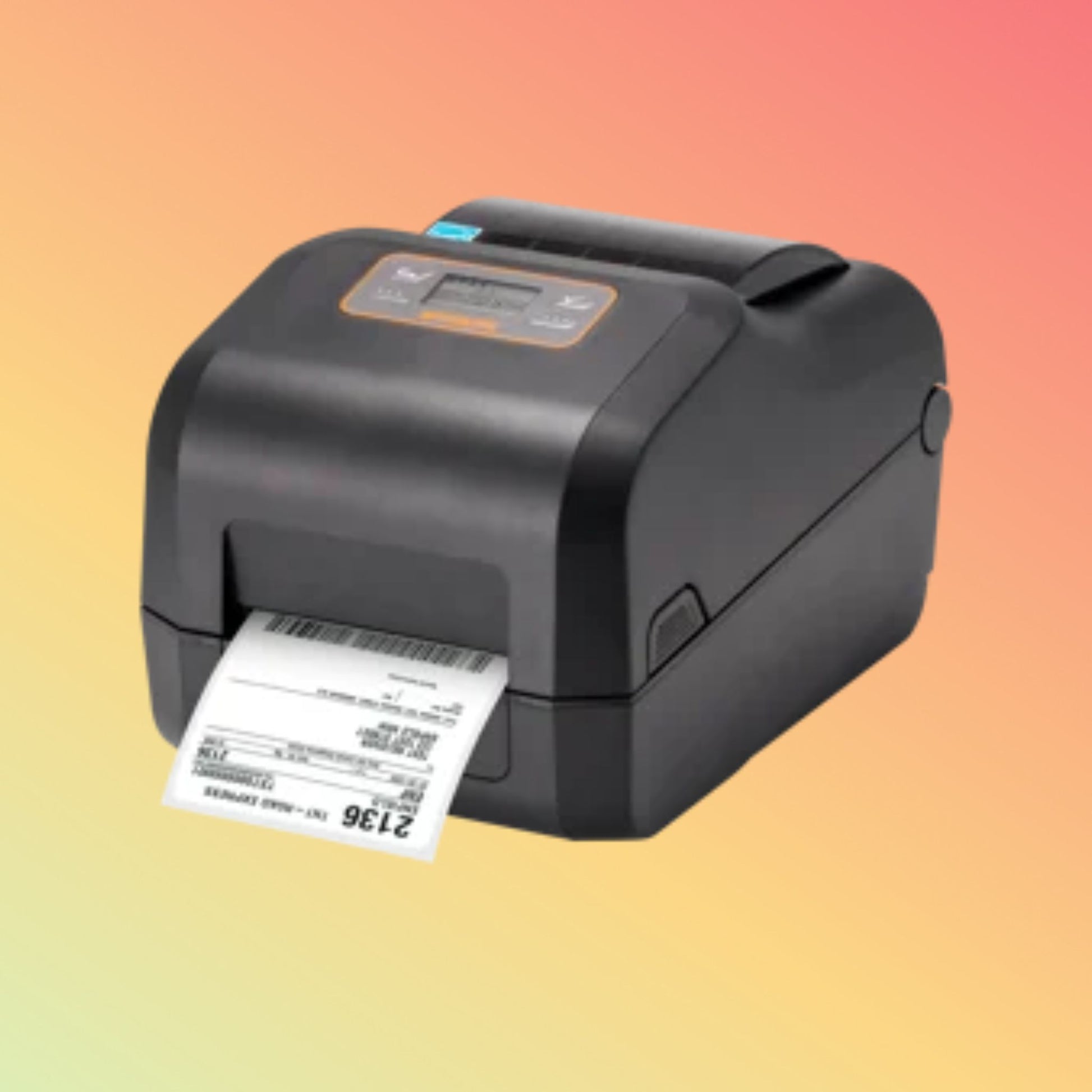

The Bixolon XD5 Series brings industrial-grade reliability and flexible media support to your labeling workflows. Offering three 4″-wide models—XD5-40 (direct-thermal), XD5-40t (thermal-transfer) and XD5-40tR (thermal-transfer + UHF RFID)—this lineup delivers up to 8 ips throughput at 203 dpi (300 dpi optional), a 4.3″ color touchscreen for quick setup, and a rugged all-metal chassis built to withstand dust, moisture and vibration.
Product Description
Designed for 24/7 operation, each XD5 unit features tool-free drop-in loading of labels and ribbons, plus 512 MB SDRAM & 512 MB flash to handle large batch jobs without lag. Standard USB, serial and Gigabit Ethernet cover your wired connections; optional Wi-Fi and Bluetooth modules enable mobile or networked printing. Printer Twin™ technology lets you clone settings across your fleet in seconds, ensuring profile consistency. Whether you need simple direct-thermal tags, high-detail thermal-transfer labels or integrated RFID encoding, the XD5 Series has you covered.
Key Features
-
Three Variants:
-
XD5-40: Direct-thermal printing
-
XD5-40t: Thermal-transfer (+300 dpi option)
-
XD5-40tR: Thermal-transfer + UHF RFID encoding
-
High-Speed Output: Up to 8 ips (203 mm/sec)
-
Dual-Resolution: 203 dpi standard, 300 dpi optional for fine graphics
-
4.3″ Touchscreen LCD: Full-color preview, menu navigation & diagnostics
-
Rugged Metal Chassis: Dust- and shock-resistant for harsh environments
-
Universal I/O: USB, Serial, Gigabit Ethernet; optional Wi-Fi & Bluetooth
-
Printer Twin™: Instant profile cloning across multiple printers
-
Tool-Free Maintenance: Quick-swap platen roller and printhead
Specifications
| Model |
Print Method |
Width |
Resolution |
Speed |
RFID Support |
Memory |
| XD5-40 |
Direct Thermal |
104 mm |
203 dpi |
8 ips |
No |
512 MB SDRAM, Flash |
| XD5-40t |
Thermal-Transfer |
104 mm |
203 dpi (300 dpi opt.) |
8 ips |
No |
512 MB SDRAM, Flash |
| XD5-40tR |
Thermal-Transfer & UHF RFID Encode |
104 mm |
203 dpi (300 dpi opt.) |
8 ips |
Yes |
512 MB SDRAM, Flash |
-
Media Diameter: ≤ 203 mm roll; core 38.1–76.2 mm
-
Max Print Length: 4 000 mm
-
Power: 100–240 V AC adapter
-
Dimensions (W×D×H): 269 × 490 × 324 mm
-
Weight: ~14 kg
Supported OS / Applications / Industries
-
OS: Windows, macOS, Linux (CUPS)
-
Software: BPL-Z™, BPL-E™, SLCS™, BarTender® UltraLite
-
Use Cases: Shipping labels, asset tags, compliance stickers, RFID encoding
-
Industries: Warehousing, manufacturing, logistics, healthcare, retail, government
Benefits & Compatibility
-
Combines barcode & RFID printing in a single platform
-
Seamless ERP/WMS integration via CSV or API
-
Fleet-wide consistency with Printer Twin™ profile sync
-
Broad media support (gap, black mark, notch, continuous, fan-fold)
-
Industrial reliability reduces maintenance and downtime
Purpose of Use
Ideal for high-volume production of shipping tags, pallet IDs, inventory labels and RFID-embedded asset tags—ensuring traceability, compliance and audit readiness across your operations.
How to Use
-
Mount & Power: Secure the printer; connect AC adapter.
-
Load Media: Drop in label roll and (for XD5-40t/40tR) ribbon; close cover.
-
Configure: Use the color touchscreen to select media type & calibrate.
-
Connect: Via USB/Ethernet or optional Wi-Fi/Bluetooth.
-
Print: Send jobs from host software; use optional cutter or peeler.
Pro Tip: Clone your custom settings to new units instantly with Printer Twin™.
Packaging / Weight / Dimensions
-
Includes: Printer unit, AC adapter, power cord, starter media (and ribbon), quick-start guide
-
Box Dimensions: 580 × 380 × 420 mm
-
Net Weight: ~14 kg
Warranty and FAQs
Warranty: 1 year parts & labor coverage.
FAQs:
-
Can I switch to 300 dpi? Yes—order the 300 dpi printhead upgrade.
-
How do I enable RFID? Choose the XD5-40tR model with built-in UHF encoder.
-
Is peel-off supported? Add the optional peeler accessory for auto-peel mode.
Performance, Quality, Durability, and Reliability
Rated for 25 km of media with a cutter life of 1 million cycles. Operates reliably from 5 °C to 40 °C. Metal housing and sealed controls resist dust, moisture and shocks to maximize uptime.
