High-speed Bixolon XT5-40NR RFID label printer with built-in UHF encoding, 4.3″ touchscreen LCD, 14 ips output. Shop UAE at NEOTECH!
Overview

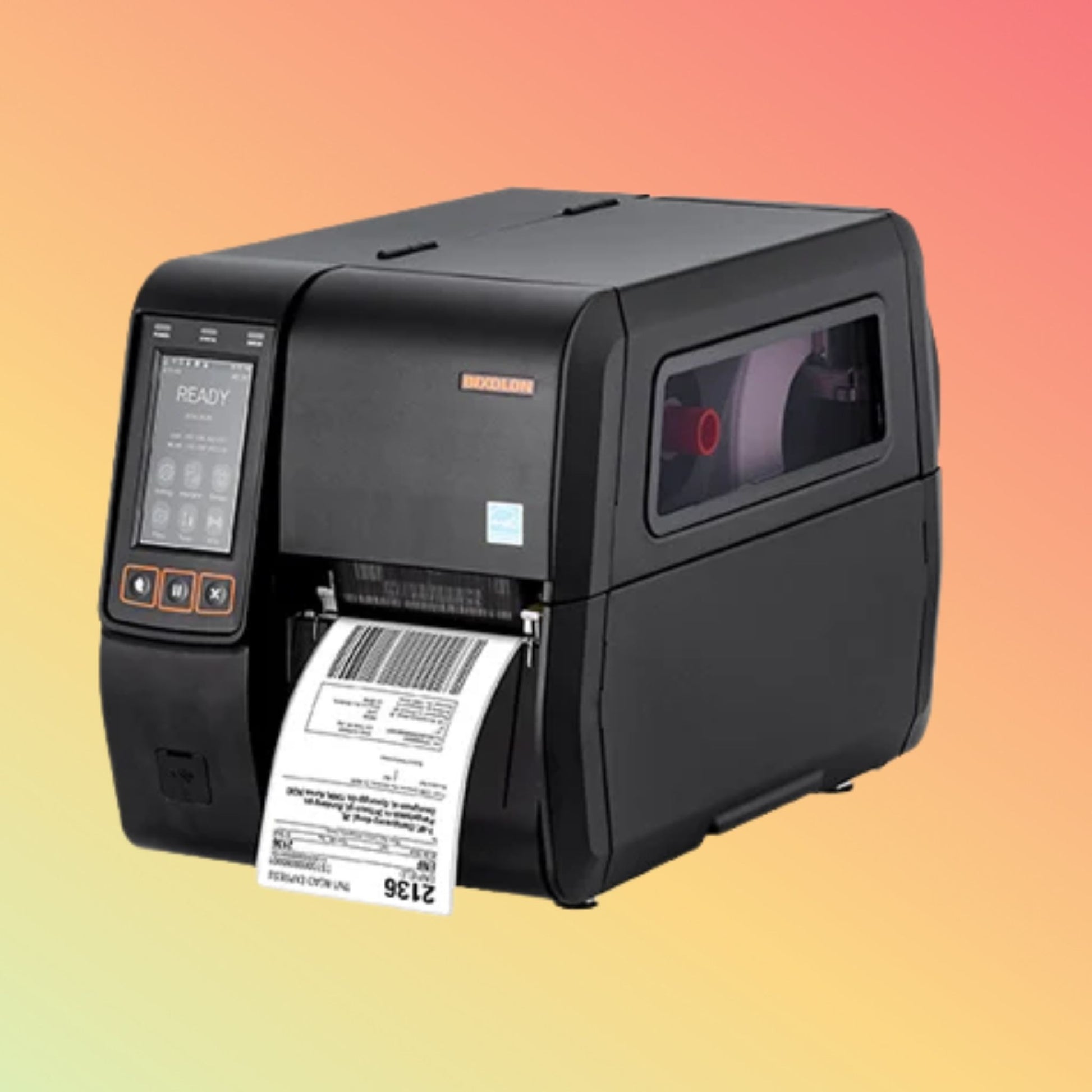

The Bixolon XT5-40NR blends rugged industrial design with integrated UHF RFID print-and-encode. Its 4.3″ full-color touchscreen LCD makes setup and monitoring intuitive. With up to 14 ips throughput at 203 dpi, you get sharp barcodes and RFID tags on demand—ideal for warehousing, manufacturing, and asset tracking.
Product Description
Engineered for heavy-duty workflows, the XT5-40NR handles direct thermal and thermal-transfer media up to 4″ wide. Its drop-in ribbon and label loading cuts downtime, while 512 MB RAM and 512 MB flash memory power large, complex print jobs without lag. Built on an all-metal chassis, it resists shocks, dust, and vibration. Standard USB, serial, Ethernet, and dual USB-Host ports ensure flexible connection; optional Wi-Fi and Bluetooth let you print wirelessly.
Key Features
-
UHF RFID Print & Encode: Auto-calibrates inlay position for precise tag encoding
-
4.3″ Touchscreen LCD: Full-color preview, easy menu navigation
-
High Speed & Quality: Up to 14 ips (356 mm/sec) at 203 dpi
-
All-Metal Chassis: Durable aluminum body for tough settings
-
Universal Connectivity: USB, Serial, Gigabit Ethernet, USB-Host; optional Wi-Fi, Bluetooth
-
Printer Twin™ & XPM™: Clone settings & manage profiles remotely
-
Multi-Media Support: Gap, black mark, notch, continuous, fan-fold media
-
Tool-Free Maintenance: Quick roller and print-head swaps
Specifications
-
Print Method: Direct Thermal & Thermal Transfer
-
Max Width: 104 mm
-
Max Length: 4 000 mm
-
Resolution: 203 dpi
-
Speed: 14 ips (356 mm/sec)
-
Memory: 512 MB SDRAM, 512 MB Flash
-
Media Roll ⌀: Up to 203 mm
-
Core ⌀: 38.1 – 76.2 mm
-
Display: 4.3″ full-color touch LCD
-
Power: 100–240 V AC adapter
-
Dimensions: 269 × 490 × 324 mm
-
Weight: 13.98 kg
Supported OS/Application/Industries
-
OS: Windows, macOS, Linux (CUPS)
-
Software: BPL-Z™, BPL-E™, BPL-D™, SLCS™, BarTender® UltraLite
-
Industries: Logistics, manufacturing, healthcare, retail, government
Benefits & Compatibility
-
Streamlines asset tracking with combined RFID and barcode printing
-
Integrates with ERP/WMS via CSV/API
-
Fleet management with network modules and Printer Twin™
-
Wide media compatibility reduces changeover time
-
Industrial-grade build minimizes maintenance
Purpose of Use
Ideal for printing compliance labels, shipping tags, pallet IDs, and RFID-enabled asset tags. Ensures traceability and regulatory adherence in high-volume environments.
How to Use
-
Mount printer on bench or rack.
-
Drop in labels and ribbon; close cover.
-
Calibrate media and RFID inlay using touchscreen.
-
Design labels in your software or send via network.
-
Print and peel—with optional auto-cutter or peeler.
Pro Tip: Use Printer Twin™ to deploy identical settings across multiple units instantly.
Packaging/Weight/Dimension
-
Unit Weight: 13.98 kg
-
Box Dimensions: 580 × 380 × 420 mm
-
Includes: XT5-40NR printer, AC adapter, power cord, starter ribbon, quick-start guide
Warranty and FAQs
Warranty: 1 year parts and labor coverage.
FAQs:
-
Can I add a rewinder? Yes, via optional rewinder kit.
-
Is 600 dpi available? Select the XT5-46NR model for 300/600 dpi.
-
How do I update firmware? Use SLCS™ utility over Ethernet or USB.
Performance, Quality, Durability, and Reliability
Rated for 25 km of printed media; cutter tested to 1 million cuts. Operates in 5 °C–40 °C environments. Metal frame and sealed buttons endure dust and shocks.
