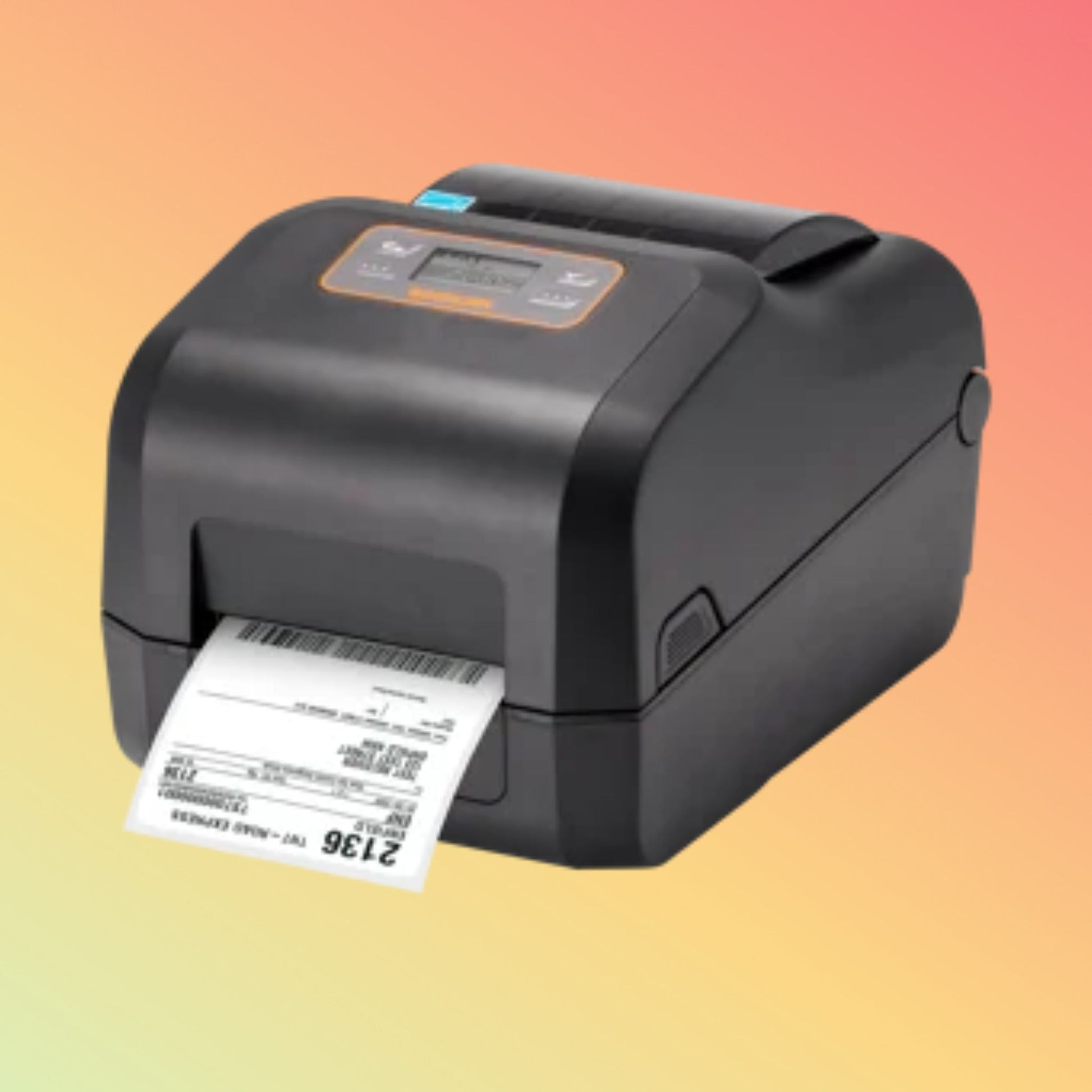

Versatile Bixolon XD5-40tR 4″ RFID & thermal label printer with 203/300 dpi, 8 ips, touchscreen LCD. Shop at NEOTECH UAE!
Overview
The Bixolon XD5-40tR merges industrial-grade RFID encoding with thermal-transfer printing in a compact, rugged package. Its 4.3″ color touchscreen and 8 ips throughput make setup and high-volume jobs a breeze. Built for 24/7 operation, it excels at asset tagging, compliance labels and supply-chain workflows.
Product Description
Engineered for nonstop performance, the XD5-40tR handles direct-thermal and thermal-transfer media up to 104 mm wide. Tool-free, drop-in ribbon and label loading slashes downtime, while 512 MB SDRAM and flash memory power complex RFID encoding and large batch prints without pause. Standard USB, serial and Gigabit Ethernet cover wired needs; optional Wi-Fi/Bluetooth lets you print from mobile devices. The all-metal chassis and sealed keys resist dust, moisture and vibration.
Key Features
-
UHF RFID Print & Encode: Auto-inlay calibration for minimal tag waste
-
Dual-Mode Printing: Thermal-transfer & direct-thermal in one device
-
8 ips at 203/300 dpi: Choose 203 dpi for speed or 300 dpi for fine detail
-
4.3″ Color Touchscreen: Preview labels, adjust settings instantly
-
Rugged All-Metal Chassis: Built for dust- and shock-prone environments
-
Universal I/O: USB, Serial, Gigabit Ethernet; Wi-Fi/Bluetooth optional
-
Printer Twin™: Clone configurations across your fleet in seconds
-
Tool-Free Maintenance: Quick-swap platen roller and printhead
Specifications
| Attribute |
Details |
| Print Methods |
Thermal-Transfer & Direct-Thermal |
| Max Print Width |
104 mm (4″) |
| Max Print Length |
4 000 mm |
| Resolution |
203 dpi standard; 300 dpi optional |
| Speed |
Up to 8 ips (203 mm/sec) |
| Memory |
512 MB SDRAM, 512 MB Flash |
| Media Roll Ø |
≤ 203 mm |
| Core Ø |
38.1 – 76.2 mm |
| Display |
4.3″ full-color touchscreen LCD |
| Power |
100–240 V AC adapter |
| Dimensions (W×D×H) |
269 × 490 × 324 mm |
| Weight |
14.0 kg |
| RFID Frequency |
UHF 865–868 MHz (EU), 902–928 MHz (US) |
Supported OS / Applications / Industries
-
OS: Windows, macOS, Linux (CUPS)
-
Software: BPL-Z™, BPL-E™, SLCS™, BarTender® UltraLite
-
Use Cases: Asset tagging, compliance labels, pallet IDs, RFID encoding
-
Industries: Logistics, manufacturing, healthcare, retail, government
Benefits & Compatibility
-
Combines RFID and barcode printing for tighter asset control
-
Integrates via CSV/API into ERP or WMS systems
-
Fleet-wide profile sync with Printer Twin™
-
Broad media support reduces changeover time
-
Industrial reliability minimizes maintenance
Purpose of Use
Perfect for on-demand RFID-embedded tags, safety and compliance labels, and high-volume barcode printing in demanding industrial settings.
How to Use
-
Mount on bench or rack.
-
Drop in labels & ribbon; close cover.
-
Calibrate RFID inlay via touchscreen.
-
Design in your host software or on-device templates.
-
Press “Print” and peel (auto-cutter or peeler optional).
Pro Tip: Save templates in Printer Twin™ to deploy across multiple printers instantly.
Packaging / Weight / Dimensions
-
Unit Weight: 14.0 kg
-
Box Dimensions: 580 × 380 × 420 mm
-
Includes: XD5-40tR printer, AC adapter, power cord, starter ribbon, quick-start guide
Warranty and FAQs
Warranty: 1 year parts & labor coverage.
FAQs:
-
Can I switch to 300 dpi? Yes—install the optional 300 dpi head.
-
Does it support peel-off? Yes, with the add-on peeler module.
-
How do I update firmware? Use SLCS™ via Ethernet or USB.
Performance, Quality, Durability, and Reliability
Rated for 25 km of media; cutter rated to 1 million cuts. Operates reliably from 5 °C to 40 °C. Metal housing and sealed controls resist dust, moisture and shocks for maximum uptime.
Best Price Guarantee
Spot a lower price on the same XD5-40tR? We’ll match it—shop with confidence at NEOTECH across Dubai and the UAE.
Shop Today & Receive Your Delivery Across the UAE!
Order now for next-business-day dispatch to Dubai, Abu Dhabi, Sharjah, Ajman and beyond. Fast, secure shipping guaranteed.
Request for Customer Reviews and Testimonials
Love your XD5-40tR? Share a quick review to help peers choose wisely and earn early access to new templates.
After Sales Support
From setup to troubleshooting, our tech team is on call via email, phone or live chat. We’ve got your back post-purchase.
Get in Touch
Need advice on Kyocera toner? Contact our print experts for personalized recommendations and fast replies.
Stock Availability
Stocks update daily. For urgent orders, confirm availability before checkout. Bulk requests may need 10–15 business days.
Disclaimer
All details are for general info and may change without notice. Images are illustrative. Verify specs and pricing with our sales team before ordering
