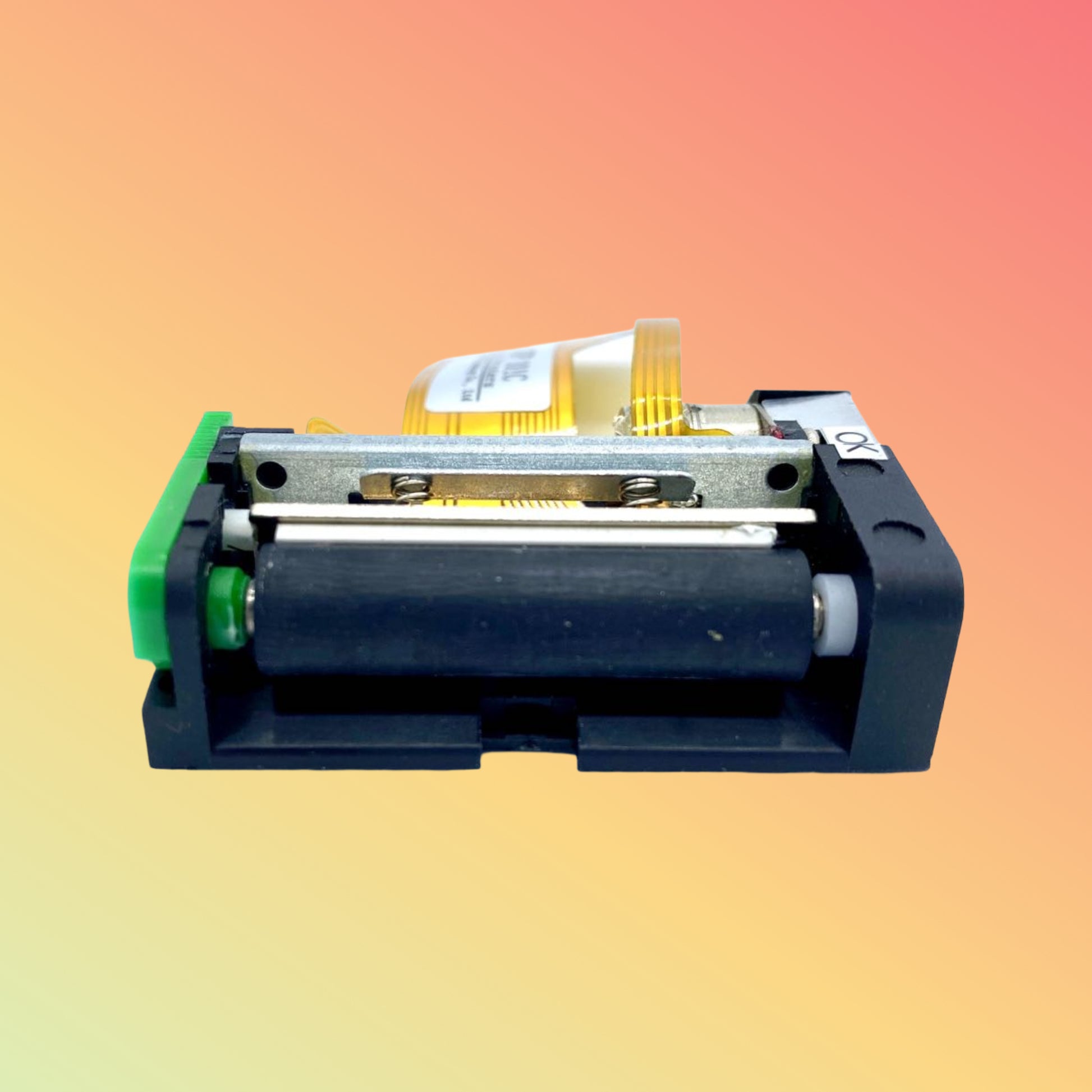

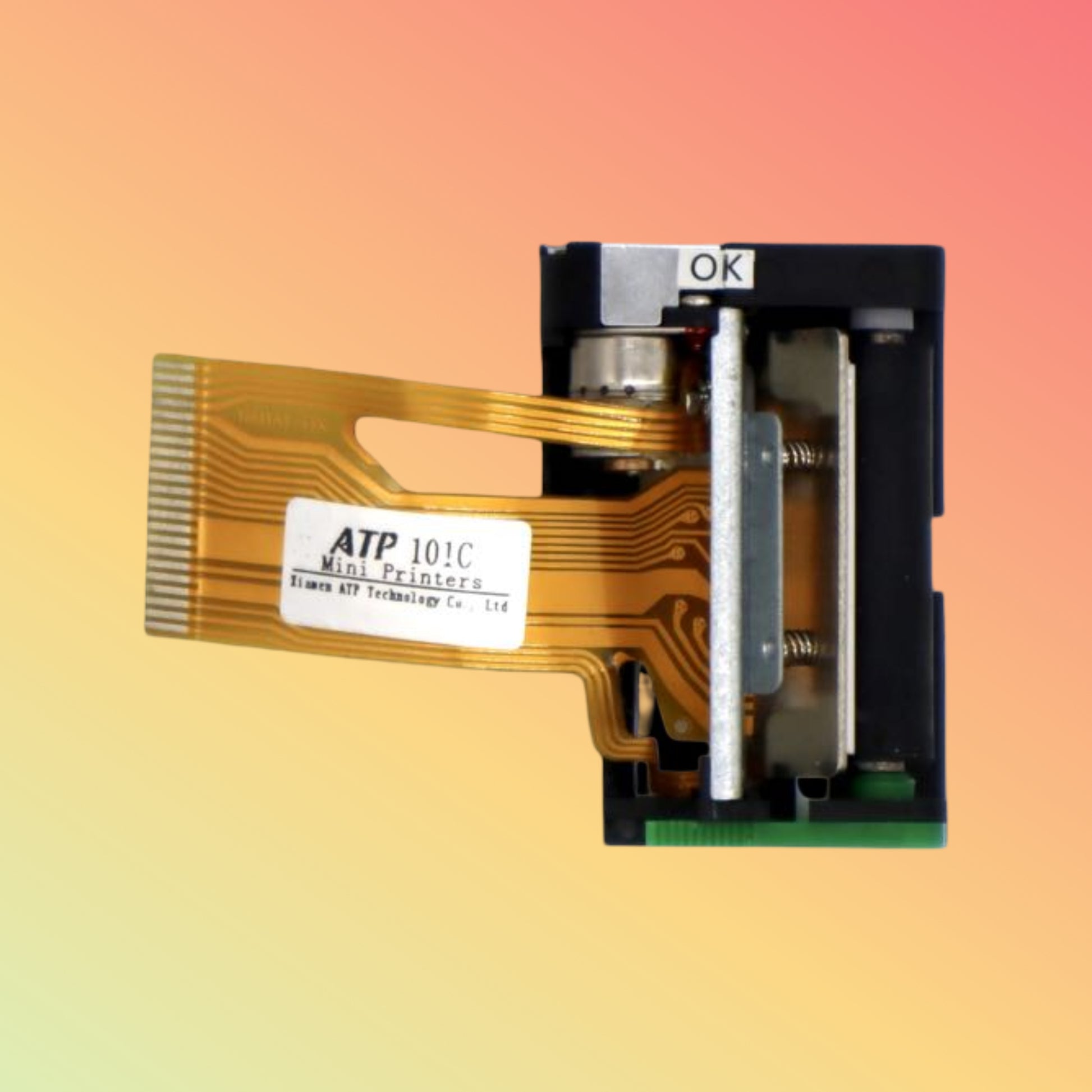

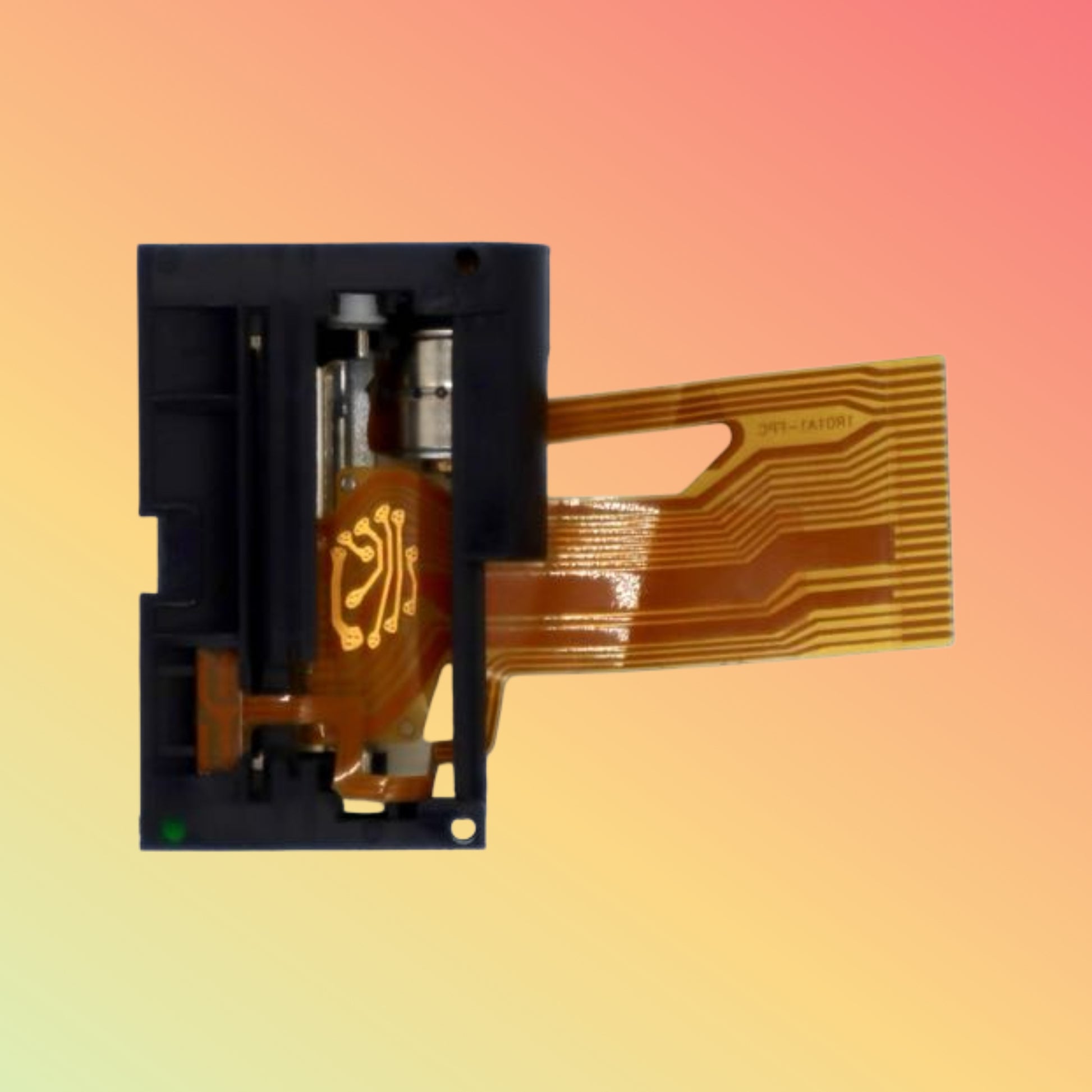

38mm Thermal Printer Mechanism-ATP101

Compact ATP101 38 mm thermal print engine—100 mm/s, 203 dpi, auto-cutter ready. Perfect for mini-POS, ticketing & embedded apps.

Overview

Meet the ATP101, a micro 38 mm direct-thermal print engine built for seamless integration. It churns out crisp 203 dpi receipts and tickets at up to 100 mm/s, with optional auto-cutter support. Ideal for mini-POS terminals, ticket kiosks, parking meters, and IoT devices—keeping your micro-print needs smooth and jam-free 24/7.

Product Description

The NEOTECH ATP101 is a high-performance 38 mm thermal printing mechanism designed for super-compact devices. Using direct-thermal tech—no ribbons or ink—you load a 38 mm roll on a 12.7 mm core and hit print. Its precision stepper motor and optimized paper path deliver steady feeds, while an optional cutter module gives you perfect full or partial cuts on demand.

Key Features

• 38 mm print width on 12.7 mm core

• 100 mm/s top print speed

• 203 dpi high-resolution thermal head

• Auto-cutter ready (full/partial cut)

• RS232 & USB 2.0 interfaces

• Jam-resistant paper path

• Rugged metal chassis

• MTBF ≥ 15,000 hrs

Specifications

Supported OS / Applications / Industries

• OS: Windows, Linux, Android (via SDK)

• Apps: Mini-POS firmware, ticket kiosks, handheld terminals

• Industries: Retail, Parking & Transit, Hospitality, Vending, IoT

Benefits & Compatibility

• Ultra-compact footprint for tight spaces

• Low maintenance: no ribbons, jam-resistant path

• High uptime: industrial-grade MTBF

• Clean cuts for neat receipts & tickets

• Plug-and-play embed via RS232 or USB

Purpose of Use

Perfect for embedding in mini-POS terminals, mobile ticket printers, parking meters, and any IoT device needing reliable 38 mm thermal output.

How to Use

1. Mount ATP101 in your device chassis

2. Connect RS232 or USB cable to host board

3. Load a 38 mm thermal roll (12.7 mm core)

4. (Optional) Attach cutter module

5. Supply 5 V DC and configure via SDK

6. Run a test print; replace cutter blade per schedule

Packaging / Weight / Dimension

• Includes: ATP101 mechanism, interface cables, mounting screws, user manual

• Module size: 80×60×50 mm

• Module weight: 200 g

• Package weight: ~350 g

Warranty & FAQs

• Warranty: 12-month limited

• FAQs

  • Q: What core size fits?
    A: Standard 12.7 mm core rolls.

  • Q: How to enable the cutter?
    A: Attach optional cutter kit & enable via SDK.

  • Q: Can I print barcodes?
    A: Yes—supports 1D/2D barcodes at 203 dpi.

Performance, Quality, Durability & Reliability

With a precision stepper motor and jam-resistant path, the ATP101 delivers consistent print density, smooth feeds, and long-life reliability under heavy use.

Best Price Guarantee

Spotted a cheaper equivalent? NEOTECH will match it—no drama. Shop with confidence.

Shop Today & Receive Your Delivery Across the UAE!

Order ATP101 now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. Keep your devices printing without pause.

Request for Customer Reviews & Testimonials

Installed your ATP101? Drop a quick review and let others know how it supercharged your device.

After-Sales Support

Need integration tips or troubleshooting? Our UAE support team is one call or email away. If remote help doesn’t cut it, we’ll guide you through a smooth RMA.

Get in Touch

For bulk quotes, custom firmware, or SDK access, contact NEOTECH’s engineering crew. We’ve got samples, demos, and pro support ready.

Stock Availability

Confirm real-time stock with our sales team before ordering—lead times may vary for cutter-enabled units.

Disclaimer

Specs, pricing, and availability are subject to change without notice. Images are illustrative; actual mechanism may vary. Verify all details before purchase.
