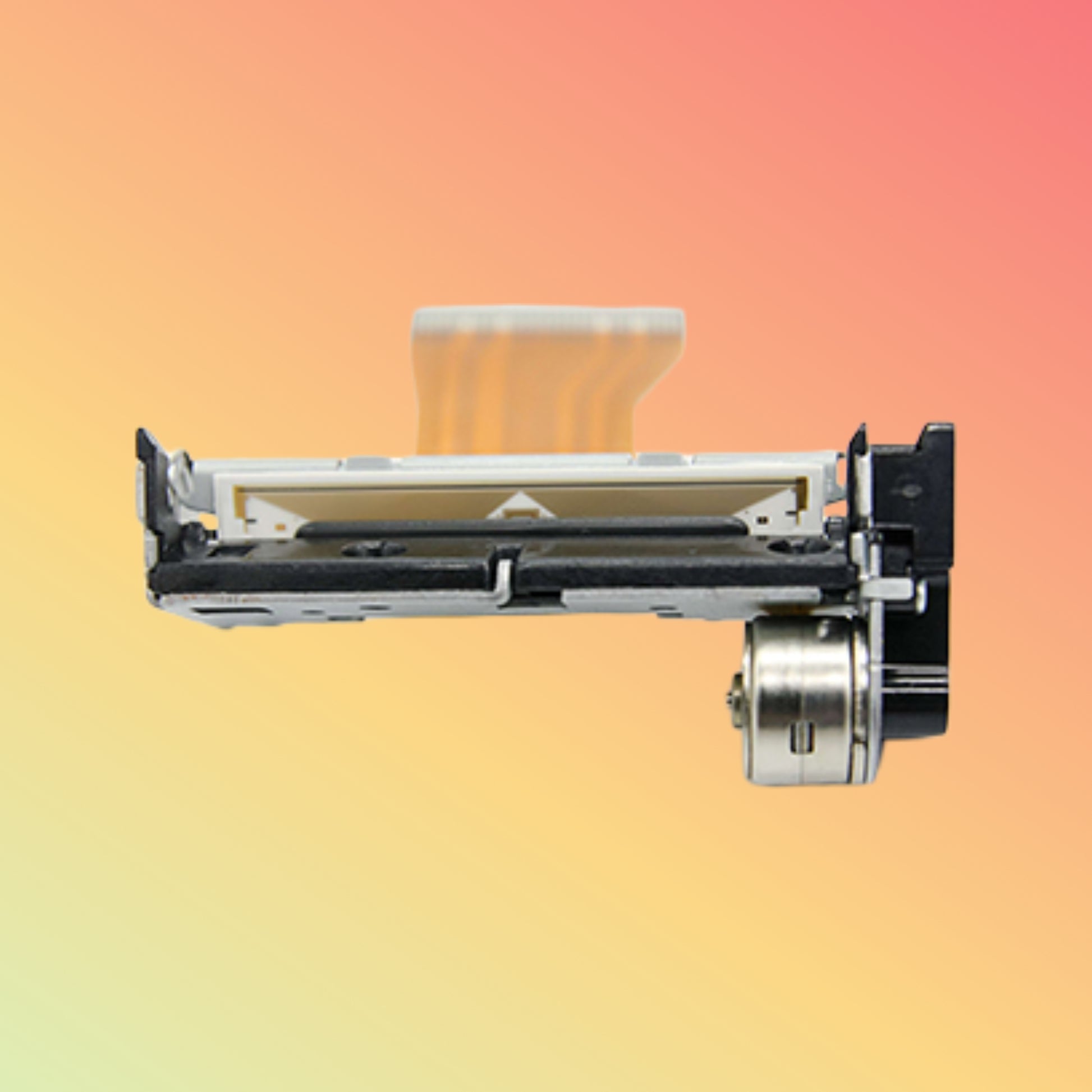

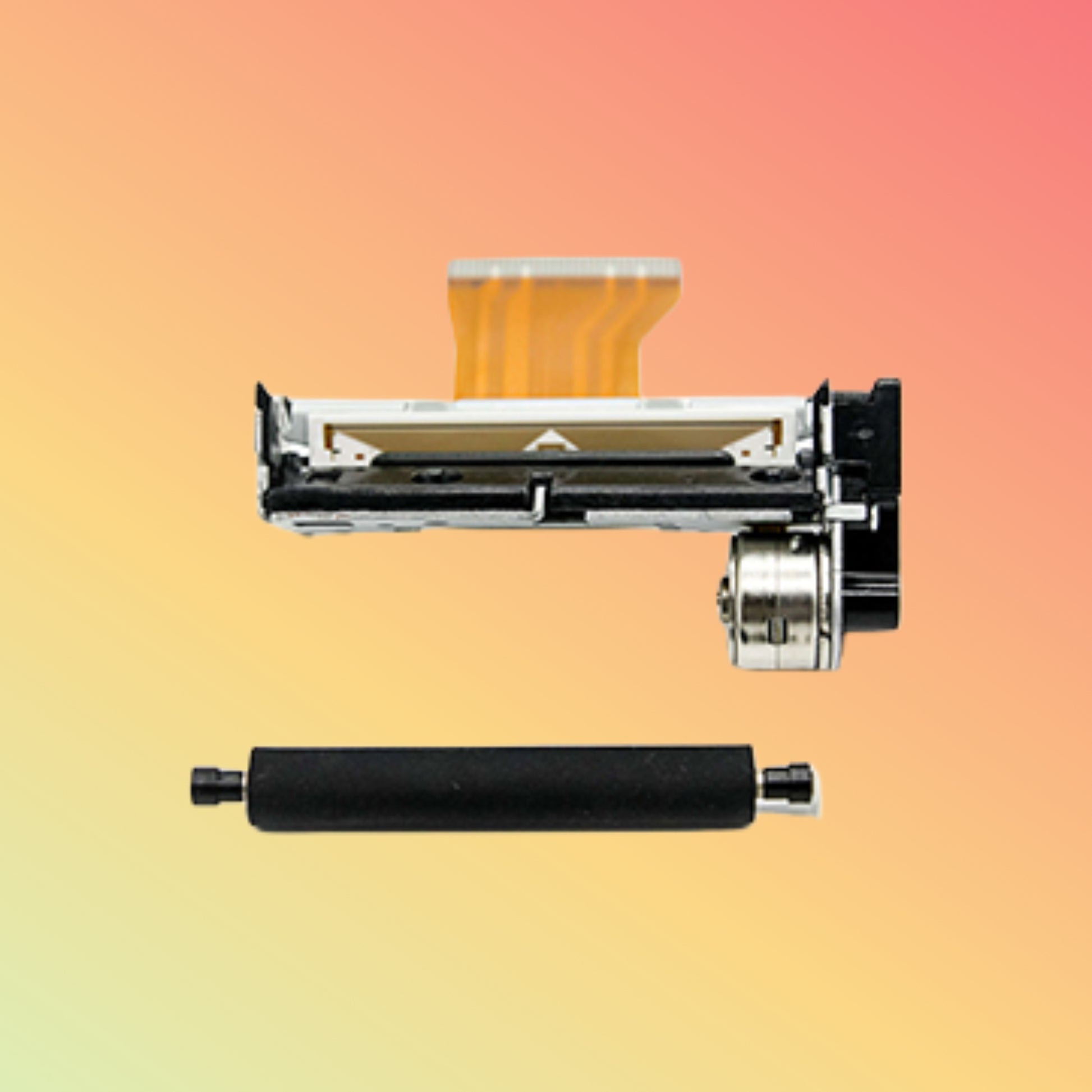

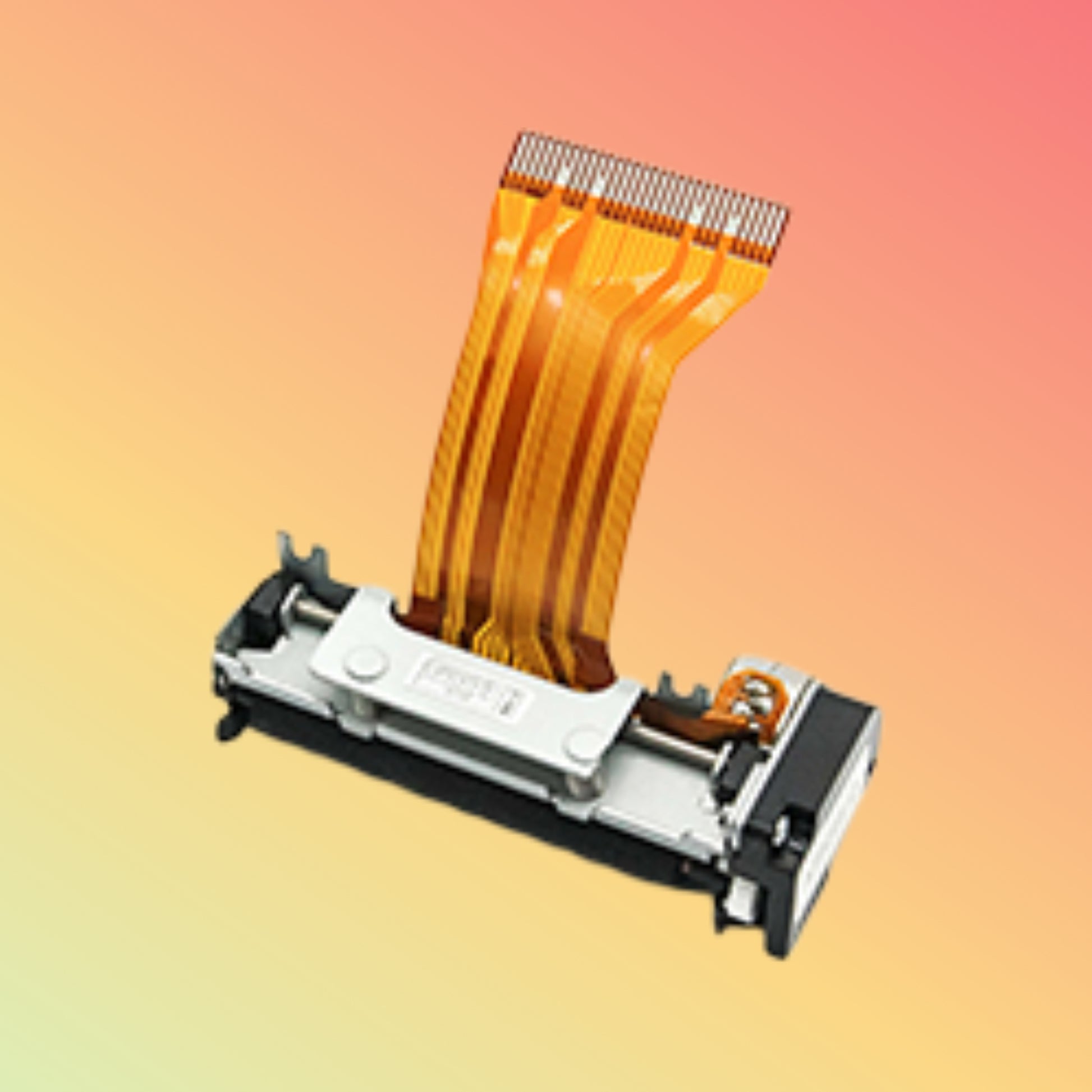

mini Thermal Printer Mechanism-ATP216

Compact ATP216 mini thermal engine—100 mm/s, 203 dpi, auto-cutter ready. Perfect for wearable POS, portable kiosks & IoT embeds.

Overview

Meet the ATP216, the tiniest 38 mm direct-thermal print engine built for seamless embed. It cranks out sharp 203 dpi receipts and labels at up to 100 mm/s, with optional full- or partial-cut auto-cutter support. Ideal for wearable POS devices, vending kiosks, parking meters, and IoT endpoints—delivering jam-free prints 24/7.

Product Description

The NEOTECH ATP216 is a micro-thermal printing mechanism designed for ultra-compact devices. Using direct-thermal tech—no ribbons or ink—you load a 38 mm paper roll on a 12.7 mm core and hit print. Its precision stepper motor and optimized paper path ensure smooth, reliable feeds, while the optional cutter module delivers clean, precise cuts on demand. Rated for MTBF ≥ 15 000 hrs, it thrives under continuous, high-volume use.

Key Features

• 38 mm print width on 12.7 mm core

• 100 mm/s max print speed

• 203 dpi high-resolution thermal head

• Auto-cutter ready (full/partial cut)

• RS232 & USB 2.0 interfaces

• Jam-resistant paper path design

• Rugged, mini metal chassis

• MTBF ≥ 15 000 hrs

Specifications

Supported OS / Applications / Industries

• OS: Windows, Linux, Android (via SDK)

• Apps: Wearable POS firmware, vending kiosks, IoT sensors

• Industries: Retail, Hospitality, Parking & Transit, Healthcare, IoT

Benefits & Compatibility

• Ultra-compact for tiny enclosures

• Low maintenance: no ribbons, jam-resistant path

• High uptime: industrial MTBF rating

• Clean cuts: pro-grade receipts & labels

• Plug-and-play integration via RS232 or USB

Purpose of Use

Perfect for embedding in wrist-worn POS terminals, mini vending machines, parking meters, wearable scanners, and any IoT device needing 38 mm thermal output.

How to Use

1. Mount ATP216 in your device chassis

2. Connect RS232 or USB cable to host board

3. Load a 38 mm thermal roll (12.7 mm core)

4. (Optional) Attach the cutter module

5. Supply 5 V DC and configure via SDK

6. Run a test print; replace cutter blade per schedule

Packaging / Weight / Dimension

• Includes: ATP216 mechanism, interface cables, mounting screws, user manual

• Module size: 80×60×50 mm

• Module weight: 200 g

• Package weight: ~350 g

Warranty & FAQs

• Warranty: 12-month limited

• FAQs

  • Q: What core size fits?
    A: Standard 12.7 mm core rolls.

  • Q: How do I enable the cutter?
    A: Attach optional cutter kit & enable via SDK.

  • Q: Can it print barcodes?
    A: Yes—supports 1D/2D barcodes at 203 dpi.

Performance, Quality, Durability & Reliability

With a precision stepper motor and jam-resistant path, the ATP216 delivers consistent density, smooth feeds, and long-life reliability under heavy use.

Best Price Guarantee

Spotted a cheaper equivalent? NEOTECH will match it—no drama. Shop with confidence.

Shop Today & Receive Your Delivery Across the UAE!

Order ATP216 now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. Keep your devices printing without pause.

Request for Customer Reviews & Testimonials

Installed your ATP216? Drop a quick review and let others know how it supercharged your device.

After-Sales Support

Need integration tips or troubleshooting? Our UAE support team is one call or email away. If remote help doesn’t cut it, we’ll guide you through a smooth RMA.

Get in Touch

For bulk quotes, custom firmware, or SDK access, contact NEOTECH’s engineering crew. We’ve got samples, demos, and pro support ready.

Stock Availability

Confirm real-time stock with our sales team before ordering—lead times may vary for cutter-enabled units.

Disclaimer

Specs, pricing, and availability are subject to change without notice. Images are illustrative; actual mechanism may vary. Verify all details before purchase.
