XGSun Anti-transfer Fragile UHF RFID Windshield Tag

Anti-transfer UHF RFID windshield tags, 860–960 MHz, tamper-evident, reads up to 5 m. Secure fleet & parking. Order XGSun fragile tags today!

Overview

Protect your fleet and secure parking with XGSun’s Anti-Transfer Fragile UHF RFID Windshield Tags. Operating at 860–960 MHz, these tamper-evident labels ensure that once removed, they break apart—preventing unauthorized reuse. With a reliable read range up to 5 m, they’re ideal for vehicle access control, tolling systems, and automated parking solutions.

Product Description

Each tag features a PET overlay encasing a high-performance UHF inlay. A fragile, perforated foil backing bonds to glass; any attempt to peel it off leaves the tag inoperable. The 70 × 30 mm form factor fits discreetly behind windshields. Waterproof and UV-resistant, these tags withstand harsh outdoor conditions. Compliant with EPCglobal Gen2 (ISO 18000-6C), they broadcast a unique ID for seamless integration into existing RFID readers and middleware.

Key Features

• Anti-Transfer Design: Fragile backing shreds on removal

• 860–960 MHz UHF Band: Global compatibility

• Read Range: Up to 5 m with fixed or handheld readers

• Tamper-Evident: Visible evidence of removal attempts

• Durable Construction: PET lamination resists UV, water & chemicals

• Compact Size: 70 × 30 × 0.4 mm for discreet installation

Specifications

• Frequency: 860–960 MHz (Global UHF)

• Dimensions: 70 × 30 × 0.4 mm

• Read Range: 1–5 m (reader & environment dependent)

• Substrate: PET film with fragile foil adhesive

• Memory: EPC 96 bits; TID 64 bits; User 128 bits

• Operating Temp: –20 °C to +70 °C

• Storage Temp: –40 °C to +85 °C

• Protocol: EPCglobal Gen2 / ISO 18000-6C

Supported Applications & Industries

• Applications: Vehicle access control, tolling, parking management, fleet tracking

• Industries: Transportation, logistics, hospitality, municipal services

Benefits & Compatibility

• Enhanced Security: Prevents tag cloning or tampering

• Operational Efficiency: Fast, contactless reads boost throughput

• Weatherproof: Reliable performance in rain, heat, or cold

• System-Ready: Works with existing UHF readers and software

Purpose of Use

Affix inside windshields to automate vehicle identification for gates, toll booths, or fleet depots—ensuring each tag stays with its assigned vehicle.

How to Use

1. Clean and dry the inside windshield surface.

2. Peel off liner and press tag firmly in the lower corner.

3. Scan with an EPC Gen2 UHF reader to verify ID and configure in your access-control system.

Packaging / Weight / Dimensions

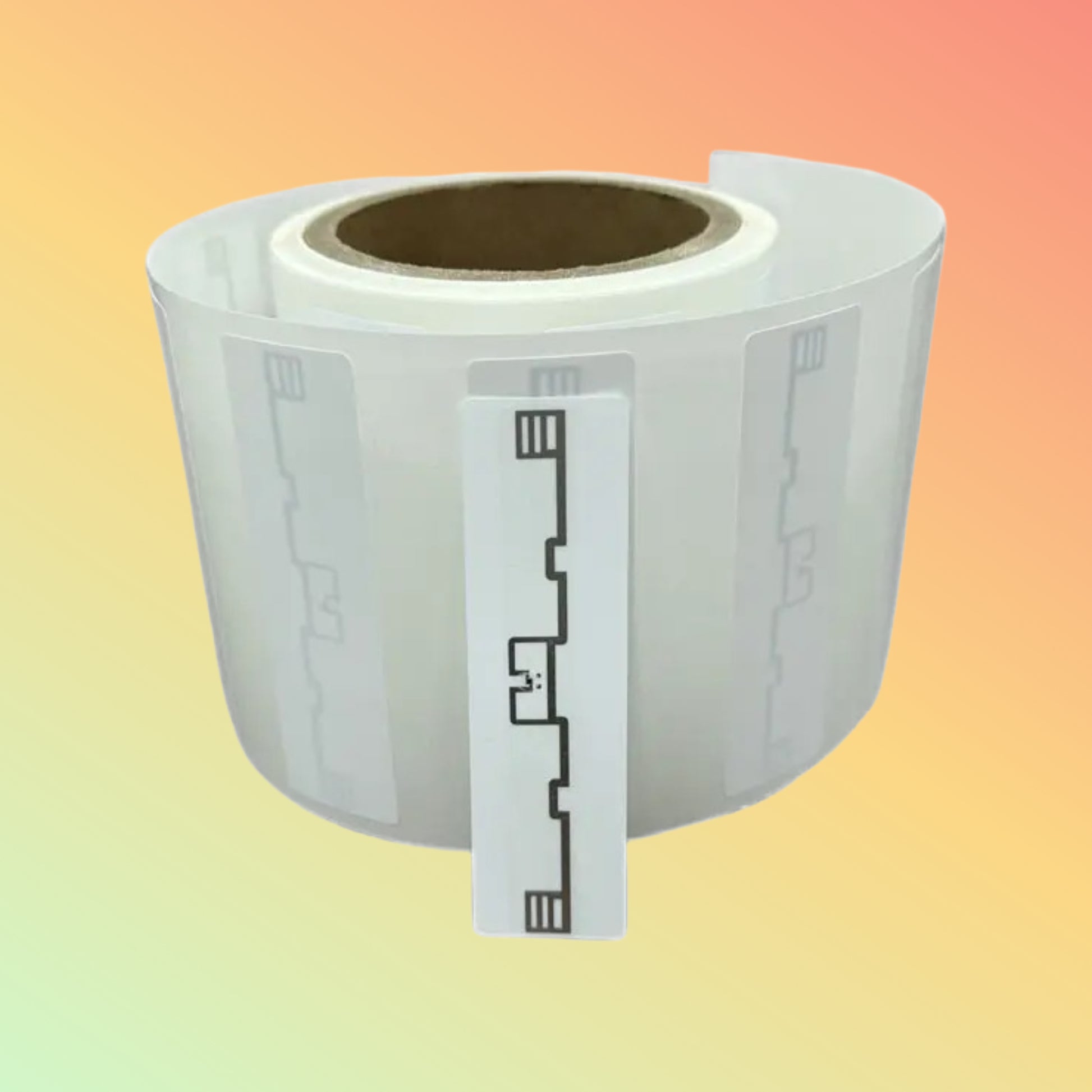

• Pack Size: 200 tags per roll

• Core ID: 25 mm; Roll OD: 80 mm

• Net Weight: 0.15 kg per roll

• Includes: 1× roll of 200 fragile tags; installation guide

Warranty & FAQs

• Warranty: 1 year against manufacturing defects

• FAQs:

  • Q: Will extreme heat loosen adhesive?
    A: PET and foil adhesive remain secure up to +70 °C.

  • Q: Can I remove and reapply?
    A: No—the fragile backing destroys on peel, preventing reuse.

  • Q: Are they visible from outside?
    A: No—they sit behind the glass, discreet and tamper-evident.

Performance, Quality & Reliability

Tested in real-world deployments, these tags deliver > 98% read accuracy at read-ranges over 4 m. Fragile foil adhesive meets ISO 9001 quality standards.

Best Price Guarantee

Found a lower price on equivalent fragile windshield tags? We’ll match it—XGSun guarantees the best UAE rate.

Shop Today & Delivery Across the UAE!

Order now for fast, secure shipping to Dubai, Abu Dhabi, Sharjah, and all emirates. Receive your tags in 2–3 business days.

Request for Customer Reviews & Testimonials

Deploying fragile RFID tags? Share your experience! Your feedback helps refine our solutions.

After-Sales Support

Our UAE support team offers integration guidance, reader setup tips, and troubleshooting 24/7 via phone or email.

Get in Touch

Questions on specs, bulk pricing, or system integration? Email sales@xgsun.com or call +971 4 123 7890 for instant assistance.

Stock Availability

Stock moves quickly—confirm current availability before ordering to ensure prompt fulfillment.

Disclaimer

All information is for general guidance and may change without notice. Images are illustrative. Verify compatibility with your UHF RFID system before purchase.
