HM20-IC reads 2D barcodes, MIFARE/Ntag cards at 13.56 MHz. USB/UART plug-in, fast (<200 ms), compact module. Ideal for access control embeds.
✅ Overview

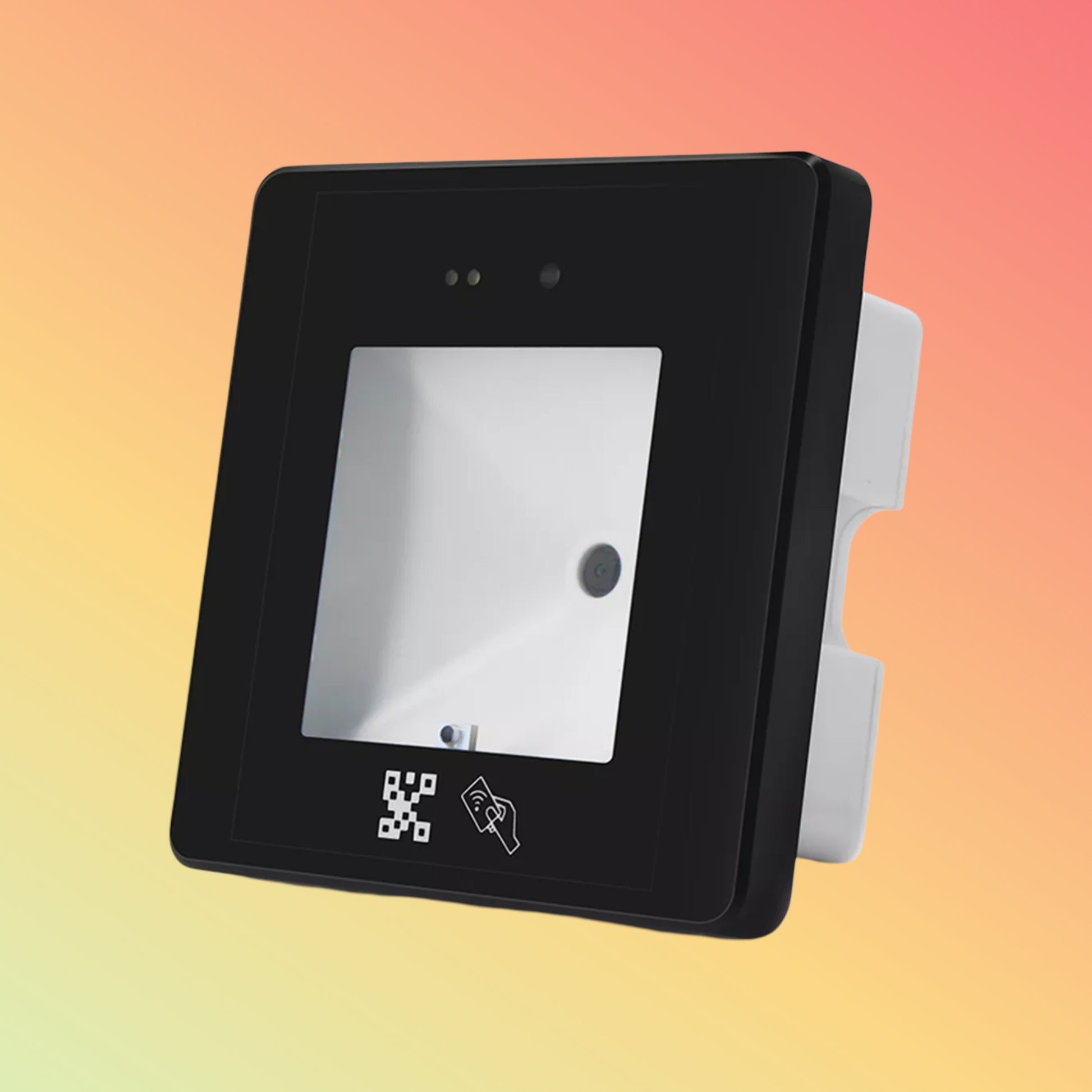

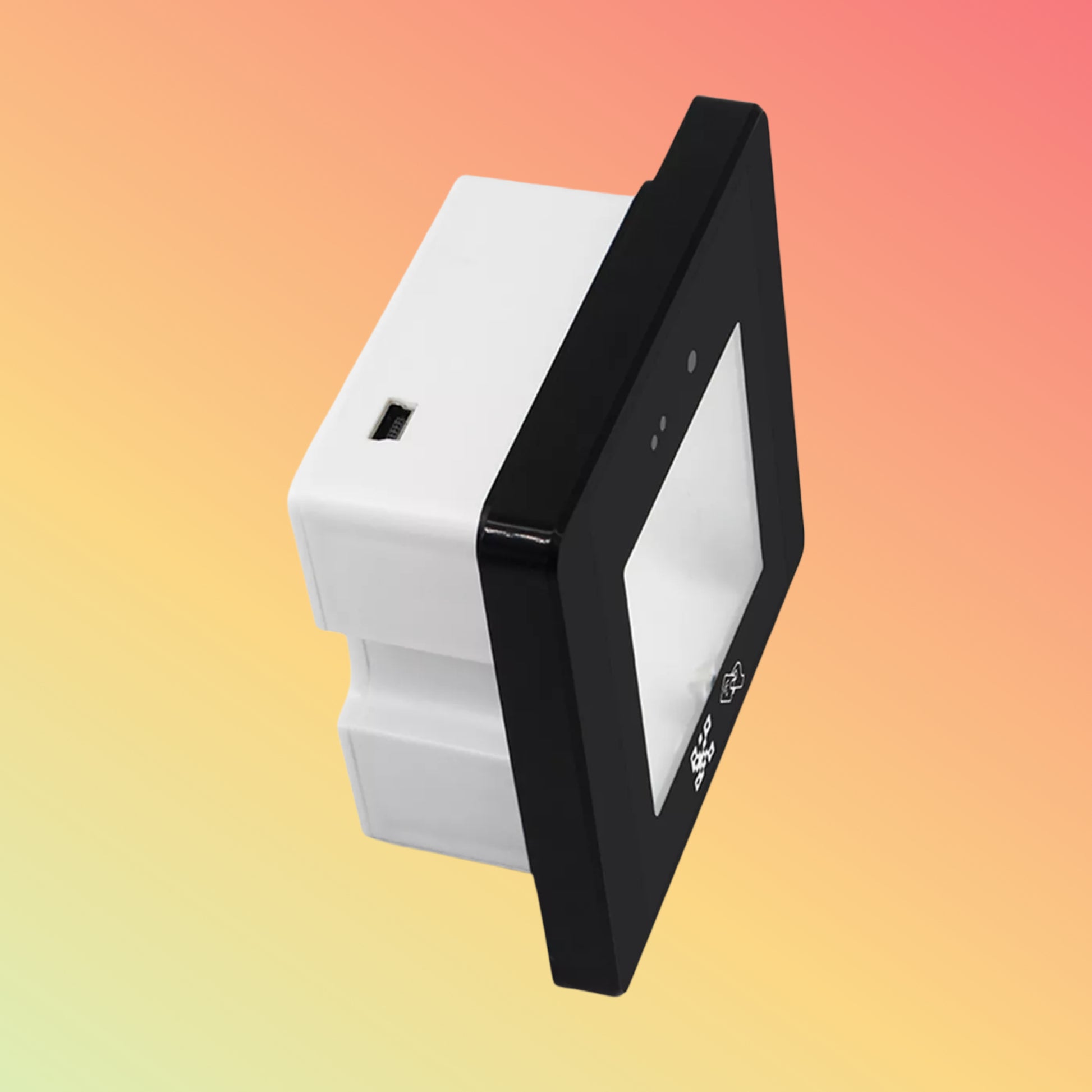

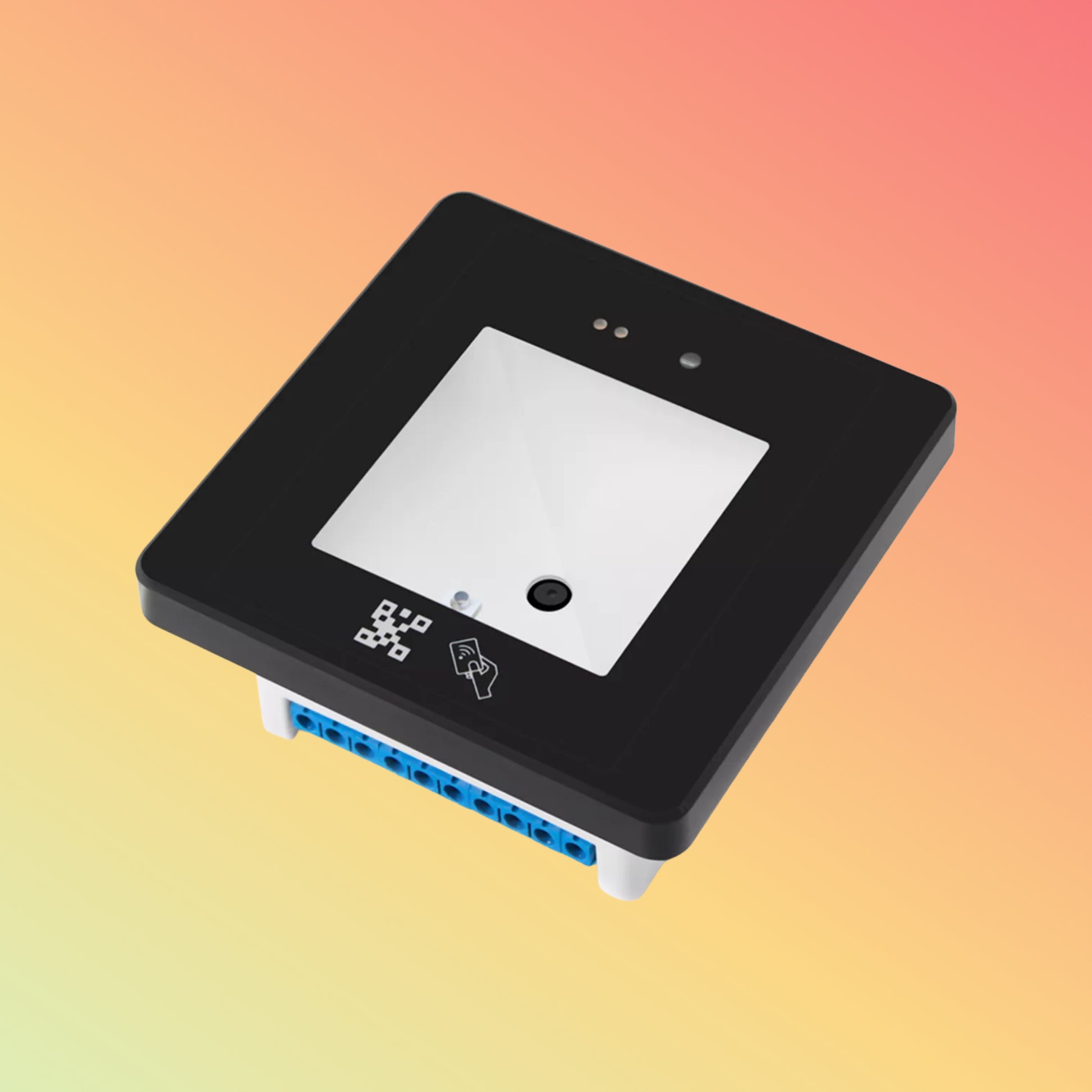

The NEOTECH HM20-IC is a slim, embedded module that merges 2D barcode scanning with 13.56 MHz NFC & MIFARE/Ntag card reading. In under 200 ms it decodes QR/data matrices or authenticates smart cards via USB or UART. Perfect for kiosks, access panels, vending machines or any integrated system.
✅ Product Description
HM20-IC packs a high-speed CMOS imager and RF front-end into a 60×40 mm PCB. It reads 1D/2D codes—UPC, Code 128, QR, PDF417—and handles ISO14443A/B & ISO15693 smart cards seamlessly. Choose USB-HID for driver-free PC embeds or UART/TTL for microcontroller control. An LED confirms each read, while its onboard processor outputs parsed data ready for your app. Low power draw and a robust metal shield make it ideal for always-on installations.
✅ Key Features
-
Dual-Mode Sensing: 2D barcode + NFC/MIFARE/Ntag card
-
Fast Decode: < 200 ms per scan or tag read
-
Interfaces: USB-HID & UART/TTL (3.3 V)
-
Compact PCB: 60×40×12 mm module for easy embed
-
Multi-Standard: ISO14443 A/B, ISO15693, NFC Forum tags
-
On-Board Processing: Outputs plain text data
-
LED Indicator: Scan success/failure feedback
-
Low Power: < 120 mA active current
✅ Specifications
-
Optical Sensor: 640×480 CMOS imager
-
RF Frequency: 13.56 MHz
-
Supported Tags: MIFARE Classic, Ntag, ICODE, DESFire, etc.
-
Barcode Symbologies: QR, DataMatrix, PDF417, UPC/EAN, Code 39/128
-
Decode Time: < 200 ms
-
USB Interface: USB 2.0 HID, 5 V DC
-
UART Interface: 3.3 V TTL, up to 921 600 bps
-
Dimensions: 60 × 40 × 12 mm
-
Operating Voltage: 3.3 – 5 V DC
-
Current Draw: Active < 120 mA; standby < 50 mA
-
Operating Temp: –20 °C – 60 °C
✅ Supported Applications / Industries
-
Applications: Access control panels, parking kiosks, vending machines, embedded POS
-
Industries: Security, Retail, Transit, Hospitality, Manufacturing
✅ Benefits & Compatibility
-
Seamless Integration: PCB-mount form factor for OEM designs
-
Versatile Reads: Scans barcodes and authenticates contactless cards
-
Plug-and-Play: USB-HID mode needs no extra drivers
-
Developer-Friendly: UART output for custom firmware projects
-
Reliable: Industrial-grade RF and optics for 24/7 uptime
✅ Purpose of Use
Ideal for embedding in any device that requires fast barcode capture plus secure smart-card authentication—all from one module.
✅ How to Use
-
Solder or mount HM20-IC onto your PCB.
-
Power with 3.3–5 V DC.
-
Connect USB or UART to host.
-
Present barcode or tap card near sensor.
-
Read plain-text data via HID keystrokes or serial port.
✅ Packaging / Weight / Dimension
-
Includes: HM20-IC module, antenna cable, quick-start guide
-
Module Size: 60 × 40 × 12 mm
-
Net Weight: 18 g
✅ Warranty and FAQs
✅ Performance, Quality, Durability & Reliability
Engineered for embedded OEM use, HM20-IC’s sealed optics and RF front-end deliver consistent reads in harsh industrial or retail environments.
✅ Best Price Guarantee
Spotted a lower UAE price? Send proof and we’ll match it—NEOTECH always delivers the best deal.
✅ Shop Today & Receive Your Delivery Across the UAE!
Order now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. HM20-IC modules ready to dispatch!
✅ Request for Customer Reviews and Testimonials
Integrating HM20-IC? Drop a quick review to show how it streamlined your product’s scanning and authentication.
✅ After Sales Support
Our support team is on call via chat, email, or phone—ready to help with integration, firmware, or troubleshooting.
✅ Get in Touch
Bulk orders or custom firmware? Contact us and we’ll assist you promptly.
✅ Stock Availability
High demand—confirm stock before placing bulk or urgent orders to secure your modules.
✅ Disclaimer
All specs and images are for reference and may change without notice. Verify final details with our sales team before purchase
