Buy HCC3300 EMV 2D Barcode Scanner with NFC Card Reader. USB/RS232. Ideal for UnionPay, POS, ticketing & access systems. Secure, fast, compact solution.
✅ Overview

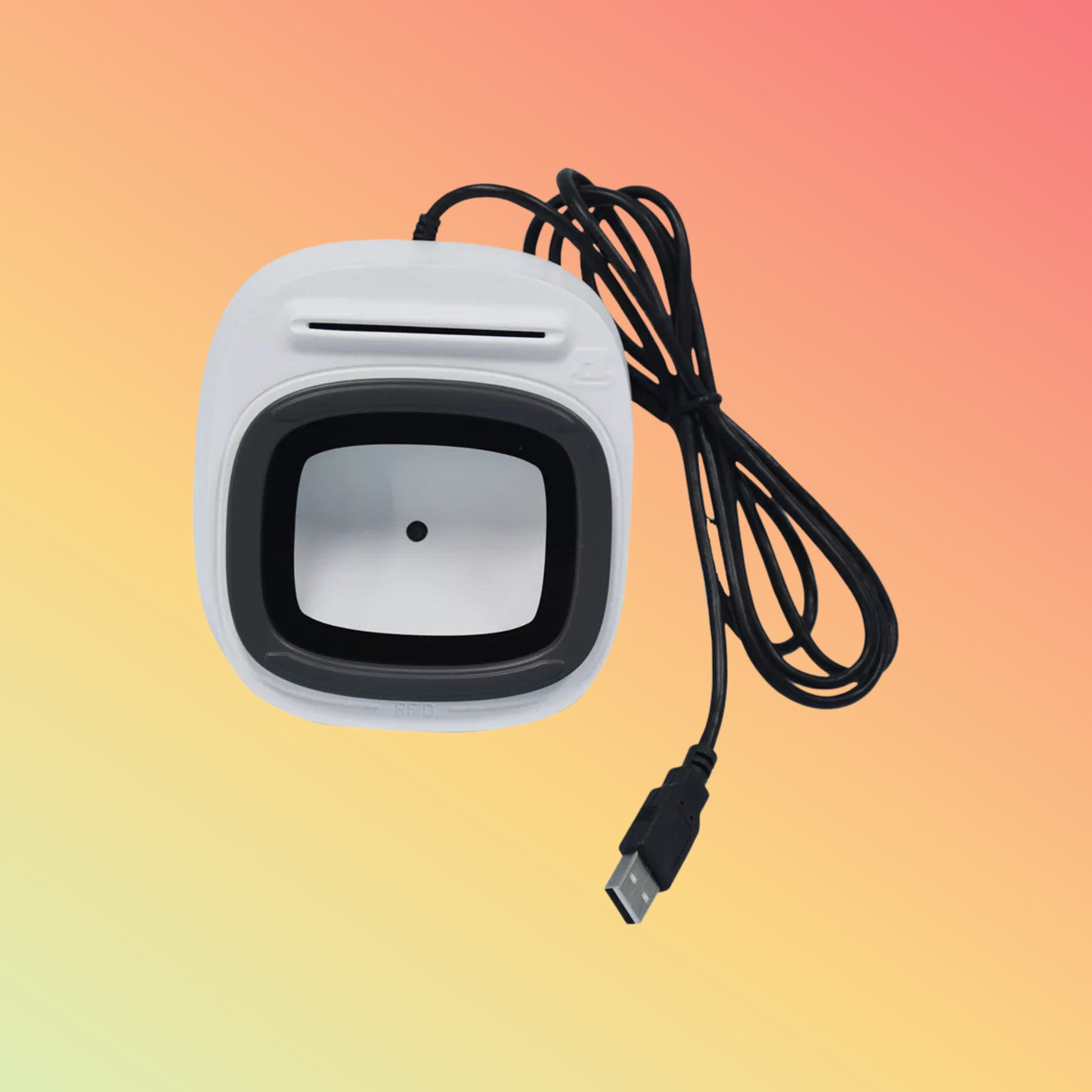

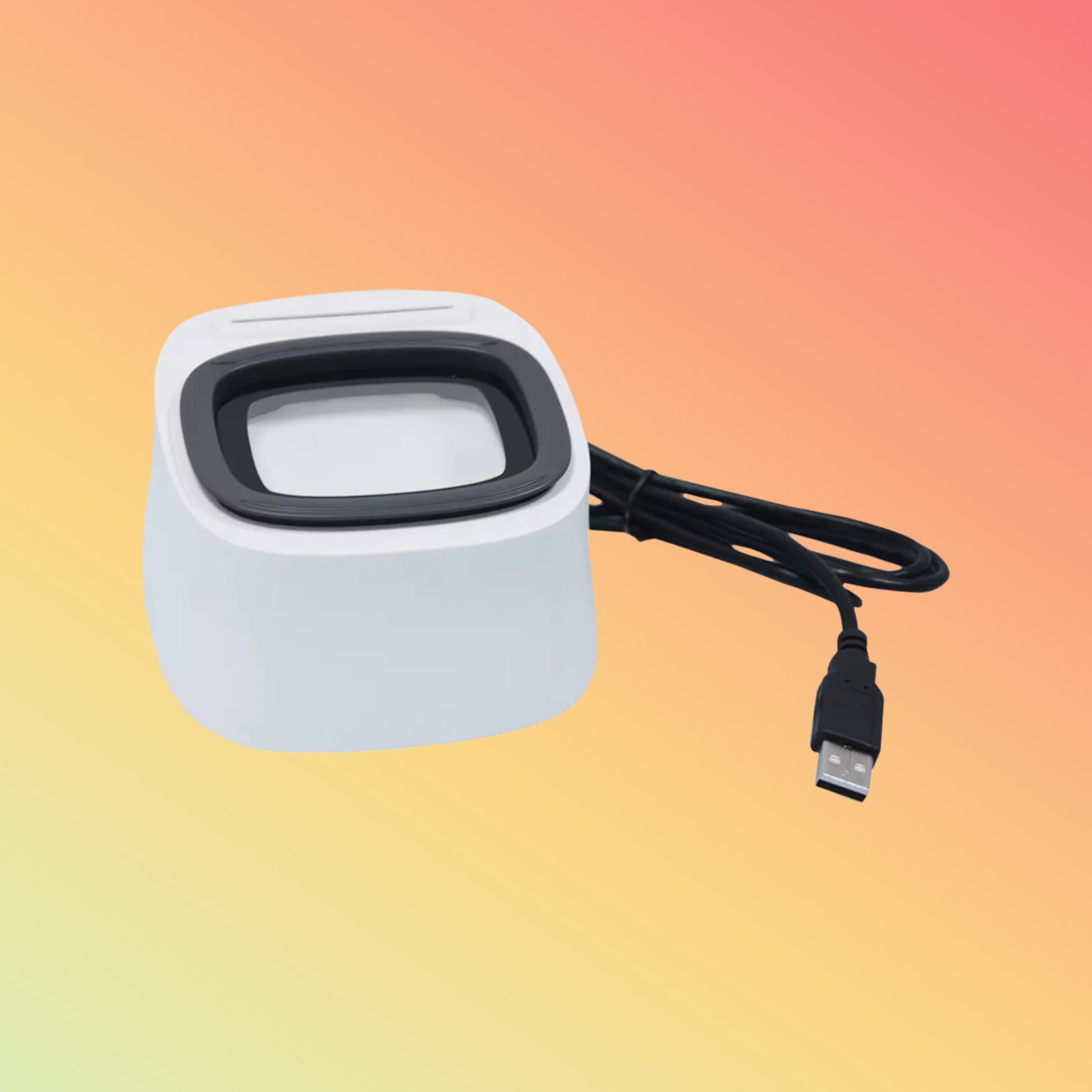

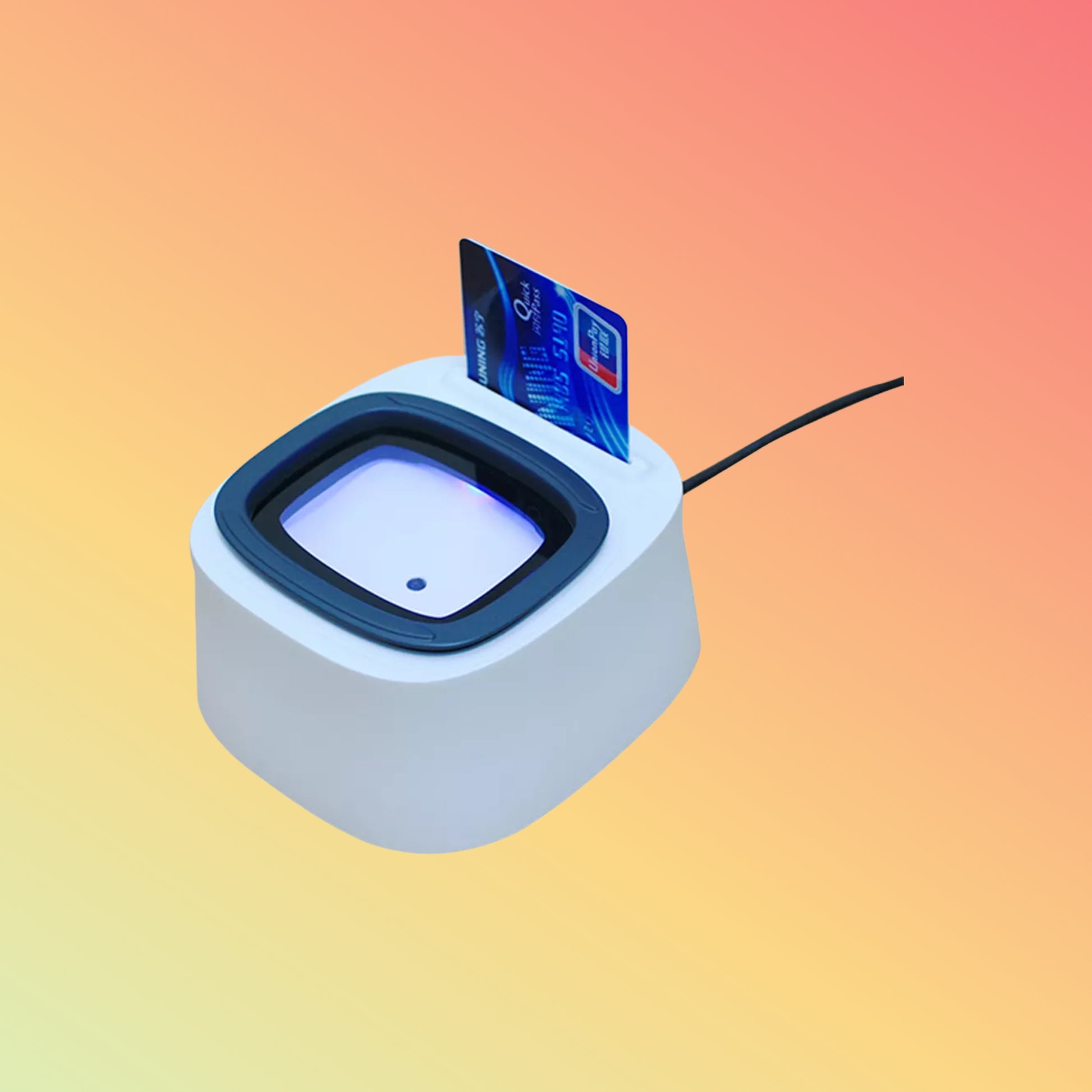

The HCC3300 USB/RS232 EMV 2D Barcode Scanner with built-in contactless smart card reader is designed for secure payments, UnionPay authentication, and multi-modal data capture. Supporting 2D barcode scanning, EMV smart cards, and NFC contactless cards, it's ideal for POS terminals, ticketing kiosks, and ID verification systems.
✅ Product Description
The HCC3300 is an all-in-one data capture solution integrating a high-speed 2D barcode scanner and a secure EMV-compliant NFC card reader. It supports QR codes from mobile devices, printed tickets, and ISO14443 contactless cards, making it versatile for UnionPay, transportation, healthcare, and e-payment systems.
With USB and RS232 interfaces, the HCC3300 ensures easy integration with POS terminals, vending machines, check-in kiosks, and smart turnstiles. Built to handle real-time customer interactions, the scanner offers quick, accurate scans, and the NFC reader processes cards securely and instantly.
✅ Key Features
-
USB & RS232 dual interface
-
2D barcode scanner for QR, PDF417, Data Matrix, etc.
-
Built-in contactless card reader for ISO14443 Type A/B
-
Compatible with UnionPay, NFC, and EMV systems
-
Reads from mobile screens and printed surfaces
-
Fast scan speed with high-resolution imaging
-
Anti-glare & ambient light resistance
-
Compact size for kiosks and desktop POS
✅ Specifications
-
Model: HCC3300
-
Barcode Support: 1D/2D (QR, PDF417, Data Matrix, Code128, EAN, etc.)
-
Card Reader: ISO14443 Type A/B (13.56MHz)
-
Compliance: UnionPay, EMV L1, ISO/IEC 14443
-
Interfaces: USB 2.0, RS232
-
Scan Speed: ≥300 scans/sec
-
Card Reading Distance: 0–50mm
-
Operating Voltage: 5V DC
-
Operating Temperature: -10°C to +55°C
-
Weight: Approx. 180g
-
Dimensions: 125 × 75 × 45 mm
-
Certifications: CE, FCC, RoHS, EMV Level 1
✅ Supported OS / Applications / Industries
Supported OS:
-
Windows 7 / 10 / 11
-
Linux
-
Android (with USB OTG)
-
POS and terminal SDKs
Applications:
-
UnionPay and EMV payment terminals
-
Self-service ticketing kiosks
-
Access control and visitor check-in
-
Retail POS & mobile payment stations
-
Loyalty and membership authentication
Industries:
✅ Benefits & Compatibility
-
Combines barcode & contactless card reading in one unit
-
Secure EMV-level data capture for smart card transactions
-
USB & RS232 interfaces simplify system integration
-
Ideal for hybrid payment environments
-
Works in brightly lit indoor settings and kiosks
-
Future-ready for UnionPay and digital wallet expansion
✅ Purpose of Use
Built for multi-modal identification and payment, the HCC3300 is used in POS terminals, transport gates, and self-service kiosks for reading 2D barcodes and smart cards quickly and securely. It improves throughput and adds contactless verification to any transaction or access point.
✅ How to Use
-
Connect via USB or RS232 to your host system
-
Power on and auto-install or configure via SDK
-
Present a QR code or card to the scanner zone
-
Data is instantly captured and transmitted to the system
-
System validates transaction, ID, or ticket in real time
✅ Packaging / Weight / Dimension
-
Included: HCC3300 Device, USB/RS232 Cable, Setup Guide
-
Unit Dimensions: 125 × 75 × 45 mm
-
Weight: ~180g
-
Box Size: 160 × 100 × 70 mm
-
Packaging Type: Secure padded carton with ESD protection
✅ Warranty and FAQs
Warranty: 1-Year Manufacturer Warranty
FAQs:
-
Q: Does it support reading from smartphone screens?
A: Yes, it reads screen-based QR codes with high accuracy.
-
Q: Is it compatible with Android POS terminals?
A: Yes, via USB OTG or RS232 (with drivers).
-
Q: Can I use it for UnionPay & e-wallet payments?
A: Yes, it supports UnionPay protocols and EMV cards.
✅ Performance, Quality, Durability, and Reliability
The HCC3300 is engineered for 24/7 operation, featuring durable housing and fast decoding speed under various lighting conditions. It performs consistently in retail and field environments, making it a trusted solution for critical business systems.
✅ Best Price Guarantee
We offer the lowest price for the HCC3300 in the UAE. Found it cheaper? We'll match it—no delay.
✅ Shop Today & Receive Your Delivery Across the UAE!
Order today and get fast, secure shipping to Dubai, Abu Dhabi, Sharjah, and all major UAE locations. Each unit ships ready for installation.
✅ Request for Customer Reviews and Testimonials
Used the HCC3300 in your terminal or kiosk? Leave a short review and help others discover this smart, reliable hybrid scanning solution.
✅ After Sales Support
We offer complete after-sales service, including integration help, driver support, firmware upgrades, and usage training.
✅ Get in Touch
Need help integrating with your POS or access control system? Contact our technical sales team for expert assistance and volume pricing.
✅ Stock Availability
We maintain stock for standard orders. For bulk or urgent requests, please check with our team to confirm availability.
✅ Disclaimer
Specifications are for reference only and subject to change. Images are illustrative. Confirm technical details before purchasing with our team.
