✅ Overview

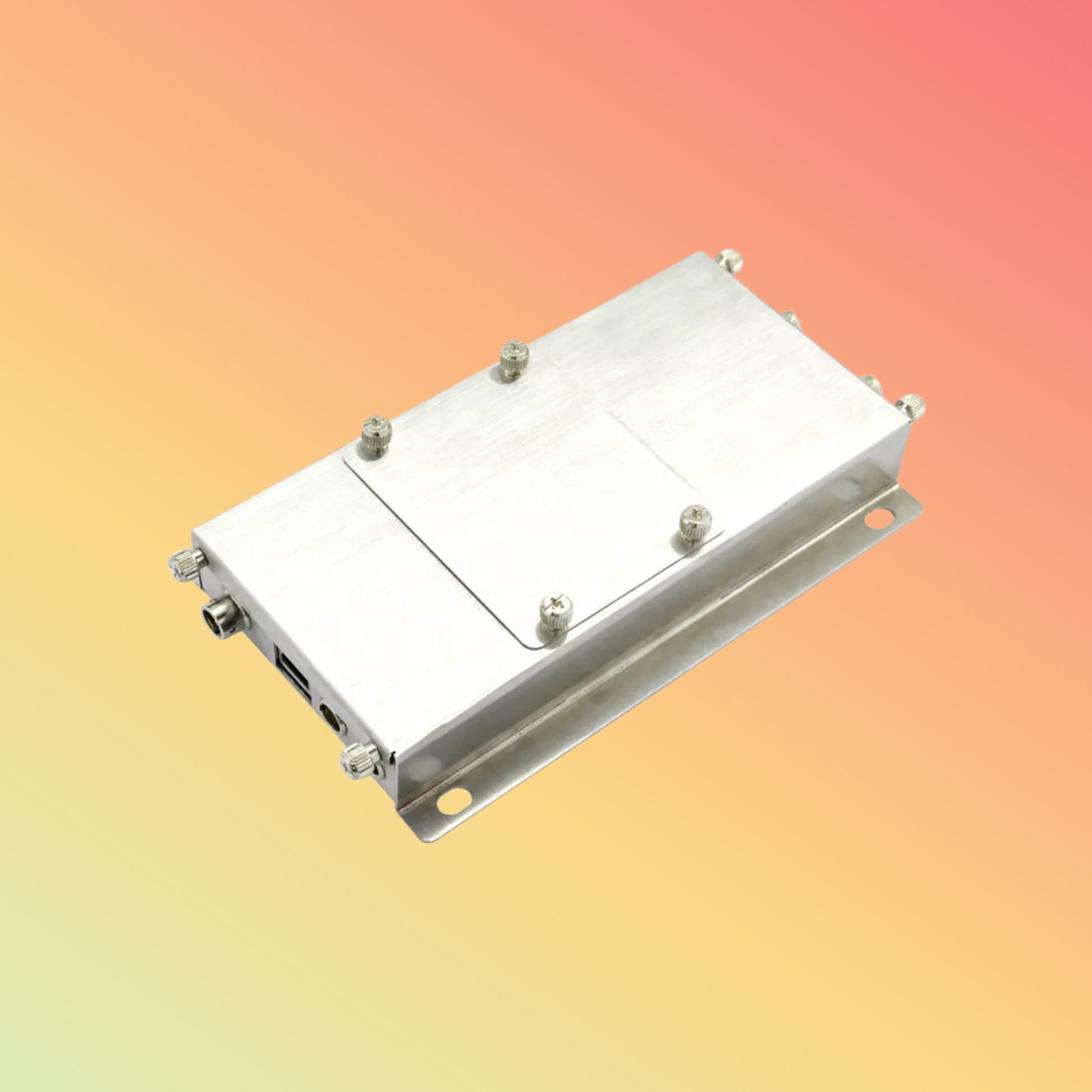

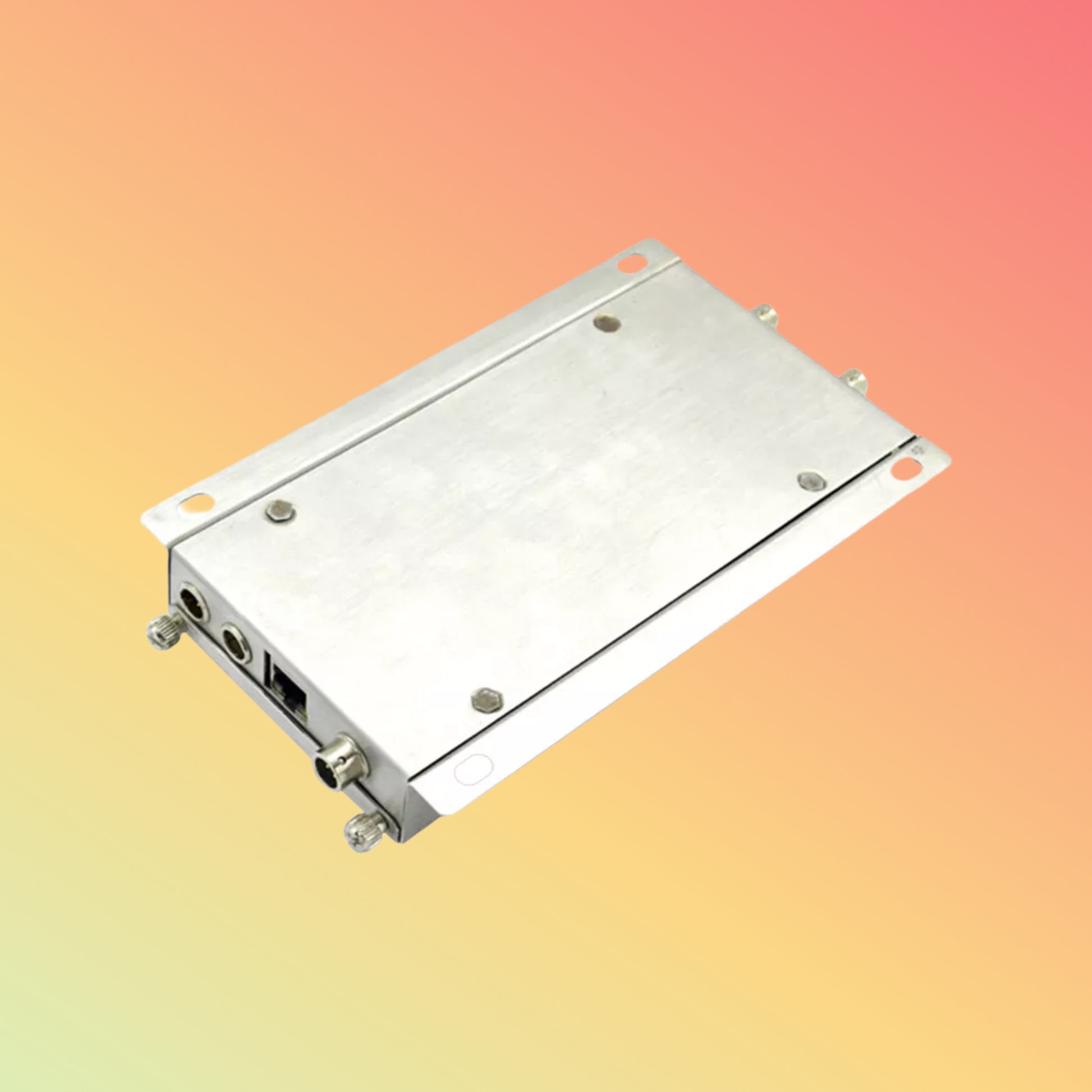

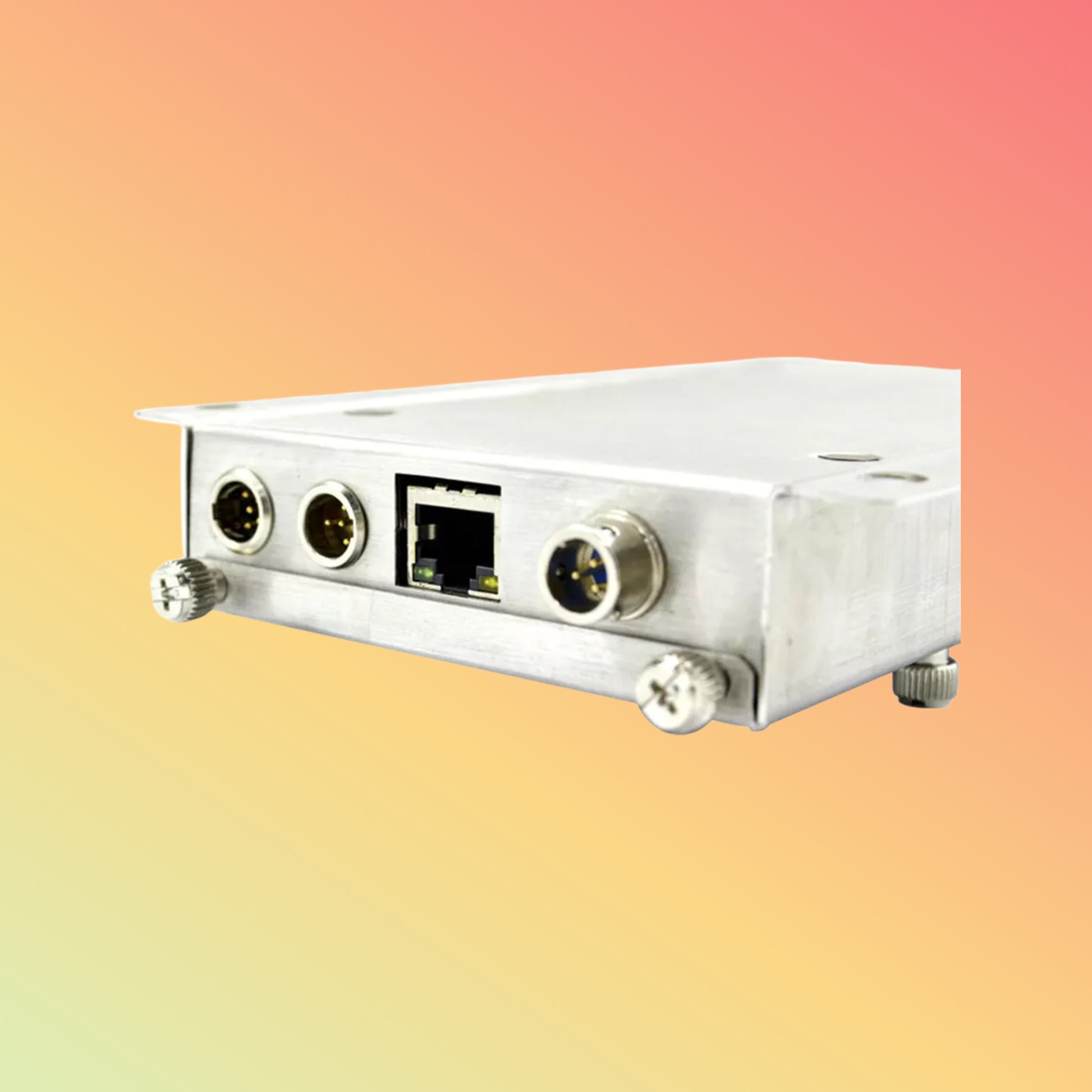

The T200 Embedded Linux Metro Card Reader Module is a reliable contactless card reader built for Linux 3.0 systems. Engineered for metro turnstiles, transit gates, and access control terminals, this reader supports Mifare cards with high-speed NFC communication. Compact and embedded, it's designed for real-time public transport fare systems.
✅ Product Description
The T200 Mifare Card Reader Module offers advanced NFC support and seamless integration with Linux-based environments, including Linux 3.0 kernels. It’s ideal for public transport systems, including metro stations, buses, and trams. Built for embedded applications, the module delivers fast card recognition, accurate data exchange, and long-term stability.
Its compact form factor and high compatibility with Mifare Classic & Mifare DESFire make it a go-to solution for integrators building secure and fast fare collection systems. Designed for demanding environments, the reader supports ISO14443 Type A/B contactless cards with stable performance and low latency.
✅ Key Features
-
Embedded design for seamless system integration
-
Full support for Linux 3.0+ systems
-
Reads Mifare Classic, Mifare DESFire, and ISO14443 cards
-
Fast contactless NFC read/write support
-
Supports metro, transit, and access control systems
-
Compact module with stable embedded operation
-
UART and RS232/TTL interface options
-
Anti-collision card detection logic
✅ Specifications
-
Model: T200
-
OS Compatibility: Embedded Linux 3.0 and above
-
Card Types: Mifare S50, S70, DESFire, ISO14443 Type A/B
-
Protocols: ISO14443A, ISO14443B
-
Communication Interface: UART / RS232 / TTL
-
Baud Rate: 9600–115200 bps
-
Reading Distance: 0–60mm (depending on card type)
-
Power Supply: 5V DC ±5%
-
Dimensions: 66mm × 50mm × 12mm
-
Operating Temp: -25°C to +65°C
-
Storage Temp: -40°C to +85°C
-
Power Consumption: <200mA
✅ Supported OS / Applications / Industries
Supported OS:
Applications:
Industries:
✅ Benefits & Compatibility
-
Compatible with most embedded Linux platforms
-
Works with Mifare 1K, 4K, and DESFire secure cards
-
Minimal CPU load with embedded protocol handling
-
Easily integratable into kiosks, terminals, and IoT projects
-
Ideal for compact smart fare collection and transit systems
-
Designed for long-term embedded deployment
✅ Purpose of Use
Used in transit gates, POS kiosks, and turnstiles, the T200 offers secure Mifare-based card authentication in Linux-powered systems. It enables rapid ID validation, cashless fare payment, and secure access management for public transport and institutional applications.
✅ How to Use
-
Connect the module to your embedded Linux board via UART or RS232
-
Power the unit with 5V DC
-
Install required drivers (if necessary)
-
Use Linux terminal or SDK to interact with card data
-
Integrate with your fare or access software stack
✅ Packaging / Weight / Dimension
-
Included: T200 Card Reader Module, Header Pins, Basic Docs
-
Weight: Approx. 35g
-
Unit Size: 66 × 50 × 12 mm
-
Box Dimensions: 120 × 90 × 30 mm
-
Packaging Type: Anti-static box with foam padding
✅ Warranty and FAQs
Warranty: 1-Year Limited Warranty
FAQs:
-
Q: Does it work with Raspberry Pi running Linux?
A: Yes, via UART or USB-to-TTL bridge.
-
Q: Can I read multiple cards at once?
A: No, it supports single card anti-collision logic.
-
Q: What programming languages are supported?
A: C, Python, and embedded Linux C/C++ environments.
✅ Performance, Quality, Durability, and Reliability
The T200 offers low-latency response, consistent data accuracy, and robust support in harsh transit environments. It operates reliably in continuous-use deployments and is engineered for 24/7 uptime, even under power cycling and heavy user flow.
✅ Best Price Guarantee
We offer the best pricing in the UAE for the T200 Embedded Card Reader Module. Found it cheaper? We’ll match it.
✅ Shop Today & Receive Your Delivery Across the UAE!
Order now and get quick delivery to Dubai, Abu Dhabi, Sharjah, and across the UAE. Secure packaging and easy integration ready out of the box.
✅ Request for Customer Reviews and Testimonials
Using the T200? Tell us how it’s performing in your fare system or embedded project. Your feedback builds better solutions for others.
✅ After Sales Support
Our team provides post-purchase technical support, firmware updates, and SDK documentation. Reach out for integration help any time.
✅ Get in Touch
Have questions about T200 specs or bulk orders? Contact our sales engineers now for product compatibility advice and custom quotes.
✅ Stock Availability
We maintain regular stock. For large or urgent orders, please confirm availability with our sales team before placing your request.
✅ Disclaimer
Specs, compatibility, and availability are subject to change without notice. Product images are for illustration purposes only. Always confirm final details before purchasing.
