Elevate kiosks with the Elo 1590L 15″ open-frame resistive touch display. 1024×768 clarity, rugged design, flexible mounting. UAE-wide delivery!
Overview

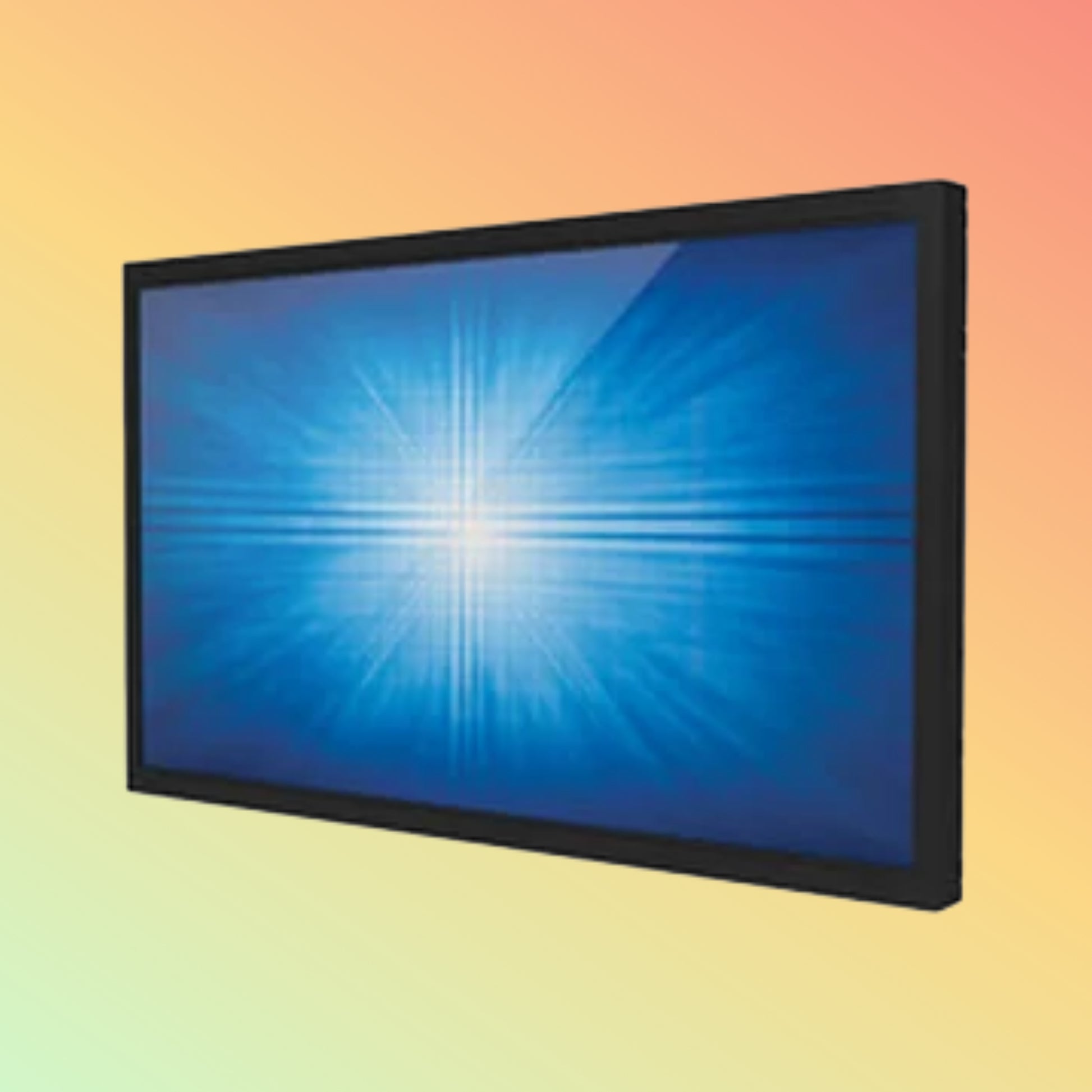

The Elo 1590L blends a vibrant 15″ 1024×768 LCD with 5-wire resistive touch in an 18 mm open-frame chassis. Engineered for OEMs and system integrators, it integrates seamlessly into kiosks, point-of-sale, and industrial control stations. Its edge-to-edge tempered glass and fanless, passive-cooling design ensure reliable, 24/7 operation in any environment.
Product Description
Built for continuous, high-traffic use, the 1590L features a robust 5-wire resistive touch sensor that works with finger, stylus, or gloved input. Standard HDMI and VGA video inputs plus USB touch I/O enable quick, plug-and-play setup. The slim metal housing supports bezel, faceplate, or rear-mount installation kits without extra bulk. With no external compute modules required, you get a neat, all-in-one solution.
Key Features
-
15″ 1024×768 HD LCD for sharp graphics
-
5-Wire Resistive Touch for precise, single-touch input
-
Edge-to-Edge Tempered Glass with anti-glare coating
-
Slim 18 mm Open-Frame Chassis for versatile integration
-
HDMI & VGA Video Inputs for broad compatibility
-
USB 2.0 Touch Interface (Type B)
-
VESA 100×100 mm mounting pattern
-
Fanless Passive Cooling for silent, maintenance-free operation
Specifications
| Specification |
Details |
| Display Size |
15″ diagonal |
| Resolution |
1024×768 (XGA) |
| Touch Technology |
5-wire resistive (USB 2.0) |
| Brightness |
350 cd/m² |
| Contrast Ratio |
700 : 1 |
| Viewing Angle |
160° H / 140° V |
| Video Inputs |
HDMI 1.4, VGA (DB-15) |
| Touch I/O |
USB 2.0 Type B |
| Mounting |
VESA 100×100 mm, flush-mount kits |
| Power Input |
5 V DC via USB (optional adapter) |
| Operating Temp. |
0 °C to 50 °C |
| Weight |
~2.2 kg (unpackaged) |
Supported OS / Applications / Industries
OS Compatibility: Any OS with HDMI & USB (Windows, Linux, macOS)
Applications: Self-service kiosks, POS systems, wayfinding, industrial HMI
Industries: Retail, hospitality, healthcare, transportation, manufacturing
Benefits & Compatibility
-
Seamless Integration: Open-frame design adapts to custom housings
-
Silent Reliability: Fanless cooling eliminates noise and dust ingress
-
Robust Touch: Works with stylus, gloves, or bare finger
-
Plug-and-Play I/O: Standard HDMI/VGA + USB for rapid deployment
-
Easy Maintenance: Tempered glass resists scratches and spills
Purpose of Use
Ideal for vendors and integrators deploying interactive displays in tight-space environments. The 1590L enhances user engagement with crisp visuals and reliable touch, boosting ROI on any self-service or industrial solution.
How to Use
-
Mount using VESA 100×100 mm or flush-mount bracket.
-
Connect HDMI or VGA to video source.
-
Plug USB for touch data.
-
Power via USB port or optional 5 V DC adapter.
-
Calibrate touch with Elo Touch Tools if needed.
Packaging / Weight / Dimensions
-
Unit Weight: ~2.2 kg
-
Carton Size: 550 × 350 × 120 mm
-
Includes: 1590L display, HDMI & USB cables, mounting brackets, quick-start guide
Warranty and FAQs
Warranty: 1-year limited hardware warranty; extensions up to 3 years available.
FAQs:
-
Q: Does it support stylus input?
A: Yes, the resistive sensor works with any stylus.
-
Q: Can it run 24/7?
A: Yes, passive cooling and industrial design ensure continuous operation.
-
Q: How do I protect against dust?
A: Use enclosed bezel kits for environmental sealing.
Performance, Quality, Durability & Reliability
Built with industrial-grade aluminum and ANSI-rated tempered glass, the 1590L endures shock, vibration, and heavy use. Rigorous burn-in testing and passive thermal management guarantee stable, silent operation in mission-critical settings.
Best Price Guarantee
Spotted a lower price on an equivalent 15″ open-frame touch display in the UAE? We’ll match it—no questions asked. Shop confidently with NEOTECH.
Shop Today & Receive Your Delivery Across the UAE!
Order now for fast, secure delivery to Dubai, Abu Dhabi, Sharjah, and all emirates. Our logistics network ensures on-time arrival.
Request for Customer Reviews & Testimonials
Deployed the Elo 1590L? Share your experience to help peers and refine future designs. Your insights drive innovation.
After Sales Support
Enjoy dedicated technical assistance, remote diagnostics, and streamlined RMA processing. If phone or email support can’t resolve your issue, we’ll arrange prompt replacement.
Get in Touch
Need specs, pricing, or integration guidance? Contact our product specialists for tailored solutions and quotes. We’re here to help you succeed.
Stock Availability
Before ordering, please confirm current stock levels. We maintain accurate inventory data to ensure seamless purchasing.
Disclaimer
All information is for general guidance and may change without notice. Product images are illustrative only. Verify specs, availability, and pricing with our sales team before purchase.
