Engage customers with the Elo 3243L 32″ open‑frame PCAP touch monitor. Durable, ultra‑responsive, easy to integrate. Order today!
Overview

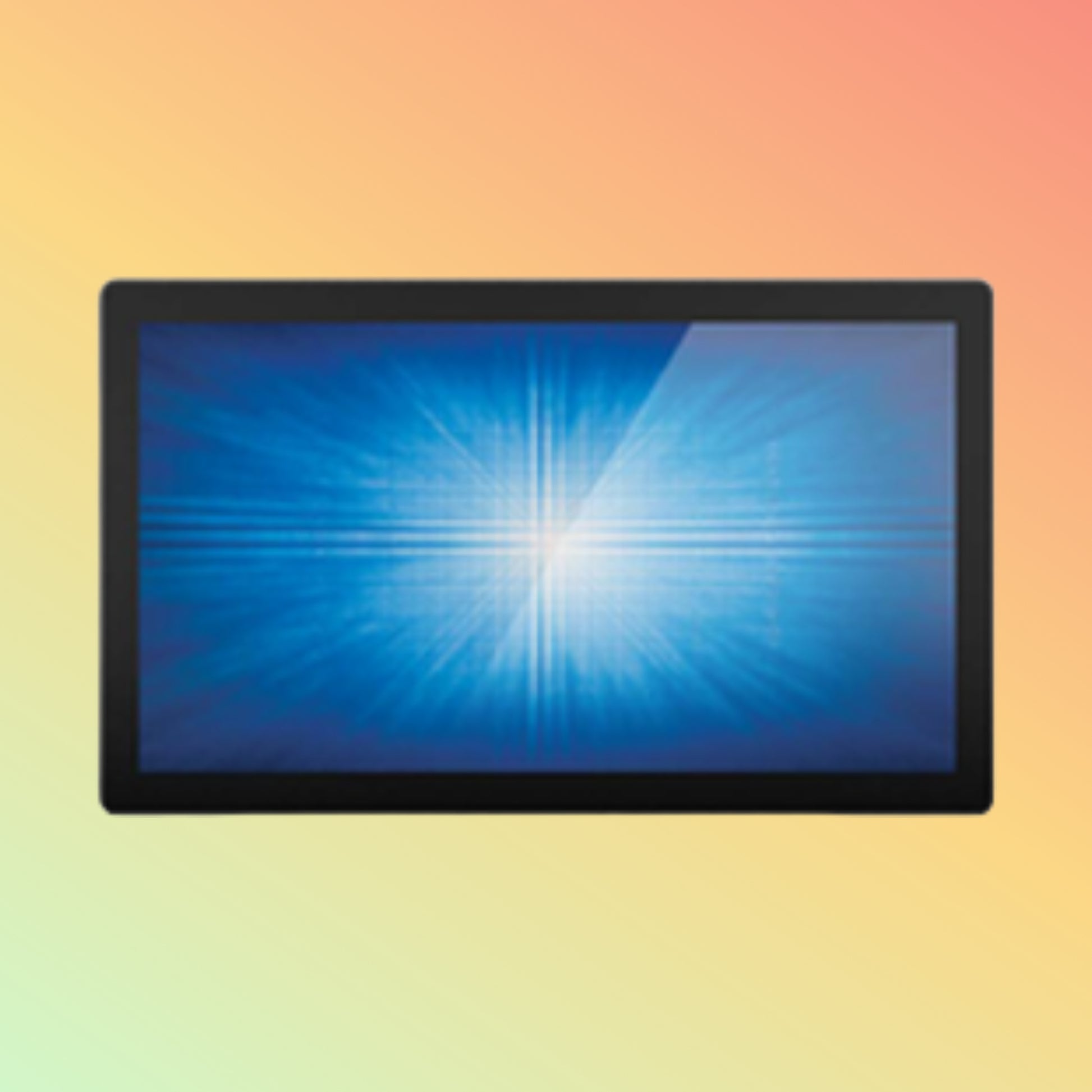

The Elo 3243L is a 32-inch open‑frame, projected‑capacitive multitouch display built for self‑service kiosks, digital signage, and interactive installations. With commercial‑grade components, a slim bezel, and industrial reliability, it delivers an immersive touch experience in retail, hospitality, healthcare, and corporate environments.
Product Description
Featuring a Full HD (1920×1080) IPS panel and Elo’s 10‑point PCAP touchscreen, the 3243L delivers sharp visuals and precise touch, even through gloves or stylus. Its open‑frame metal chassis includes integrated mounting flanges and a slim 16 mm bezel for seamless integration into custom enclosures. LED backlighting with a 50,000‑hour lifespan and IP54‑rated front gaskets guard against dust and splashes, ensuring consistent performance in busy public spaces.
Key Features
-
32″ Full HD (1920×1080) IPS display with wide viewing angles
-
Elo 10‑point projected‑capacitive multitouch technology
-
Open‑frame design with included mounting flange kit
-
Commercial‑grade LED backlight for 50,000+ hours operation
-
Slim 16 mm bezel for sleek integration
-
IP54‑rated front gasket for dust and splash resistance
-
Wide operating temperature: 0 °C to 50 °C
-
HDMI, DisplayPort video inputs; USB‑C or USB‑A for touch interface
Specifications
| Attribute |
Details |
| Display Size |
32″ diagonal |
| Resolution |
1920×1080 Full HD |
| Touch Technology |
Projected Capacitive, 10‑point multitouch |
| Brightness |
450 cd/m² |
| Contrast Ratio |
1000:1 |
| Viewing Angle |
178° horizontal / vertical |
| Touch Interface |
USB‑C (1 Gbps) or USB‑A with controller box |
| Video Inputs |
1× HDMI 2.0; 1× DisplayPort 1.2 |
| Enclosure |
Open frame, metal chassis, VESA 400×200 mounting |
| IP Rating |
IP54 front |
| Operating Conditions |
0 °C–50 °C; 20–80% RH non‑condensing |
| Power |
100–240 VAC, 50/60 Hz, internal power supply |
| Bezel Width |
16 mm |
| Depth (incl. flanges) |
55 mm |
| Weight |
18 kg |
Supported Applications / Industries
-
Self‑Service Kiosks: Ticketing, check‑in, wayfinding
-
Digital Signage: Interactive menus, directories, product showcases
-
Point of Sale: Assisted checkout and upsell stations
-
Healthcare: Patient registration and information terminals
-
Corporate: Collaborative meeting room displays and digital whiteboards
Benefits & Compatibility
-
Custom Integration: Open‑frame design fits bespoke enclosures.
-
Precision Touch: Elo PCAP ensures fast, accurate response.
-
Commercial Durability: IP54 front and robust metal chassis for heavy use.
-
Broad Compatibility: Works with Windows, Android, Linux, macOS via standard drivers.
-
Energy Efficient: Long‑life LED backlight reduces power and maintenance costs.
Purpose of Use
Ideal for OEMs and integrators building interactive kiosks, retail displays, and wayfinding stations. Use the 3243L to create engaging customer experiences in high‑traffic areas.
How to Use
-
Secure the 3243L within your enclosure using the supplied flange‑mount kit.
-
Connect video via HDMI or DisplayPort.
-
Attach touch data cable (USB‑C or USB‑A).
-
Power on; the display and touch will auto‑detect.
-
Calibrate touch settings with Elo’s configuration utility as needed.
Packaging / Weight / Dimensions
-
Includes: Elo 3243L panel, mounting flange kit, power cord, USB touch cable, quick‑start guide
-
Carton Dimensions: 950×550×150 mm
-
Shipping Weight: 21 kg
Warranty & FAQs
Warranty:
FAQs:
Q: Can it be used outdoors?
A: Suitable for covered outdoor areas; for full outdoor use, consult Elo.
Q: Does it support portrait orientation?
A: Yes, supports 90° rotation via compatible VESA bracket.
Q: Are there pre‑built enclosures?
A: NEOTECH offers custom kiosk enclosure design services.
Performance, Quality, Durability & Reliability
Manufactured to Elo’s rigorous standards, the 3243L undergoes temperature, vibration, and moisture‑ingress testing. Its LED backlight and PCAP touchscreen are rated for millions of touches and years of continuous operation.
Best Price Guarantee
NEOTECH offers the most competitive UAE pricing on the Elo 3243L. Found a lower price? We’ll match or beat it—plus include complimentary local setup guidance.
Shop Today & Receive Your Delivery Across the UAE
Order before 2 PM UAE time for same‑day processing. Delivery in 2–4 days across Dubai, Abu Dhabi, Sharjah, and all Emirates with secure packaging and real‑time tracking.
Request for Customer Reviews and Testimonials
Have you deployed the Elo 3243L? Share your experience to help others select the right interactive display solution.
After Sales Support
NEOTECH’s UAE‑based team provides:
-
Live chat and phone assistance
-
Touchscreen calibration and firmware updates
-
RMA and warranty processing
-
Custom integration and enclosure consultation
Get in Touch
Need help integrating the Elo 3243L into your solution? Contact our display specialists for rapid, tailored recommendations and demos.
Stock Availability
In stock now. Limited quantities—order today to secure your interactive touch display. Custom configurations available upon request.
Disclaimer
Specifications subject to change without notice. For specialized outdoor or extreme‑environment deployments, please consult Elo for suitable models.
