Print 2D barcodes, tickets, and receipts with HCC-EU801 80mm ESC/POS kiosk printer. Ideal for terminals, vending & queue systems. Fast UAE shipping.
✅ Overview

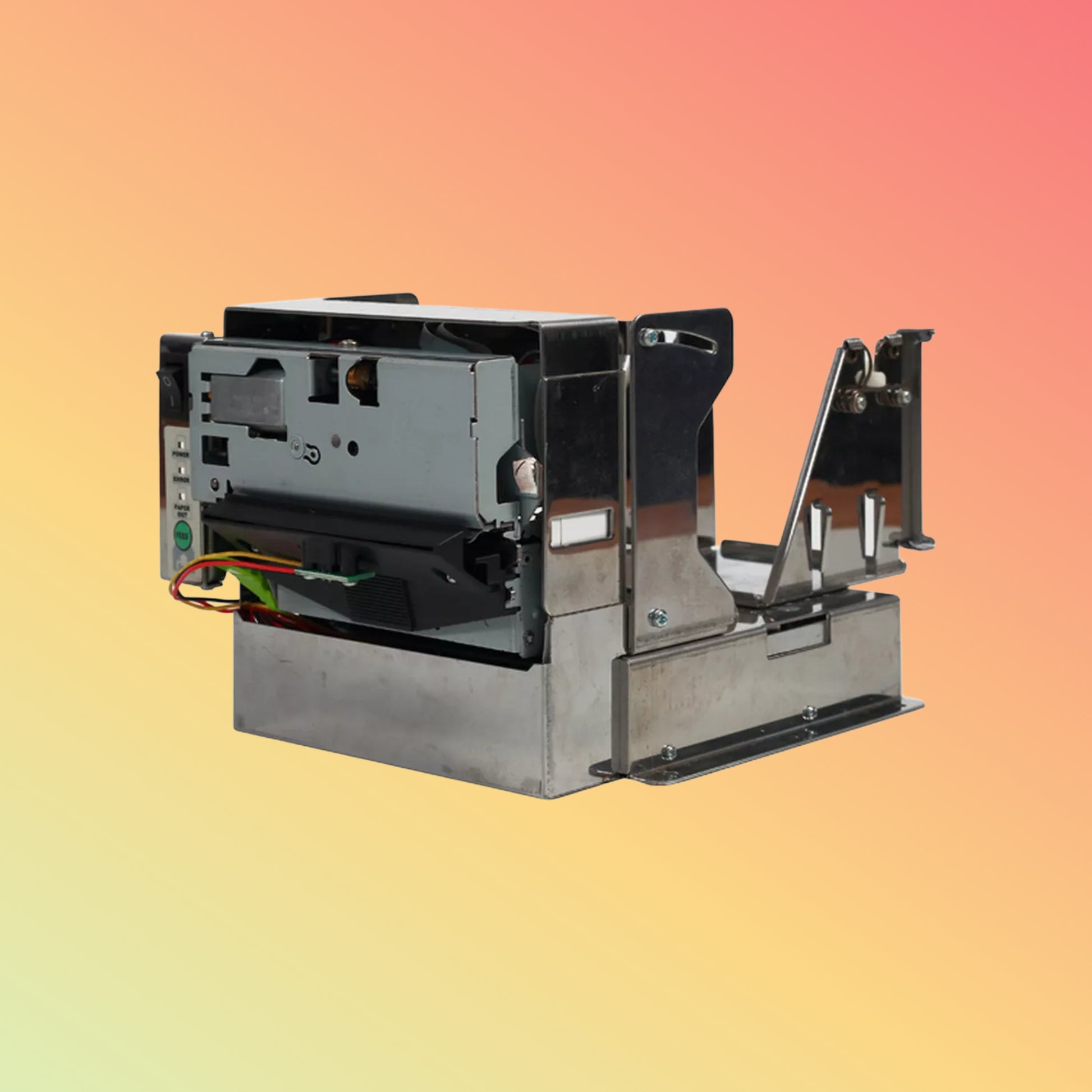

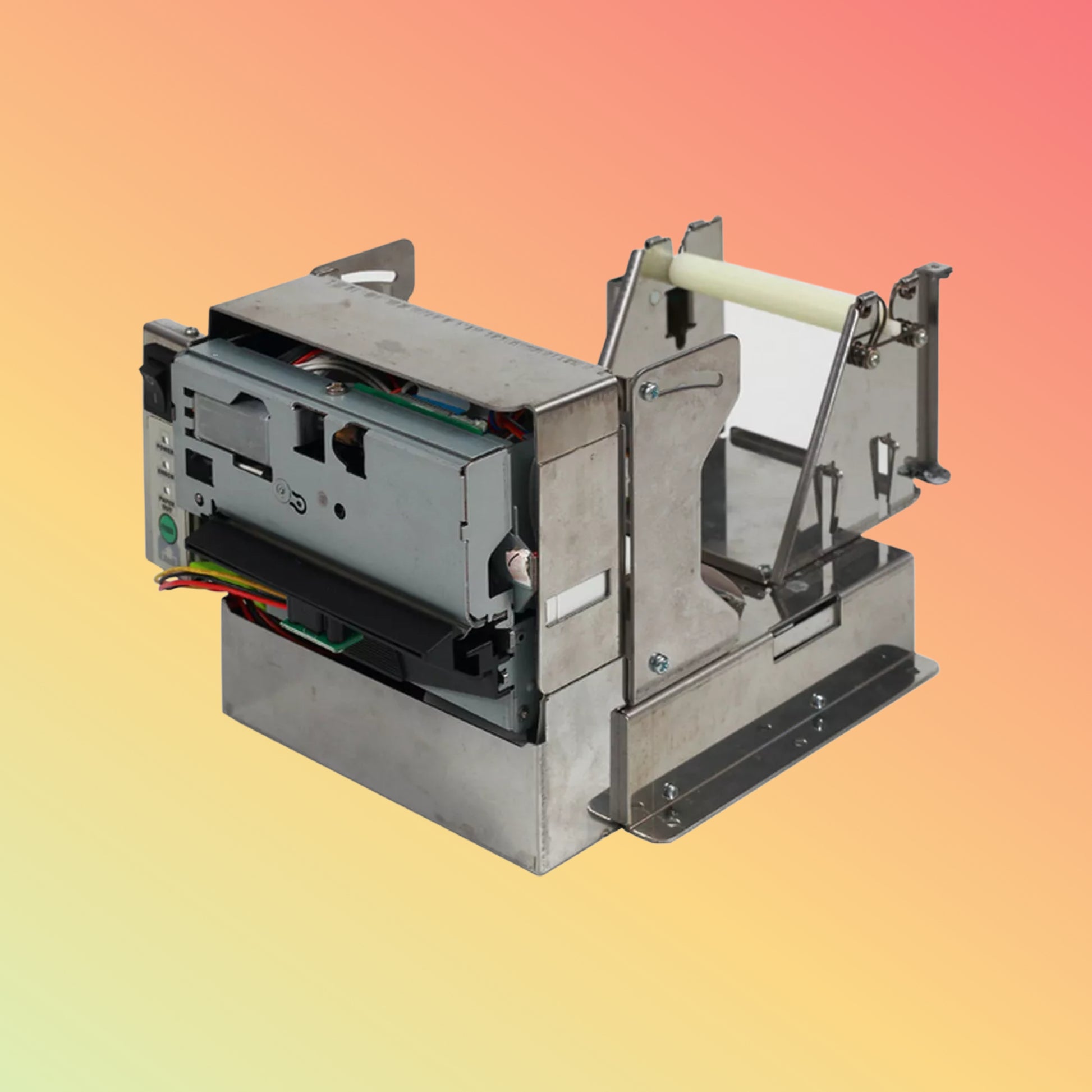

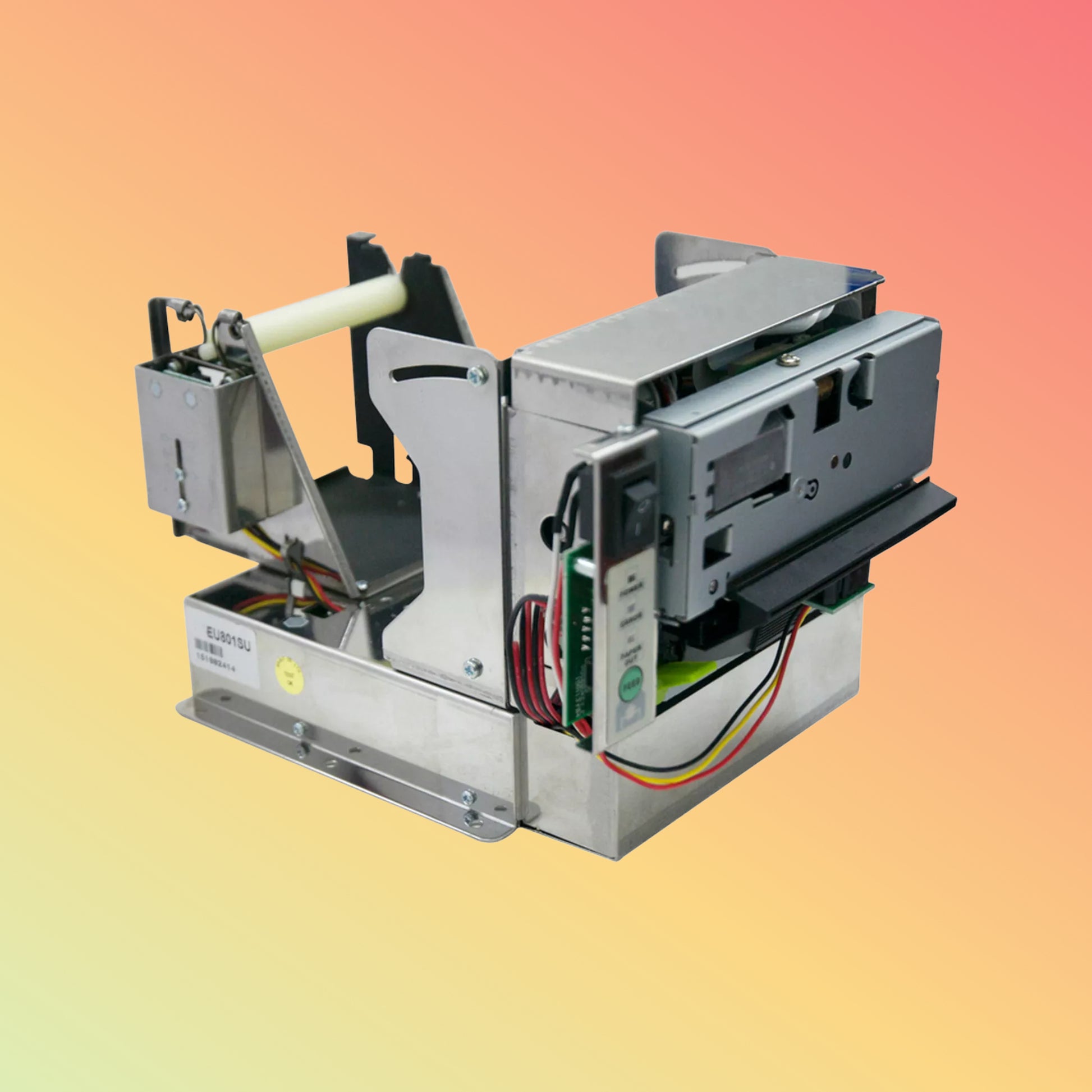

The HCC-EU801 ESC/POS Kiosk Printer is a rugged, high-performance thermal receipt printer built for self-service kiosks, terminals, and ticketing stations. With 80mm paper support, 2D barcode printing, and ESC/POS command compatibility, it delivers fast, clear, and reliable output for modern automated systems.
✅ Product Description
The HCC-EU801 is a powerful embedded thermal receipt printer designed for kiosks requiring high-quality ticket, receipt, and barcode output. Supporting up to 80mm thermal paper, it features 203dpi print resolution, 2D barcode capability, and ESC/POS command structure for easy integration.
This model supports printing of QR codes, PDF417, and other 2D barcodes, making it ideal for public-use environments such as banking kiosks, transport ticketing, and queue systems. The compact form factor, front-loading design, and modular connectivity (USB/RS232/TTL) make integration fast and flexible.
✅ Key Features
-
🧾 80mm Paper Width – Ideal for full-size receipts or tickets
-
🧠 ESC/POS Command Support – Easy compatibility with POS apps
-
📲 2D Barcode Support – Print QR codes, PDF417, and DataMatrix
-
⚡ 203dpi High Resolution – Crisp, clear output for scanning
-
✂️ Built-In Auto Cutter – Full/partial cut for clean receipt handling
-
🔌 Multiple Interfaces – USB, RS232, TTL options for OEM devices
-
📦 Front-Feed Paper System – Simple maintenance and reloads
-
🧱 Compact Embedded Design – Optimized for kiosks and terminals
✅ Specifications
-
Print Method: Direct Thermal
-
Resolution: 203dpi
-
Print Speed: Up to 220mm/s
-
Paper Width: 80mm
-
Max Print Width: 72mm
-
Barcode Support: 1D & 2D (QR, PDF417, DataMatrix)
-
Interfaces: USB, RS232, TTL
-
Cutter Type: Auto (full/partial)
-
Command Compatibility: ESC/POS
-
Weight: Approx. 1.3 kg
-
Dimensions: 145 x 130 x 105 mm
✅ Supported OS / Applications / Industries
-
Operating Systems: Windows, Linux
-
Applications: Ticketing, Receipt Kiosks, ID Verification, Self-Service Terminals
-
Industries: Public Transport, Healthcare, Retail, Banking, Government
✅ Benefits & Compatibility
-
🔄 Seamlessly integrates into POS and self-service platforms
-
📑 Prints receipts, barcodes, tickets, and custom content
-
📏 Compact enough for tight kiosk enclosures
-
🧾 Works with standard 80mm thermal paper
-
🔋 Inkless operation with minimal upkeep
✅ Purpose of Use
Best suited for kiosks, vending stations, queue systems, and interactive terminals requiring 2D barcode output and fast transaction printing.
✅ How to Use
-
Mount the module inside kiosk enclosure
-
Connect via USB, RS232, or TTL to controller
-
Load 80mm thermal paper via front panel
-
Use ESC/POS commands to send data from POS or kiosk software
-
Print receipts, QR tickets, or confirmation slips with barcode
✅ Packaging / Weight / Dimension
-
Weight: 1.3 kg
-
Dimensions: 145 x 130 x 105 mm
-
Included in Package: Printer module, sample thermal roll, cables (model dependent), installation manual
-
Packaging: OEM-ready shockproof box with static protection
✅ Warranty and FAQs
Warranty: 12-month hardware warranty
FAQs:
-
Does it support QR printing? Yes
-
Can it be embedded in a wall kiosk? Yes
-
Is cutter included? Yes, with auto cut function
Need help? Visit the NEOTECH Contact Page
✅ Performance, Quality, Durability, and Reliability
Tested for continuous kiosk duty cycles, the HCC-EU801 is built to withstand frequent printing, low-maintenance usage, and barcode accuracy demands in unattended spaces.
✅ Best Price Guarantee
We guarantee the best price in the UAE. If you find the same model at a lower rate—we’ll match or beat it. Ask our sales team for bulk pricing.
✅ Shop Today & Receive Your Delivery Across the UAE!
Order now for fast shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates. Pre-tested and securely packed for smooth integration.
✅ Request for Customer Reviews and Testimonials
Using HCC-EU801 in your kiosk system? Share your results with the community to help developers and integrators choose confidently.
✅ After Sales Support
Our technical team offers driver help, integration guides, and real-time support. We're ready to assist with every deployment phase.
✅ Get in Touch
Have project specs, OEM requests, or questions? Connect with us via the NEOTECH Contact Page and get expert advice.
✅ Stock Availability
HCC-EU801 is generally in stock. Custom configurations or volume orders may require 10–15 business days. Confirm before ordering for urgent projects.
✅ Disclaimer
Specifications are subject to change. All content is for informational use only. Confirm full compatibility and setup with NEOTECH before purchasing.
