Handle cash like a boss with UNION C15. MG/UV/IR/DD/MT sensors, dual-sort pockets & 1,000 notes/min on 4″ LCD—ideal for banks & retail.
Overview

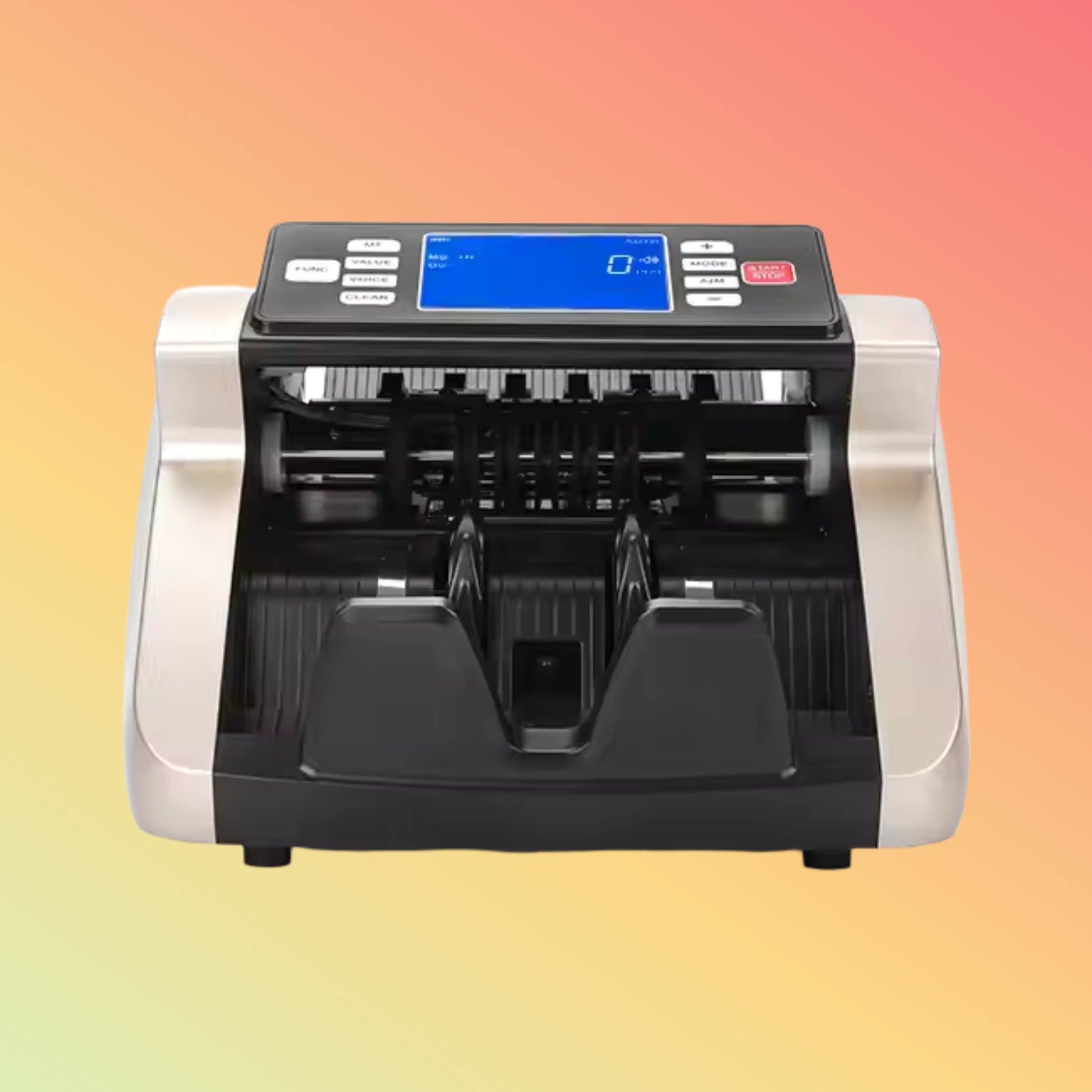

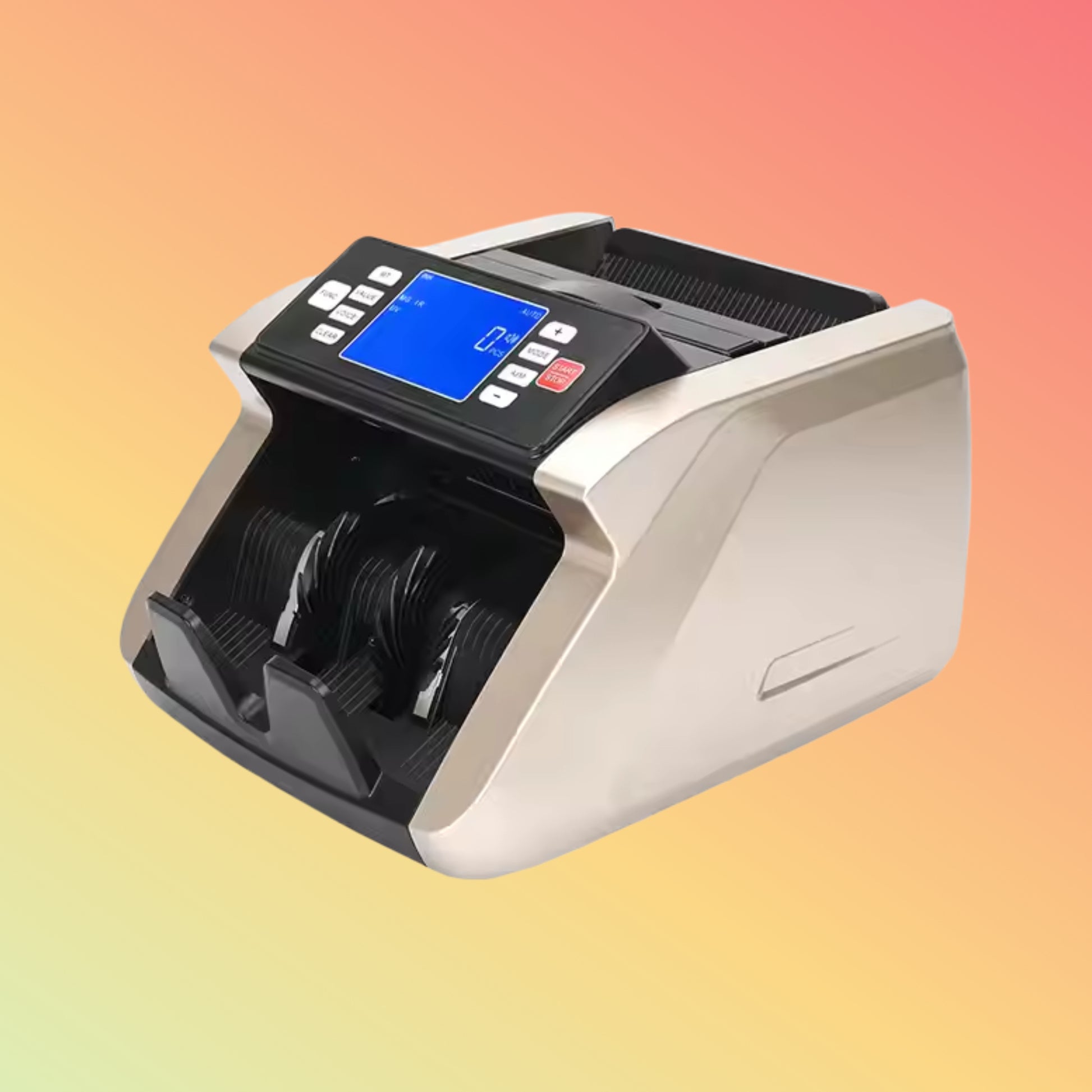

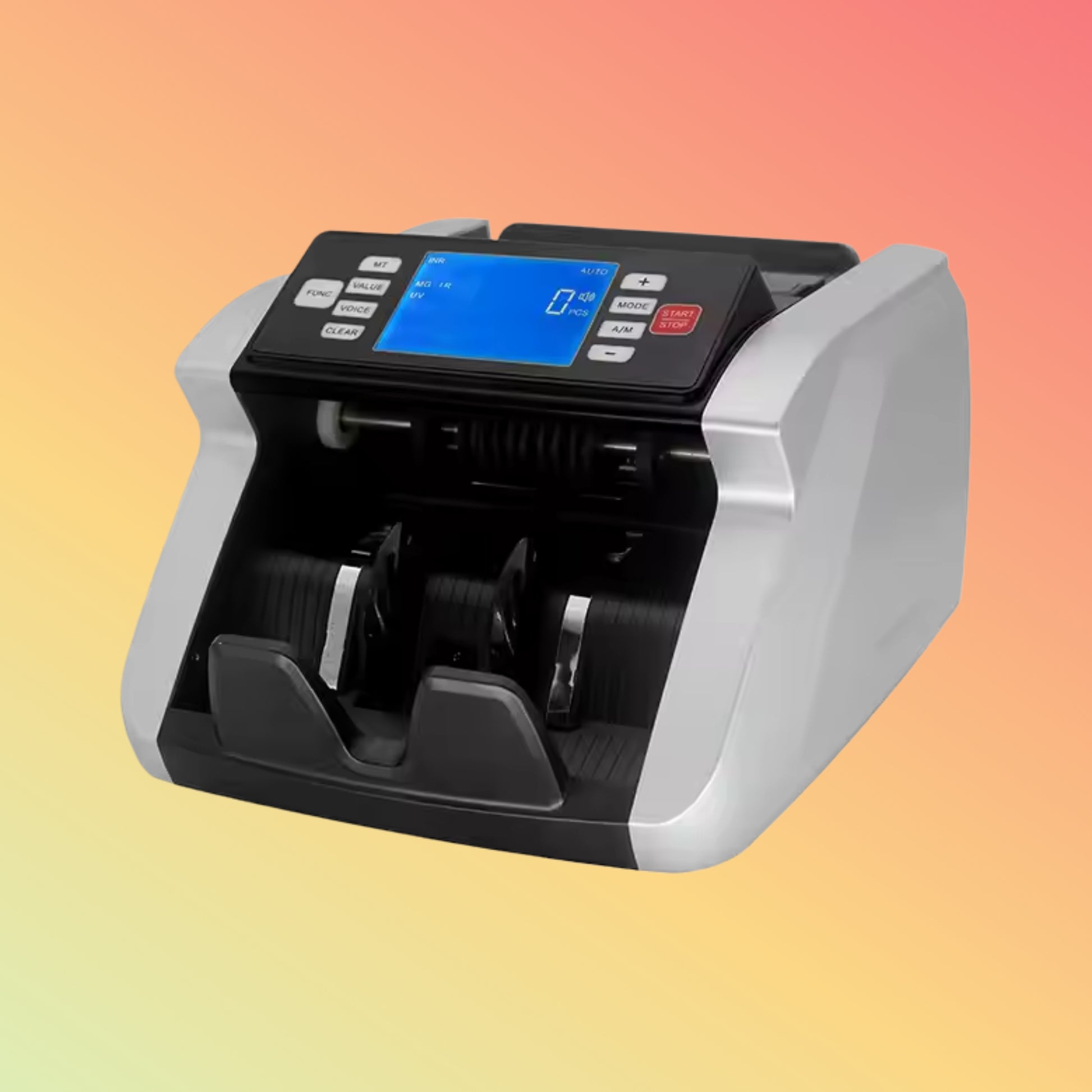

Meet the UNION C15 Pro Cash Counting Machine, built for cash pros. Its 5-point detection (MG, UV, IR, DD & MT) spots fakes instantly, auto-sorts real vs. suspect notes, and blasts through 1,000 notes/min on a sharp 4″ LCD. Engineered for banks, retail, and back-office cash handling.
Product Description
Load up to 500 mixed banknotes into the hopper and hit Start. The C15’s magnetic-ink (MG), ultraviolet (UV), infrared (IR), double-dimension (DD) and magnetic-thread (MT) checks authenticate each note. Verified bills funnel to Pocket 1; rejects to Pocket 2. Housed in a rugged steel frame with a whisper-quiet motor (< 60 dB), it delivers nonstop accuracy. Export logs or update firmware via USB 2.0 or RS-232.
Key Features
-
5-Point Security: MG, UV, IR, DD & MT counterfeit checks
-
High Speed: 1,000 notes/min counting
-
Dual-Pocket Sorting: accept vs. reject trays
-
4″ Backlit LCD: live count, batch & error display
-
Modes: Count, Add, Batch, Auto-Stop
-
Capacities: 500-note hopper │ 200-note stacker │ 100-note reject
-
Rugged Steel Frame: built for heavy use
-
Data Ports: USB 2.0 & RS-232 connectivity
-
Silent Operation: < 60 dB for office comfort
Specifications
| Spec |
Detail |
| Model |
UNION C15 Pro |
| Counting Speed |
Up to 1,000 notes/min |
| Hopper Capacity |
500 notes |
| Stacker Capacity |
200 notes |
| Reject Tray Capacity |
100 notes |
| Detection Methods |
MG, UV, IR, DD, MT |
| Display |
4″ backlit LCD |
| Counting Modes |
Count, Add, Batch, Auto-Stop |
| Connectivity |
USB 2.0, RS-232 |
| Power |
AC 100–240 V, 50/60 Hz |
| Dimensions (W×D×H) |
310 × 290 × 280 mm |
| Weight |
8.2 kg |
Supported Use Cases
-
Bank teller stations & vaults
-
Retail & supermarket checkouts
-
Cash-in-transit reconciliation
-
Casino cash cages
-
Back-office cash rooms
Benefits & Compatibility
-
Rock-solid Security: 5-sensor counterfeit suite
-
Peak Performance: handles rush-hour volumes
-
Seamless Reporting: USB/serial data export
-
Quiet & Durable: steel frame & low-noise motor
-
Versatile Modes: batch & add for any workflow
Purpose of Use
Engineered for high-volume cash operations—automate counting and authentication so staff focus on service, not stacks.
How to Use
-
Plug into AC and connect USB/RS-232
-
Load mixed notes into the hopper
-
Press Start on the LCD panel
-
Collect verified notes from Pocket 1 & rejects from Pocket 2
-
Export logs as needed via USB/RS-232
Packaging / Weight / Dimensions
-
Includes: unit, power cord, USB & RS-232 cables, user manual, cleaning brush
-
Carton Size: 360 × 330 × 320 mm
-
Gross Weight: ~ 9.5 kg
Warranty & FAQs
FAQs
Performance, Quality & Reliability
Meets central-bank standards with < 0.01% error. Industrial-grade motor and precision sensors ensure shift-after-shift accuracy.
