Fanless 13.3″ POS terminal with Rockchip RK3568, 4 GB RAM, 64 GB eMMC, PoE, 10-point touch, MSR & Wi-Fi. Durable, compact. Order UAE-wide.
Overview

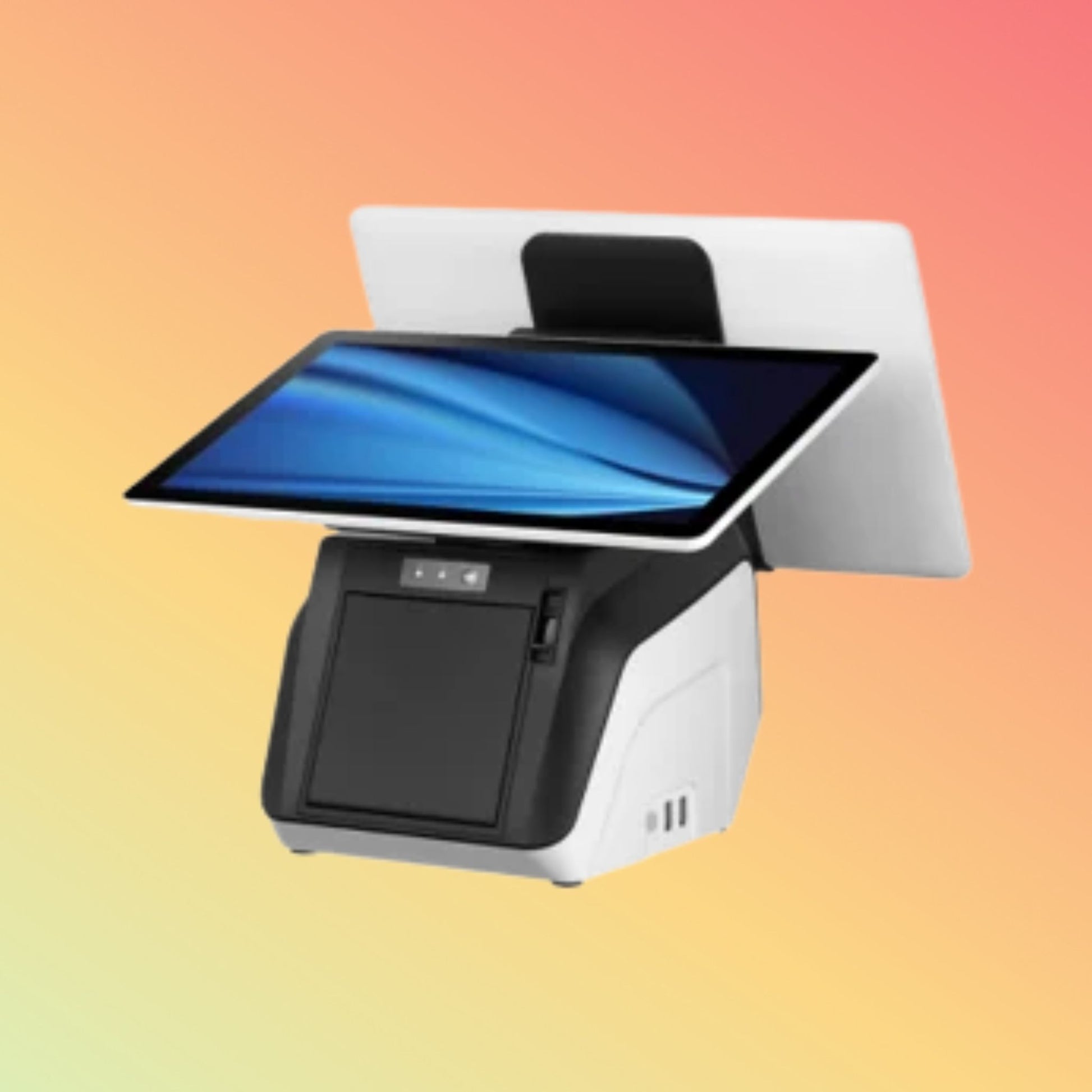

The Advantech USC-513RB supercharges your checkout ecosystem with a fanless, 13.3″ FHD projected-capacitive touchscreen and a Rockchip RK3568 octa-core processor. Its ultra-slim, dust-proof chassis and PoE power delivery make installation frictionless across retail, hospitality and healthcare fronts.
Product Description
Built for 24/7 transaction throughput, the USC-513RB integrates 4 GB LPDDR4 memory and 64 GB eMMC storage, expandable via M.2 SSD. A built-in 3-track magnetic-stripe reader and cash-drawer interface streamline payments, while dual LAN, Wi-Fi 6 and Bluetooth 5.2 keep you connected. Deploy on Linux or Android for maximum flexibility. Its fanless thermal design drives reliability, and VESA mounting unlocks modular deployments.
Key Features
-
Processor: Rockchip RK3568 octa-core, Cortex-A55 up to 2.0 GHz
-
Display: 13.3″ FHD (1920×1080), 10-point PCAP touch
-
Memory & Storage: 4 GB LPDDR4; 64 GB eMMC; optional M.2 SATA SSD
-
Payment I/O: 3-track MSR slot; RJ-11 cash-drawer port
-
Connectivity: Dual GbE (one PoE+), Wi-Fi 6, Bluetooth 5.2, 2× USB 3.2, COM port
-
Audio/Video: Integrated HD camera, dual microphones, stereo speakers
-
Power & Mounting: PoE+ or DC 12 V; VESA 75×75 mm
-
Design: Fanless, IP54 front, slim bezel (345×220×30 mm)
Specifications
| Specification |
Detail |
| CPU |
Rockchip RK3568 (8× Cortex-A55, 1.8 GHz) |
| RAM |
4 GB LPDDR4 |
| Storage |
64 GB eMMC; M.2 SATA slot |
| Display |
13.3″ FHD PCAP, 10-point touch |
| Network |
2× GbE (1× PoE+), Wi-Fi 6, Bluetooth 5.2 |
| USB |
2× USB 3.2 Gen1 |
| Serial |
1× RS-232 COM |
| Payment Interfaces |
3-track MSR, cash-drawer RJ-11 |
| Audio |
HD camera, dual-array mics, 2× speakers |
| Power Input |
PoE+ (802.3at) or DC 12 V |
| Dimensions (W×H×D) |
345×220×30 mm |
| Weight |
~1.8 kg |
| Operating Temp. |
0–45 °C |
| Front Rating |
IP54 |
Supported OS / Applications / Industries
-
OS: Linux (Yocto/Ubuntu), Android
-
Applications: POS checkout, self-ordering kiosks, patient check-in
-
Industries: Retail, F&B, healthcare, transportation
Benefits & Compatibility
-
Streamlined Deployment: PoE+ power/data over one cable
-
Reliable Operation: Fanless design prevents dust buildup and noise
-
Integrated Payments: MSR and drawer port cut peripheral clutter
-
Interactive UX: High-precision multi-touch with built-in AV modules
-
Flexible Mounting: VESA ready for wall, stand, or kiosk installs
Purpose of Use
Ideal for point-of-sale, ticketing, and self-service terminals where uptime, security, and compact footprint drive ROI and elevate customer satisfaction.
How to Use
-
Mount & Power: Secure via VESA; connect PoE+ or DC power.
-
Install OS: Flash your Linux or Android image to eMMC or M.2.
-
Connect Peripherals: Attach printer, scanner, drawer via USB/COM.
-
Configure Network: Plug Ethernet or set up Wi-Fi/Bluetooth profiles.
-
Run POS App: Launch your software; swipe, tap or scan to transact.
Pro Tip: Enable auto-sleep in firmware to minimize power draw during idle periods.
Packaging / Weight / Dimensions
-
Includes: USC-513RB unit, PoE+ injector (if ordered), DC adapter, VESA kit, quick guide
-
Package Weight: ~2.5 kg
-
Box Size: 400×280×100 mm
Warranty and FAQs
Warranty: 1-year warranty with advance replacement.
FAQs:
Performance, Quality, Durability, and Reliability
Equipped with industrial-grade hardware and a dust-resistant, fanless enclosure, the USC-513RB sustains peak loads without throttling—delivering consistent, jitter-free transactions.
Best Price Guarantee
Spotted a lower UAE-based quote on the same model? We’ll match it—no questions asked.
Shop Today & Receive Your Delivery Across the UAE!
Enjoy fast, secure delivery to Dubai, Abu Dhabi, Sharjah, and all emirates. Bulk or project orders? Ask about priority dispatch.
Request for Customer Reviews and Testimonials
Deployed this POS terminal? Share your feedback to guide peers and shape our next-gen offerings.
After Sales Support
From deployment to troubleshooting, our tech team is on call via live chat and portal ticketing—ensuring your system stays live and optimized.
Get in Touch
Visit our product page to submit an inquiry—our specialists will connect with you promptly.
Stock Availability
Stocks update daily. For urgent or volume orders, confirm availability before checkout; lead times for custom modules may be 10–15 business days.
Disclaimer
Specifications are subject to change without notice. Images are illustrative. Verify all technical and pricing details with NEOTECH before purchase.
