Configure your HPE ML30 Gen11 4LFF server: Xeon-ready, up to 64 GB DDR4, 4 hot-plug drives, 1 GbE, scalable RAID. Ideal for SMB & branch IT.
Overview

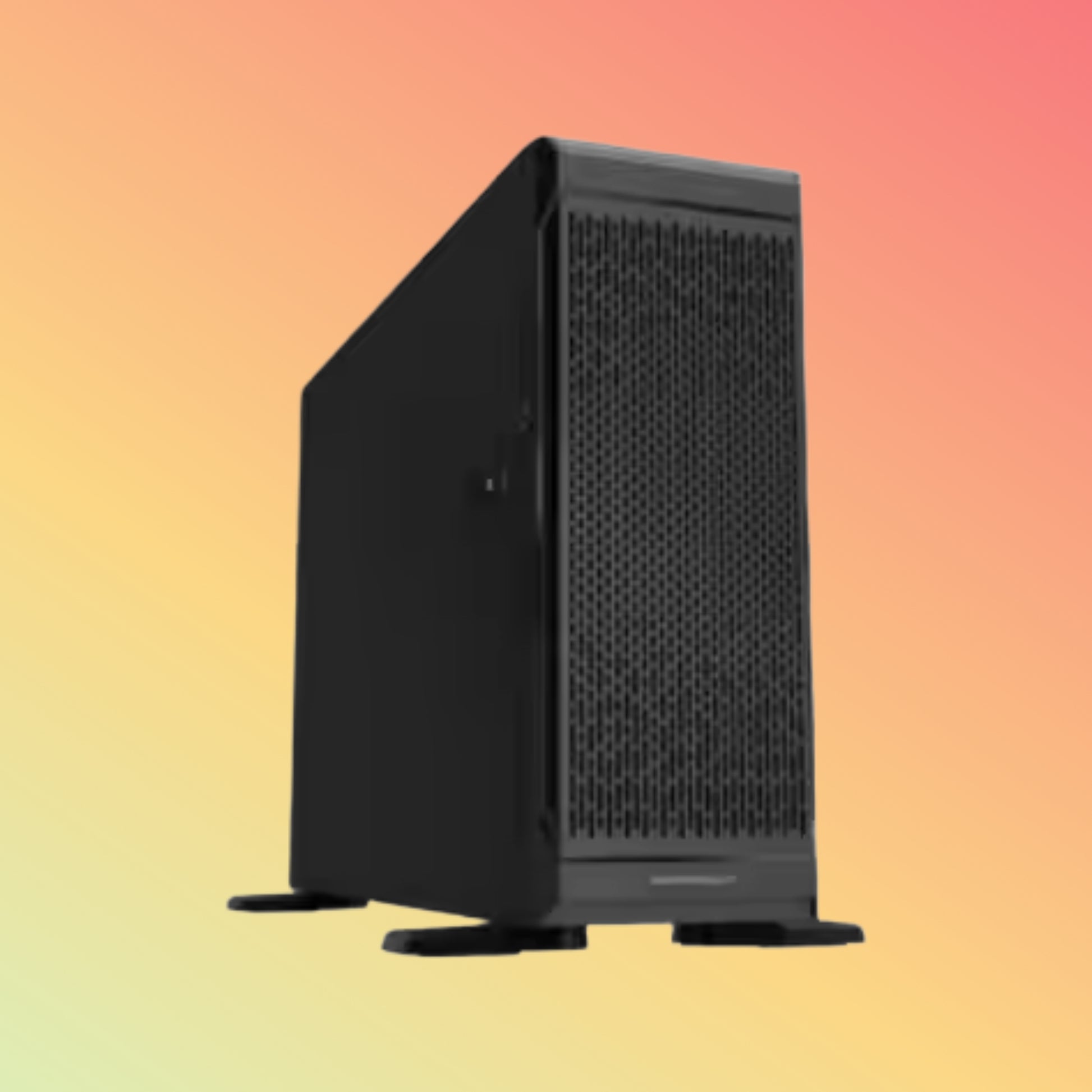

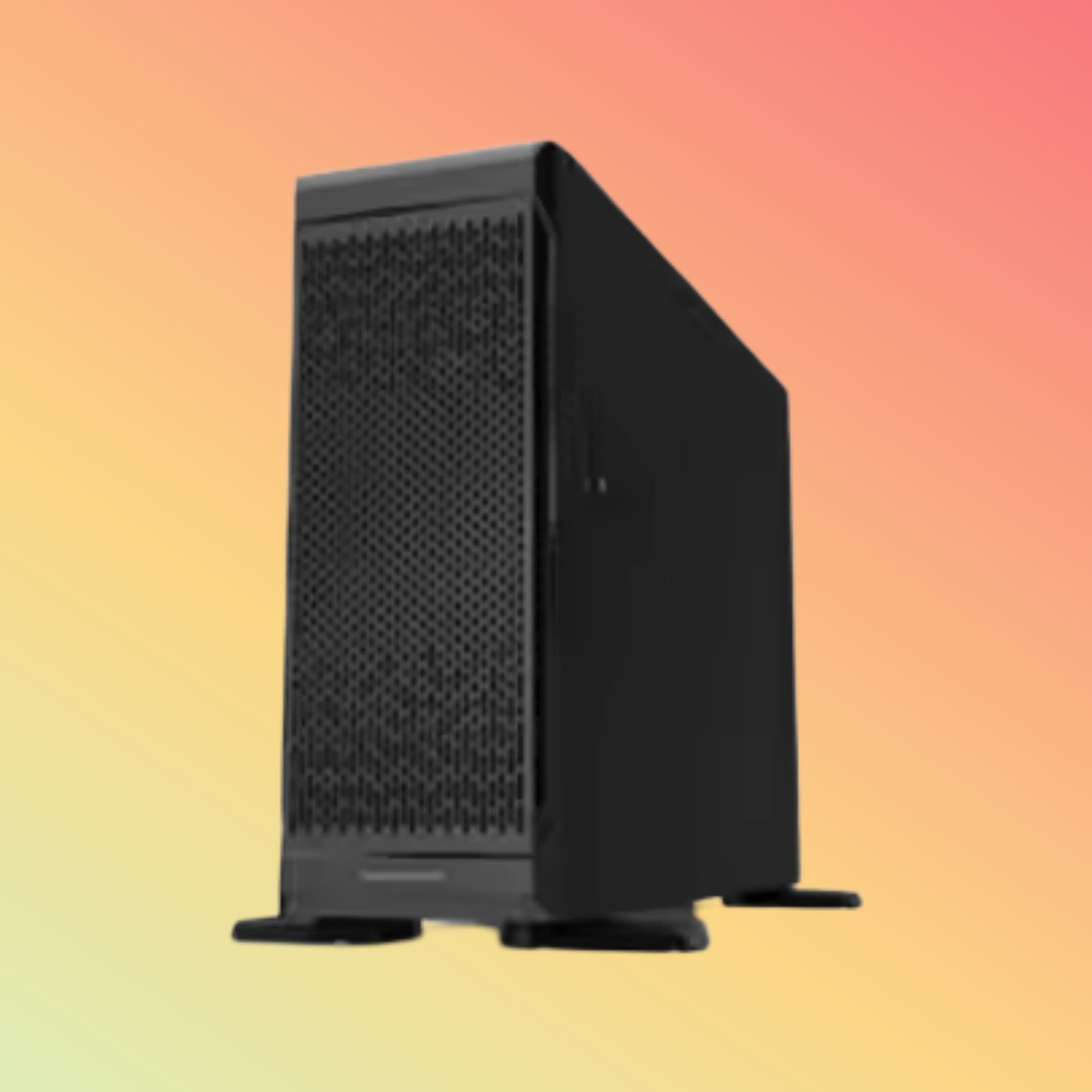

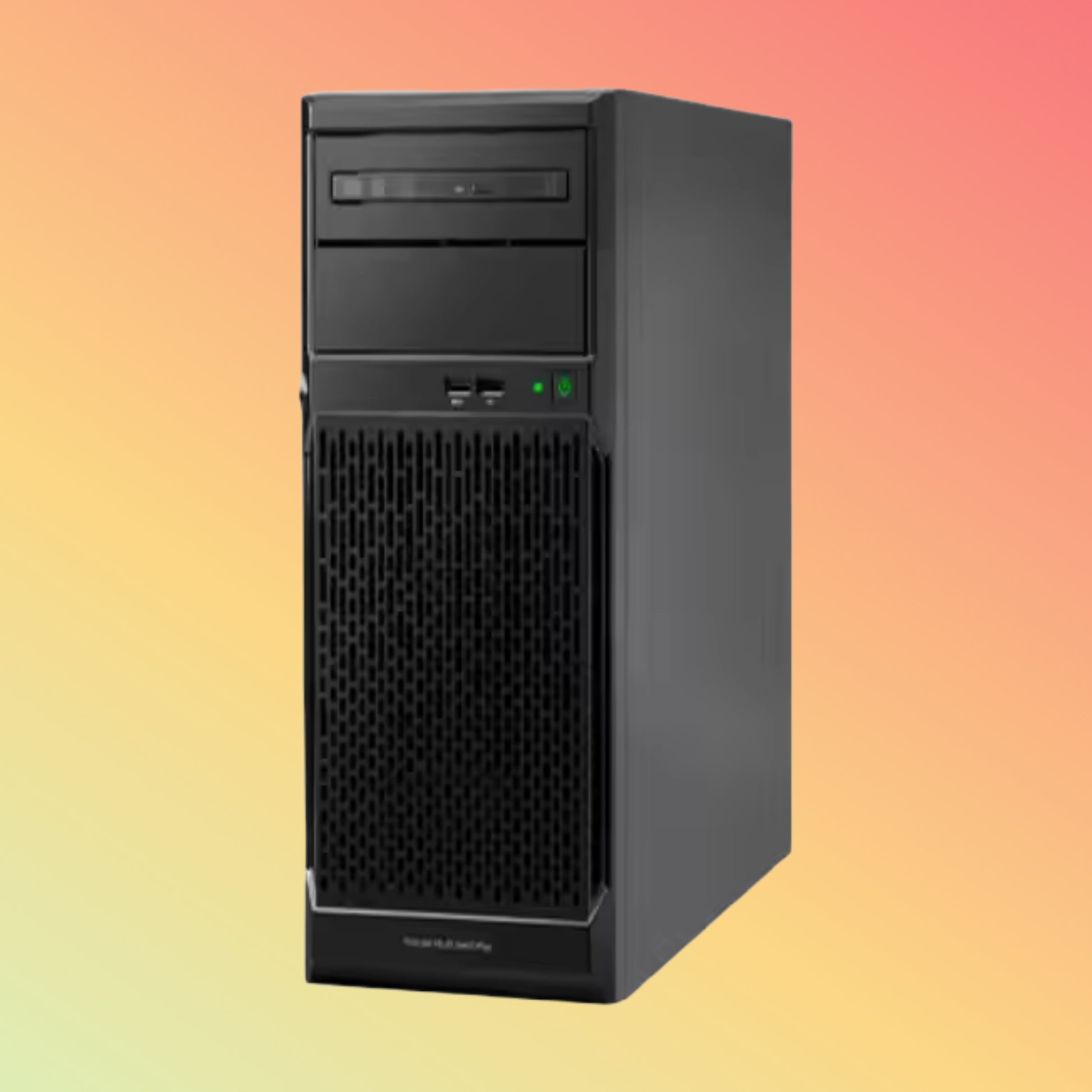

The HPE ProLiant ML30 Gen11 is a flexible, entry-level tower server with four large-form-factor hot-plug bays. As a CTO model (P65091-B21), it lets you tailor CPU, memory, storage, and networking to your needs—perfect for small-to-medium businesses, remote offices, and edge deployments that demand reliability and growth.
Product Description
Built on HPE’s Gen11 platform, this ML30 chassis supports Intel® Xeon® E-2400/E-2300 CPUs or 12th-Gen Core™ processors, up to 64 GB DDR4 in four DIMMs, and four 3.5″ hot-plug SATA/SAS drives. A hardware RAID controller secures data, while dual 1 GbE ports handle day-to-day traffic. Front USB-C and audio ports, plus optional 10 GbE add-ins, make expansion easy. Tool-less access, integrated Lights Out (iLO 5), and HPE OneView simplify deployment and ongoing management.
Key Features
-
Chassis: Tower, 4 × LFF (3.5″) hot-plug bays
-
CPU Options: Intel® Xeon® E-2300/E-2400 or 12th-Gen Core™
-
Memory: 4 × DDR4 UDIMMs, up to 64 GB ECC
-
Storage: 4 × SATA/SAS hot-plug; optional M.2 boot
-
RAID: HPE Smart Array S100i (SW RAID 0/1/5/10) or optional H240 hardware RAID
-
Networking: 2 × 1 GbE LOM; optional FlexLOM/PCIe 10 GbE
-
USB: Front USB-C + 2 × USB 3.0 rear
-
Management: HPE iLO 5 with RESTful API, HPE OneView ready
-
Power: 300 W non-redundant or optional 500 W Flex Slot PSU
-
Expansion: 2 × PCIe Gen4 slots for NICs, HBAs, GPUs
Specifications
| Component |
Details |
| Part Number |
P65091-B21 |
| Form Factor |
Tower |
| Drive Bays |
4 × 3.5″ hot-plug SATA/SAS |
| DIMM Slots |
4 × DDR4 UDIMM (up to 3200 MT/s), ECC supported |
| RAID Options |
S100i SW RAID or H240 HW RAID |
| Network Ports |
2 × 1 GbE LOM |
| USB Ports |
1 × USB-C front; 2 × USB 3.0 rear |
| Expansion Slots |
2 × PCIe Gen4 (x16, x8) |
| Power Supply |
300 W standard; up to 500 W Flex Slot optional |
| Management |
iLO 5 (Standard), HPE OneView Integration |
| OS Support |
Windows Server, RHEL, SLES, Ubuntu, VMware ESXi |
| Dimensions |
380 × 175 × 438 mm (H×W×D) |
| Weight |
~12 kg |
Supported Use Cases & Industries
-
Businesses: SMB file/print, web/mail, ERP
-
Environments: Remote/branch offices, edge compute, retail POS
-
Workloads: Virtualization (4–6 VMs), database caching, backup-to-disk
Benefits & Compatibility
-
Custom-to-Order: pick CPU, memory, storage, NICs, RAID
-
Hot-Plug Drives: add/replace without downtime
-
Scalable Memory: grow to 64 GB as needs rise
-
Easy Management: iLO 5 remote control and firmware
-
Future-Ready: PCIe Gen4 slots for NVMe, 10 GbE, AI accelerators
Purpose of Use
Ideal for growing offices needing reliable file servers, virtualization hosts, and edge compute platforms—scale hardware to match your budget and growth.
How to Use
-
Select CPU, memory, storage, RAID, and NIC options at checkout.
-
Rack or desk-mount chassis; connect power and network.
-
Power on, configure RAID in Smart Array BIOS.
-
Install OS via USB or virtual media in iLO 5.
-
Manage updates and health via iLO 5 dashboard or OneView.
Packaging / Weight / Dimensions
-
Includes: ML30 Gen11 chassis, selected CPU, memory, RAID, PSU, rails, iLO entitlement
-
Box Dimensions: 500 × 250 × 500 mm
-
Gross Weight: ~15 kg
Warranty & FAQs
Warranty: 3-year parts, labor, and on-site service
FAQs:
-
Can I mix SATA & SAS? Yes, supports both in bays.
-
Is redundant PSU available? Optional 500 W Flex Slot PSU.
-
What GPUs fit? Low-profile GPUs in Gen4 x16 slot.
More at our Support Page.
Performance & Reliability
Engineered for 24×7 operation with ECC memory, hardware monitoring, and HPE’s rigorous validation—ensuring uptime and data integrity.
