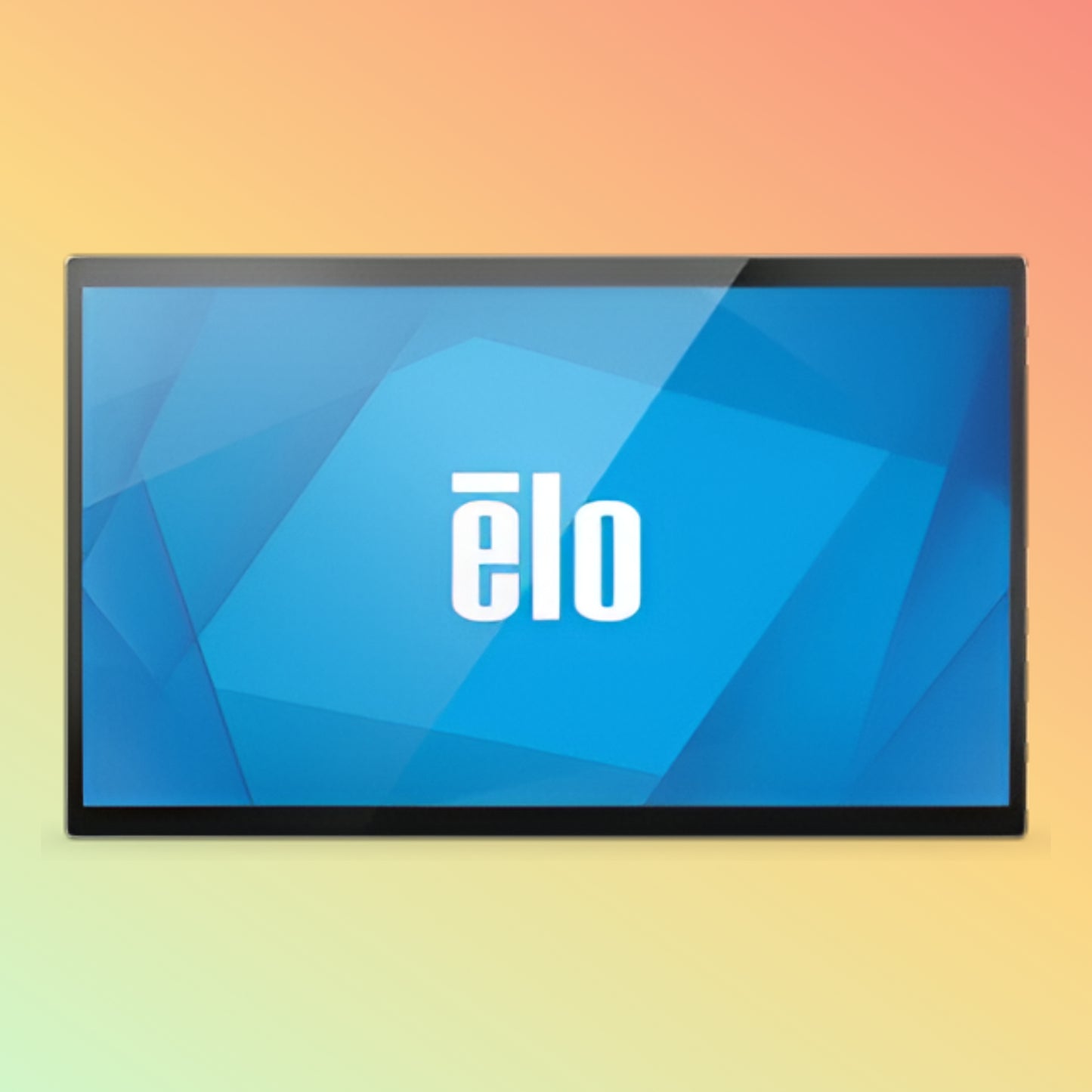

Elo touch 2495L 23.8” Open Frame LCD Touch Display

Elevate customer engagement with the Elo Touch 2495L 23.8″ open-frame touch display. Durable build, seamless integration. Order today for UAE delivery.

Overview

The Elo Touch 2495L is a 23.8″ open-frame LCD touch display built for rugged, interactive installations. Its slim bezel and PCAP multi-touch sensor deliver smooth, precise input—perfect for kiosks, digital signage, self-service and POS.

Product Description

Featuring Full HD resolution (1920×1080) on an IPS panel, the 2495L offers wide viewing angles and 400 cd/m² brightness for clear, vivid images under ambient light. The projected capacitive (PCAP) touchscreen supports up to 10-point touch with edge-to-edge glass. An integrated controller board handles USB touch data, while HDMI, DisplayPort and VGA inputs make video hookup effortless.

Key Features

• 23.8″ IPS panel, Full HD (1920×1080) resolution

• Projected capacitive (PCAP) 10-point multi-touch

• 400 cd/m² brightness, 1 000:1 contrast ratio

• Open-frame bezel for seamless kiosk integration

• HDMI, DisplayPort, VGA video inputs

• USB-C for touch/data connectivity

• VESA-standard mounting holes (100×100 mm)

• Industrial-grade metal housing, supports 24/7 operation

Specifications

• Screen Size: 23.8″ diagonal

• Resolution: 1920×1080 @60 Hz

• Touch Sensor: PCAP, 10 points

• Brightness: 400 cd/m²

• Contrast Ratio: 1 000:1

• Viewing Angle: 178° horizontal/vertical

• Inputs: HDMI 1.4, DP 1.2, VGA

• Touch/Data: USB-C (with USB-A adapter cable)

• Mounting: 100×100 mm VESA

• Power: 12 V DC, 36 W max

• Dimensions (WxHxD): 558×337×55 mm

• Weight: 3.5 kg

Supported OS / Applications / Industries

• OS: Windows, Android, Linux

• Applications: Self-service kiosks, interactive wayfinding, POS terminals, digital signage, simulation

• Industries: Retail, hospitality, healthcare, transportation, industrial automation

Benefits & Compatibility

• Seamless Integration: Open-frame form factor fits custom enclosures

• High Durability: Industrial PCAP touch survives heavy usage

• Versatile Connectivity: Multiple video and USB options simplify deployment

• Crystal-Clear Viewing: IPS panel ensures uniform color and contrast

• Future-Proof Design: Standard VESA mounting and API support for custom apps

Purpose of Use

Deploy the 2495L in interactive kiosks, self-checkout stations, event check-in points or wall-mounted displays for high-traffic environments requiring reliable touch performance and sharp visuals.

How to Use

1. Mount via 100×100 mm VESA bracket or integrate into bezel frame.

2. Connect 12 V DC power to the rear jack.

3. Hook up video via HDMI, DisplayPort or VGA.

4. Plug USB-C into your host—use USB-A adapter if needed.

5. Calibrate touch in your OS or application.

Packaging / Weight / Dimensions

• Packaging: Protective foam inserts in corrugated box

• Includes: Display, touchscreen controller with cables, power adapter, quick-start guide

• Gross Weight: 5.0 kg

• Box Size: 650×450×200 mm

Warranty & FAQs

• Warranty: 2-year limited replacement

• FAQs:

  • Does it support portrait orientation? Yes, rotate display in driver settings.

  • Can it run continuously? Rated for 24/7 operation.

  • Is there a wall-mount kit? Available separately for custom builds.

Performance, Quality, Durability & Reliability

Engineered for commercial use, the 2495L undergoes MIL-STD-810G drop and vibration tests. PCAP glass and reinforced frame resist scratches and stress under constant touch.

Best Price Guarantee

Found a lower UAE price on the Elo 2495L? We’ll match it—factory direct rates and volume discounts available.

Shop Today & Receive Your Delivery Across the UAE

Order now for same-day dispatch to Dubai, Abu Dhabi, Sharjah and beyond. Real-time tracking keeps you informed from warehouse to door.

Request for Customer Reviews and Testimonials

Tried the Elo 2495L? Share your feedback to help peers choose the right interactive display.

After Sales Support

From setup to troubleshooting, our tech team is on call via email, phone or live chat. We’ve got your back post-purchase.

Get in Touch

Need advice on touch displays? Contact our display experts for personalized recommendations and fast replies.

Stock Availability

Stocks update daily. For urgent orders, confirm availability before checkout. Bulk requests may need 10–15 business days.

Disclaimer

All details are for general info and may change without notice. Images are illustrative. Verify specs and pricing with our sales team before ordering.
