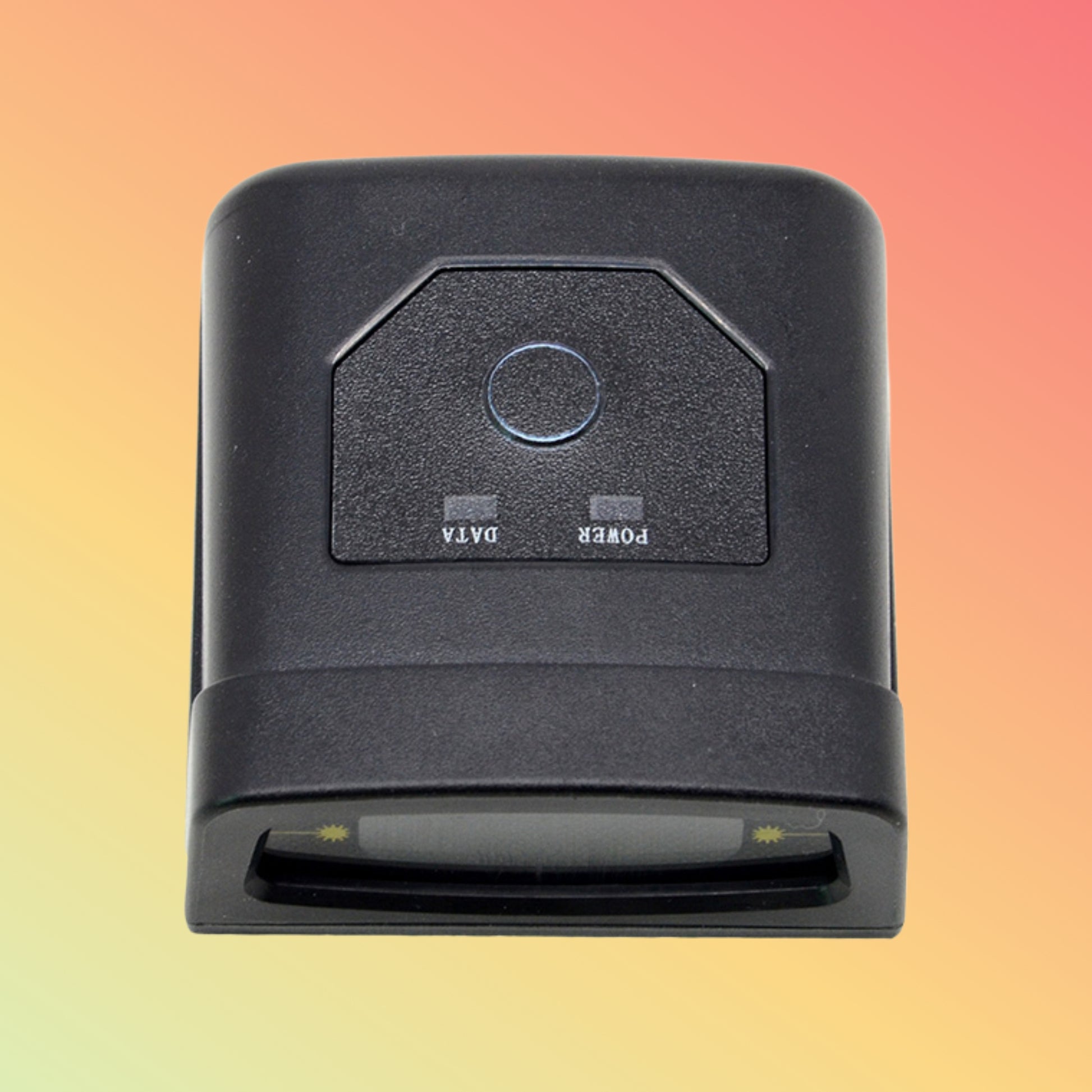

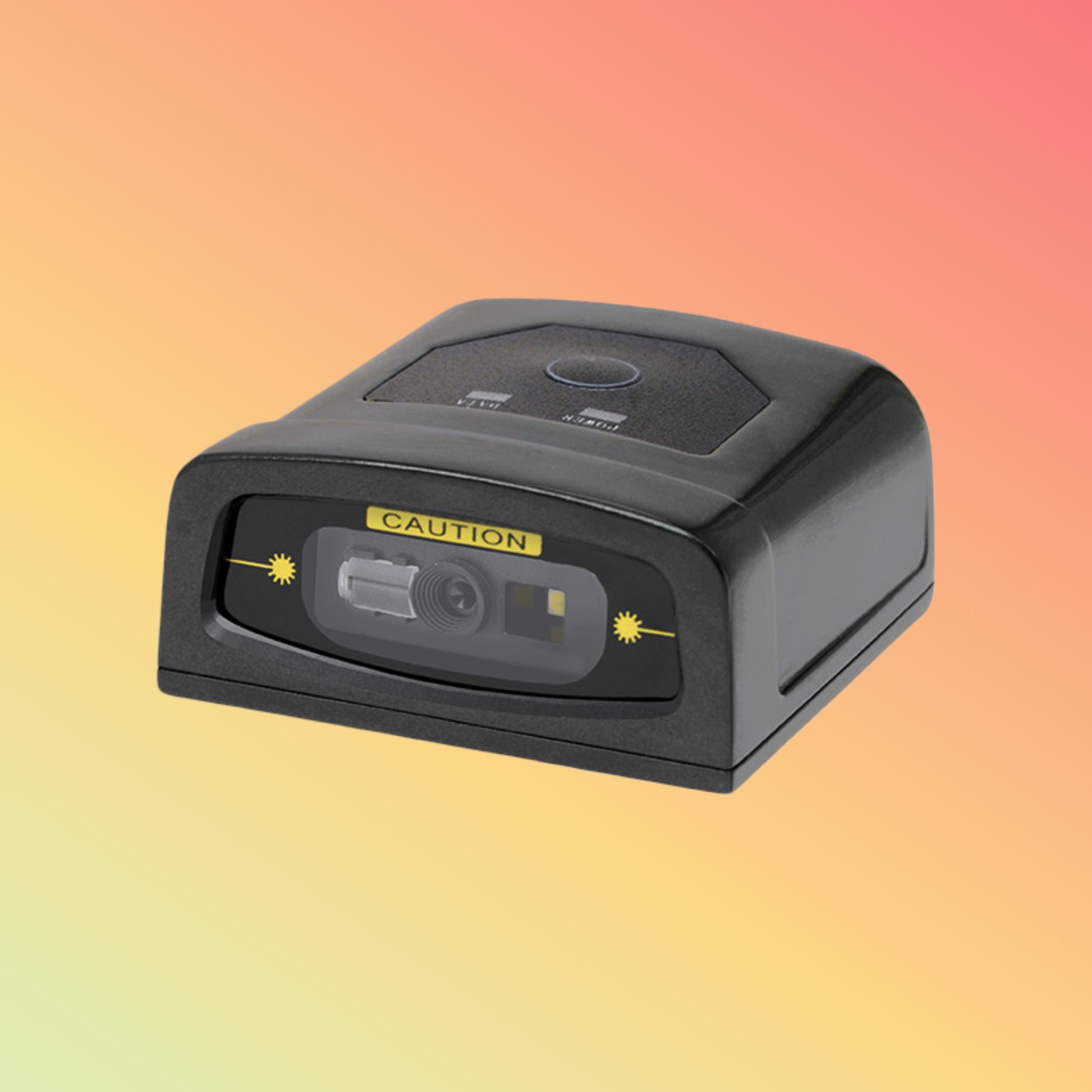

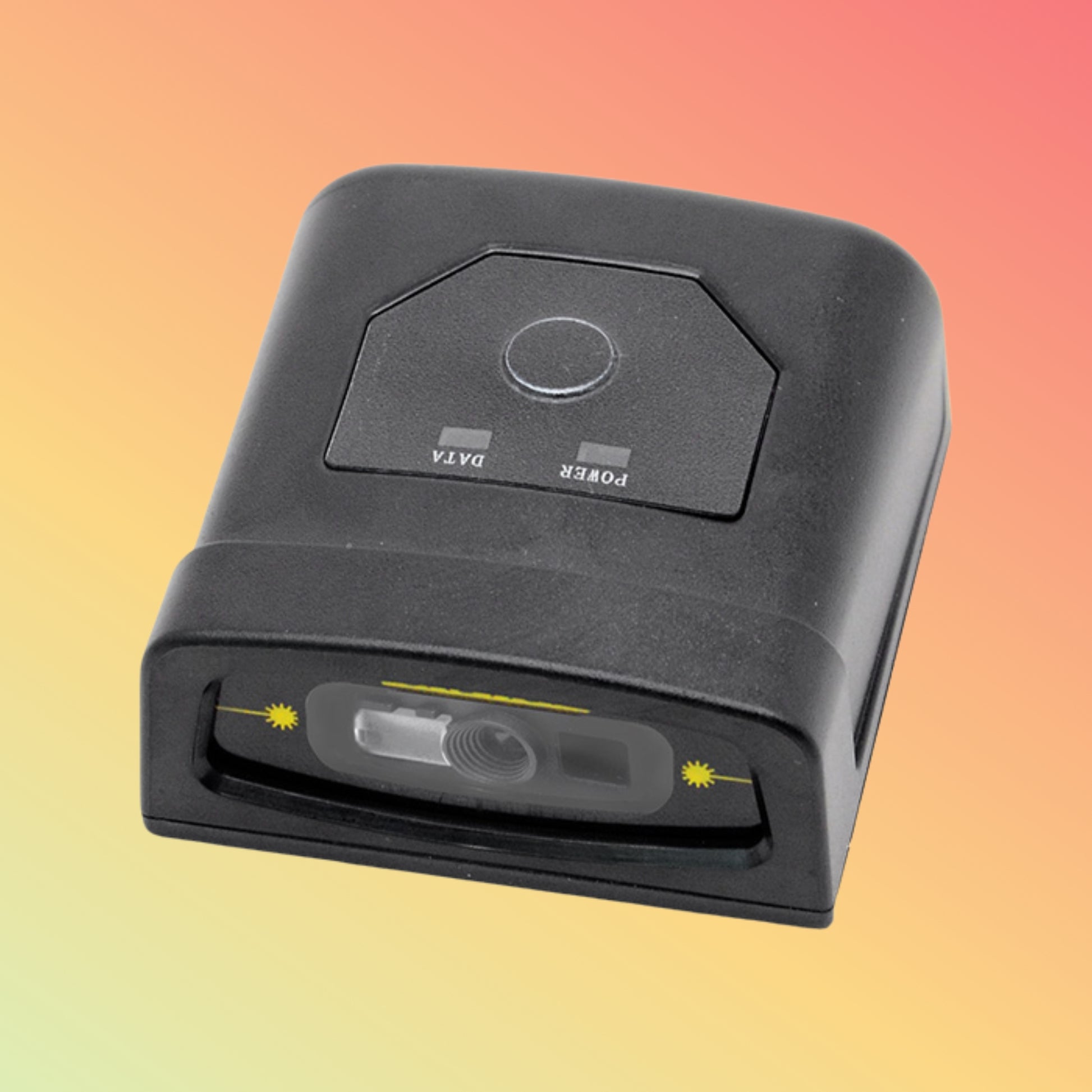

KS-100 fixed 2D scanner module—omni-directional QR/1D, USB & UART, 640×480 CMOS. Shop at NEOTECH.
Overview
Embed pro-grade scanning into kiosks, vending machines, or custom terminals with the Luckydoor KS-100. This compact PCB module delivers omni-directional 1D/2D decoding (QR, PDF417, Data Matrix) at up to 120 scans/sec via USB or TTL-UART.
Internal Link: Explore our Embedded Scanner Modules.
External Link: Learn barcode symbologies on the GS1 site.
Product Description
The KS-100 features a high-sensitivity 640×480 CMOS sensor and precision decoding engine. Its low-profile PCB design (50×40×20 mm) mounts directly into your enclosure. Data streams over USB HID or TTL-UART at 115 200 bps. LED and buzzer feedback signals each successful read. Ideal for custom POS, access control, and interactive displays.
Key Features
-
Omni-directional decoding: QR, PDF417, Data Matrix, UPC/EAN, Code 128
-
High speed: up to 120 scans/sec
-
Sensor: 640×480 CMOS with adjustable exposure
-
Interfaces: USB HID & TTL-UART (5 V logic)
-
Compact PCB: 50×40×20 mm for embedded use
-
Feedback: LED aimer + beeper (> 80 dB)
-
Power: 5 V DC via USB or external supply
Specifications
| Parameter |
Details |
| Model |
KS-100 |
| Sensor |
640×480 CMOS |
| Decode Rate |
Up to 120 scans/sec |
| Supported Codes |
1D & 2D: QR, PDF417, Data Matrix, UPC/EAN, Code 128 |
| Interface |
USB HID, TTL-UART (5 V) |
| PCB Dimensions |
50 × 40 × 20 mm |
| Power |
5 V DC, 200 mA typical |
| Operating Temp. |
0 °C–50 °C |
| Storage Temp. |
–20 °C–70 °C |
| Indicators |
LED & buzzer |
Supported OS / Applications / Industries
-
OS: Any USB HID-capable host (Windows, Linux, Android)
-
Apps: Kiosks, vending, POS terminals, access control
-
Industries: Retail, Hospitality, Transportation, Manufacturing
Benefits & Compatibility
-
Embed-ready PCB fits tight spaces
-
Dual interfaces for versatile integration
-
Omni-directional scan avoids alignment delays
-
Plug-and-play USB for rapid deployment
-
Low power suits battery-powered designs
Purpose of Use
Ideal for embedding into self-checkout kiosks, vending machines, smart lockers, and industrial HMIs to enable seamless barcode capture.
How to Use
-
Mount PCB module inside your enclosure
-
Connect via USB or TTL-UART header
-
Power with 5 V DC
-
Aim barcode toward sensor window
-
Read data via host application
Packaging / Weight / Dimensions
-
Includes: KS-100 PCB module, USB cable, TTL jumper wires, quick-start guide
-
Module size: 50 × 40 × 20 mm
-
Package weight: ~50 g
Warranty & FAQs
-
Warranty: 1 year limited
-
FAQs:
-
Q: Can I use on dim screens?
A: Yes—adjustable exposure handles low-contrast codes.
-
Q: How to switch interface?
A: Auto-detects USB when plugged; TTL requires pin-jumper.
-
Q: Is it rugged?
A: PCB is conformal-coated for light moisture and dust.
Performance, Quality, Durability & Reliability
Built with industrial optics, the KS-100 delivers consistent first-pass reads on damaged or low-contrast codes. MTBF ≥ 30 000 hrs ensures long-term uptime.
