Compact 58mm panel mount ESC/POS receipt printer. USB & RS232 ready, fast and durable. Designed for kiosks and terminals. Order now from NEOTECH UAE.
✅ Overview

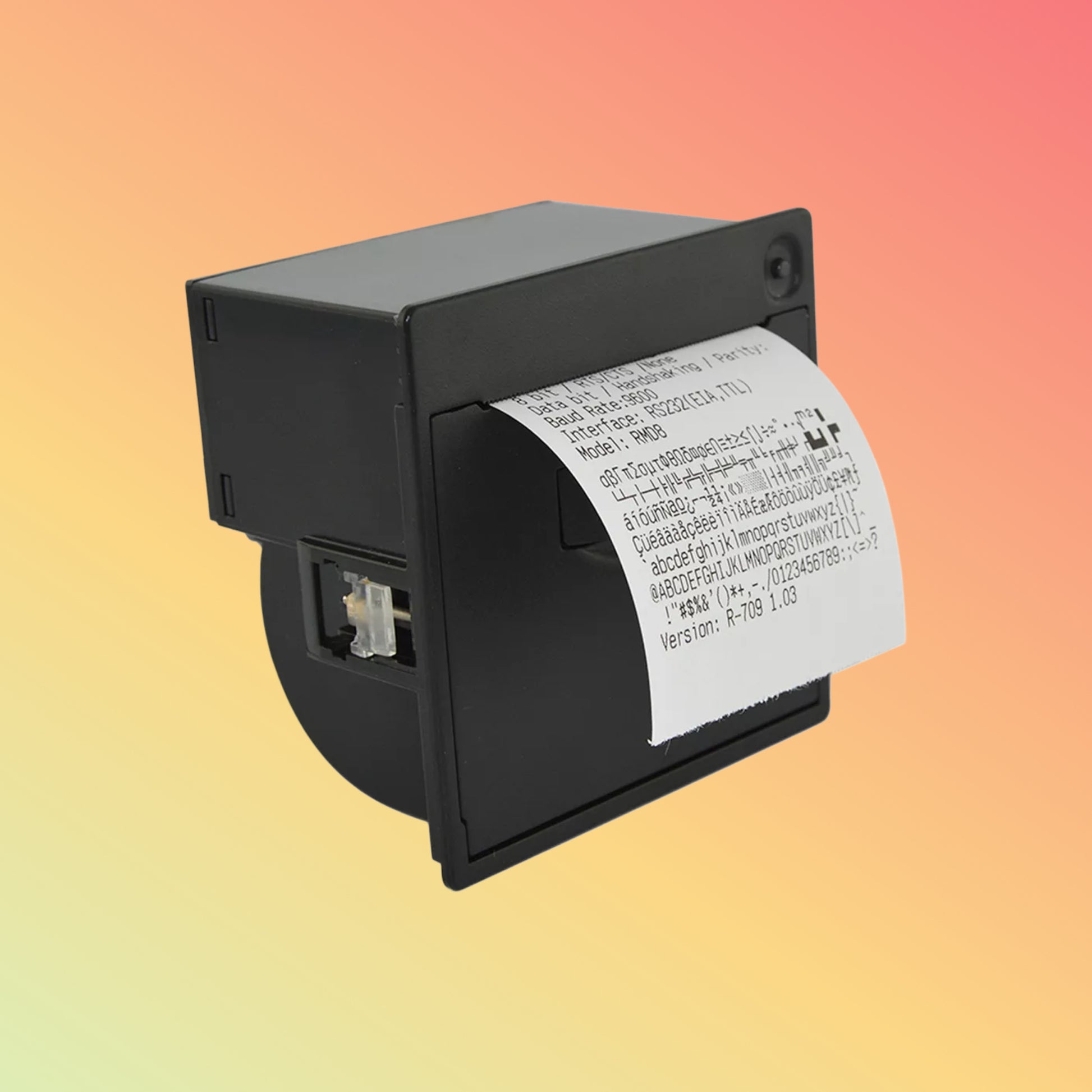

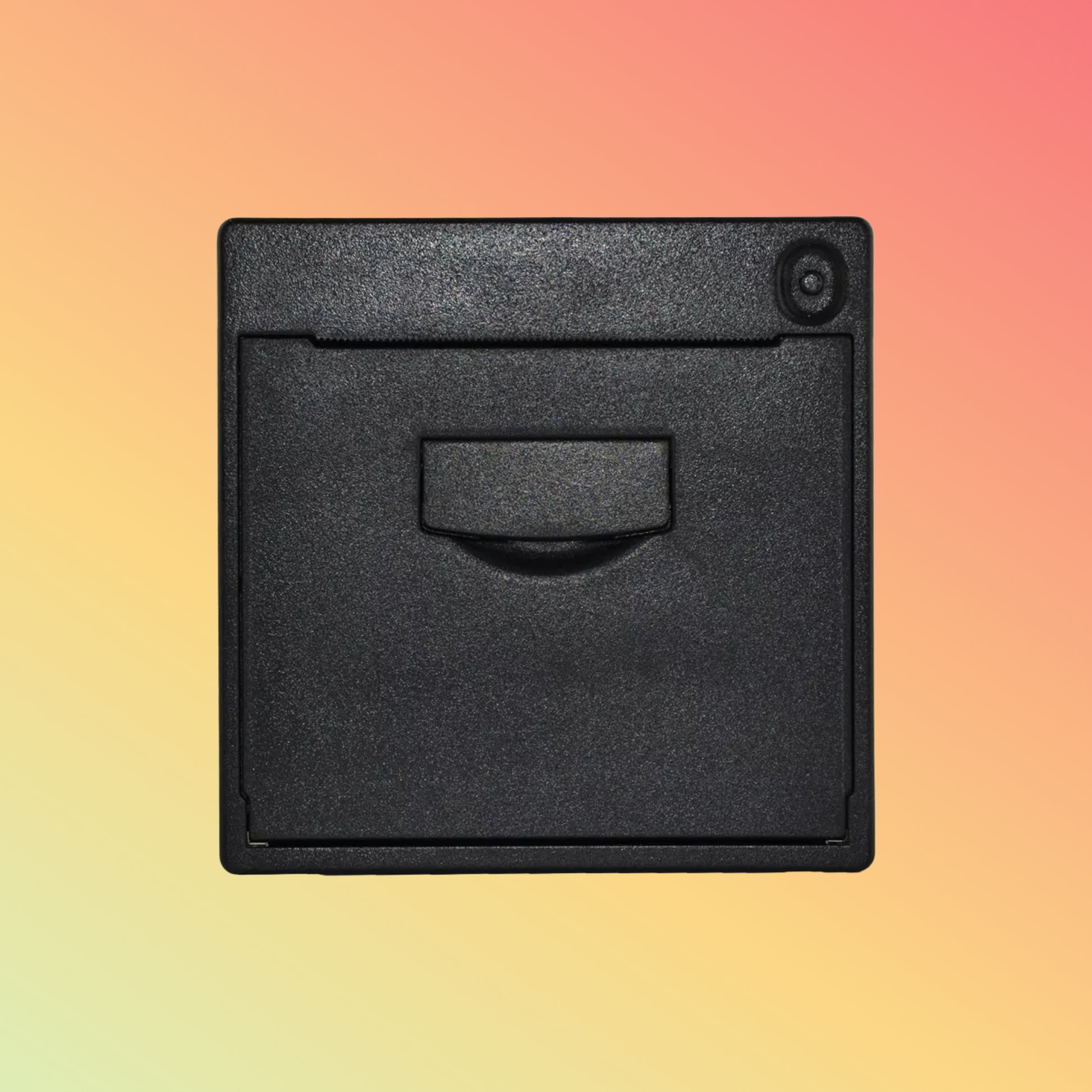

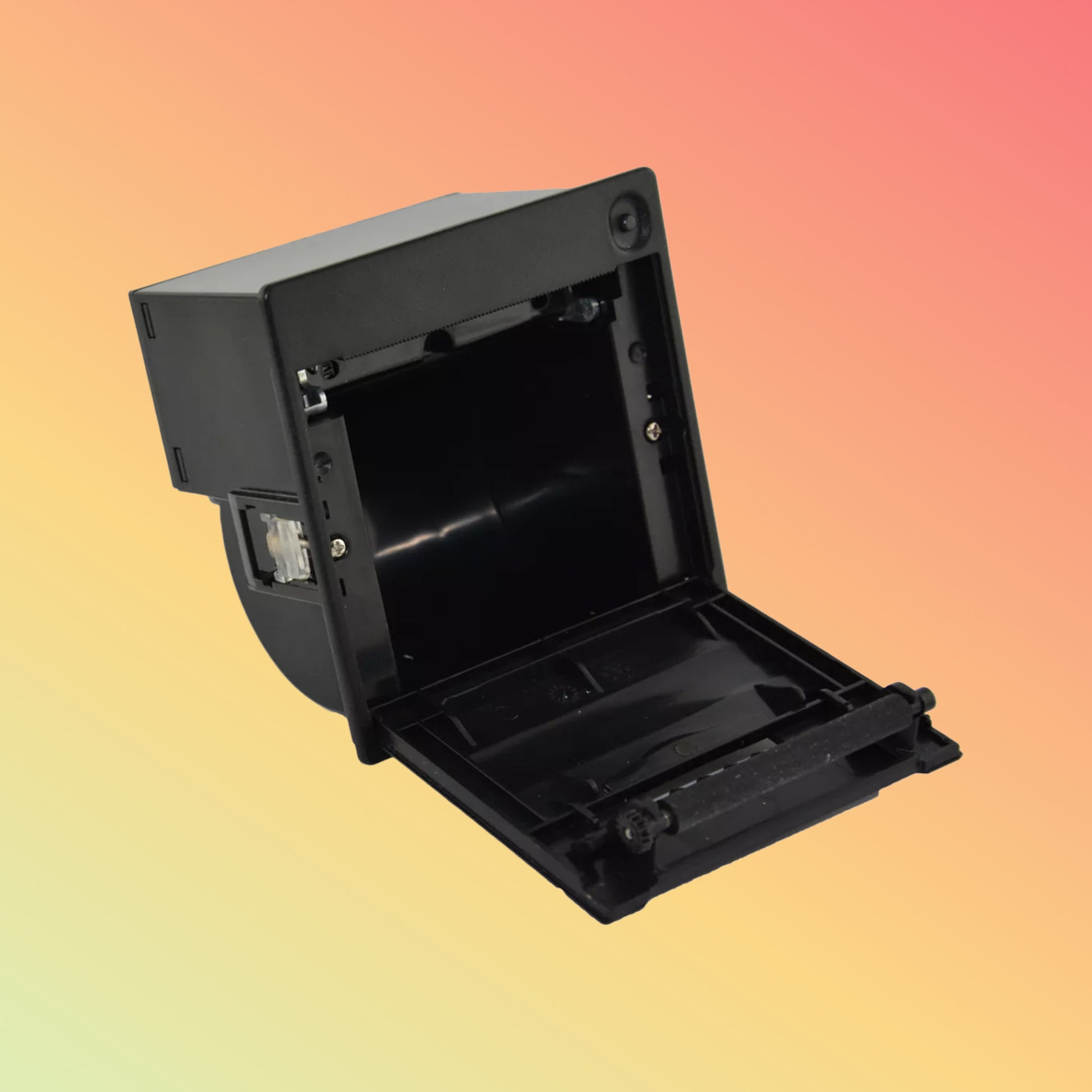

The HCC-D8 ESC/POS Thermal Panel Printer is your ideal solution for compact, kiosk-ready printing. With USB + RS232 ports and 58mm thermal roll support, it’s perfect for high-efficiency receipt output in embedded systems.
✅ Product Description
Designed for space-saving integration, the HCC-D8 delivers fast, reliable printing for applications like vending machines, ticketing systems, and ATM terminals. With ESC/POS compatibility and a panel-mount design, installation is seamless. The unit requires no ink, uses direct thermal printing, and offers clear 203dpi output with optional cutter support.
It’s a practical choice for brands that need robust performance and easy connectivity without sacrificing space or speed.
✅ Key Features
-
🧾 58mm Paper Width Thermal Printer
-
⚡ High-Speed Output with 203dpi Clarity
-
🔌 USB + RS232 Interface
-
🛠️ Panel Mount Design for Kiosks & ATMs
-
🖥️ ESC/POS Command Compatibility
-
🔇 Low-Noise, Ink-Free Operation
-
🔁 Supports QR Codes, Logos, Barcodes
-
✂️ Optional Auto Cutter Available
✅ Specifications
-
Print Method: Direct Thermal
-
Paper Width: 58mm
-
Print Width: Up to 48mm
-
Resolution: 203dpi (8 dots/mm)
-
Speed: Up to 90mm/s
-
Interfaces: RS232 + USB
-
Supported Commands: ESC/POS
-
Mount Style: Panel Type
-
Power Input: DC 9–24V
-
Paper Diameter: Max 50mm
-
Weight: ~0.75 kg
-
Dimensions: Approx. 115 x 85 x 70 mm
✅ Supported OS / Applications / Industries
-
Operating Systems: Windows, Linux
-
Applications: Kiosks, Parking Meters, Ticketing Machines
-
Industries: Retail, Banking, Self-Service, Transport
✅ Benefits & Compatibility
-
⚙️ Compact & Lightweight
-
⚡ Fast, Clear Printing
-
🔌 Broad Interface Support
-
🧠 ESC/POS Ready for Easy Integration
-
💼 Long Print Head Life for Continuous Use
✅ Purpose of Use
Ideal for self-service environments, this printer delivers fast receipts in public kiosks, automated machines, or retail checkouts where space is limited and reliability is key.
✅ How to Use
-
Mount the printer securely on your panel slot.
-
Connect USB or RS232 cable to host.
-
Load the 58mm thermal roll.
-
Send print commands using ESC/POS protocol.
-
Maintain occasionally for dust removal and paper check.
✅ Packaging / Weight / Dimension
-
Unit Weight: 0.75 kg
-
Size: 115mm x 85mm x 70mm
-
Box Includes: Printer, USB/RS232 cables, user manual
-
Packaging: Shockproof foam + branded carton
✅ Warranty and FAQs
Standard Warranty: 1 year
FAQs:
-
Can I print barcodes? Yes, 1D and 2D supported
-
Does it work with Linux? Fully compatible
-
Is auto cutter included? Optional based on model
✅ Performance, Quality, Durability, and Reliability
The HCC-D8 delivers stable and consistent prints, thanks to its durable thermal print head and strong component design. It ensures high-speed performance even during continuous use, making it ideal for businesses needing reliable kiosk systems.
✅ Best Price Guarantee
We monitor the market daily to ensure the lowest price in the UAE. Found a better deal? We’ll match it—guaranteed.
✅ Shop Today & Receive Your Delivery Across the UAE!
Enjoy quick delivery to Dubai, Sharjah, Abu Dhabi, and all UAE regions. Place your order now and keep your operations moving.
✅ Request for Customer Reviews and Testimonials
We value your input! If you've used the HCC-D8 printer, share your feedback to help others make informed choices.
✅ After Sales Support
Our expert team is ready to assist with installation, driver setup, and troubleshooting. Contact us for help at any time post-purchase.
✅ Get in Touch
Need help or a custom solution? Visit our Contact Page for fast and responsive support.
✅ Stock Availability
Stock is regularly maintained. For bulk orders or OEM configurations, contact us first to verify stock status.
✅ Disclaimer
All product info is for reference only and may change. Images are illustrative. Always confirm details with NEOTECH before ordering.
