Extend RFID coverage with the Impinj Mini‑Guardrail Antenna (IPJ‑DREV420‑USA). Compact, rugged, wide beam. Order now from NEOTECH—fast UAE delivery.
Overview

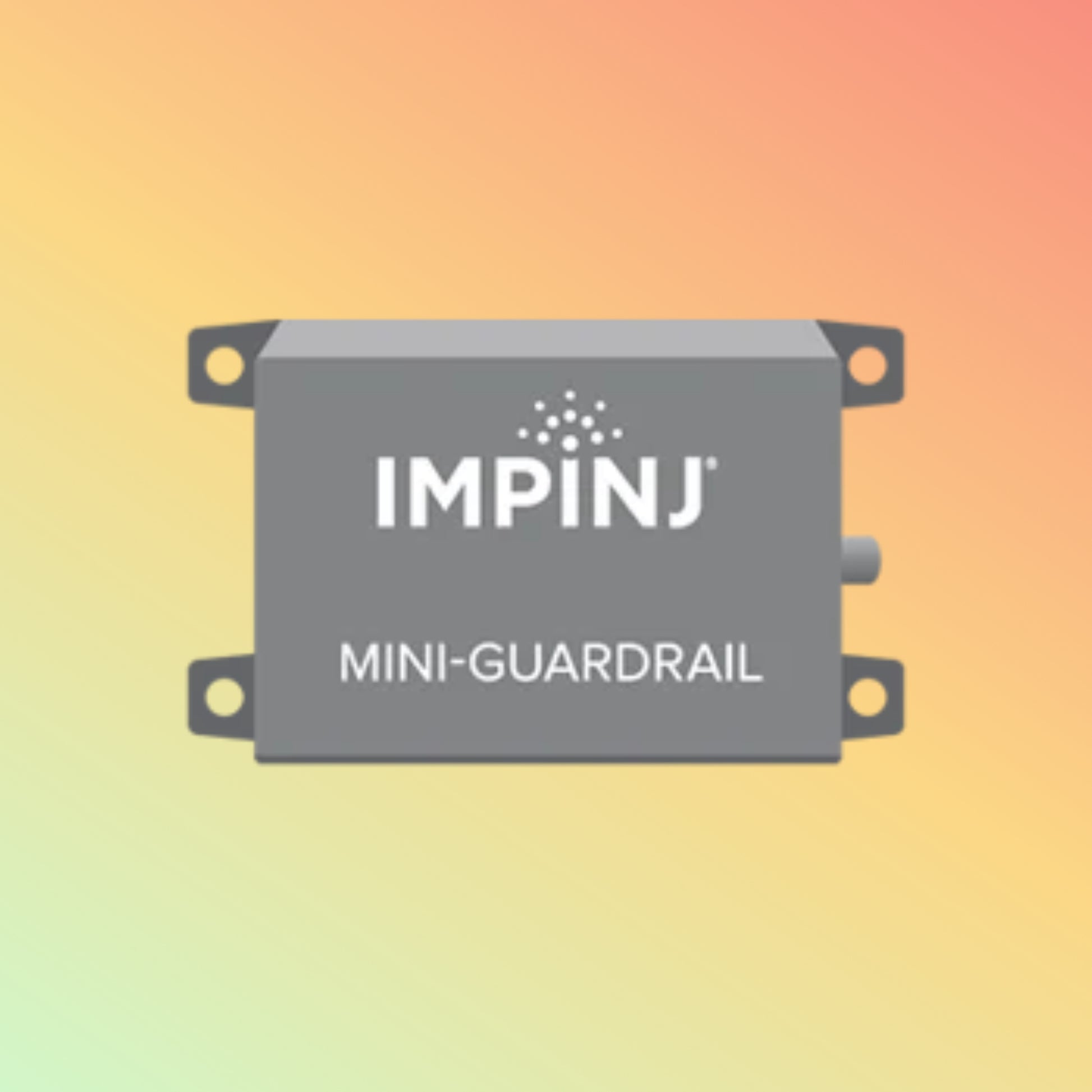

The Impinj Mini‑Guardrail Antenna IPJ‑DREV420‑USA is a low‑profile, high‑performance RFID antenna designed for close‑range item tracking. Its compact form factor and wide beam pattern make it ideal for portals, conveyors, and tight installation spaces where precise read zones are critical.
Product Description
This Mini‑Guardrail Antenna delivers consistent read rates across a 4‑inch depth and 20‑inch width, ensuring reliable capture of Gen2 RFID tags. Its rugged ABS housing and integrated mounting bracket simplify installation in industrial and retail environments. Optimized for Impinj R700 and Speedway readers, the DREV420‑USA plugs directly into standard 1W antenna ports without external amplifiers.
Key Features
-
Wide beam pattern: 20" width × 4" depth read zone
-
Compact guardrail form factor for tight spaces
-
ABS housing rated IP54 for dust and splash protection
-
50 Ω terminated feed; no external power required
-
Integrated mounting clips for easy rail or conveyor attachment
-
Frequency band: 865–928 MHz (global compatibility)
-
Compatible with Impinj R700, R420, R220 readers
Specifications
| Feature |
Details |
| Model Number |
IPJ‑DREV420‑USA |
| Frequency |
865–928 MHz Gen2 EPC RFID |
| Polarization |
Linear, horizontal |
| Gain |
6 dBi |
| Beam Width |
20" (H) × 4" (D) read zone |
| Impedance |
50 Ω |
| Connector |
SMA male |
| Housing |
ABS, IP54 rated |
| Mounting |
Integrated clips for guardrail/conveyor |
| Operating Temp |
–20 °C to 60 °C |
| Dimensions |
210 × 30 × 8 mm |
| Weight |
0.15 kg |
Supported Systems / Applications / Industries
Compatible Readers
Applications
-
Conveyor belt item tracking
-
Portal or doorway read zones
-
Shelf‑level stock verification
-
Pick‑and‑pack workstations
Industries
Benefits & Compatibility
-
Precise, confined read zone reduces stray reads
-
Compact size fits into guardrails and conveyor frames
-
Durable IP54 housing stands up to industrial use
-
Works plug‑and‑play with standard 1W antenna ports
-
Global frequency support simplifies multi‑region deployment
Purpose of Use
Designed to deliver accurate, confined RFID reads in applications where space is limited and tag density is high. Use the mini‑guardrail to ensure only items passing through a specific point are captured.
How to Use
-
Mount the antenna to the conveyor guardrail or portal frame using integrated clips.
-
Connect the SMA cable to the reader’s antenna port.
-
Position tags to pass within the 4" read depth zone.
-
Configure reader settings for 1W output and EPC Gen2 protocol.
-
Verify tag reads in your RFID management software.
Packaging / Weight / Dimensions
Warranty & FAQs
Warranty
– 2‑Year manufacturer warranty via NEOTECH. Extended service plans available.
FAQs
Q: Can I use this outdoors?
A: Yes, IP54 housing protects against dust and light splashes.
Q: Does it require a power amplifier?
A: No. It runs directly off the reader’s 1W antenna output.
Q: What cable length is recommended?
A: Keep cable runs under 3 m of low‑loss coax for best performance.
Performance, Quality, Durability & Reliability
Engineered for continuous industrial operation, the ABS housing and robust connectors ensure long‑term reliability. Its tuned beam pattern delivers consistent reads with minimal interference.
Best Price Guarantee
NEOTECH matches or beats UAE pricing on Impinj RFID antennas. Ask about volume discounts for multi‑antenna installations.
Shop Today & Receive Your Delivery Across the UAE
Fast, tracked shipping across Dubai, Abu Dhabi, Sharjah, and all Emirates. In‑stock orders ship same‑day for rapid deployment.
Request for Customer Reviews and Testimonials
Using the Mini‑Guardrail Antenna in your RFID project? Share your feedback to help others design precise read zones.
After Sales Support
NEOTECH provides UAE‑based support for:
-
Installation guidance and best practices
-
Reader and antenna tuning recommendations
-
Firmware updates and troubleshooting
Get in Touch
Need expert advice on RFID antenna placement? Our RFID specialists will help you design the optimal guardrail setup for your workflow.
Stock Availability
In stock now.
Limited quantities—reserve your IPJ‑DREV420‑USA units today for priority fulfillment.
Disclaimer
Specifications and features are subject to change without notice. Images shown for reference only. Confirm final configurations with NEOTECH before ordering.
