KS800 fixed 2D kiosk scanner—360° omni-scan, 640×480 CMOS, USB HID & TTL-UART. Shop at NEOTECH.
Overview
Embed seamless barcode capture into your kiosks and terminals with the KS800. Its omni-directional mirror head instantly decodes QR, PDF417, Data Matrix, and 1D codes at up to 120 scans/sec. Stream data via USB HID or TTL-UART, all in a compact PCB-mount design.
Internal Link: Explore our Embedded Scanners.
External Link: Learn about QR standards on the GS1 site.
Product Description

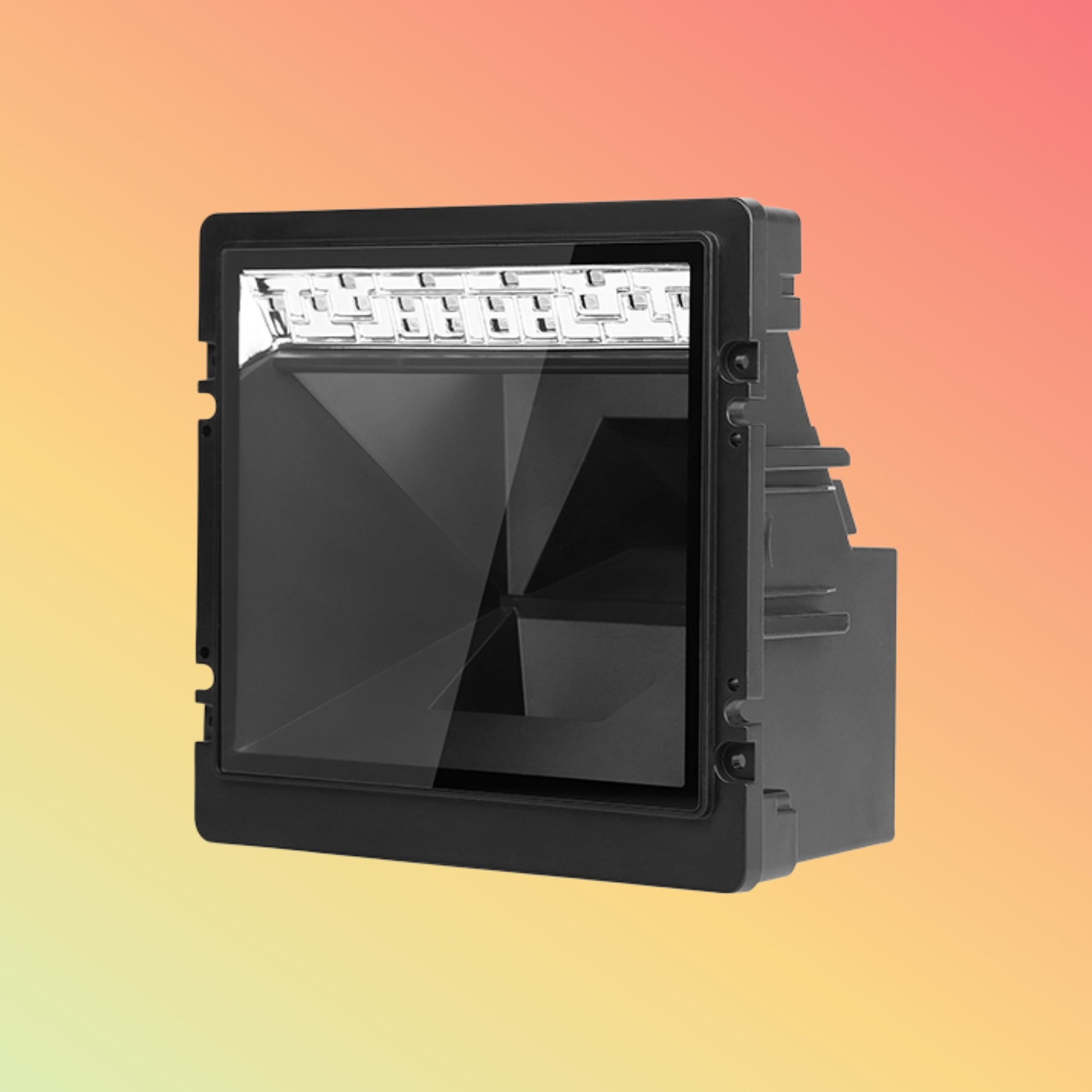

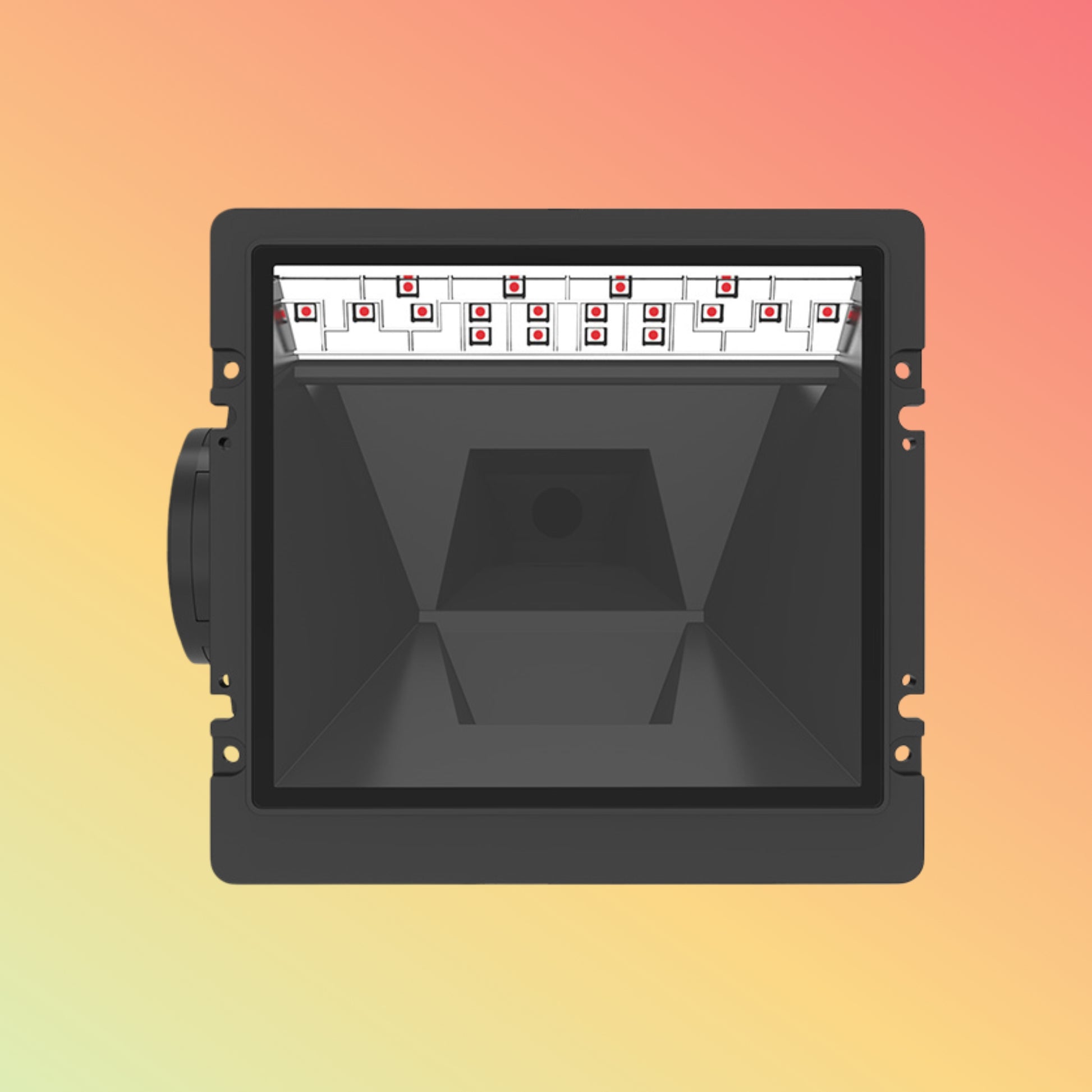

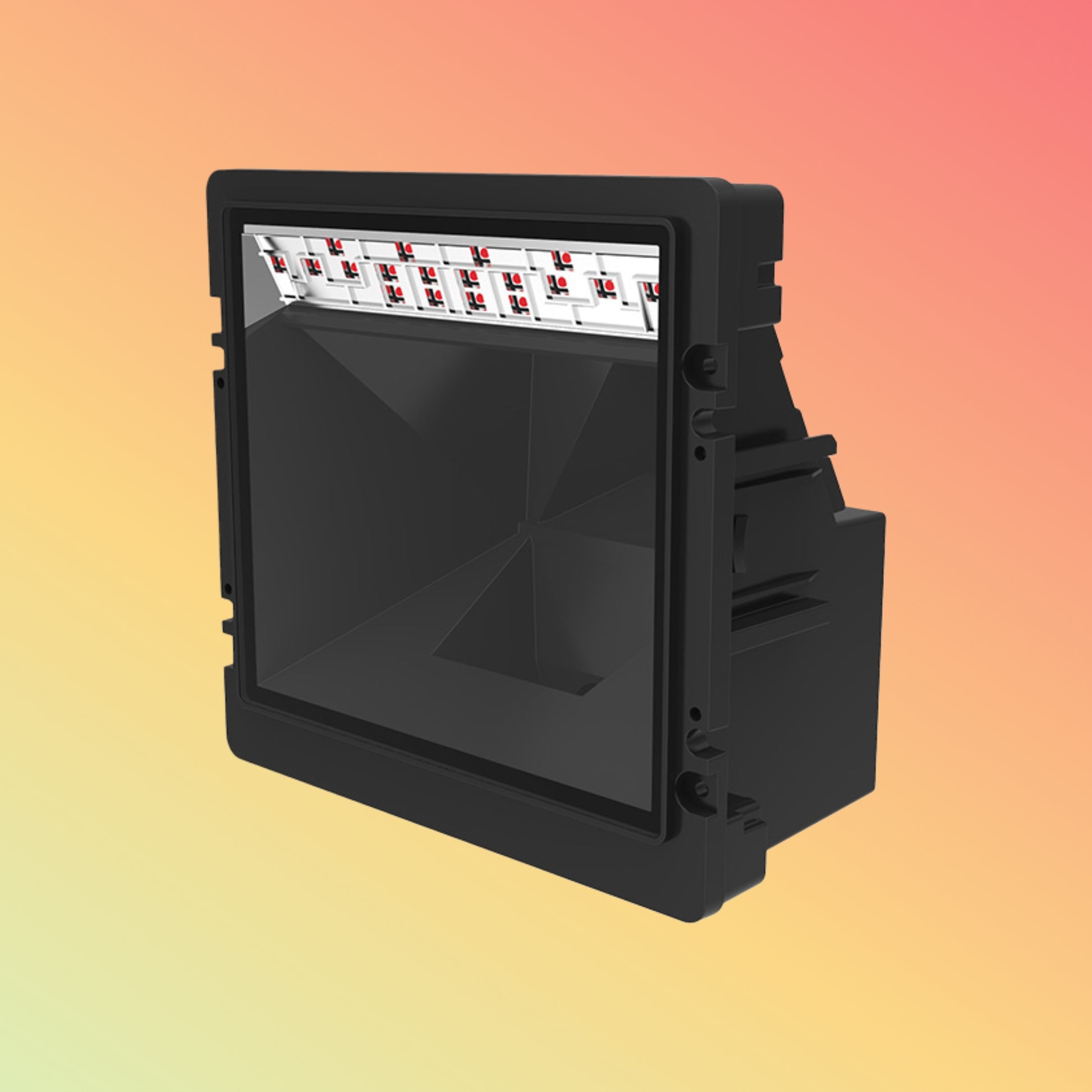

The KS800 packs a 640×480 CMOS sensor and precision mirror array onto a low-profile PCB (50 × 40 × 18 mm). It mounts flush inside any kiosk bezel. Choose USB HID for keyboard-emulation or TTL-UART at 115 200 bps for direct integration. LED aimer and buzzer confirm every successful read, ensuring reliable self-service.
Key Features
-
Omni-directional 360° mirror scan head
-
2D & 1D decoding: QR, PDF417, Data Matrix, UPC/EAN, Code 128
-
High speed: up to 120 scans/sec
-
Interfaces: USB HID & TTL-UART (5 V logic)
-
Compact PCB: 50 × 40 × 18 mm for embedded mount
-
Feedback: LED aimer + 85 dB buzzer
-
Low power: 5 V DC @200 mA
Specifications
| Parameter |
Details |
| Model |
KS-800 |
| Sensor |
640×480 CMOS |
| Decode Rate |
Up to 120 scans/sec |
| Supported Codes |
1D & 2D (QR, PDF417, Data Matrix) |
| Interface |
USB HID, TTL-UART (5 V TTL) |
| PCB Size |
50 × 40 × 18 mm |
| Power |
5 V DC, 200 mA typical |
| Operating Temp. |
0 °C–50 °C |
| Storage Temp. |
–20 °C–70 °C |
| Indicators |
LED & buzzer |
Supported OS / Applications / Industries
-
OS: Any USB HID host (Windows, Linux, Android)
-
Use Cases: Kiosks, vending, ticketing, POS terminals
-
Industries: Retail, Hospitality, Transportation, Self-service
Benefits & Compatibility
-
Embed-ready PCB fits tight kiosk openings
-
Dual interfaces for flexible integration
-
Angle-free scanning speeds throughput
-
Plug-and-play USB HID for zero-driver setup
-
Low-power design suits battery-backed units
Purpose of Use
Perfect for self-service kiosks, ticket dispensers, vending machines, and any embedded terminal requiring reliable barcode capture.
How to Use
-
Mount PCB behind bezel with sensor window aligned
-
Connect USB or TTL pins to host
-
Power with 5 V DC
-
Present barcode to mirror head
-
Receive data via HID or UART
Packaging / Weight / Dimensions
Warranty & FAQs
-
Warranty: 1 year limited
-
FAQs:
-
Q: Can it scan on dim smartphone screens?
A: Yes—adjustable exposure handles low contrast.
-
Q: How switch to UART mode?
A: Use jumper header per manual.
-
Q: Is it dust-protected?
A: PCB is conformal-coated for light dust/moisture.
Performance, Quality, Durability & Reliability
Built with industrial-grade optics and conformal coating, the KS800 achieves MTBF ≥ 30 000 hrs and first-pass reads on worn or curved labels.
