Buy the MicroTouch M1‑101IC‑AA3 10.1″ capacitive touch PC. Fanless, Intel® Celeron®, IP54 front. Fast setup. Order now!
Overview

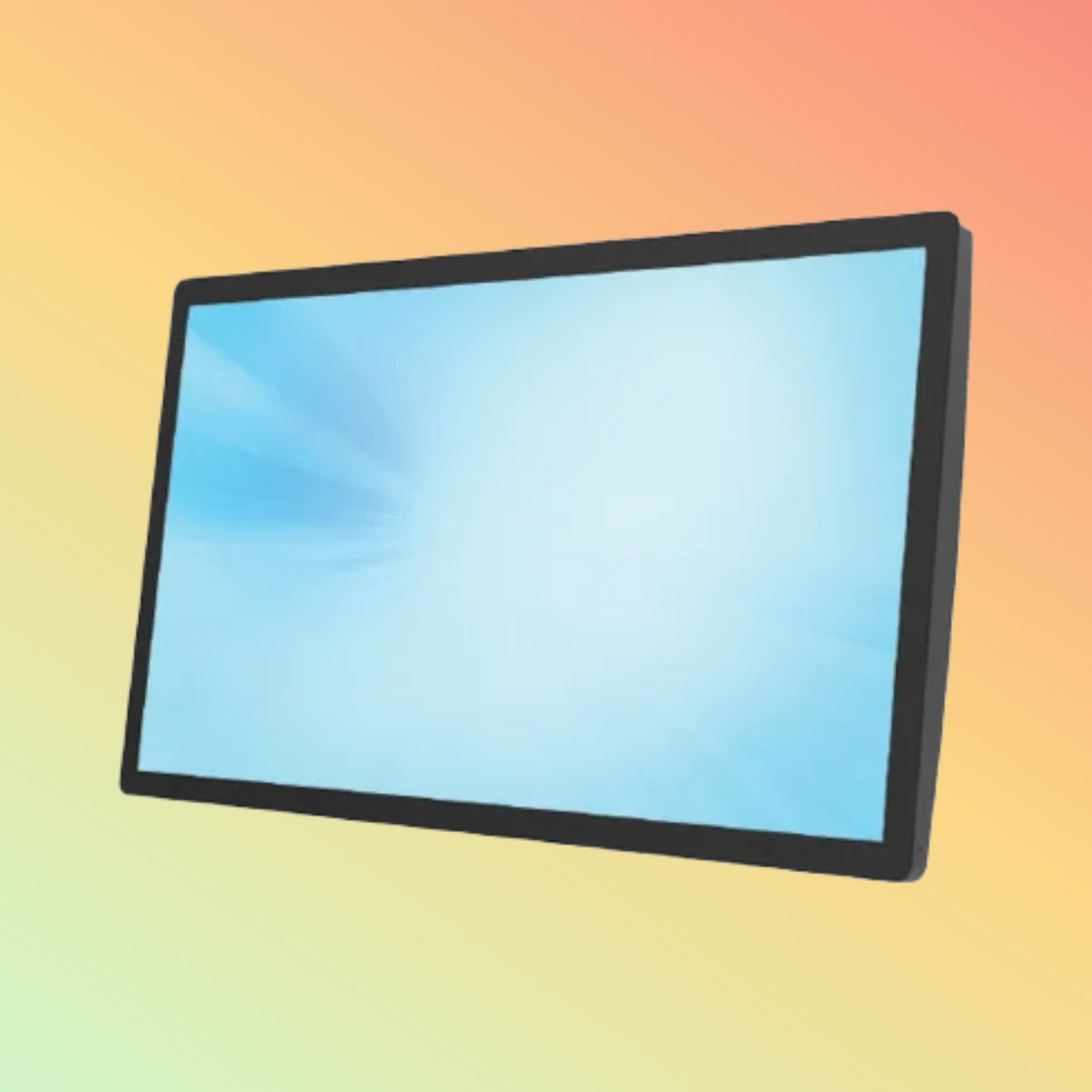

The MicroTouch M1‑101IC‑AA3 is a compact, fanless 10.1″ touch computer built for retail, kiosk, and light‑industrial applications. It delivers smooth performance and reliable uptime in dusty or splash‑prone environments.
Product Description
Powered by an Intel® Celeron® J6412 quad‑core CPU, the M1‑101IC‑AA3 runs Windows 10 IoT or Linux. Its projected‑capacitive display supports multi‑touch through gloves. The fanless, all‑metal chassis keeps dust out. IP54‑rated front sealing blocks splashes. Dual LAN, serial, HDMI, and USB ports attach scanners, printers, cameras, and more—no hub needed.
Key Features
-
10.1″ PCAP Touch: 1280 × 800 resolution; 10‑point multi‑touch
-
Intel® Celeron® J6412: Quad‑core @2.0 GHz, burst to 2.6 GHz
-
Fanless Design: Silent, dust‑free operation
-
IP54 Front: Dust and splash resistance
-
Rich I/O: 2× USB 3.0, 2× USB 2.0, HDMI, VGA, 2× RS‑232, 2× GigE, audio
-
Optional Wi‑Fi & BT: 802.11ac and Bluetooth 5.0 modules
-
Flexible Mounting: VESA 75/100 and panel‑mount kits
Specifications
| Attribute |
Details |
| CPU |
Intel® Celeron® J6412 (4 × 2.0 GHz, burst 2.6 GHz) |
| GPU |
Intel® UHD Graphics |
| Memory |
4 GB DDR4 (up to 8 GB) |
| Storage |
64 GB eMMC; optional M.2 2242 NVMe SSD |
| Display |
10.1″ TFT LCD, 1280 × 800, PCAP multi‑touch |
| Touch |
Projected‑capacitive, glove‑friendly |
| OS |
Windows 10 IoT; Ubuntu 20.04 LTS |
| USB |
2× USB 3.0; 2× USB 2.0 |
| Video |
HDMI 1.4; VGA |
| Serial |
2× RS‑232 |
| Ethernet |
2× Gigabit RJ45 |
| Audio |
3.5 mm combo jack |
| Wireless (opt.) |
802.11ac Wi‑Fi; Bluetooth 5.0 |
| Power |
12–24 V DC input; PoE 802.3at optional |
| Enclosure Rating |
IP54 front bezel |
| Dimensions |
280 × 180 × 35 mm |
| Weight |
1.2 kg |
Supported OS / Applications / Industries
-
Operating Systems: Windows 10 IoT, Ubuntu LTS
-
Use Cases: POS terminals, self‑service kiosks, digital signage, HMI panels
-
Industries: Retail, hospitality, manufacturing, healthcare, education
Benefits & Compatibility
-
Zero‑Noise Operation: Fanless cooling cuts noise and maintenance.
-
All‑Weather Ready: IP54 front seals out dust and light splashes.
-
One‑Box Solution: Touch, compute, and I/O in one slim unit.
-
Legacy & Modern I/O: Serial ports and HDMI support older and new devices.
-
Easy Mounting: VESA and panel kits speed installation.
Purpose of Use
Ideal for client‑facing terminals and operator panels. Deploy as a checkout station, information kiosk, or factory HMI without bulky PCs.
How to Use
-
Mount via VESA or panel bracket.
-
Connect 12–24 V DC (or PoE) and network.
-
Attach scanners, printers, or cameras via USB/serial/HDMI.
-
Power on; OS boots in ~20 sec.
-
Run your chosen application—ready to go.
Packaging / Weight / Dimensions
-
Includes: M1‑101IC‑AA3 unit, DC adapter, VESA bracket, quick‑start guide
-
Carton Size: 350 × 230 × 100 mm
-
Shipping Weight: 1.8 kg
Warranty & FAQs
Warranty: 1 Year NEOTECH standard (extendable)
FAQs:
-
Q: Can I upgrade RAM?
A: Yes, internal SO‑DIMM slot supports up to 8 GB.
-
Q: Does it support PoE?
A: Optional factory‑configured IEEE 802.3at PoE available.
-
Q: Is Linux supported?
A: Ubuntu 20.04 LTS driver support provided.
Performance, Quality, Durability & Reliability
Tested to IEC 60068‑2 standards for shock, vibration, and temperature. The fanless metal chassis ensures stable performance in 0 °C to 50 °C environments, year‑round.
Best Price Guarantee
NEOTECH matches or beats any UAE price on the M1‑101IC‑AA3—guaranteed, with local support included.
Shop Today & Receive Your Delivery Across the UAE
Order before 2 PM UAE time for same‑day processing. Delivery in 2–3 days anywhere in the Emirates, with secure tracking.
Request for Customer Reviews and Testimonials
Using the M1‑101IC‑AA3 in your deployment? Share your feedback to help peers choose the right touch computer.
After Sales Support
NEOTECH’s UAE‑based team provides:
-
Live chat & phone assistance
-
Firmware updates & BIOS patches
-
Warranty & RMA handling
-
Spare parts and mounting accessories
Get in Touch
Need a demo or custom quote? Contact our touch computing experts for rapid, tailored recommendations.
Stock Availability
In stock now. Limited units—order today to secure yours.
Disclaimer
Specifications subject to change without notice. Verify accessory and OS compatibility before deployment.
