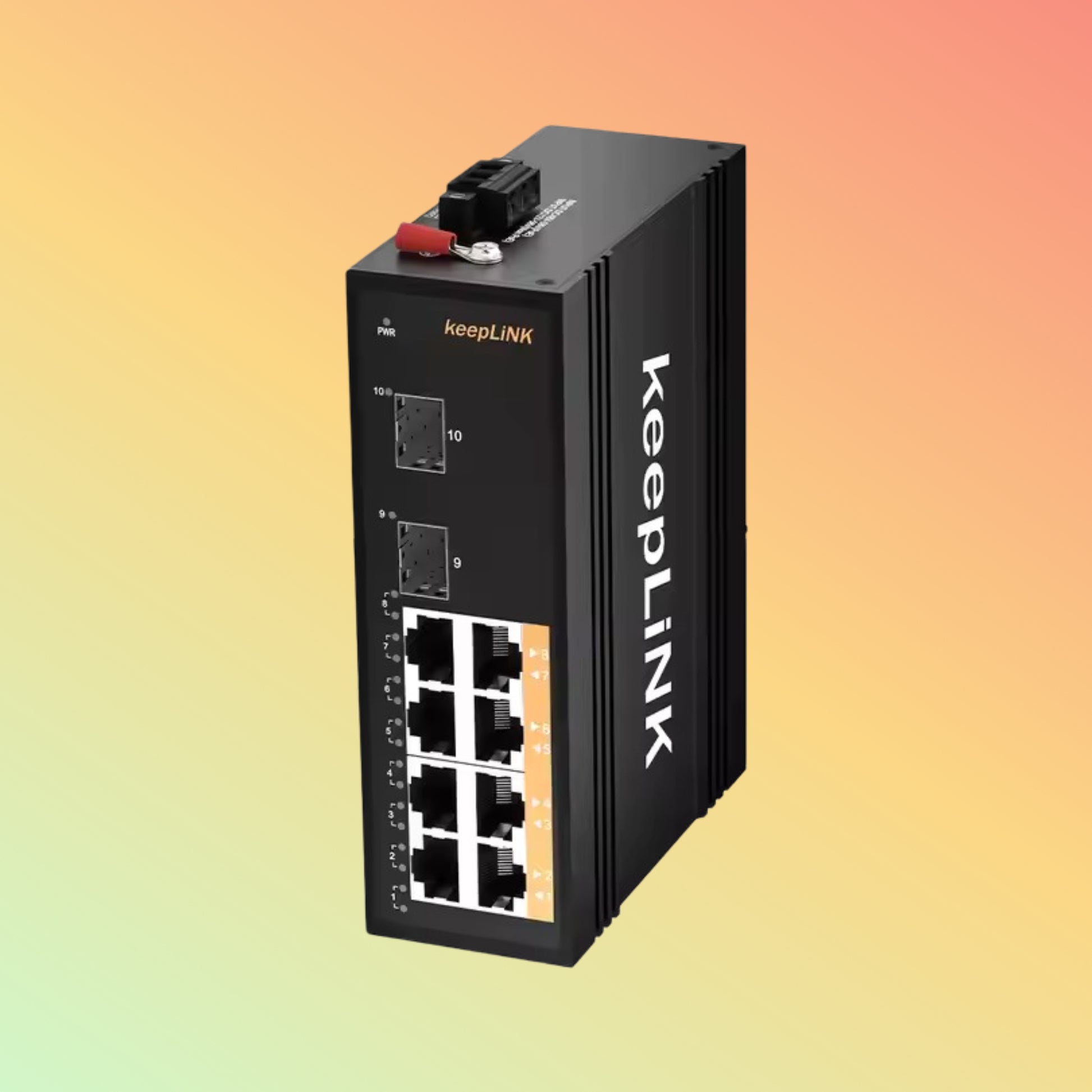

Unmanaged 2 1000M SFP with 8 10/100/1000M Copper port Industrial switch with competitive price

Compact 10-Port Unmanaged Industrial Switch with 2 SFP + 8 RJ45 ports. Full Gigabit, rugged build, DIN-rail mount. Competitive price at NEOTECH UAE.

✅ Overview

This 10-Port Industrial Ethernet Switch offers a balance of high-speed copper and fiber connectivity in one unmanaged device. With 2 x 1000M SFP slots and 8 x RJ45 ports, it ensures reliable network expansion for automation, smart buildings, and surveillance at a cost-effective price point.

✅ Product Description

Engineered for industrial edge networking, this unmanaged switch integrates two SFP fiber uplinks and eight 10/100/1000 Mbps copper ports. It delivers full Gigabit speeds for seamless device communication, long-distance fiber integration, and zero-configuration deployment.

Its fanless, rugged metal housing and DIN-rail compatibility make it perfect for field applications. With wide voltage support, passive cooling, and ESD/surge protection, this switch provides enterprise-level performance in a compact, budget-friendly package.

✅ Key Features

• 2 x 1000 Mbps SFP fiber uplink slots

• 8 x 10/100/1000 Mbps RJ45 Ethernet ports

• Full Gigabit speed for stable transmission

• Unmanaged, plug-and-play simplicity

• Rugged DIN-rail or wall-mount design

• Fanless cooling and low power consumption

• Operating Temp: -40°C to 75°C

• Surge and ESD protection

✅ Specifications

• SFP Ports: 2 x 1000 Mbps

• RJ45 Ports: 8 x 10/100/1000 Mbps

• Switching Capacity: 20 Gbps

• Forwarding Rate: 14.88 Mpps

• Power Input: 12–57V DC

• Cooling: Fanless passive

• Material: Industrial-grade aluminum alloy

• Mounting: DIN-rail / wall-mount

• Operating Temp: -40°C to 75°C

• Dimensions: Approx. 140mm x 105mm x 40mm

• Weight: ~0.65 kg

✅ Supported OS/Application/Industries

• Platform: Plug-and-play, no OS limitations

• Applications: Edge networking, IP cameras, data aggregation

• Industries: Utilities, Surveillance, Smart Cities, Manufacturing, Transport

✅ Benefits & Compatibility

• Combines copper + fiber for hybrid networking

• Supports long-distance SFP modules (multi/single-mode)

• High compatibility with IP cameras, NVRs, and controllers

• Zero configuration reduces deployment time

• Ideal for cost-sensitive industrial projects

✅ Purpose of Use

Use this switch to link local devices and uplink to core networks via fiber. Great for remote camera hubs, utility poles, or building control rooms that need compact, unmanaged, yet high-speed switches.

✅ How to Use

1. Mount switch on DIN-rail or panel

2. Insert fiber SFP modules and connect uplinks

3. Connect RJ45 devices (cameras, sensors, etc.)

4. Power via 12–57V DC source

5. Plug in and operate—no setup needed

✅ Packaging/Weight/Dimension

• Size: 140 x 105 x 40 mm

• Weight: ~0.65 kg

• Includes: Switch unit, terminal block, DIN-rail clip, quick start manual

✅ Warranty and FAQs

Warranty: 12 months full replacement warranty
FAQs:
Q1: Are the SFP ports combo or dedicated?
A1: Dedicated for fiber uplink.
Q2: Can I use both fiber and copper at once?
A2: Yes, all ports operate simultaneously.
Q3: Is there PoE support?
A3: No, this model is data-only.

✅ Performance, Quality, Durability, and Reliability

With full Gigabit bandwidth, fanless heat management, and hardened build, this switch excels in dusty, high-vibration, or heat-prone environments. It’s optimized for reliable long-term field deployment.

✅ Best Price Guarantee

Looking for competitive pricing in the UAE? NEOTECH delivers industrial quality at unbeatable value—backed by our price match promise.

✅ Shop Today & Receive Your Delivery Across the UAE!

We ship fast across all Emirates: Dubai, Sharjah, Abu Dhabi, Ajman, and more. Reliable packaging, responsive support, and guaranteed satisfaction.

✅ Request for Customer Reviews and Testimonials

Have this switch deployed in your field network? Share your experience—help others find a compact, reliable, and affordable industrial solution.

✅ After Sales Support

Our support team is ready to assist you with SFP compatibility, voltage queries, or technical troubleshooting.

✅ Get in Touch

Need bulk pricing or product comparisons? Contact NEOTECH’s experts for tailored quotes and free consultations.

✅ Stock Availability

This model is currently in stock. For larger projects or urgent orders, confirm real-time stock with our team.

✅ Disclaimer

Specs and product visuals may change without notice. Always verify critical technical details with our team before final purchase.
