HM20-DC embedded access control scanner reads Mifare, ID cards, and 2D barcodes. Ideal for kiosks, gates & terminals. Buy now at NEOTECH UAE.
✅ Overview

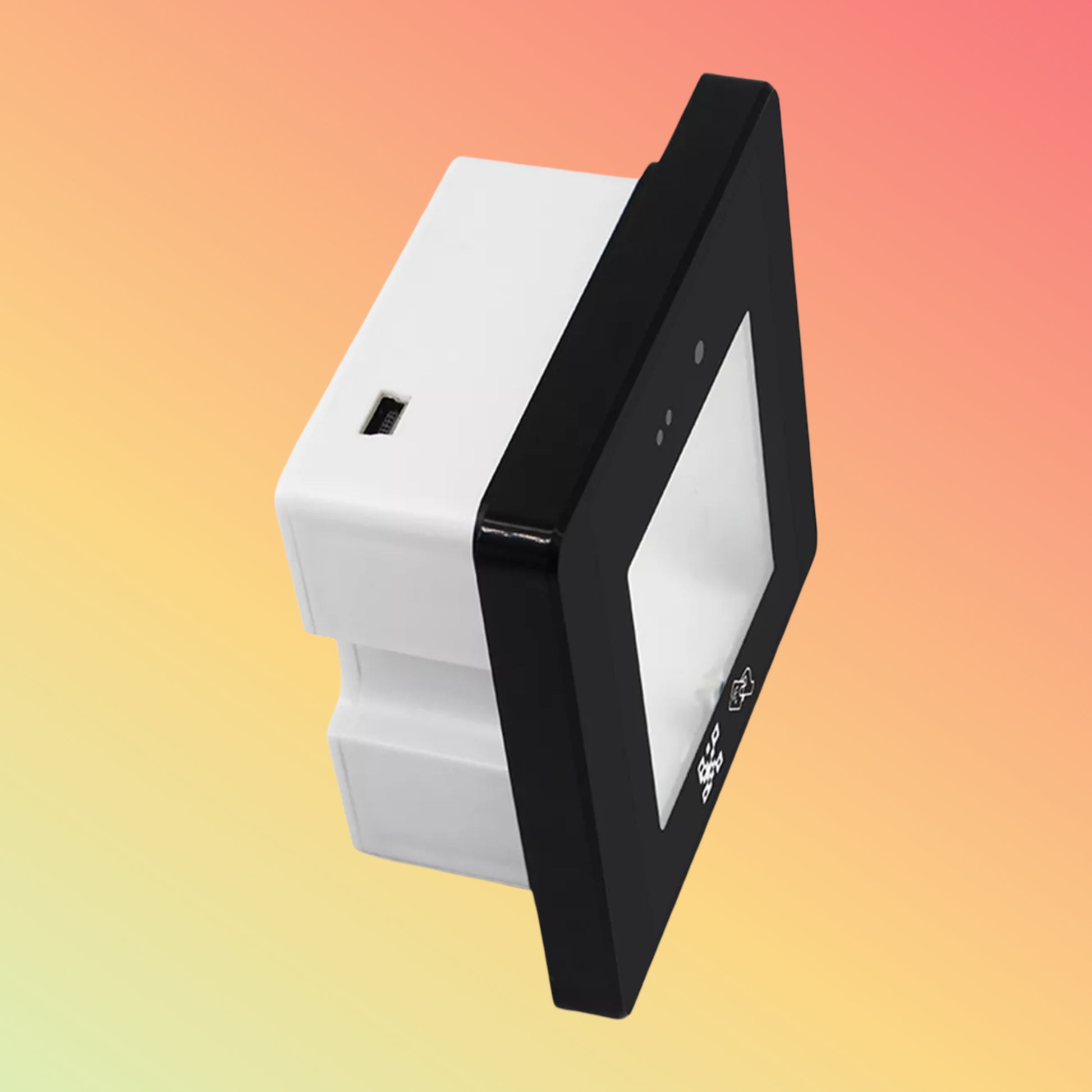

The HM20-DC Embedded Scanner is a multi-functional access control module that supports IC cards, Mifare, ID cards, and 2D barcode scanning in one compact unit. Designed for kiosks, turnstiles, and terminals, it provides fast, accurate authentication from plastic cards or barcode credentials, making it ideal for corporate security, transport, hospitality, and smart buildings.
✅ Product Description
The NEOTECH HM20-DC is a versatile embedded access reader that combines IC card reading (ISO14443A/B), Mifare, and 2D barcode scanning in a single device. Equipped with a powerful scan engine and contactless RFID reader, it seamlessly processes employee IDs, visitor QR passes, and smart access cards with speed and precision.
Its compact design and rear-mounted integration make it easy to install in terminals, gates, elevators, and kiosks. Whether reading from paper or mobile phone screens, HM20-DC delivers fast decoding and real-time access response, perfect for high-traffic security checkpoints.
✅ Key Features
-
✅ Reads IC Cards, Mifare, and ISO14443A/B
-
✅ Decodes 1D & 2D Barcodes (QR, PDF417, Data Matrix)
-
✅ Supports Scanning from Mobile Screens & Paper
-
✅ Embedded Design for Kiosks and Access Devices
-
✅ Multiple Interfaces: USB / RS232 / Wiegand (Optional)
-
✅ Compact, Fast & Secure Access Verification
✅ Specifications
-
Model: HM20-DC
-
Card Types Supported: IC Card, Mifare Card, ISO14443A/B
-
Barcode Types: QR, PDF417, Data Matrix, Code128, etc.
-
Scan Method: CMOS, Auto-sensing or Manual
-
Reading Distance (Card): 3–8 cm
-
Reading Distance (Barcode): 2–20 cm
-
Interfaces: USB HID/COM, RS232, Wiegand (Optional)
-
Power Supply: 5V DC
-
Operating Temp: -20°C to +60°C
-
Dimensions: 85 x 65 x 20mm
✅ Supported OS/Application/Industries
-
💻 OS: Windows, Linux, Android (USB Host supported)
-
🏢 Industries: Access Control, Transportation, Office Security, Education, Smart Buildings
-
📲 Applications: Employee access, visitor verification, QR pass scanning, ID registration, kiosk authentication, elevator control
✅ Benefits & Compatibility
-
All-in-one support for contactless cards + QR barcodes
-
Works with screen or printed QR codes
-
Easy to embed into flat or vertical panels
-
Compatible with modern access control systems
-
Optional Wiegand interface for legacy integration
-
Reduces hardware clutter by combining multiple reading functions
✅ Purpose of Use
Designed to manage secure access control using either RFID cards or QR codes, the HM20-DC fits perfectly into smart gates, terminals, elevators, and interactive kiosks. Ideal for corporate entry systems, campus access, and public transport fare collection.
✅ How to Use
-
Embed HM20-DC into your panel, kiosk, or terminal
-
Power via USB or external 5V supply
-
Present card or scan QR/2D barcode
-
Reader authenticates and sends data to the host system
-
System grants or denies access instantly
✅ Packaging/Weight/Dimension
-
Product Size: 85 x 65 x 20mm
-
Weight: ~100g
-
Included in Box: HM20-DC Module, Interface Cable (USB/RS232), Setup Guide
-
Shipping Weight: ~180g
✅ Warranty and FAQs
Warranty: 12-month standard NEOTECH warranty
FAQs:
-
Q: Can it scan QR codes from a phone? Yes, from any screen
-
Q: Does it support Wiegand output? Yes, optional versions available
-
Q: Can it read both barcodes and cards simultaneously? Yes, hybrid operation is supported
✅ Performance, Quality, Durability, and Reliability
Tested for over 1 million scans, the HM20-DC delivers stable performance in high-use environments. Its embedded structure resists tampering, while the advanced decoding engine ensures error-free data capture under all lighting conditions.
✅ Best Price Guarantee
Get the lowest UAE pricing for an embedded all-in-one access scanner. Found it cheaper? Let us match or beat the price.
✅ Shop Today & Receive Your Delivery Across the UAE!
We deliver across Dubai, Abu Dhabi, Sharjah, and all other UAE cities. Expect fast shipping, proper tracking, and reliable customer support from NEOTECH.
✅ Request for Customer Reviews and Testimonials
Using HM20-DC in your access control system? Share your experience to help others choose the right access technology — we value your voice.
✅ After Sales Support
Need help with integration, SDKs, or setup? Our NEOTECH tech team is ready to assist, from installation to long-term support.
✅ Get in Touch
Need more details or custom integration support? Reach out to our sales engineers today — fast responses, real advice.
✅ Stock Availability
HM20-DC is usually in stock for immediate dispatch. For bulk orders or project rollouts, please confirm quantity in advance.
✅ Disclaimer
All details provided are for informational purposes only and subject to change. Images are for illustration. Confirm exact specs before final purchase with NEOTECH.
