Expand RFID networks with the FCC‑certified Impinj xSpan gateway. Multi‑protocol, real‑time monitoring, edge compute. Order now from NEOTECH—UAE delivery.
Overview

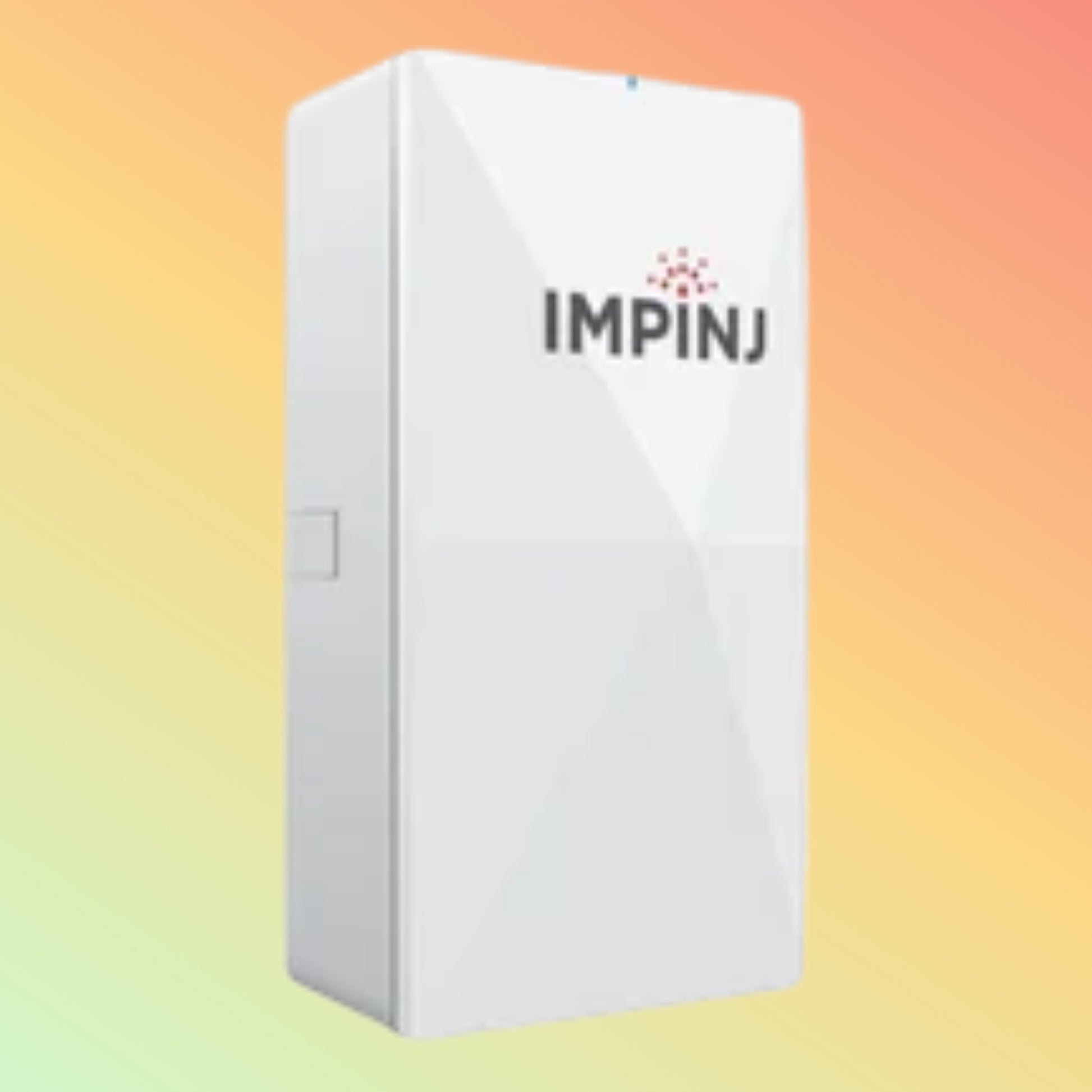

The Impinj xSpan (FCC) IPJ‑REV‑R660‑USA1M1 is a powerful, FCC‑certified RFID gateway and edge compute platform. It aggregates streams from multiple RAIN RFID readers, runs custom edge logic, and securely forwards tag data to cloud or on‑premise systems—ideal for large‑scale, multi‑site deployments.
Product Description
Built on the proven xSpan architecture, this gateway supports up to four Speedway R660 readers and delivers real‑time tag processing via Docker‑compatible edge apps. It features dual Gigabit Ethernet, PoE support, and built‑in security (TLS, SSH). Use it to offload filtering, analytics, and protocol translation right at the network edge, reducing bandwidth and latency for critical IoT and inventory workflows.
Key Features
-
FCC‑certified RAIN RFID gateway for global compliance
-
Supports up to 4 Impinj Speedway R660 readers
-
Edge compute: run Docker containers for custom logic
-
Dual Gigabit PoE+ Ethernet for reader power/data
-
MQTT, HTTP(S), and WebSocket protocols for flexible data forwarding
-
Built‑in firewall, VPN, and secure boot for enterprise security
-
Real‑time monitoring and diagnostics via Impinj Cloud or CMS
-
DIN‑rail or rack mounting for versatile installation
Specifications
| Feature |
Details |
| Model |
IPJ‑REV‑R660‑USA1M1 |
| Reader Support |
Up to 4× Speedway R660 |
| Edge Compute |
Docker‑compatible Linux OS |
| Ethernet Ports |
2× Gigabit PoE+ (802.3at) |
| Data Interfaces |
MQTT, HTTP(S), WebSocket, TCP/UDP |
| Security |
TLS 1.2, SSH, VPN, Secure Boot |
| Power Input |
PoE+ or 12 – 48 V DC |
| Storage |
16 GB eMMC + microSD slot |
| Memory |
2 GB DDR4 |
| Operating Temp |
–20 °C to 60 °C |
| Mounting |
DIN‑rail, wall, or 1U rack |
| Dimensions (W×D×H) |
215 × 120 × 40 mm |
| Weight |
1.1 kg |
Supported OS / Application / Industries
Edge OS & Integration
-
Embedded Linux with Docker support
-
Integrates with Impinj ItemSense, AWS IoT, Azure IoT, IBM Watson
Applications
-
Real‑time inventory and asset tracking
-
Cold chain monitoring with edge alerts
-
Automated dock‑door throughput control
-
Retail self‑checkout and checkout lane analytics
Industries
-
Warehousing & Distribution
-
Retail & E‑commerce
-
Healthcare & Pharmaceuticals
-
Manufacturing & Automotive
-
Transportation & Logistics
Benefits & Compatibility
-
Edge Processing: Filter and pre‑aggregate tag reads to reduce backend load
-
Secure & Compliant: FCC‑certified with enterprise‑grade security features
-
Scalable Architecture: Chain multiple xSpan gateways for large footprints
-
Flexible Connectivity: Choice of MQTT, HTTP(S), or WebSocket streams
-
Easy Deployment: PoE+ power and compact form for tight spaces
Purpose of Use
Ideal for organizations that need to process and route high‑volume RFID data at the network edge. Use xSpan to run business logic—such as anti‑theft alerts or order‑picking verification—directly onboard, then forward only relevant events to your cloud or warehouse management system.
How to Use
-
Mount the gateway via DIN‑rail, wall bracket, or 1U rack.
-
Connect up to four Speedway R660 readers via PoE+ Ethernet.
-
Configure edge apps in Docker to filter, transform, or analyze tag data.
-
Set up data endpoints (MQTT broker, REST API, WebSocket).
-
Monitor performance and logs via Impinj Cloud or local CMS.
Packaging / Weight / Dimensions
Warranty & FAQs
Warranty
– 3‑Year Impinj manufacturer warranty via NEOTECH. Extended support plans available.
FAQs
Q: Can I run my own edge applications?
A: Yes—xSpan supports Docker containers for custom logic.
Q: How do I update firmware?
A: Via Impinj Cloud or locally over SSH/CMS.
Q: Is PoE+ required?
A: You can also power via 12 – 48 V DC input if PoE+ is unavailable.
Performance, Quality, Durability & Reliability
Designed for continuous industrial use, xSpan features fanless cooling, wide‑temperature components, and secure boot to ensure reliable edge operations in harsh environments.
Best Price Guarantee
NEOTECH matches or beats UAE pricing on Impinj gateways. Ask about bundled reader‑gateway discounts and volume licensing.
Shop Today & Receive Your Delivery Across the UAE
Order by 3 PM for same‑day dispatch. Fast, tracked shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates.
Request for Customer Reviews and Testimonials
Deploying the xSpan Gateway? Share your success story to help others streamline RFID infrastructure at scale.
After Sales Support
NEOTECH offers UAE‑based support for:
-
Edge application consulting
-
Firmware and container updates
-
Integration with cloud platforms and WMS/ERP
Get in Touch
Need expertise on RFID edge computing? Our IoT specialists will help design your optimal xSpan deployment for maximum ROI.
Stock Availability
In stock now.
Limited quantities—reserve your xSpan units today for priority fulfillment.
Disclaimer
Specifications and features are subject to change without notice. Images shown for reference only. Confirm final configurations with NEOTECH before ordering.
