MH089G F2F decoding magstripe module for ISO tracks 1, 2 & 3. Compact ROHS-compliant card reader for kiosks, terminals & OEM POS devices.
✅ Overview

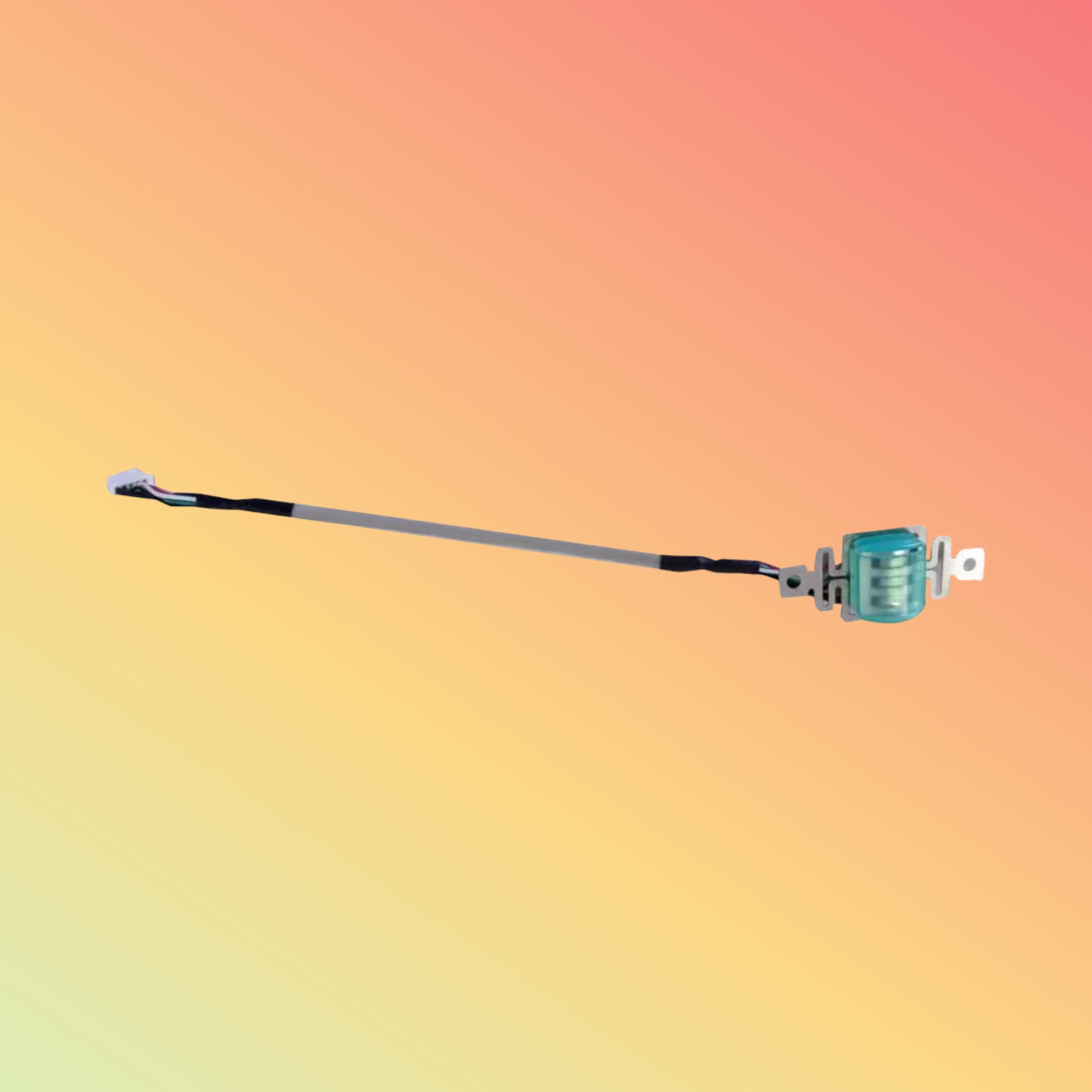

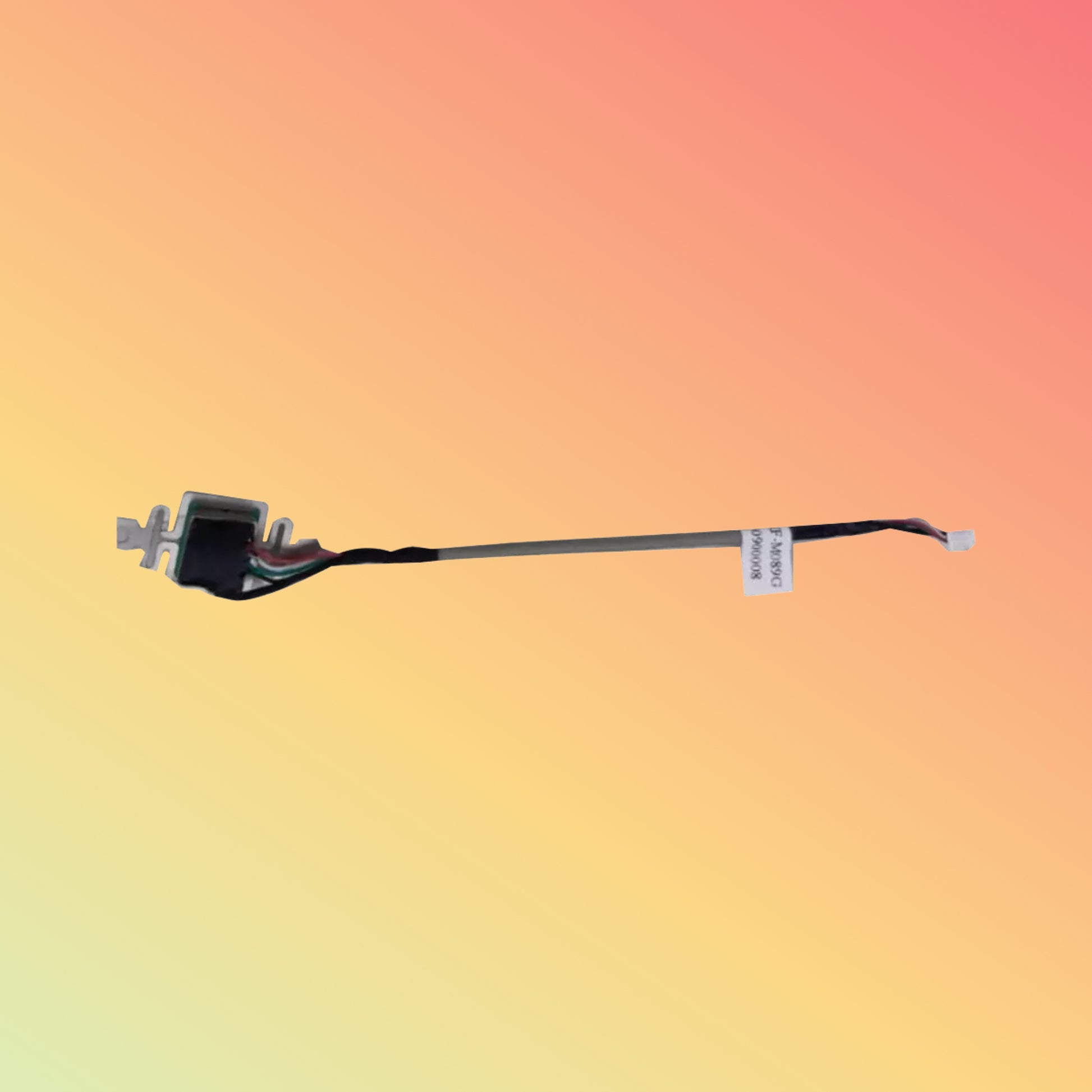

The NEOTECH MH089G is a compact, ROHS-compliant magnetic stripe reading module featuring F2F decoding for Tracks 1, 2, and 3. Designed for seamless integration into kiosks, POS terminals, and OEM equipment, it delivers high-accuracy data capture in a lightweight, embeddable form.
✅ Product Description
The MH089G Magnetic Stripe Card Reader Module offers precision F2F (Frequency to Frequency) decoding for 3-track card data with low power consumption and a small footprint. It supports ISO/IEC 7811 standards and reads both high and low coercivity cards accurately.
Its compact and embeddable design makes it ideal for ATMs, vending machines, access terminals, and handheld devices. The MH089G ensures stable performance even with heavy daily use, providing fast data output for secure identification, loyalty, or transaction systems.
Built to meet ROHS compliance, this module also ensures safe and sustainable hardware integration in commercial and industrial-grade environments.
✅ Key Features
-
✅ Reads Magnetic Stripe Tracks 1, 2, and 3
-
✅ F2F Decoding with High-Speed Accuracy
-
✅ ISO/IEC 7811 Compliance
-
✅ ROHS-Compliant Design
-
✅ Compact Form Factor for Embedded Integration
-
✅ Supports HiCo & LoCo Cards
✅ Specifications
-
Standard: ISO7811 / AAMVA
-
Coercivity Support: HiCo (4000 Oe), LoCo (300 Oe)
-
Read Tracks: 1, 2, 3
-
Decoding: F2F
-
Interface: TTL or UART (depends on configuration)
-
Operating Voltage: DC 5V
-
Power Consumption: <100mA
-
Swipe Speed: 10–120 cm/s
-
Dimensions: 65mm x 18mm x 15mm
-
Weight: ~50g
-
Operating Temperature: -10°C to +60°C
✅ Supported OS / Application / Industries
-
OS Compatibility: Microcontroller/Embedded Platforms
-
Applications: Kiosks, ATMs, Card Access Devices, POS Terminals, Parking Systems
-
Industries: Retail, Banking, Transportation, Hospitality, Security Automation
✅ Benefits & Compatibility
-
Enables real-time magstripe decoding in embedded systems
-
Small footprint—easy to install in compact equipment
-
Supports a wide range of card types and applications
-
High swipe success rate even in fast movements
-
Low-power, long-life performance for 24/7 applications
✅ Purpose of Use
Ideal for device manufacturers and solution providers who need a dependable embedded magstripe reading module for card verification, user authentication, and transactional data entry.
✅ How to Use
-
Mount the MH089G into your kiosk or terminal housing
-
Connect interface lines (TTL/UART) to your control board
-
Swipe magnetic stripe card across the reader slot
-
Card data is decoded and passed to the main system
💡 Easy to integrate into PCBs or microcontroller projects
✅ Packaging / Weight / Dimension
-
Pack Includes: MH089G Reader Module, Pin Header Guide
-
Weight: ~50g
-
Dimensions: 65 x 18 x 15 mm
-
Packaging: Static-safe pouch with cushioning insert
✅ Warranty and FAQs
Warranty: 1-Year Limited Warranty
FAQs:
-
Q: Does it support encrypted cards?
A: No, MH089G supports standard unencrypted ISO magnetic cards.
-
Q: Can it be used outdoors?
A: Only in weatherproof enclosures. Indoor use recommended.
-
Q: Can I connect it to an Arduino or Raspberry Pi?
A: Yes, with appropriate signal level conversion and code.
✅ Performance, Quality, Durability, and Reliability
Engineered with reliable components, MH089G is built for continuous operation in embedded devices. Its low failure rate and efficient decoding make it a strong choice for mission-critical systems in high-use environments.
