Speedy ATP218 58 mm thermal engine—200 mm/s, 203 dpi, auto-cutter ready. Perfect embed for POS, kiosks & IoT devices.
Overview
Say hey to the ATP218, a slick 58 mm direct-thermal print engine designed for seamless embed. It cranks out crisp 203 dpi receipts and tags at up to 200 mm/s, with optional full- or partial-cut auto-cutter support. Ideal for POS terminals, self-service kiosks, handheld scanners, and IoT gadgets—delivering jam-free prints 24/7.
Product Description

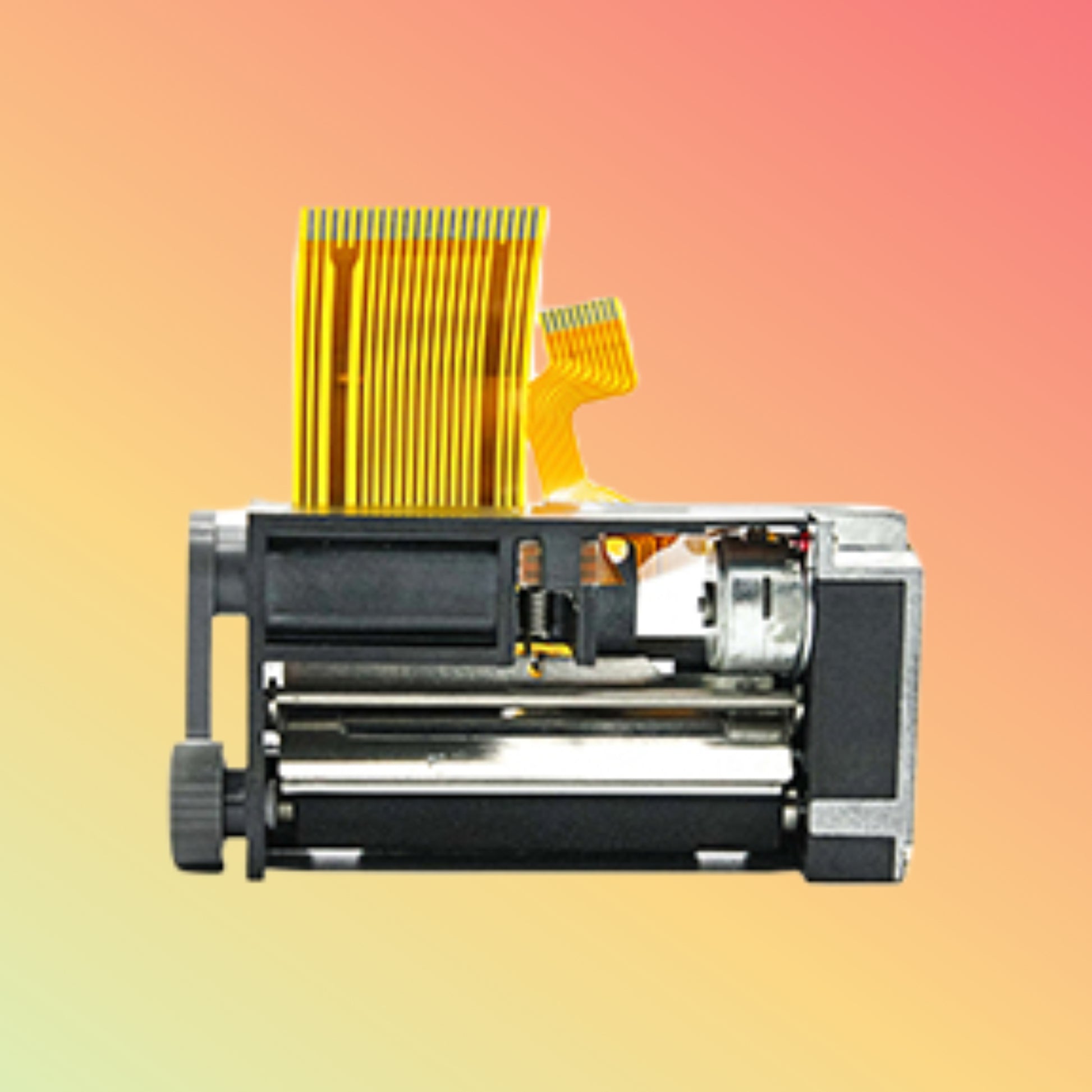

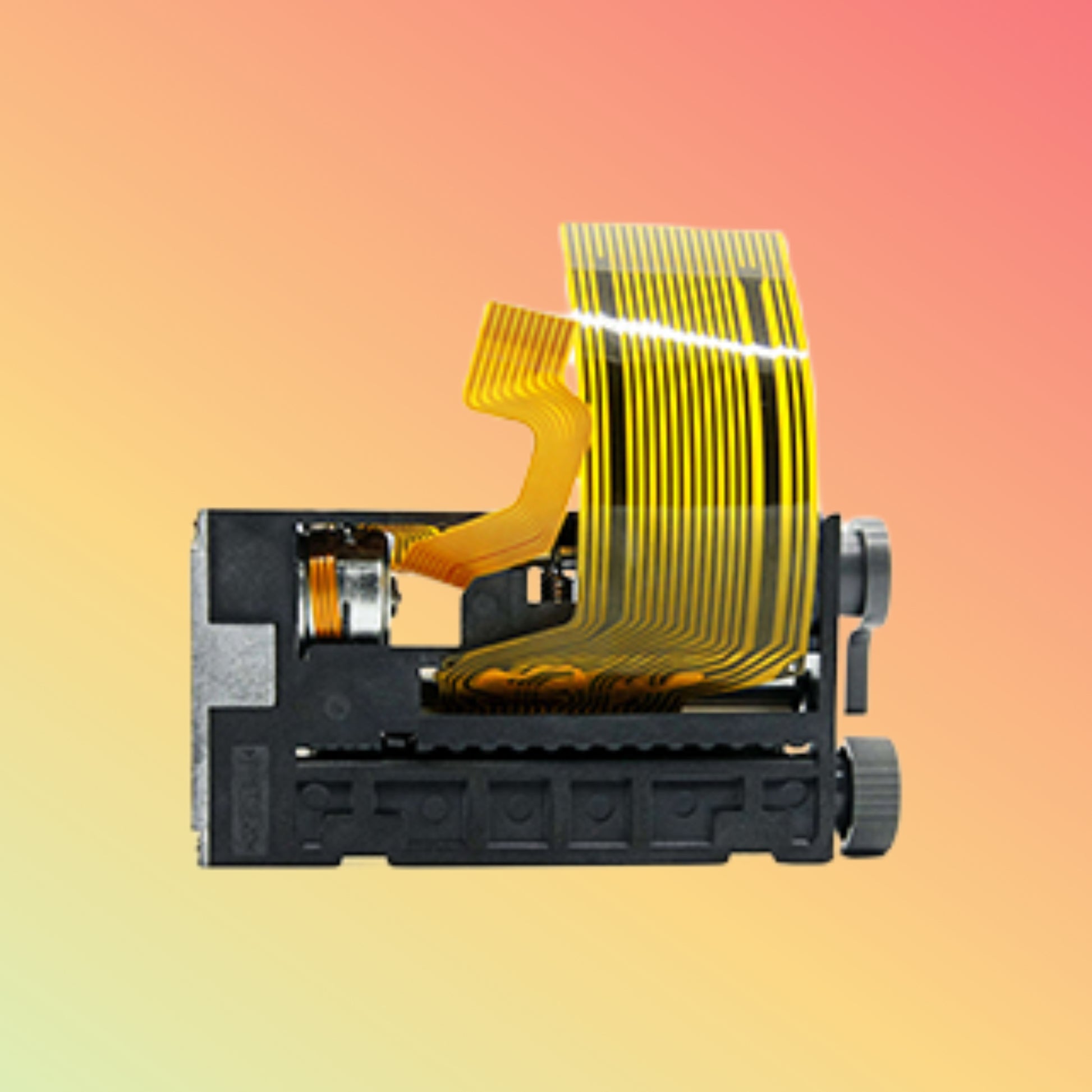

The NEOTECH ATP218 packs industrial-grade power into a compact 100 × 80 × 60 mm chassis. Using direct-thermal tech—no ribbons or ink—you just load a 58 mm roll on a 12.7 mm core and hit print. Its high-torque stepper motor and optimized feed path ensure ultra-smooth, consistent output, while the optional cutter module delivers clean, precise cuts on demand. Rated for MTBF ≥ 25 000 hrs, it’s built for nonstop, heavy-duty use.
Key Features
-
58 mm print width on 12.7 mm core
-
200 mm/s max print speed
-
203 dpi high-resolution thermal head
-

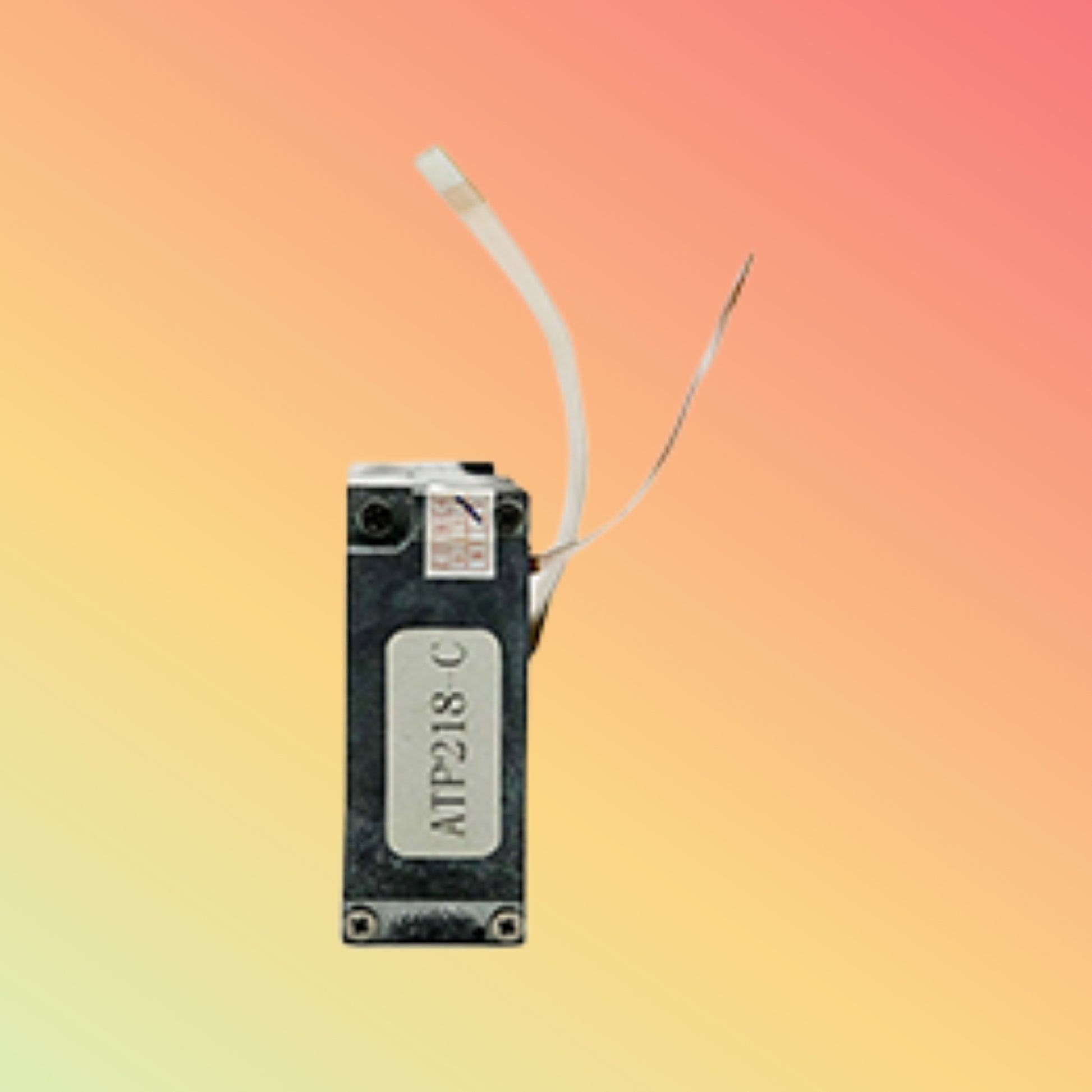

Auto-cutter ready (full/partial cut)
-
RS232 & USB 2.0 interfaces
-
Jam-resistant paper path design
-
Rugged metal chassis
-
MTBF ≥ 25 000 hrs reliability
Specifications
| Parameter |
Details |
| Model |
ATP218 |
| Print Width |
58 mm |
| Max Speed |
200 mm/s |
| Resolution |
203 dpi |
| Core Diameter |
12.7 mm |
| Interfaces |
RS232, USB 2.0 |
| Cutter Option |
Full-cut / Partial-cut |
| MTBF |
≥ 25 000 hrs |
| Power Input |
5 V DC |
| Operating Temp. |
0 °C – 50 °C |
| Dimensions (L×W×H) |
100 × 80 × 60 mm |
| Weight |
450 g |
Supported OS / Applications / Industries
-
OS: Windows, Linux, Android (via SDK)
-
Apps: POS firmware, kiosk controllers, ticketing systems
-
Industries: Retail, Hospitality, Transportation, Vending, IoT
Benefits & Compatibility
-
Plug-and-play embed via RS232 or USB
-
Low maintenance: no ribbons, jam-resistant path
-
High uptime: industrial-grade MTBF
-
Compact footprint: fits tight enclosures
-
Clean cuts: pro-grade receipts & tags
Purpose of Use
Perfect for embedding in POS terminals, ATMs, self-service kiosks, handheld scanners, and any embedded device needing speedy 58 mm thermal printing.
How to Use
-
Mount ATP218 in your device chassis
-
Connect RS232 or USB cable to host board
-
Load a 58 mm roll on the 12.7 mm core
-
(Optional) Attach the cutter module
-
Supply 5 V DC and configure via SDK
-
Run a test print; replace cutter blade per schedule
Packaging / Weight / Dimension
-
Includes: ATP218 mechanism, interface cables, mounting screws, user manual
-
Module size: 100 × 80 × 60 mm
-
Module weight: 450 g
-
Package weight: ~600 g
Warranty & FAQs
Performance, Quality, Durability & Reliability
With a high-torque stepper motor and jam-resistant feed, the ATP218 delivers consistent print density, smooth operation, and long-life reliability under heavy use.
Best Price Guarantee
Found a lower price on an equivalent mechanism? NEOTECH will match it—no drama.
Shop Today & Receive Your Delivery Across the UAE!
Order ATP218 now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. Keep your devices printing without pause.
Request for Customer Reviews & Testimonials
Installed your ATP218? Drop a quick review and let others know how it powers their setups.
After-Sales Support
Need integration tips or troubleshooting? Our UAE support team is one call or email away. If remote help doesn’t cut it, we’ll guide you through a smooth RMA.
Get in Touch
For bulk quotes, custom firmware, or SDK access, contact NEOTECH’s engineering crew. We’ve got samples, demos, and pro support ready.
Stock Availability
Confirm real-time stock with our sales team before ordering—lead times may vary for cutter-enabled units.
Disclaimer
Specs, pricing, and availability are subject to change without notice. Images are illustrative; actual mechanism may vary. Verify all details before purchase.
