Rugged 15″ IP65 fanless panel PC. Intel® J6412 or i3–i7, 4–16 GB DDR4, 128 GB SSD, 4G LTE, USB×4, RS-232, dual LAN. All-in-one HMI for harsh environments.
Overview
This CESIPC 15″ panel PC packs industrial-grade compute, built-in 4G LTE and full IP65 sealing into a silent, fanless chassis. Its capacitive touchscreen, Windows/Linux support and rich I/O make it ideal for factory HMI, outdoor kiosks, mobile automation and edge AI in wash-down or dusty zones.
Product Description

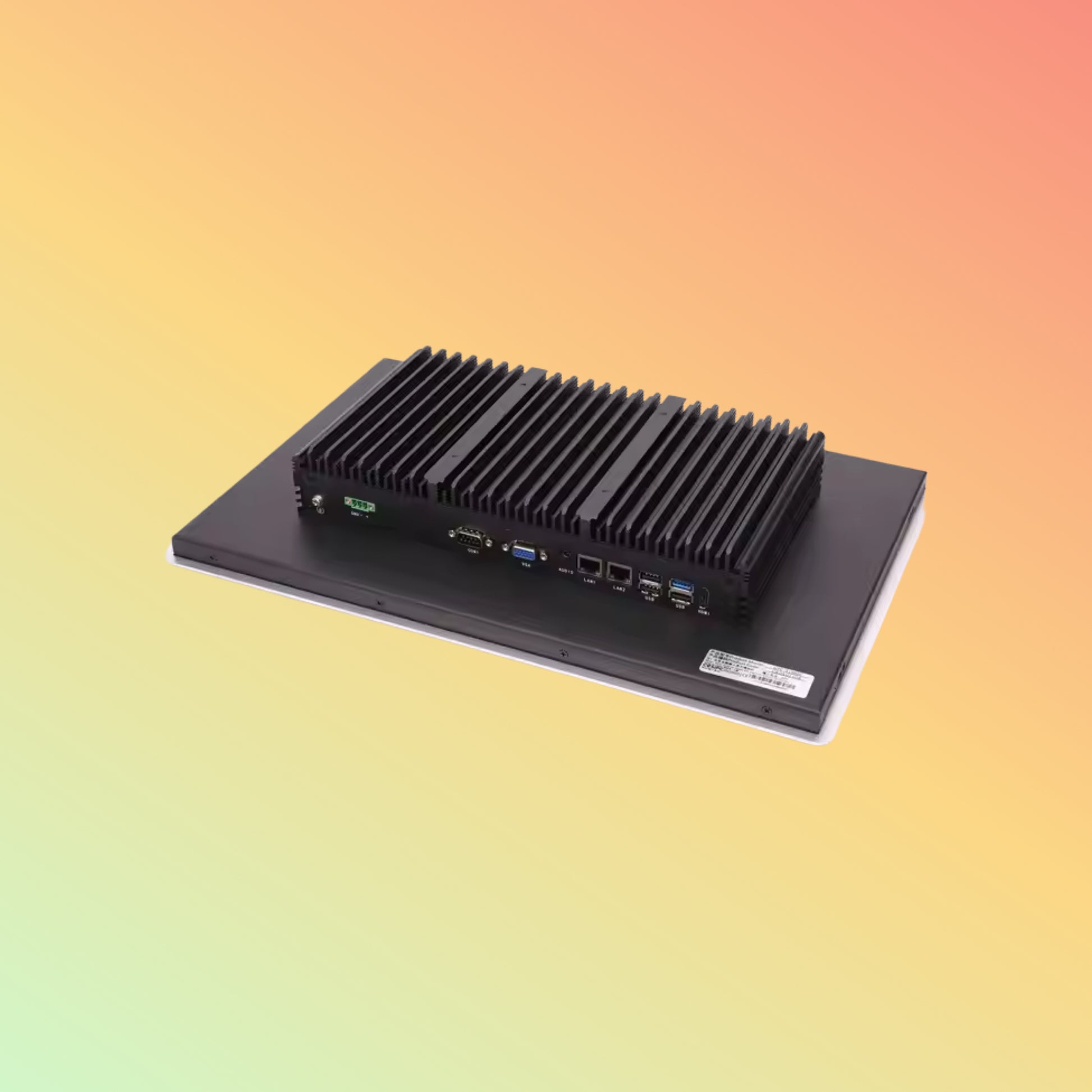

Encased in die-cast aluminum with a waterproof IP65 front, choose Intel® Celeron® J6412 or 10th-Gen Core™ i3-10110U / i5-10210U / i7-10510U. Standard configs offer 4–16 GB DDR4 RAM and 128 GB NVMe SSD (expandable). Integrated 4G LTE (mini-PCIe + antenna), 4× USB 3.0, RS-232, dual Gigabit LAN and HDMI deliver all the connectivity you need. Fanless thermal design ensures zero-maintenance operation—even under high-pressure cleanings.
Key Features
-
IP65 Waterproof Front: Dust-tight & water-jet proof
-
Fanless Cooling: Silent, maintenance-free uptime
-
4G LTE: Built-in cellular for remote connectivity
-
CPU Options: J6412 or Core™ i3/i5/i7 (10th Gen)
-

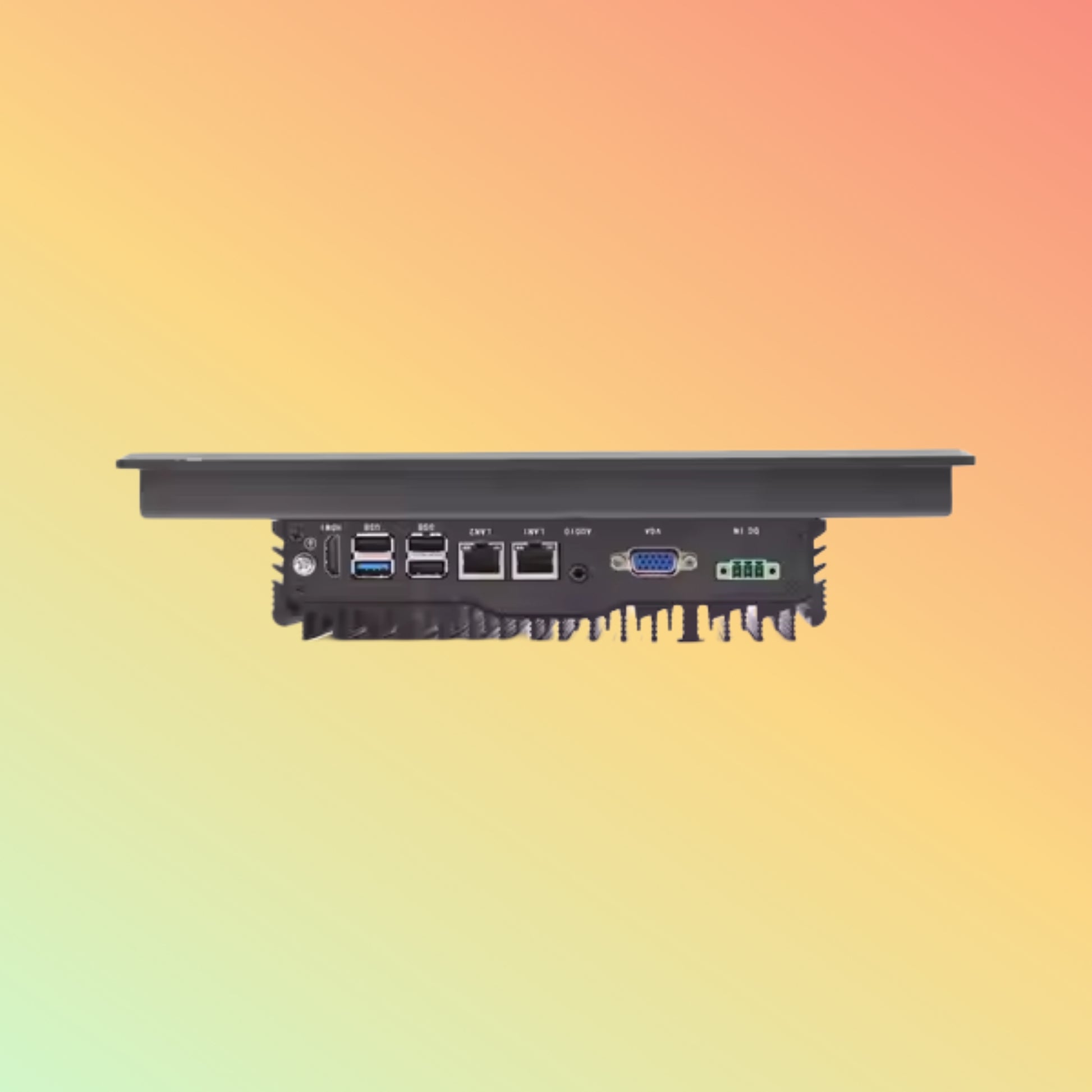

I/O Suite: USB 3.0×4, RS-232×1, HDMI 1.4×1, LAN ×2
-

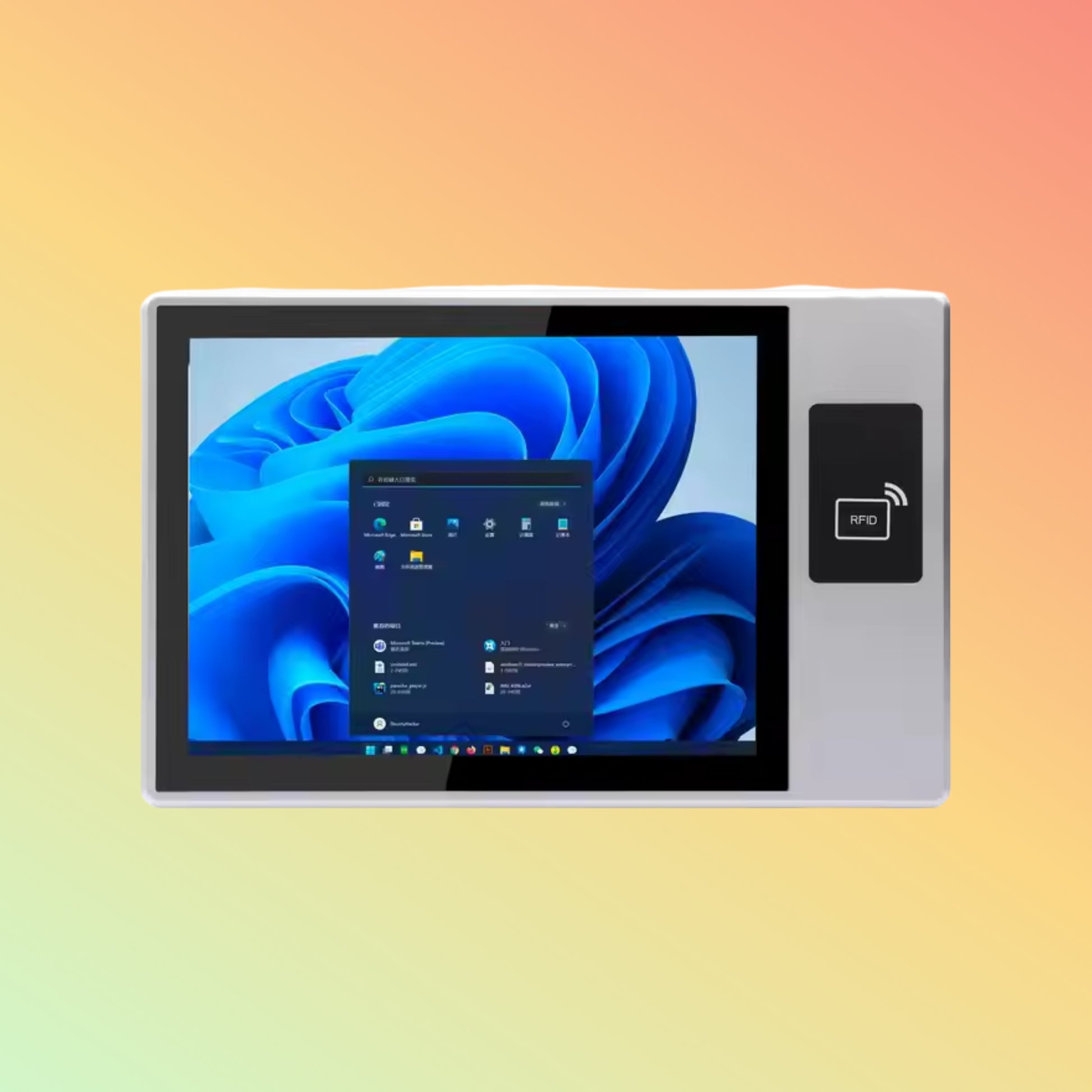

Touch Display: 15″ PCAP multi-touch, glove-compatible
-
OS Support: Windows 10/11 Pro or Ubuntu/CentOS Linux
Specifications
| Parameter |
Detail |
| Display |
15″ LED, 1024×768 PCAP multi-touch |
| Processor |
J6412 (4×2.0 GHz) or i3-10110U / i5-10210U / i7-10510U |
| Memory |
4–16 GB DDR4 (SO-DIMM slot) |
| Storage |
128 GB NVMe SSD (M.2 slot; expandable) |
| Cellular |
4G LTE (mini-PCIe + external antenna) |
| USB Ports |
4× USB 3.0 |
| Serial Port |
1× RS-232 |
| Video Output |
1× HDMI 1.4 |
| Networking |
Dual Gigabit Ethernet |
| Power Input |
12–36 V DC |
| Enclosure Rating |
IP65 front; IP20 rear |
| Operating Temp |
–20 °C to +60 °C |
| Mounting |
VESA 75/100 mm or panel cut-out |
| Dimensions (W×H×D) |
380×295×60 mm |
| Weight |
~5.5 kg |
Supported OS / Applications / Industries
-
OS: Windows 10/11 Pro, Ubuntu/CentOS Linux
-
Applications: HMI/SCADA, automachine control, edge AI, mobile kiosks
-
Industries: Manufacturing, logistics, utilities, outdoor signage
Benefits & Compatibility
-
Always-Connected: 4G LTE backup when wired network fails
-
Zero Maintenance: No fans or filters to clog
-
Wash-Down Ready: Front IP65 withstands pressure jets
-
Glove-Friendly: Touchscreen works with safety gloves
Purpose of Use
Deploy as an embedded controller, mobile HMI, AGV dashboard or outdoor kiosk—anywhere reliable, connected HMI is critical.
How to Use
-
Cut panel opening or mount via VESA bracket.
-
Connect 12–36 V DC, Ethernet, USB and serial cables.
-
Insert SIM and attach antenna for 4G.
-
Install Windows or Linux, then your application.
-
Power on—instant, maintenance-free operation.
Packaging / Weight / Dimensions
-
Dimensions: 380×295×60 mm
-
Weight: ~5.5 kg
-
Packaging: Foam-lined box with power adapter, mounting kit, quick-start guide
Warranty & FAQs
Warranty: 1-Year Limited Warranty
FAQs:
-
Can it run 24/7? Yes—designed for continuous industrial duty.
-
Is storage expandable? Yes, via the M.2 slot.
-
Is it splash-proof? Yes—front IP65 resists jets.
Performance, Quality & Reliability
Tested to MIL-STD-810G for shock/vibration and IP65 wash-down standards. Fanless design extends MTBF for years of service.
Best Price Guarantee
Found a lower UAE quote? We’ll match it—CESIPC & NEOTECH guarantee peak performance at the best value.
Shop Today & UAE Delivery
Order now for insured, next-day delivery to Dubai, Abu Dhabi, Sharjah and all emirates. Secure packaging ensures site-ready arrival.
Customer Reviews & Testimonials
Share your deployment success to help peers choose the perfect panel PC solution.
After-Sales Support
24/7 remote diagnostics, firmware updates and priority RMA keep your systems running at peak performance.
Get in Touch
For custom configurations or bulk quotes, email sales@neotech.ae. Our experts are ready to assist.
Stock Availability
Please confirm current stock and lead times before placing urgent or bulk orders.
Disclaimer
All specifications, images and pricing are subject to change without notice. Verify final details with our sales team prior to purchase.
