Maximize RFID read accuracy with the Impinj Matchbox Antenna IPJ‑A0404‑000. Ultra‑compact, wide beam, easy‑mount. Order today from NEOTECH—UAE delivery.
Overview

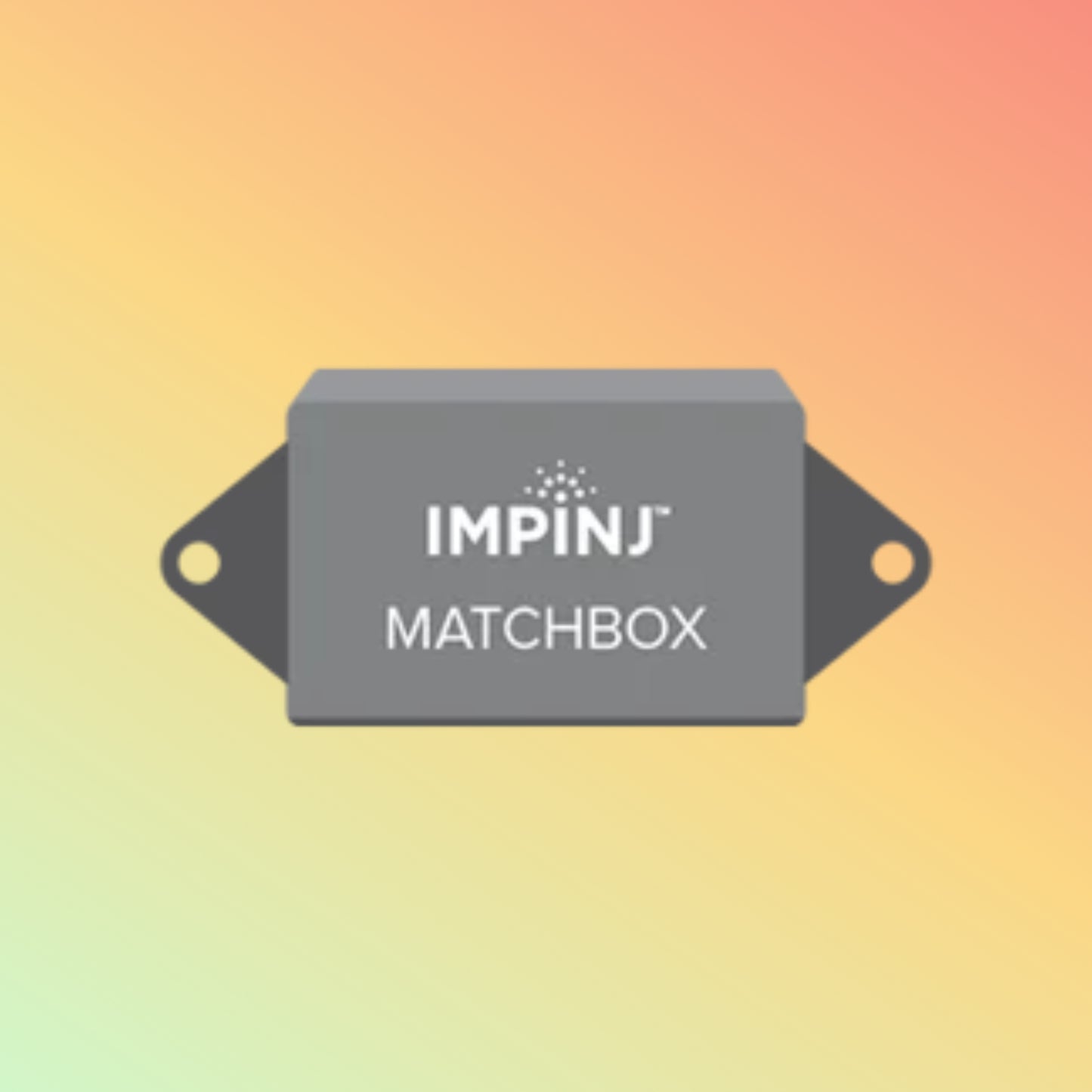

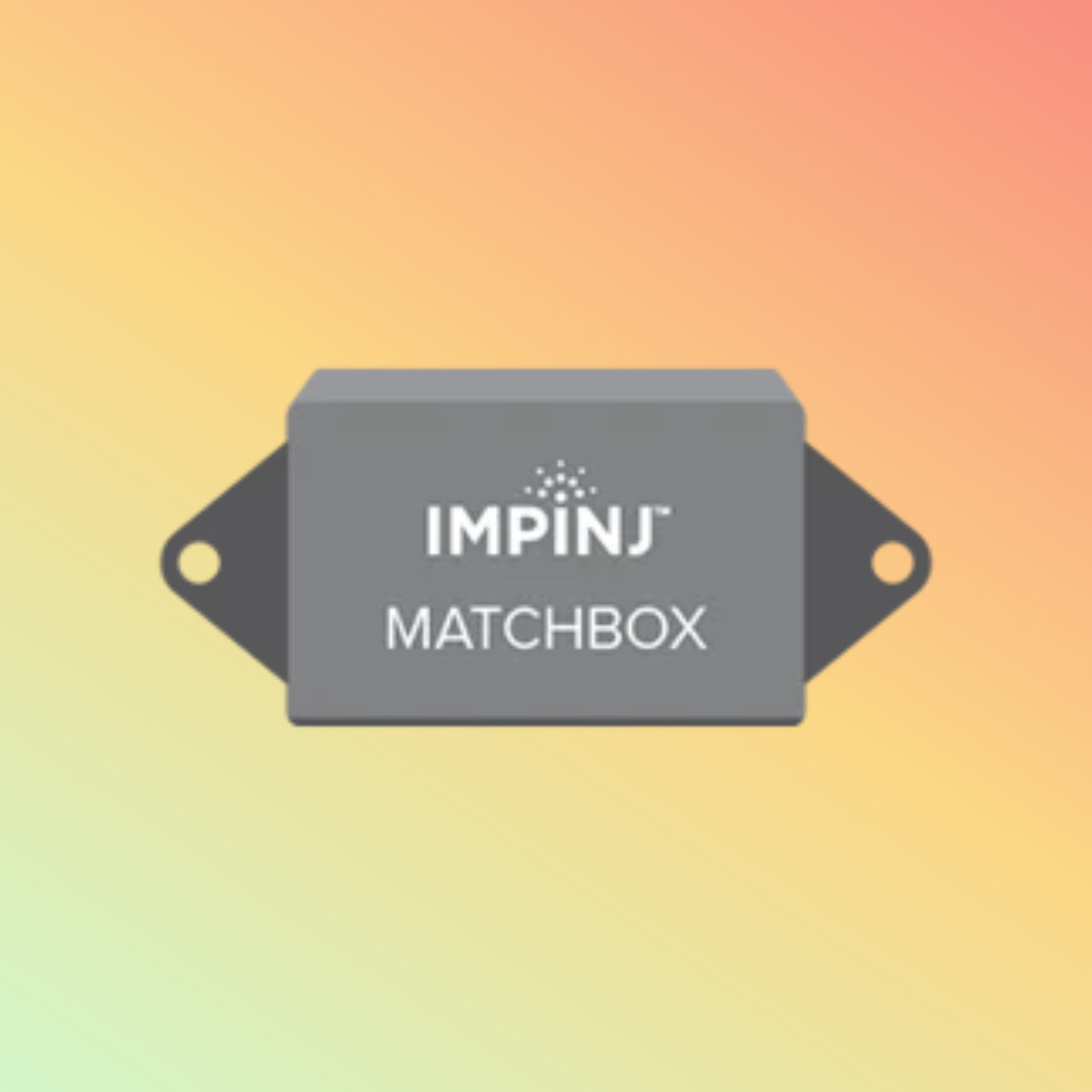

The Impinj Matchbox Antenna IPJ‑A0404‑000 is a miniature, high‑performance RFID antenna engineered for tight spaces and precise read zones. Its low‑profile “matchbox” design and wide beam pattern make it perfect for portals, conveyor edges, and shelf‑level tracking in retail, warehousing, and manufacturing.
Product Description
This compact antenna delivers a consistent read depth of up to 4 inches with a lateral beam spread of 4 inches, ensuring tags in close proximity are reliably captured. Housed in rugged, IP54‑rated ABS, it mounts easily via integrated clips or brackets. The A0404‑000 connects directly to any Gen2 RFID reader’s 1 W antenna port—no extra amplifiers required—making deployment fast and cabling minimal.
Key Features
-
4″ depth × 4″ width read zone for precise tag reads
-
Ultra‑compact “matchbox” form factor
-
ABS housing with IP54 dust/splash protection
-
50 Ω impedance, direct connect to 1 W reader ports
-
Integrated mounting clips for guardrail or shelf edges
-
Frequency: 865–928 MHz (global Gen2 EPC compatibility)
-
SMA male connector for standard OEM cables
Specifications
| Feature |
Details |
| Model |
IPJ‑A0404‑000 |
| Frequency |
865–928 MHz Gen2 EPC RFID |
| Polarization |
Linear, horizontal |
| Gain |
5 dBi |
| Beam Width |
4″ (H) × 4″ (D) read zone |
| Impedance |
50 Ω |
| Connector |
SMA male |
| Housing |
ABS, IP54 rated |
| Mounting |
Integrated clips; optional brackets |
| Operating Temp |
–20 °C to 60 °C |
| Dimensions |
80 × 30 × 15 mm |
| Weight |
0.1 kg |
Supported Systems / Applications / Industries
Compatible Readers
Applications
-
Conveyor guardrail and portal tracking
-
Shelf‑level inventory verification
-
Compact kiosk and vending machine cabinets
-
Pick‑and‑pack workstations
Industries
Benefits & Compatibility
-
Precision Reads: Confined beam reduces stray tag captures.
-
Space‑Saving: Fits into narrow profiles where larger antennas won’t.
-
Rugged Design: IP54 rating for reliable operation in dusty or humid areas.
-
Plug‑and‑Play: No amplifier needed—connects directly to reader.
-
Global Use: Wide frequency tuning for multi‑region deployments.
Purpose of Use
Designed to deliver reliable RFID reads in restricted or congested environments. Mount at critical checkpoints—like conveyor openings or shelf edges—to ensure only intended tags are captured.
How to Use
-
Attach the antenna via its integrated clips or optional brackets.
-
Connect the SMA cable to your reader’s 1 W antenna port.
-
Position tags to pass within the 4″ read depth zone.
-
Configure reader for Gen2 EPC at 1 W output.
-
Verify reads in your RFID software or CMS.
Packaging / Weight / Dimensions
Warranty & FAQs
Warranty
– 2‑Year manufacturer warranty via NEOTECH. Extended support plans available.
FAQs
Q: Can this antenna be used outdoors?
A: Yes—its IP54 housing withstands dust and light water spray.
Q: Do I need an external amplifier?
A: No. It operates directly on 1 W reader output.
Q: What cable length is supported?
A: Keep low‑loss coax runs under 3 m for optimal performance.
Performance, Quality, Durability & Reliability
Engineered for continuous industrial use, the Matchbox Antenna’s ABS enclosure and robust connector deliver long‑term reliability. Its precision beam pattern ensures consistent reads with minimal interference.
Best Price Guarantee
NEOTECH matches or beats UAE pricing on Impinj antennas. Contact us for volume discounts and multi‑antenna deployment packages.
Shop Today & Receive Your Delivery Across the UAE
Order by 3 PM for same‑day dispatch. Fast, tracked shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates.
Request for Customer Reviews and Testimonials
Deploying the Matchbox Antenna? Share your experience to help peers design precise, reliable RFID installations.
After Sales Support
NEOTECH provides UAE‑based support for:
-
Antenna placement consultancy
-
Reader‑to‑antenna tuning advice
-
Firmware updates and troubleshooting
Get in Touch
Need help optimizing your RFID read zones? Our specialists will recommend the best antenna configurations and mounting strategies.
Stock Availability
In stock now.
Limited quantities—reserve your IPJ‑A0404‑000 units today for immediate deployment.
Disclaimer
Specifications and features may change without notice. Images are for reference only. Confirm product details with NEOTECH before ordering.
