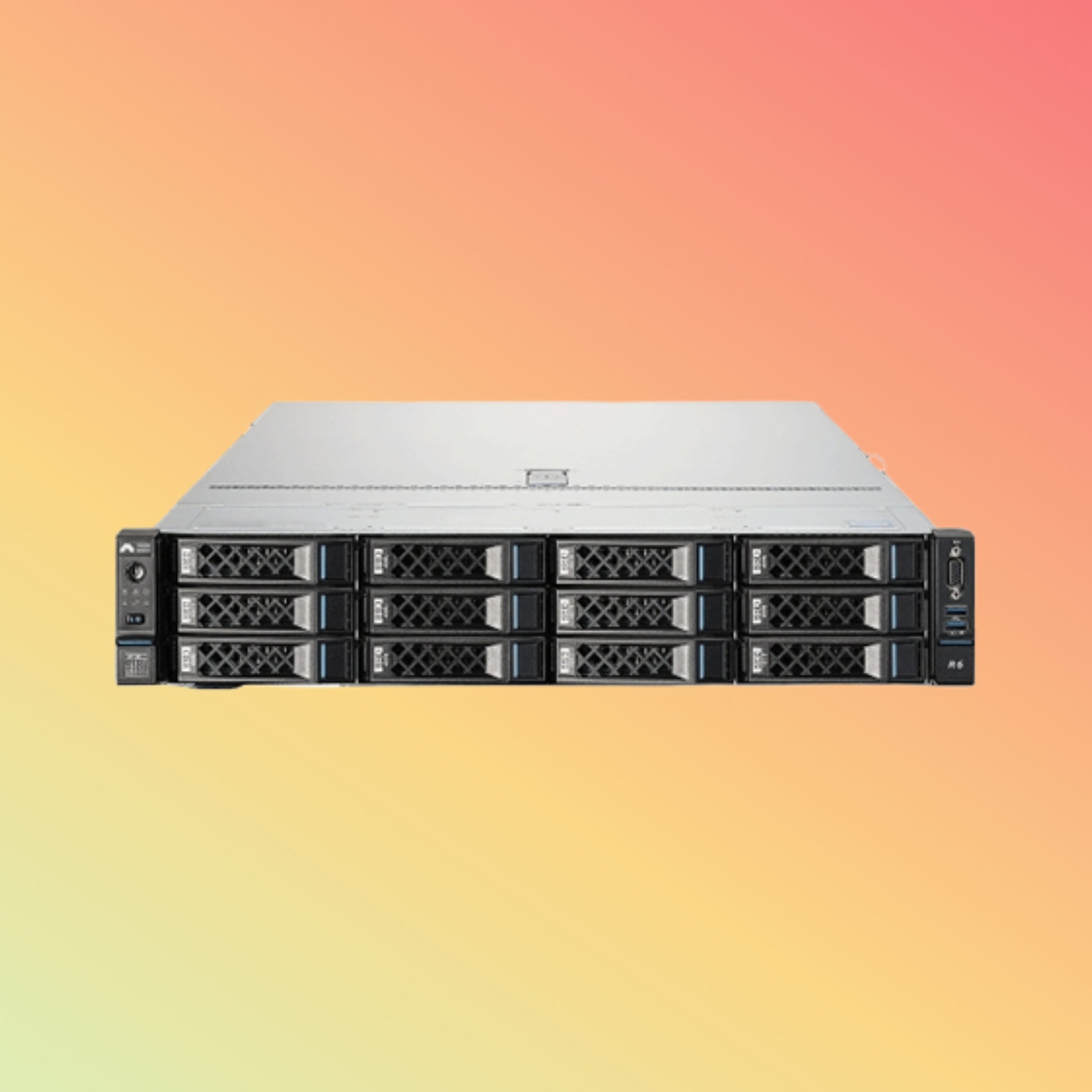

Meta Brain NF5280R6 2U Rack Server

Dual-socket 2U ARM server with Ampere Altra CPUs, 12× NVMe bays & redundant PSUs. High-performance, energy-efficient solution. Shop in UAE now.

Overview

The Meta Brain NF5280R6 packs massive parallel compute into a sleek 2U chassis. With dual Ampere® Altra® processors (up to 80 cores each), 12 hot-swap NVMe bays, and dual redundant 800 W PSUs, it excels in cloud containers, edge workloads, big data analytics, and Android cloud gaming. Designed for low power draw and easy management, it’s an ideal choice for modern data centers seeking density and efficiency.

Product Description

Built on ARM® architecture, the NF5280R6 supports two high-core-count CPUs (up to 80 cores, 3.3 GHz, 250 W TDP each). Its versatile storage subsystem features 12 hot-swappable 2.5″ NVMe/SATA drive bays. Front-accessible fans and redundant PSUs ensure uptime under heavy loads. For monitoring and management, IPMI 2.0 and Redfish APIs provide remote control, firmware updates, and real-time telemetry. This server meets the needs of organizations focusing on scalable, power-efficient compute.

Key Features

• Dual Ampere® Altra® or Altra Max® CPUs (up to 80 cores each)

• 16 DDR4 ECC DIMM slots (up to 2 TB)

• 12× 2.5″ hot-swap NVMe/SATA bays

• Redundant 2× 800 W Platinum PSUs

• Four front hot-swap fans with dynamic speed control

• Dual 10 GbE onboard LAN + optional OCP 3.0 slot

• Remote management via IPMI 2.0 & Redfish API

• 2U rack-mount form factor

Specifications

• Processors: 2× Ampere® Altra®/Altra Max® (up to 80 cores, 3.3 GHz)

• Memory: 16× DDR4 ECC slots (max 2 TB)

• Storage Bays: 12× 2.5″ NVMe/SATA hot-swap

• Expansion: 1× OCP 3.0, 2× PCIe Gen4 ×16

• Network: 2× 10 GbE RJ45, optional mezzanine

• PSUs: 2× 800 W Platinum, hot-swap

• Form Factor: 2U (483 × 88.9 × 680 mm)

• Management: IPMI 2.0, Redfish API

Supported OS / Applications / Industries

• Operating Systems: Ubuntu, RHEL, SUSE, VMware ESXi

• Applications: Kubernetes, Docker, Hadoop, AI inference

• Industries: Cloud services, Telco edge, Research labs, HPC

Benefits & Compatibility

• Scales to 160 ARM cores for parallel workloads

• Low power consumption reduces operating costs

• Certified for ARM SystemReady software ecosystem

• Modular design simplifies maintenance and upgrades

• Integrates seamlessly with container and virtualization platforms

Purpose of Use

Ideal for cloud-native services, edge computing, large-scale container clusters, and data analytics. It delivers exceptional core density and ARM compatibility for energy-aware deployments.

How to Use

1. Mount the server on 19″ rails in a 2U rack.

2. Install CPUs, memory, and drives per your workload.

3. Provision your ARM OS via IPMI virtual media.

4. Set up networking and storage in the BMC interface.

5. Monitor health and metrics remotely through Redfish.

For setup assistance, contact our support team.

Packaging / Weight / Dimension

• Dimensions: 483 × 88.9 × 680 mm (W×H×D)

• Weight: ~25 kg (with rails)

• Packaging: Anti-static foam and corrugated box

• Includes: Power cables, rail kit, quick-start guide

Warranty and FAQs

• Warranty: 1-year NEOTECH limited warranty

• FAQs:

  • Q: Can it run Kubernetes?
    A: Yes, fully certified.

  • Q: Supports Altra Max CPUs?
    A: Yes, up to 128-core options.

  • Q: Lead time?
    A: Stock varies; custom builds 10–15 days.

  • Q: Remote KVM support?
    A: Available via IPMI virtual console.

Performance, Quality, Durability & Reliability

ARM SystemReady certification ensures firmware stability and broad OS support. Rated for 24/7 operation, it maintains optimal thermals and offers high MTBF for mission-critical environments.
