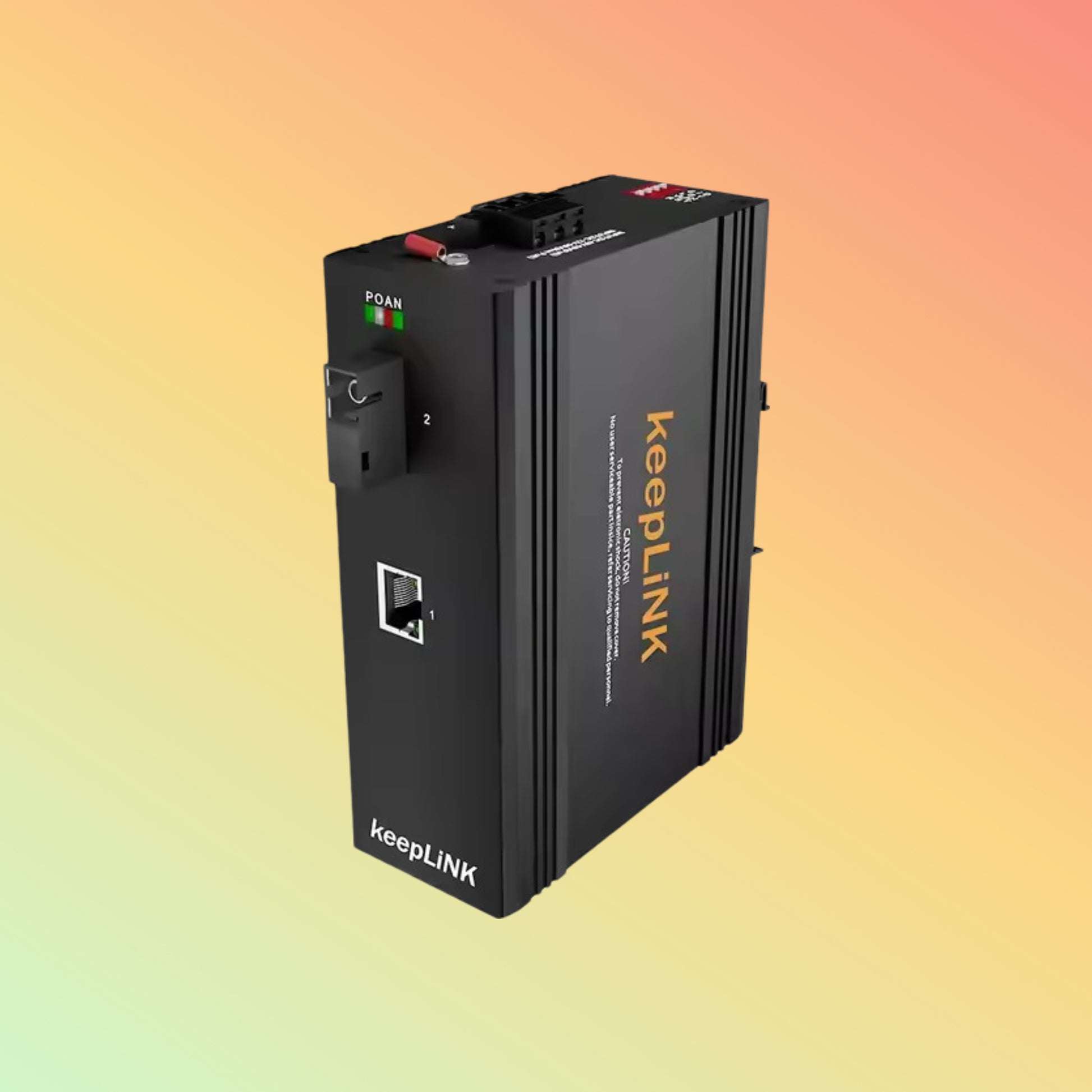

10/100/1000m Single Mode Dual fiber 1310nm Industrial Gigabit PoE Media Converter

Industrial-grade 10/100/1000M PoE media converter with 1310nm single-mode dual fiber. Rugged and reliable for secure long-distance fiber networks.

✅ Overview

The 10/100/1000M Industrial Gigabit PoE Media Converter with 1310nm single-mode dual fiber support enables long-range, high-speed Ethernet connectivity while powering remote IP devices over PoE. It’s built to perform in demanding industrial environments, offering seamless fiber-to-copper bridging and power delivery in one rugged unit.

✅ Product Description

This high-performance industrial Gigabit PoE media converter transforms 10/100/1000Mbps Ethernet over dual-core single-mode fiber at 1310nm wavelength. It delivers up to 30W of PoE power per port, ideal for powering IP cameras, VoIP phones, or wireless access points in remote or high-interference zones.

Designed with a fanless IP40-rated aluminum enclosure and wide temperature support, it’s made for harsh environments like outdoor surveillance, smart traffic systems, or factory networks. Integrated surge protection and plug-and-play deployment ensure stable operation with minimal maintenance.

✅ Key Features

• 🌐 Supports 10/100/1000Mbps auto-negotiation

• 🔌 IEEE 802.3af/at PoE output (up to 30W)

• 📡 Dual fiber SC/FC/ST port (1310nm, single-mode)

• 🔁 Full/half duplex & auto MDI/MDIX support

• ❄️ Operating temperature: -40°C to +75°C

• 🧱 IP40-rated metal casing with fanless cooling

• 💡 LED indicators for power, link, PoE status

• 🛠️ DIN rail & wall mount support

✅ Specifications

• RJ45 Port: 1 x 10/100/1000Mbps

• Fiber Port: 1 x SC/FC/ST dual-fiber, single-mode 1310nm

• Max Distance: Up to 20km (SM, dual-core)

• PoE Output: Up to 30W | IEEE 802.3af/at

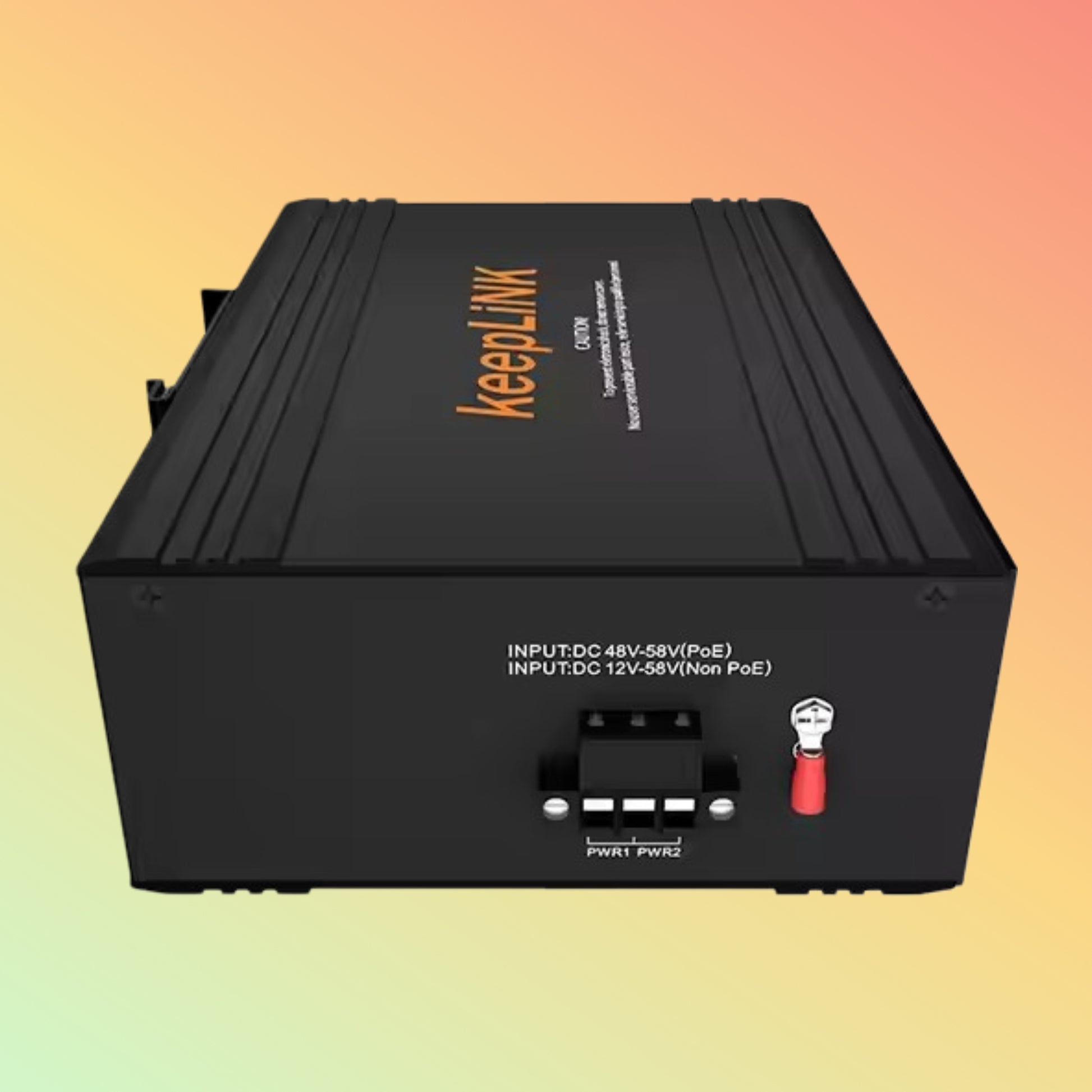

• Power Input: 48~57V DC (terminal block)

• Switching Capacity: 2Gbps

• Protection: 6KV surge, 8KV ESD

• Operating Temp: -40°C to +75°C

• Dimensions: ~110 x 85 x 35 mm

• Weight: ~450g

• Certifications: CE, FCC, RoHS

✅ Supported OS / Applications / Industries

• No OS Required – plug-and-play

• Applications: PoE camera links, fiber ring expansion, traffic systems, base stations

• Industries: Oil & gas, city surveillance, logistics, smart highways, telecom

✅ Benefits & Compatibility

• ⚡ Combines data and power over one unit

• 📶 Ideal for fiber-linked PoE networks

• 🧩 Compatible with PoE cameras, APs, IP phones

• 🧱 Withstands heat, cold, dust, and voltage surges

• 💡 Works with both core network and edge devices

✅ Purpose of Use

This converter is perfect for powering and connecting Ethernet devices in remote or outdoor zones via long-distance single-mode fiber. It reduces cabling, simplifies setup, and maintains reliable communication where copper fails.

✅ How to Use

1. Mount converter on DIN rail or flat surface

2. Connect single-mode dual fiber (SC/FC/ST)

3. Plug Ethernet device into RJ45 PoE port

4. Apply DC power (48–57V) via terminal block

5. Device auto-negotiates and operates—no setup required

✅ Packaging / Weight / Dimension

• Included: Media converter, power terminal block, mounting screws, quick guide

• Net Weight: ~450g

• Box Dimensions: Approx. 14 x 11 x 6 cm

• Build: Rugged aluminum, fanless design

✅ Warranty and FAQs

• Warranty: 1-year NEOTECH warranty

• Returns: Eligible for RMA upon defect verification

• Support: Technical help available via email/phone

• FAQs: Visit NEOTECH Support Portal for fiber setup and compatibility advice

✅ Performance, Quality, Durability, and Reliability

This media converter delivers high-efficiency PoE and fast Ethernet over dual fiber, engineered for long-haul, zero-downtime deployments. Tested against industrial benchmarks for power stability, surge resistance, and 24/7 uptime.

✅ Best Price Guarantee

We offer the most competitive pricing in the UAE. Found a lower rate? NEOTECH will match or beat it—no questions asked.

✅ Shop Today & Receive Your Delivery Across the UAE!

We ship across all Emirates—Dubai, Abu Dhabi, Sharjah, and beyond. Enjoy fast delivery and dedicated support on every order.

✅ Request for Customer Reviews and Testimonials

Have you used this converter in your setup? Leave a quick review—your feedback helps others build better networks.

✅ After Sales Support

We provide pre- and post-sale support for installation, compatibility, fiber types, and more. Talk to a NEOTECH expert anytime.

✅ Get in Touch

Need help choosing SFPs or matching fiber modules? Our tech team is ready to guide you through every step—just reach out.

✅ Stock Availability

Stock moves fast—please contact us to confirm availability, especially for large or urgent installations.

✅ Disclaimer

Specs and features may change without notice. Images are for reference only. Always confirm details with our team before placing your order.
