Buy HM30-DC Wiegand QR Code Reader. Supports EM & Mifare cards. Ideal for e-commerce, access control, POS, kiosks. Fast USB & Wiegand output. UAE delivery.
✅ Overview
The HM30-DC QR Code Scanner Module is a versatile reader built for e-commerce terminals, access control, and automated kiosks. It combines QR code scanning with EM and Mifare card reading through Wiegand output, making it ideal for applications requiring both digital and physical credential validation.
✅ Product Description
The HM30-DC QR & RFID Card Reader Module offers seamless integration of QR code scanning with support for 13.56MHz Mifare and 125KHz EM cards. With dual-output options including Wiegand 26/34 and USB, it supports deployment in modern access control, e-commerce self-checkouts, and turnstiles.
This fixed-mount reader supports reading from mobile phones, printed QR codes, and physical cards, making it an all-in-one module for hybrid authentication systems. Its compact embedded design and stable decoding make it ideal for indoor kiosks, payment machines, elevators, and vending terminals.
✅ Key Features
-
Dual-frequency support: 125KHz EM & 13.56MHz Mifare
-
Fast QR code decoding from phone screens or paper
-
Wiegand 26/34 & USB output interfaces
-
Built-in buzzer and LED indicators
-
Embedded design for kiosk, POS, access control
-
Reads from mobile apps, tickets, or RFID cards
-
Easy integration with controllers and software platforms
-
Anti-interference and error-tolerant performance
✅ Specifications
-
Model: HM30-DC
-
Card Support:
-
Code Support: QR Code, PDF417, Data Matrix, etc.
-
Scan Speed: <300ms
-
Scan Distance: 0–5cm (QR), 2–6cm (RFID)
-
Interfaces:
-
Voltage Input: DC 5–16V
-
Operating Temp: -20°C to +60°C
-
Dimensions: 86mm × 86mm × 22mm
-
Mounting: Embedded / Surface
-
Certifications: CE, RoHS, FCC
✅ Supported OS / Applications / Industries
Compatibility:
-
Windows, Linux, Android (via USB)
-
Compatible with all standard Wiegand controllers
-
Easily programmable for card format filtering
Applications:
-
E-commerce kiosks & smart lockers
-
Secure access control systems
-
Turnstiles, elevators, intercoms
-
Retail POS & self-checkout
-
Ticket validation and entry systems
-
Hotel door access
Industries:
✅ Benefits & Compatibility
-
Combines QR code + RFID in one compact reader
-
Works with both mobile and physical credentials
-
USB for data terminals / Wiegand for access systems
-
Compatible with existing RFID infrastructure
-
Perfect for digital access, ticketing, or e-wallet systems
-
Seamless integration into kiosks or wall panels
✅ Purpose of Use
This module is used to authenticate users via QR code or card swipe in kiosks, smart access gates, and digital check-in terminals. It’s perfect for bridging the gap between mobile-first systems and traditional RFID card-based environments.
✅ How to Use
-
Install the HM30-DC module in your kiosk or wall panel
-
Connect via USB or Wiegand interface to your host system
-
Power with 5–16V DC
-
Present EM/Mifare card or QR code to the scanner
-
Module reads and transmits decoded data to the controller
✅ Packaging / Weight / Dimension
-

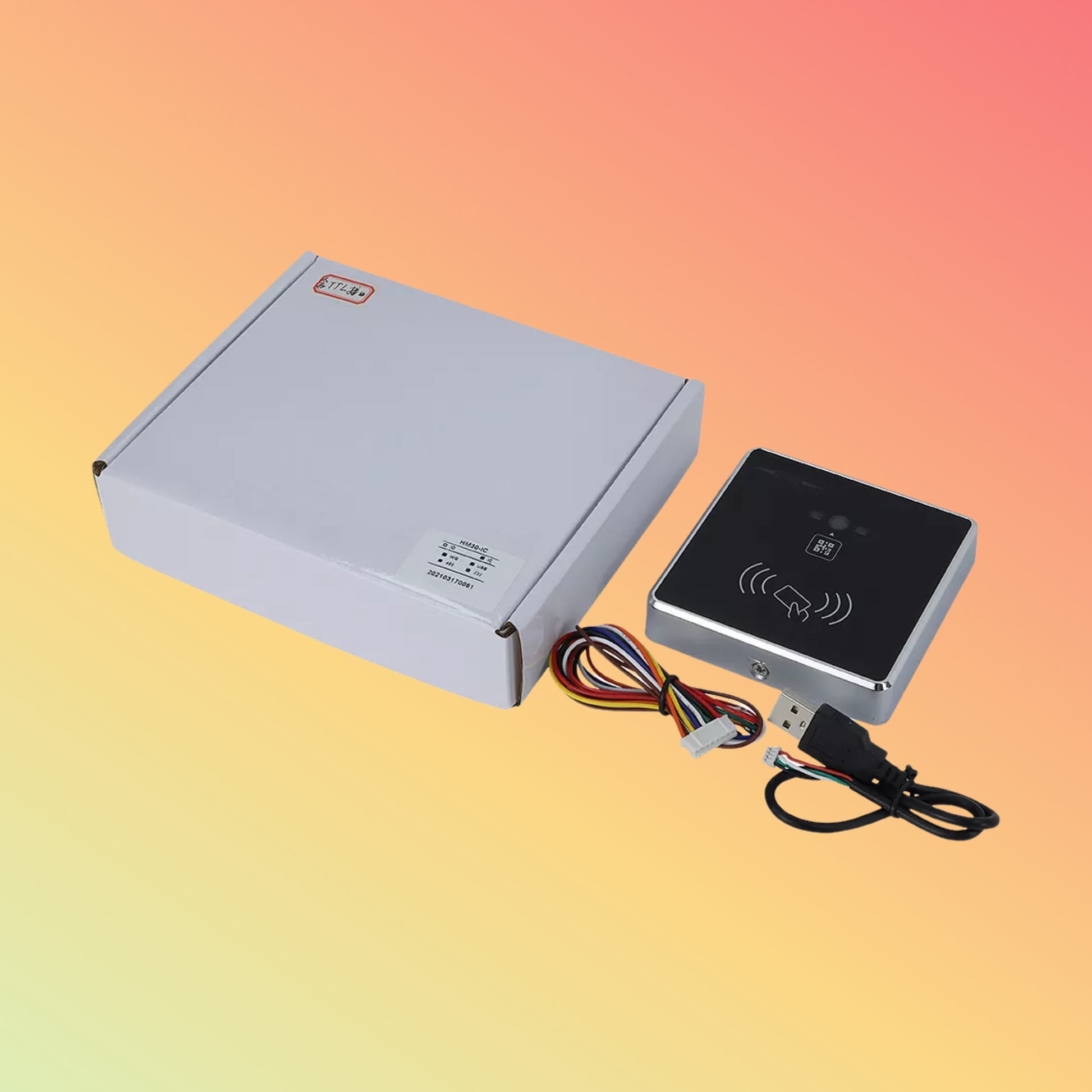

Included: HM30-DC Module, Wiring Harness, Quick Guide
-
Unit Dimensions: 86mm × 86mm × 22mm
-
Weight: ~100g
-
Packaging: Industrial box with shock-proof inner lining
-
Shipping Weight: ~160g
✅ Warranty and FAQs
Warranty: 1-Year Limited Warranty
FAQs:
-
Q: Can it read QR codes from smartphones?
A: Yes, it supports screen-based QR and paper tickets.
-
Q: Is it waterproof?
A: No, it's designed for indoor environments.
-
Q: Does it support NFC?
A: No, only EM & Mifare 13.56MHz cards.
✅ Performance, Quality, Durability, and Reliability
With fast decoding and dual RFID frequency support, the HM30-DC excels in hybrid authentication environments. Built for 24/7 commercial use, it offers low power usage, stable performance, and over 100,000 read cycles—ideal for unattended terminals and dynamic user flow.
✅ Best Price Guarantee
Get the lowest price in the UAE for HM30-DC. Found it for less? We’ll match it—guaranteed.
✅ Shop Today & Receive Your Delivery Across the UAE!
Place your order today for fast, insured shipping across Dubai, Abu Dhabi, Sharjah, and beyond. Every unit is shipped ready to install.
✅ Request for Customer Reviews and Testimonials
Used the HM30-DC in your project? Share your feedback to help others choose smarter access and scanning solutions.
✅ After Sales Support
From setup to firmware, our expert support team is ready to help with wiring, integration, or troubleshooting.
✅ Get in Touch
Need help integrating this into your system? Contact us for expert advice or large-order pricing.
✅ Stock Availability
We stock HM30-DC modules in standard quantities. Please confirm availability for bulk orders or urgent dispatch.
✅ Disclaimer
All specs and content are subject to change. Images are for illustration. Confirm final product configuration with our sales team before purchase.
