Reliable fiber-optic industrial switch with 1 SFP & 8 RJ45 ports. Gigabit speed, DIN rail mount, fanless & rugged. Order now from NEOTECH UAE.
✅ Overview

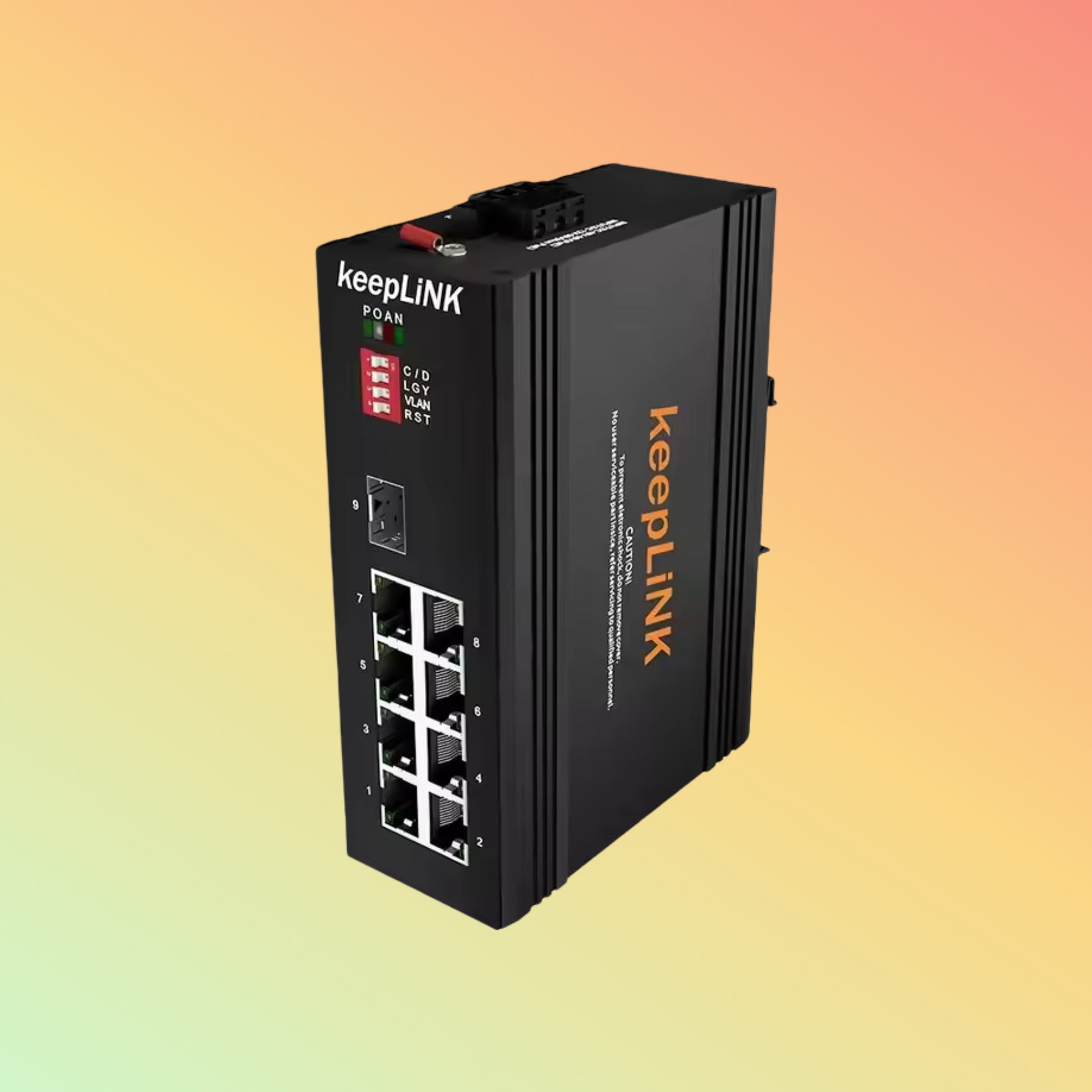

The 1 SFP + 8-Port Industrial Gigabit Ethernet Switch delivers stable fiber and copper connectivity in rugged environments. DIN rail-mounted and IP30-rated, it's ideal for high-demand industrial applications requiring gigabit fiber links and copper access ports.
✅ Product Description
This high-performance Industrial Gigabit Ethernet Switch features 8x 10/100/1000 Mbps RJ45 ports and 1x SFP fiber uplink, offering a hybrid solution for both short-distance and long-distance network extension. Designed for DIN rail mounting, it supports unmanaged plug-and-play deployment while delivering reliable data transmission across harsh environments.
With fanless operation, wide input voltage range, and extended temperature tolerance, it’s ideal for industrial automation, smart cities, and IP surveillance. The SFP port allows easy integration into fiber backbone networks, while the RJ45 ports provide fast local connectivity.
✅ Key Features
-
8x 10/100/1000 Mbps RJ45 Ports
-
1x 1G SFP Fiber Uplink Port (LC Slot)
-
Unmanaged, Plug-and-Play Functionality
-
Full Gigabit Switching with Auto MDI/MDIX
-
IP30-Rated Rugged Metal Housing
-
Wide DC Input: 12~48V DC
-
Operating Temp: -40°C to +75°C
-
Fanless Cooling, High MTBF
-
DIN Rail & Wall Mount Ready
✅ Specifications
-
Switching Capacity: 18 Gbps
-
Forwarding Rate: 13.39 Mpps
-
MAC Address Table: 8K
-
Power Input: Dual 12–48V DC
-
Surge/ESD Protection: 6kV
-
Housing: IP30, Aluminum Alloy
-
Mounting: DIN Rail / Wall Mount
-
Operating Temp: -40°C to +75°C
-
Certifications: CE, FCC, RoHS
✅ Supported OS/Application/Industries
-
OS Compatibility: OS-independent, no drivers needed
-
Applications: Fiber Access, Smart Traffic, Factory Networking
-
Industries: Automation, Surveillance, Energy, Telecom, Oil & Gas
✅ Benefits & Compatibility
-
Combines fiber uplink with 8-port copper access in one rugged unit
-
Ideal for connecting field devices to long-distance fiber backbones
-
Fits securely into control cabinets via DIN rail
-
No setup required—connect and operate
-
Works with a wide range of fiber SFP modules
✅ Purpose of Use
Perfect for use cases requiring stable, low-latency data flow across both fiber and copper channels—ideal for edge fiber transitions, remote IP networks, and automation panels.
✅ How to Use
-
Mount the unit via DIN rail or wall bracket
-
Connect field devices to RJ45 ports
-
Insert 1G SFP transceiver and connect fiber uplink
-
Power via 12–48V DC input
-
Enjoy instant, maintenance-free operation
✅ Packaging / Weight / Dimension
-
Weight: Approx. 0.95 kg
-
Dimensions: 130mm x 110mm x 40mm
-
Included: Switch Unit, Power Terminal Block, Mounting Kit, Manual
✅ Warranty and FAQs
-
Warranty: 3-Year Manufacturer Hardware Warranty
FAQs:
-
Can it operate without configuration? → Yes, unmanaged plug-and-play
-
Is the SFP port compatible with 1.25G transceivers? → Yes
-
Can I use multi-mode and single-mode fiber? → Yes, based on SFP module
🔗 Visit Our Support Page
✅ Performance, Quality, Durability, and Reliability
Industrial-grade materials, wide voltage tolerance, and advanced thermal design ensure long-term uptime even in high-vibration or extreme temperature zones.
✅ Best Price Guarantee
NEOTECH delivers unbeatable pricing in the UAE on all industrial switches. Found a better quote from a certified vendor? We’ll match it.
✅ Shop Today & Receive Your Delivery Across the UAE!
Same-day dispatch for in-stock models to Dubai, Abu Dhabi, Sharjah, and all Emirates. Fast, secure shipping guaranteed.
✅ Request for Customer Reviews and Testimonials
If you’ve deployed this unit in a project, your review helps fellow engineers choose with confidence. Share your insights now.
✅ After Sales Support
From fiber integration advice to troubleshooting support—our team is ready to assist post-sale with everything you need.
✅ Get in Touch
Need SFP module guidance, large volume pricing, or compatibility checks?
📞 Contact NEOTECH
✅ Stock Availability
Availability varies by demand. Confirm stock before purchase. Standard backorder time: 10–15 working days.
✅ Disclaimer
Specs may change without notice. Product visuals for reference only. Always confirm final configuration with NEOTECH before placing your order.
