Rugged 12″ IP65 waterproof embedded touch panel PC. Perfect for factory use. Fast UAE shipping—order from NEOTECH today!
Overview
Engineered for lean-floor and washdown zones, this 12″ IP65 touch panel PC delivers reliable, sealed performance. The fanless thermal design runs silently while guarding against dust and water ingress. Its embedded architecture boots instantly and integrates with factory control networks—minimizing downtime and boosting throughput.
Product Description

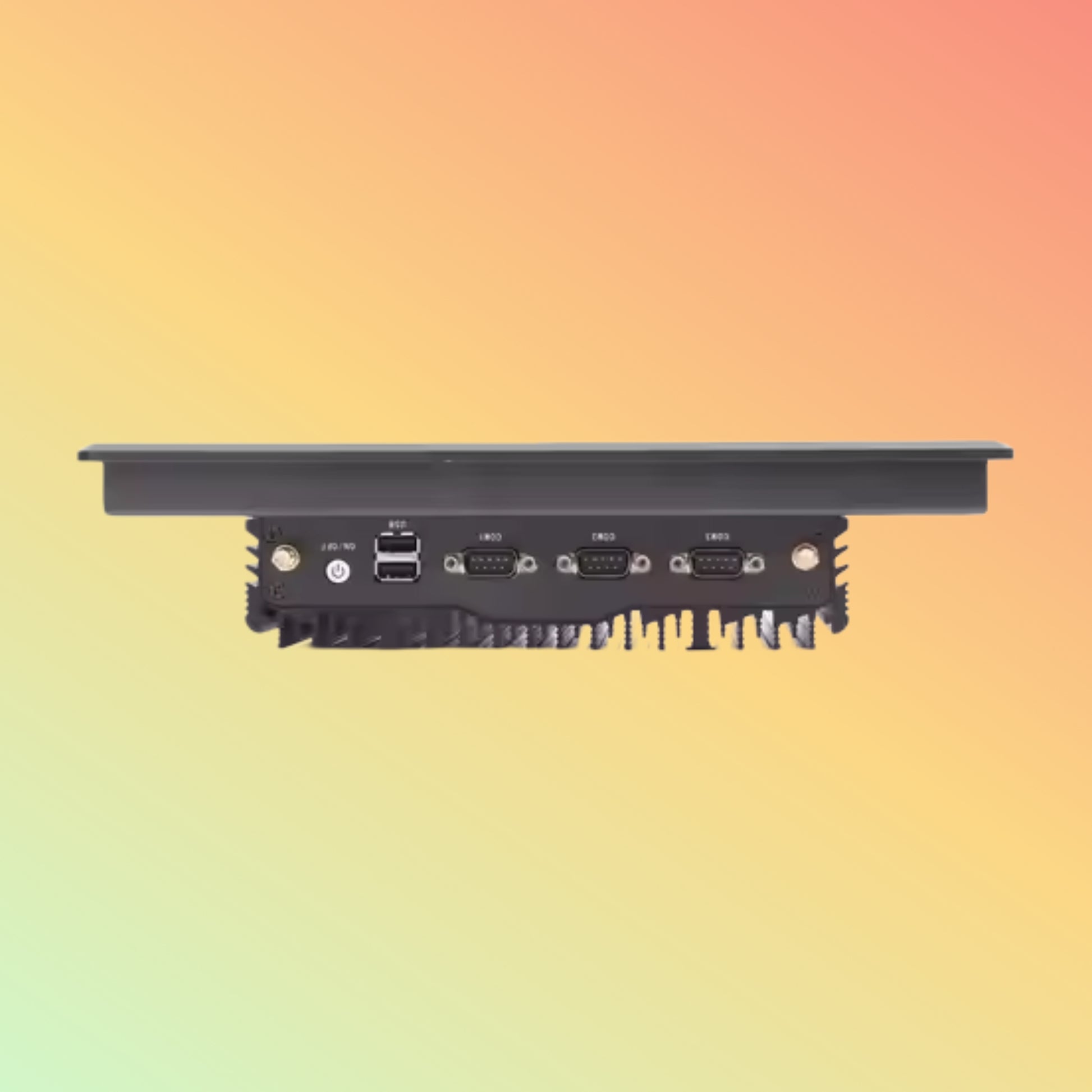

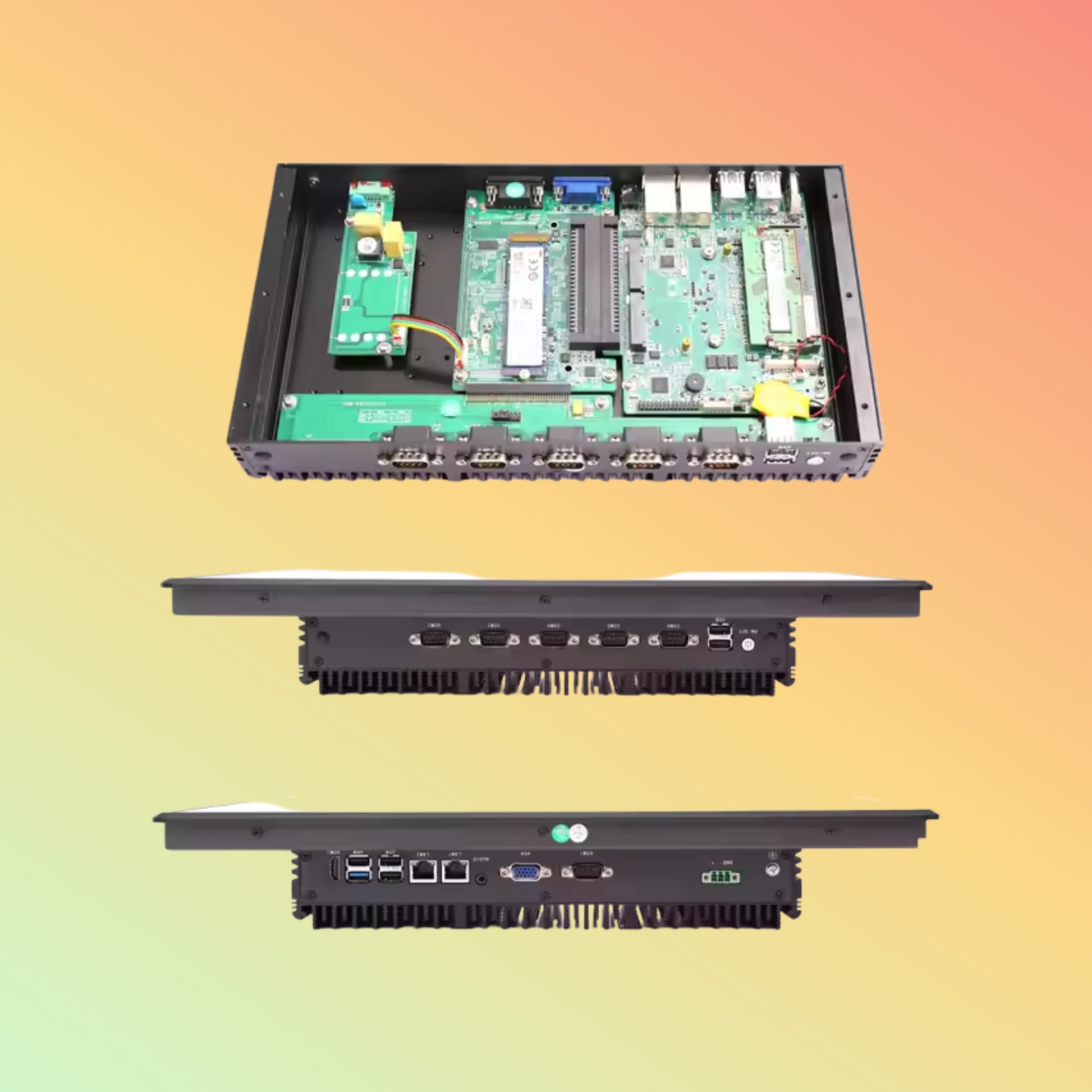

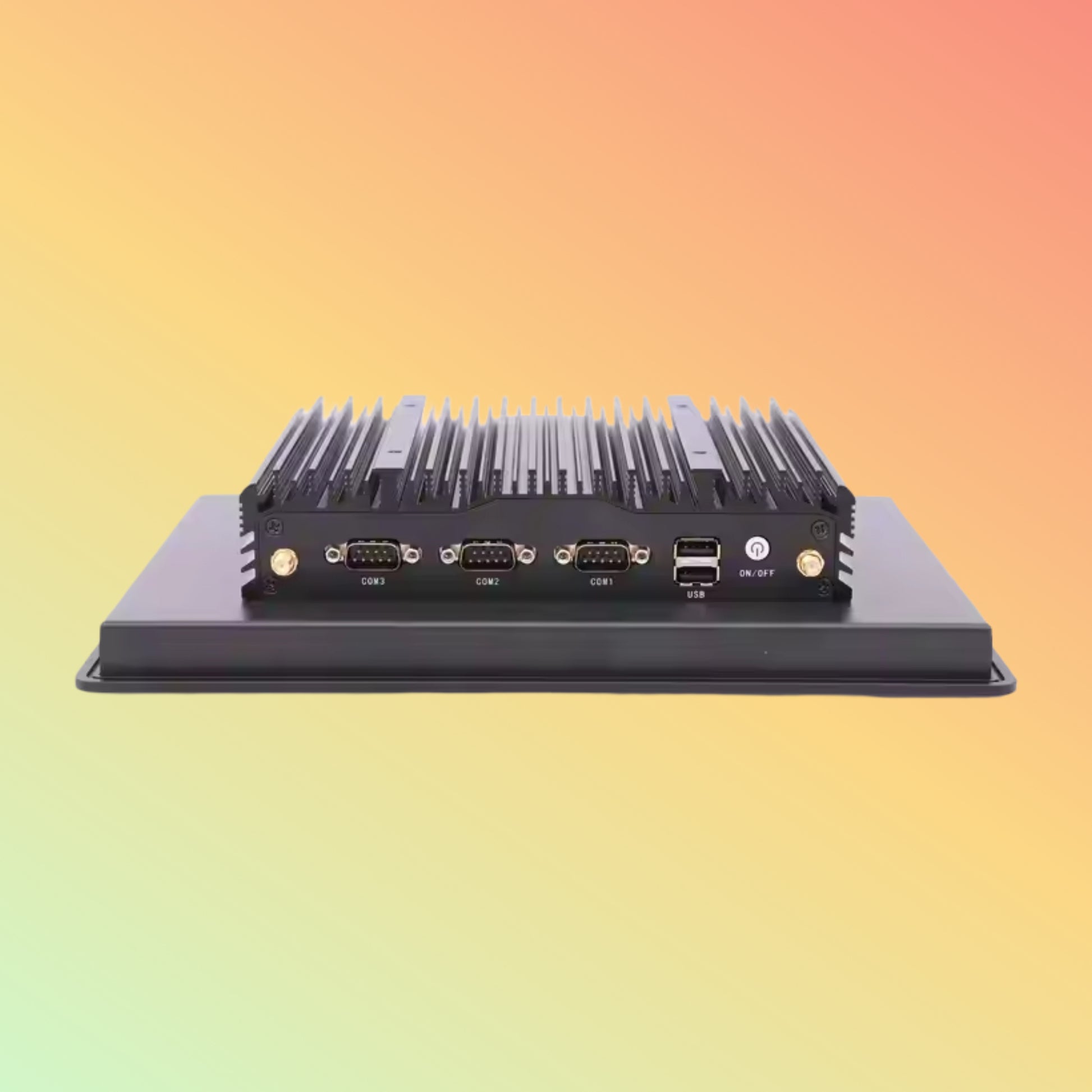

Crafted in an aluminum housing with IP65 front sealing, this embedded panel PC withstands spray, splatter, and fine particulates. A 4-wire resistive touchscreen works with gloves or stylus. Behind the panel, pick a low-power Intel Celeron J1900 or optional Core™ i3 for higher throughput. Multiple I/O (USB, COM, Gigabit LAN) and M.2 expansion slots allow you to add storage or 4G/LTE. Preloaded with Windows 10 IoT or Ubuntu Linux, it launches HMI and SCADA apps in seconds. VESA and panel-cutout mounts let you install it flush in any cabinet or wall plate.
Key Features
-
12″ resistive touchscreen (4-wire)
-
IP65 front for water/dust protection
-
Fanless aluminum body for silent, maintenance-free ops
-
Intel Celeron J1900 or Core™ i3 CPU options
-
2× USB 2.0, 2× COM, 1× Gigabit LAN
-
M.2 slot for SSD or 4G/LTE modem
-
Windows 10 IoT and Ubuntu Linux ready
-
VESA 75×75 mm & panel-mount kits included
Specifications
-
Display: 12″ TFT, 1024×768 resolution
-
Touch: 4-wire resistive (glove-compatible)
-
CPU: Intel Celeron J1900 (2.0 GHz) or Core™ i3-7100U
-
RAM: 2 GB–8 GB DDR3L
-
Storage: 32 GB–128 GB M.2 SSD
-
I/O: 2× USB, 2× RS-232/485, 1× LAN, audio out
-
Expansion: M.2 2242 slot
-
OS: Windows 10 IoT, Ubuntu Linux
-
Power: 9–36 V DC input
-
Mounting: Panel cutout or VESA 75×75 mm
-
Protection: IP65 front; IP54 rear
-
Temp. Range: –20 °C to +60 °C
Supported OS / Applications / Industries
Operating Systems: Windows 10 IoT, Ubuntu Linux
Applications: HMI panels, SCADA interfaces, data logging, factory dashboards
Industries: Manufacturing, food & beverage, pharmaceuticals, automotive, warehousing
Benefits & Compatibility
-
Sealed front protects electronics in washdown areas
-
Fanless design eliminates dust-ingress points
-
Works with industrial gloves or stylus for precise input
-
Integrates with PLCs, barcode readers, sensors via COM/LAN
-
M.2 slot supports local storage or cellular connectivity
Purpose of Use
Ideal for assembly lines, CIP wash stations, and clean-room environments where dust and liquid contact are common.
How to Use
-
Cut panel opening per template.
-
Secure with mounting clamps or VESA bracket.
-
Wire 9–36 V DC and network cable.
-
Insert optional M.2 module (SSD/4G).
-
Power on—OS and HMI software launch automatically.
Packaging / Weight / Dimension
-
Packaging: Foam-lined, recyclable carton
-
Weight: ~2.8 kg
-
Dimensions: 305 × 240 × 50 mm (incl. bezel)
-
Cutout Size: 287 × 222 mm
Warranty and FAQs
Warranty: 12 months end-to-end coverage
FAQs:
-
Q: Is it safe for high-pressure washdowns?
A: Yes, front panel meets IP65 spray criteria.
-
Q: Can I fit a cellular modem?
A: Yes, via the M.2 2242 slot.
-
Q: What glove types work?
A: All standard work gloves work with resistive touch.
More support at NEOTECH Support
Performance, Quality, Durability, and Reliability
-
Industrial-grade components rated for 24/7 use
-
Passed thermal-shock and vibration tests
-
Fanless cooling removes moving-part failures
-
Operates in –20 °C to +60 °C environments
Best Price Guarantee
Find a lower UAE price? We’ll match it—shop NEOTECH with total confidence.
Shop Today & Receive Your Delivery Across the UAE!
Fast 3-day shipping to Dubai, Abu Dhabi, Sharjah, and all emirates. Fully tested before dispatch.
Request for Customer Reviews and Testimonials
Tried it on your line? Share your story and help others choose the right panel PC.
After Sales Support
NEOTECH offers phone, email, and remote-access help plus RMA services. We’re here beyond the sale.
Get in Touch
Need custom I/O mapping or volume quotes? Reach out to our tech squad for rapid assistance.
Stock Availability
Confirm live stock before ordering—most units ship within 3 business days for urgent installs.
Disclaimer
Specifications, images, and pricing are for reference and may change without notice. Always verify details with NEOTECH sales before purchase.
