NEO Digital

21.5 Inch IP65 I7-7500U Industrial Touch Computer

21.5 Inch IP65 I7-7500U Industrial Touch Computer

Regular price Dhs. 0.00 AED
Regular price Sale price Dhs. 0.00 AED
Sale Sold out
Taxes included. Shipping calculated at checkout.

21.5″ IP65 panel PC with Intel® Core™ i7-7500U, 8–32 GB DDR4, M.2 SSD, dual LAN, HDMI, USB 3.0, and fanless cooling for harsh environments.


Overview

This 21.5″ all-in-one industrial touch computer combines desktop-class Core™ i7-7500U performance with IP65-rated sealing and a fully fanless design. It’s engineered for 24/7 operation in wash-down, dusty, or vibration-prone factory and outdoor settings.


Product Description

Housed in a corrosion-resistant aluminum chassis, the unit integrates a 10-point PCAP touchscreen, up to 32 GB DDR4 RAM, and a user-installable M.2 2280 SSD slot. Dual Gigabit Ethernet and HDMI output support redundant networks and external displays. Four USB 3.0 ports handle high-speed peripherals, while the fanless heatsink maintains silent, maintenance-free cooling. VESA 100×100 mm and panel-cut mounts simplify installation in control rooms, kiosks, or machine interfaces.


Key Features

  • Processor: Intel® Core™ i7-7500U (2 cores/4 threads, up to 3.5 GHz)

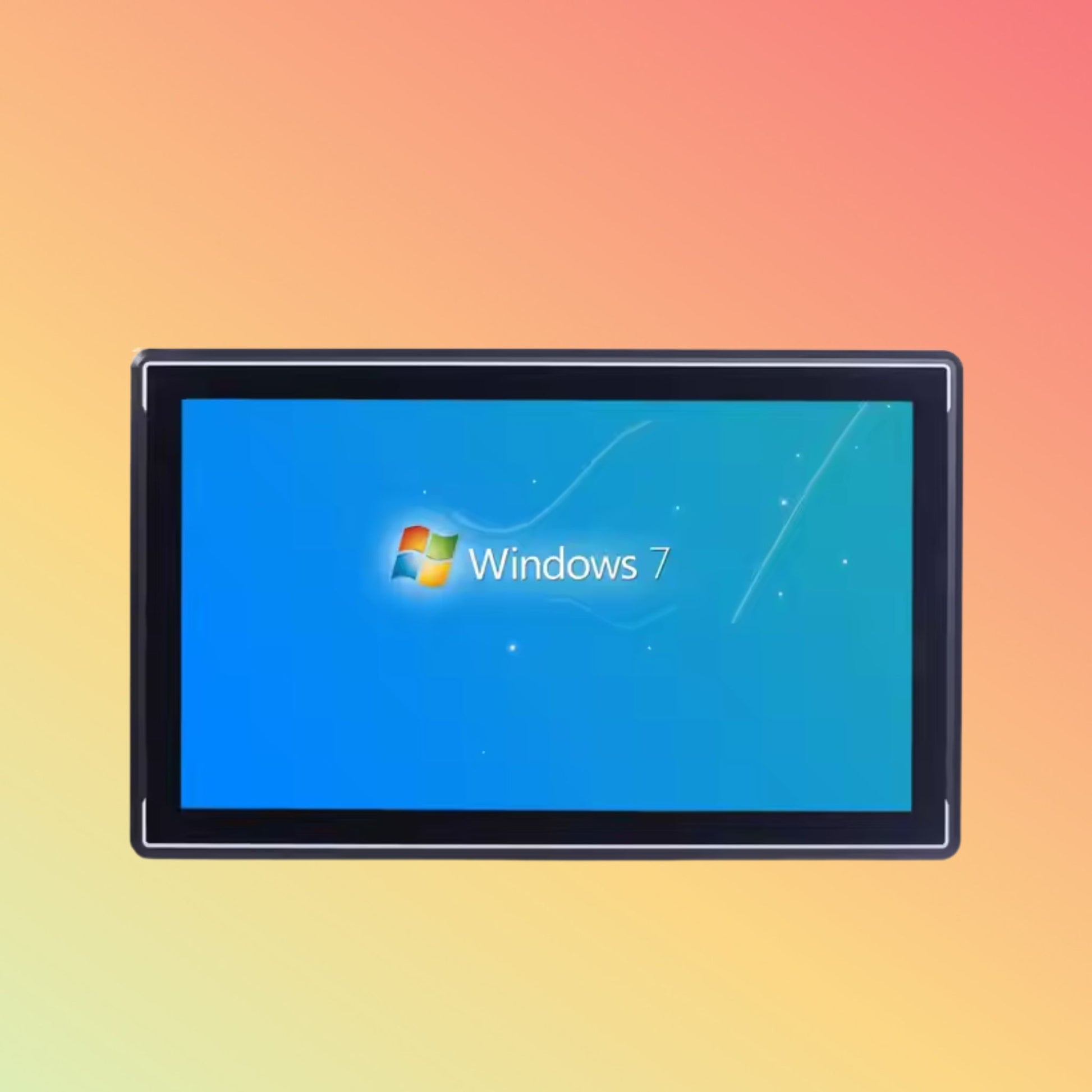

  • Display: 21.5″ Full HD (1920×1080) 10-point PCAP touch

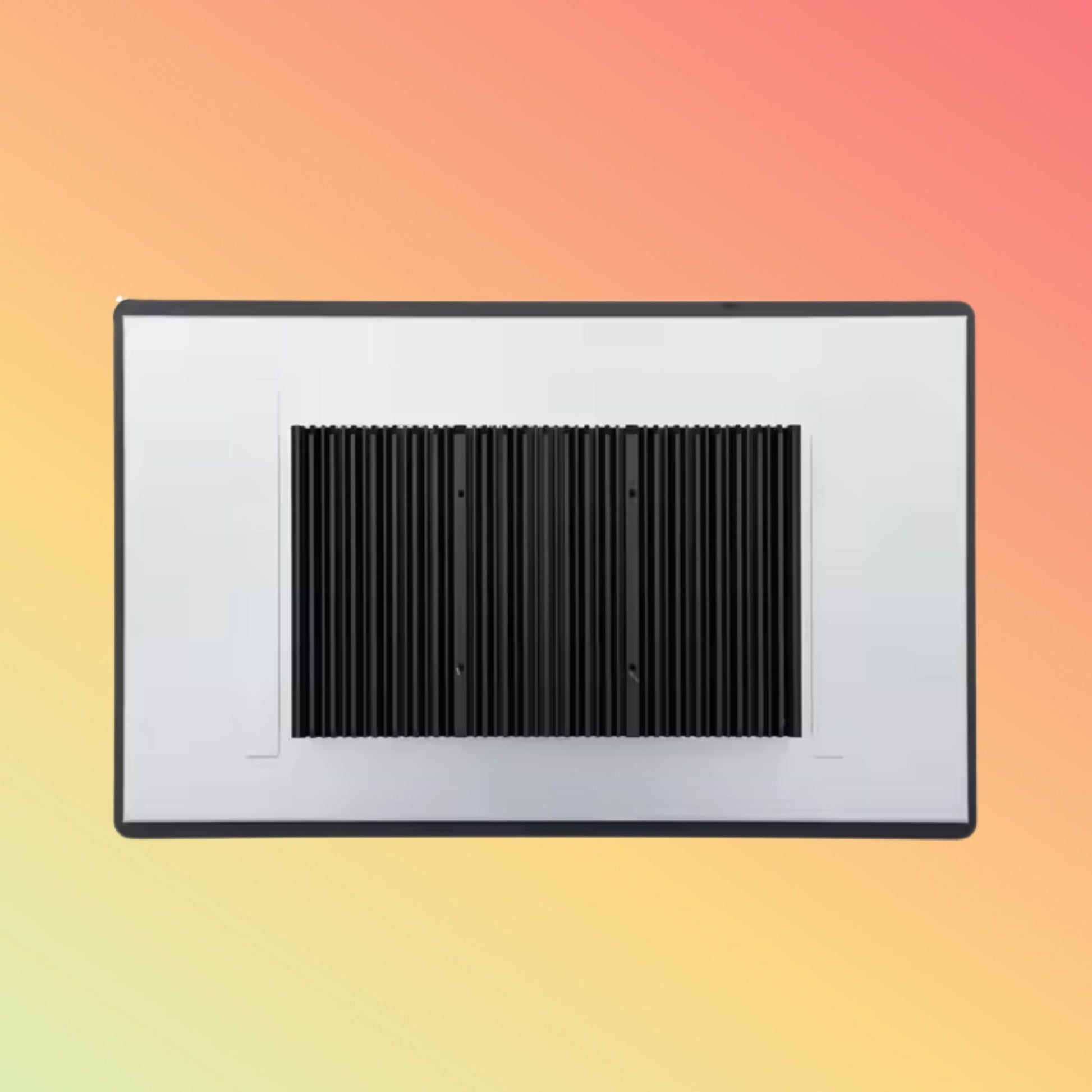

  • Cooling: Fully passive, fanless design for silent, dust-free operation

  • Protection: IP65-rated front bezel; IP40 rear panel

  • Memory: 2× DDR4 SO-DIMM slots (8 GB default; up to 32 GB)

  • Storage: 1× M.2 2280 NVMe SSD slot

  • Networking: 2× Gigabit Ethernet (RJ45)

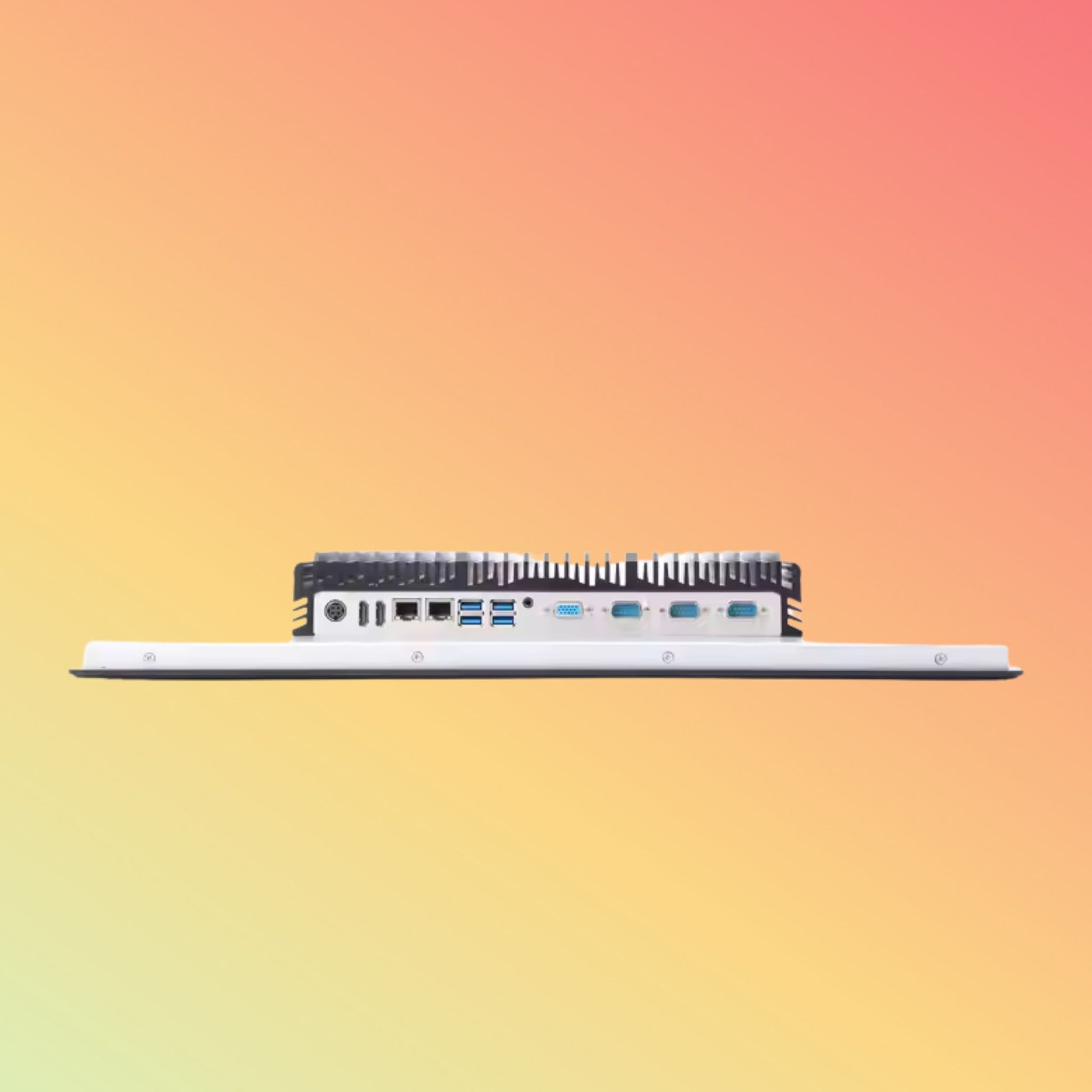

  • I/O Ports: 4× USB 3.0, HDMI 1.4, 2× RS-232/422/485 (optional), audio in/out

  • Power: 12–24 V DC via terminal block


Specifications

Attribute Details
CPU Intel® Core™ i7-7500U (2.7 GHz base, 3.5 GHz turbo)
RAM 2× DDR4 SO-DIMM, 8 GB default, up to 32 GB
Storage M.2 2280 NVMe SSD slot
Display 21.5″ IPS, 1920×1080, 400 nits, PCAP touch
LAN 2× RJ45 Gigabit Ethernet
USB 4× USB 3.0
Serial 2× RS-232/422/485 via DB9 (optional)
Video Out HDMI 1.4
Audio Mic-in, line-out
Power Input 12–24 V DC
Operating Temp. –10 °C to 60 °C
Protection IP65 front; IP40 rear
Mounting VESA 100×100 mm; panel-cut kit
Dimensions 535×325×50 mm
Weight ~7.5 kg

Supported OS / Applications / Industries

  • Operating Systems: Windows 10 IoT Enterprise, Ubuntu Linux

  • Applications: HMI/SCADA, digital signage, machine control, kiosk terminals

  • Industries: Manufacturing, food & beverage, water treatment, outdoor kiosks


Benefits & Compatibility

  • Zero-Downtime: Fanless cooling and IP65 sealing minimize failures

  • Flexible I/O: Multiple USB, serial, and LAN ports for diverse peripherals

  • Easy Installation: VESA and panel-mount options fit any control cabinet


Purpose of Use

Ideal for operator interfaces on production lines, outdoor self-service kiosks, and marine or wash-down environments where water and dust resistance is critical.


How to Use

  1. Mount using VESA bracket or panel-cut kit.

  2. Wire 12–24 V DC power, Ethernet, HDMI, and any serial devices.

  3. Install additional RAM or M.2 SSD as needed.

  4. Boot into your OS and launch your control or signage software.


Packaging / Weight / Dimension

  • Packaging: Foam-lined corrugated box

  • Net Weight: ~7.5 kg

  • Gross Weight: ~9.0 kg (with accessories)

  • Box Size: 600×400×200 mm


Warranty and FAQs

  • Warranty: 12-month limited hardware warranty

  • FAQs

    • Q: Can I upgrade RAM on-site?
      A: Yes, two SO-DIMM slots accessible via rear panel.

    • Q: Is glove use supported?
      A: Yes, PCAP touch works with industrial gloves.


Performance, Quality, Durability, and Reliability

Tested to IEC 60068 for shock and vibration. Passive-cooled aluminum housing ensures stable operation from –10 °C to 60 °C without moving parts to fail.


Best Price Guarantee

Spot a lower price on an identical unit? We’ll match it—guaranteed.


Shop Today & Receive Your Delivery Across the UAE!

Order now for express delivery to all emirates. In-stock units ship same-day for rapid deployment.


Request for Customer Reviews and Testimonials

Share how this panel PC improved your operations. Your feedback drives our next-gen designs.


After Sales Support

Our technical team offers remote diagnostics, firmware updates, and spare-part fulfillment. Expect a response within one business day.


Get in Touch

For custom configurations or volume quotes, email our sales specialists at sales@cesipc.com. We’re ready to assist.


Stock Availability

Units are in stock and ready for dispatch. Confirm availability with our sales team before ordering to avoid delays.


Disclaimer

All specifications and images are for reference only and may change without notice. Verify final details and compatibility with your CESIPC sales representative prior to purchase.
