Granding 902-FD-L-30 barrier

Secure vehicle flow with Granding 902-FD-L-30 barrier gate. 3 m reach, rapid lift/lower, IP54 rated. Order now at NEOTECH UAE!

Overview

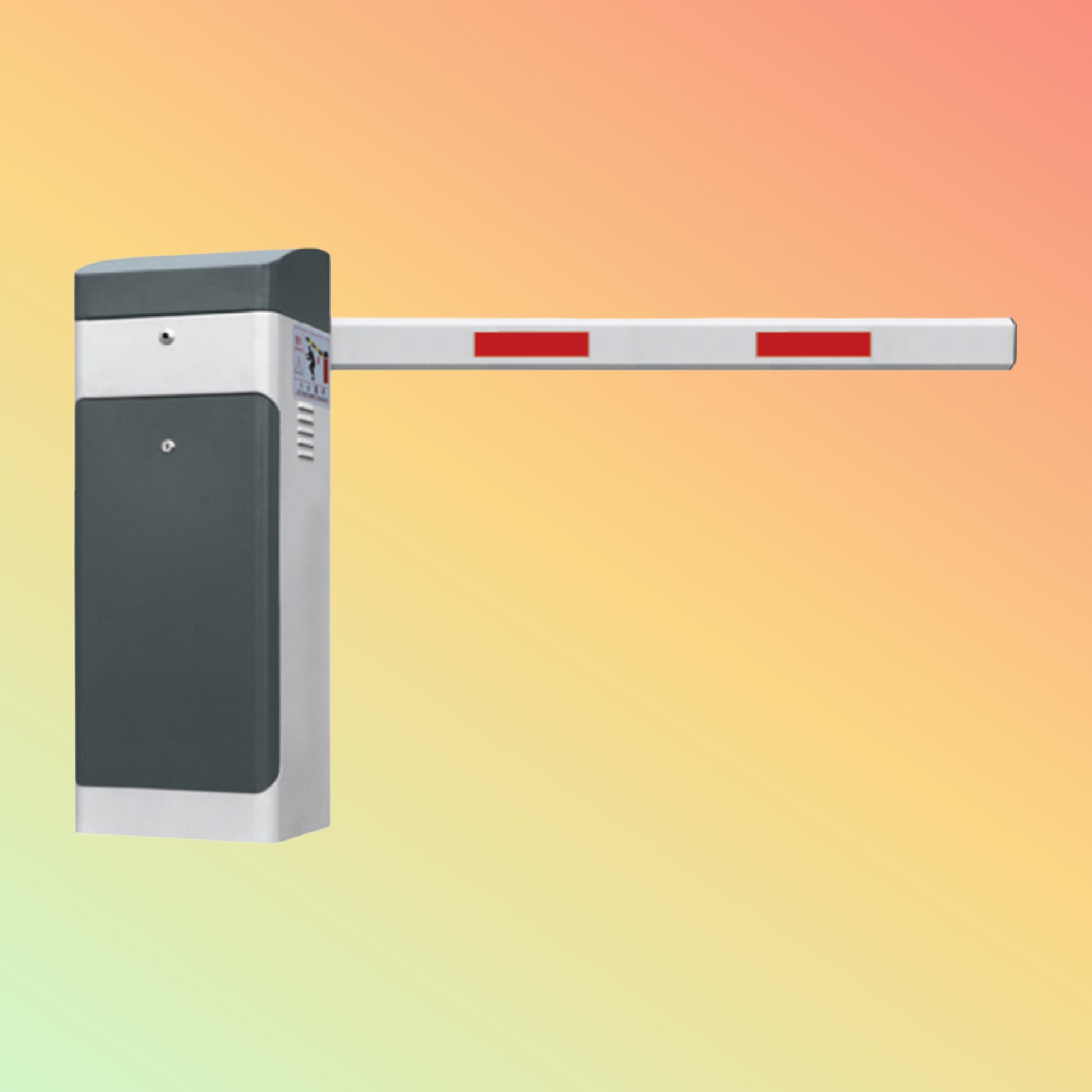

The Granding 902-FD-L-30 is a fail-secure, 3 m barrier gate engineered for busy entry points. Its reinforced boom, swift 1.8–3 s cycle, and IP54-rated cabinet deliver dependable performance in any climate—ideal for tolls, parking, and industrial sites.

Product Description

Built for continuous duty, the 902-FD-L-30 features a heavy-gauge aluminum-steel boom and a weather-proof steel housing. Its high-torque DC brushless motor with soft-start/stop control minimizes wear and delivers smooth operation. Integrated loop detectors and photoelectric sensors ensure safety and precision. In power loss, the fail-secure design keeps the gate locked.

Key Features

• 3 m reinforced aluminium-steel composite boom

• Fast lift/lower: 1.8–3 s (configurable)

• Fail-secure lock on power loss

• IP54 weatherproof steel cabinet

• Wind-resistant design (up to 12 m/s)

• Built-in loop detector & photoelectric sensors

• RS485 + dry-contact I/O integration

• Emergency manual release lever

• LED status display & audible alert

Specifications

• Model: 902-FD-L-30

• Boom Length: 3 m

• Motor: 24 V DC brushless, 80 W

• Cycle Time: 1.8–3 s

• Duty Cycle: 100% continuous

• Protection: IP54 cabinet, IP65 sensors

• Operating Temp: –35 °C to +75 °C

• Cabinet Size: 1,020 × 310 × 310 mm

• Weight: 48 kg

• Control Interface: RS485; dry-contact I/O

• Power: AC 220 V ± 10%, 50/60 Hz

Supported Applications / Industries

• Toll plazas & highway checkpoints

• Commercial & residential parking lots

• Gated communities & campus security

• Logistics hubs & warehouse entrances

• Industrial and manufacturing sites

• Government, military, and airport perimeters

Benefits & Compatibility

• Rapid throughput reduces vehicle backlog

• Fail-secure design ensures locked position on power loss

• All-weather operation in extreme heat, cold, or moisture

• Integrates seamlessly with NEOTECH ANPR cameras, RFID readers, and ticket dispensers

• Remote diagnostics via networked monitoring

Purpose of Use

Deploy the 902-FD-L-30 to:

• Automate secure vehicle entry/exit

• Enforce paid-parking and controlled access

• Enhance perimeter security at critical sites

• Streamline traffic flow in high-volume zones

How to Use

1. Mount the cabinet on a leveled concrete pad

2. Connect AC power, loop detectors, and I/O modules

3. Install and align the 3 m boom arm

4. Configure open/close timings and sensor logic via control panel

5. Integrate external devices (RFID, ANPR, keypad)

6. Test safety stops, manual release, and go live

Packaging / Weight / Dimensions

• Includes: Barrier unit, 3 m boom arm, loop detector kit, mounting hardware, user manual

• Packaged Size: 1,100 × 400 × 350 mm

• Gross Weight: ~55 kg

• Shipping Crate: Reinforced plywood with foam

After Sales Support

From design consultation to remote troubleshooting, our technical team is on call via email, phone, or live chat. We provide firmware updates and on-site service options to maximize uptime.

Get in Touch

Need a tailored entry solution? Contact our access-control specialists for project design, quotes, and expedited delivery.

Stock Availability

Inventory updates daily. For urgent or bulk orders (5+ units), please confirm availability before checkout. Lead time: 10–15 business days.

Disclaimer

All specifications are for general reference and may change without notice. Illustrations are representative. Verify final specs and pricing with our sales team before ordering.
