Durable fanless IP65 panel PC with built-in NFC/RFID reader and touchscreen. Rugged, silent, factory-ready. Fast UAE shipping from NEOTECH.
Overview
This fanless IP65 panel PC combines rugged build and seamless access control. The integrated NFC/RFID reader lets you tap cards or tags at the front bezel, while the sealed touchscreen resists dust and spray. With fanless cooling, it runs quietly and needs zero filter changes. Designed for factories, kiosks, and secure entry points, it delivers rock-solid performance where it counts.
Product Description

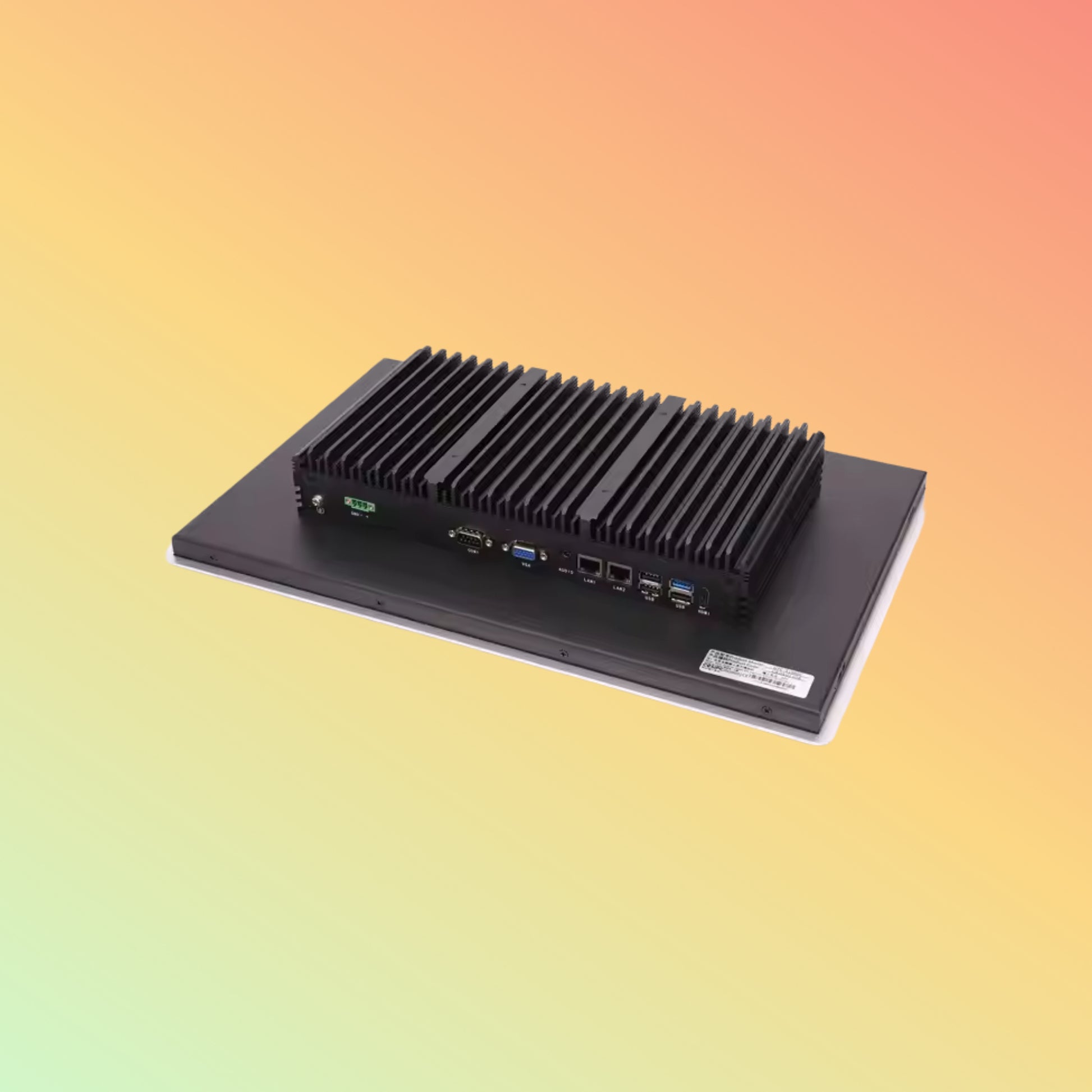

Encased in die-cast aluminum, this panel PC uses heat pipes for silent, maintenance-free cooling. The IP65-rated front seals out contaminants—ideal for washdown areas or dusty floors. An embedded NFC/RFID module reads 13.56 MHz ISO-14443A/B cards and tags, streamlining access control or asset tracking. Under the hood, choose a low-power Intel Celeron J1900 or Core™ i3 CPU for your workload. Dual LAN, USB and COM ports link cameras, sensors, or PLCs. Boot Windows 10 IoT or Linux in seconds and run your HMI, security, or inventory apps without lag.
Key Features
-
Built-in 13.56 MHz NFC/RFID reader (ISO-14443A/B)
-
IP65-sealed front bezel (water & dust proof)
-
Fanless, passive-cooling heat-pipe design
-
10.1″ touchscreen (capacitive or resistive options)
-
CPU options: Intel Celeron J1900 or Core™ i3-7100U
-
Dual Gigabit LAN, 4× USB, 2× RS-232
-
VESA 75×75 mm & panel-mount kits included
-
Wide 9–36 V DC input
Specifications
-
Display: 10.1″ LED, 1280×800, multi-touch
-
Touch: Capacitive 5-point or 4-wire resistive
-
CPU: Intel Celeron J1900 @2.0 GHz or Core™ i3-7100U
-
Memory: 2 GB–8 GB DDR3L
-
Storage: 32 GB–256 GB SSD
-
NFC/RFID: 13.56 MHz, ISO-14443A/B compliant
-
I/O: 2× LAN, 4× USB 3.0, 2× RS-232, audio out
-
OS: Windows 10 IoT / Ubuntu Linux
-
Mounting: VESA 75×75 mm / panel cutout
-
Power: 9–36 V DC input
-
Protection: IP65 front, IP54 rear
-
Operating Temp.: –10 °C to +60 °C
Supported OS / Applications / Industries
Operating Systems: Windows 10 IoT, Ubuntu Linux
Applications: Access control, inventory tracking, HMI, kiosks
Industries: Manufacturing, logistics, retail, healthcare, security
Benefits & Compatibility
-
NFC/RFID reader integrates access, time-tracking, asset ID
-
Fanless design cuts noise, stops dust ingress
-
Sealed front survives spray-downs and dusty zones
-
Glove-friendly touchscreen boosts safety
-
Connects to legacy gear via RS-232 and LAN
Purpose of Use
Ideal for secure entry systems, warehouse pick-and-pack stations, automated kiosks, and any application needing sealed, card-aware computing.
How to Use
-
Cut panel opening per template.
-
Secure with mounting clamps or VESA bracket.
-
Wire 9–36 V DC and network cables.
-
Boot into Windows IoT or Linux.
-
Tap NFC card to verify access or track assets.
Packaging / Weight / Dimensions
-
Packaging: Foam-lined, recyclable box
-
Weight: ~2.4 kg
-
Dimensions: 280 × 190 × 55 mm (incl. bezel)
-
Cutout Size: 263 × 173 mm
Warranty and FAQs
Warranty: 12-month full coverage
FAQs:
-
Q: Which tag formats work?
A: ISO-14443A (MIFARE Classic/Ultralight) and B.
-
Q: Can I configure RFID reader parameters?
A: Yes, via included SDK and APIs.
-
Q: How do I clean the front panel?
A: Wipe with a damp cloth; avoid harsh solvents.
More at NEOTECH Support
Performance, Quality, Durability, and Reliability
-
Industrial-grade caps and SSDs rated for 24/7 use
-
Vibration and shock tested to MIL-STD-810G
-
Fanless heat pipes remove failure points
-
Operates from –10 °C to +60 °C without hiccups
