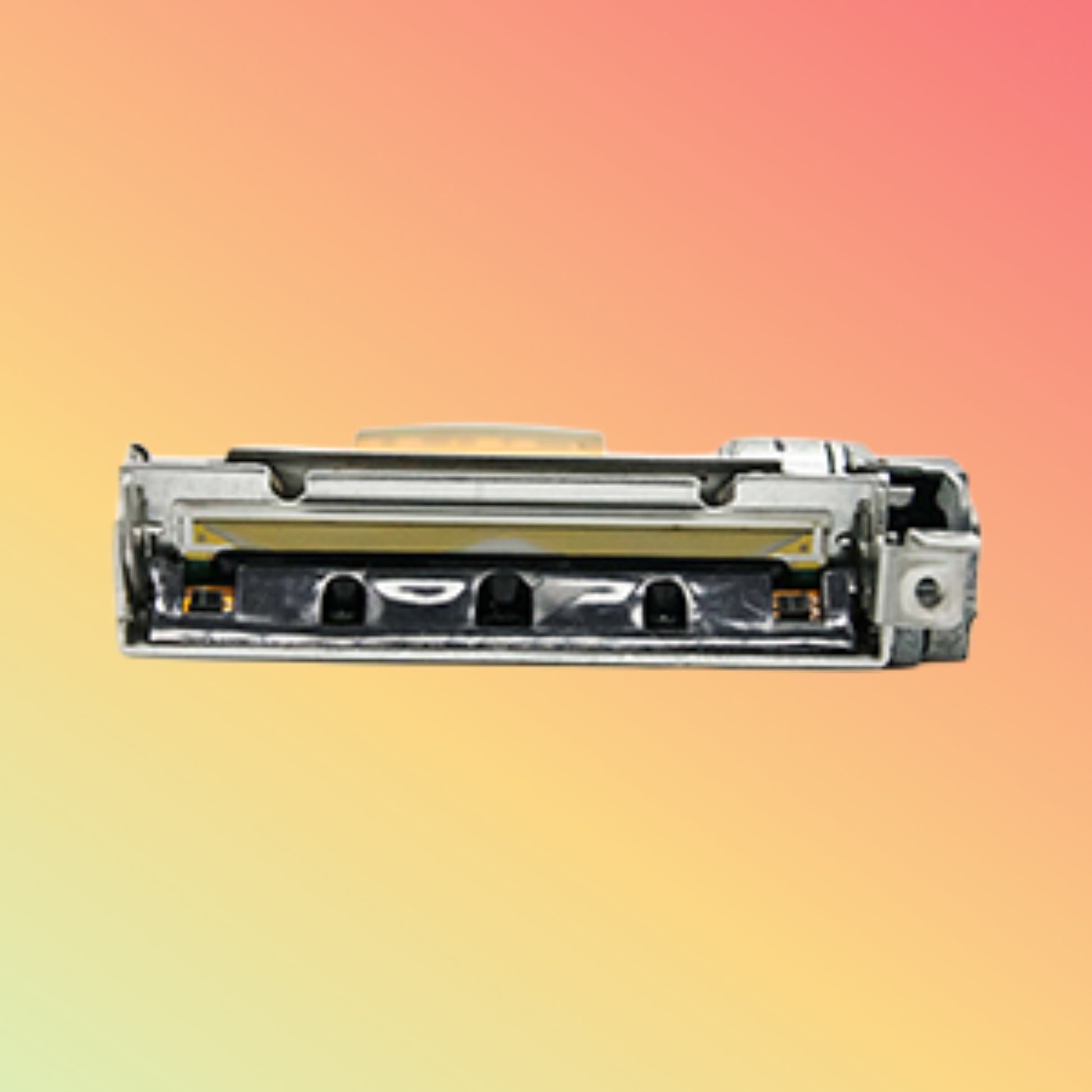

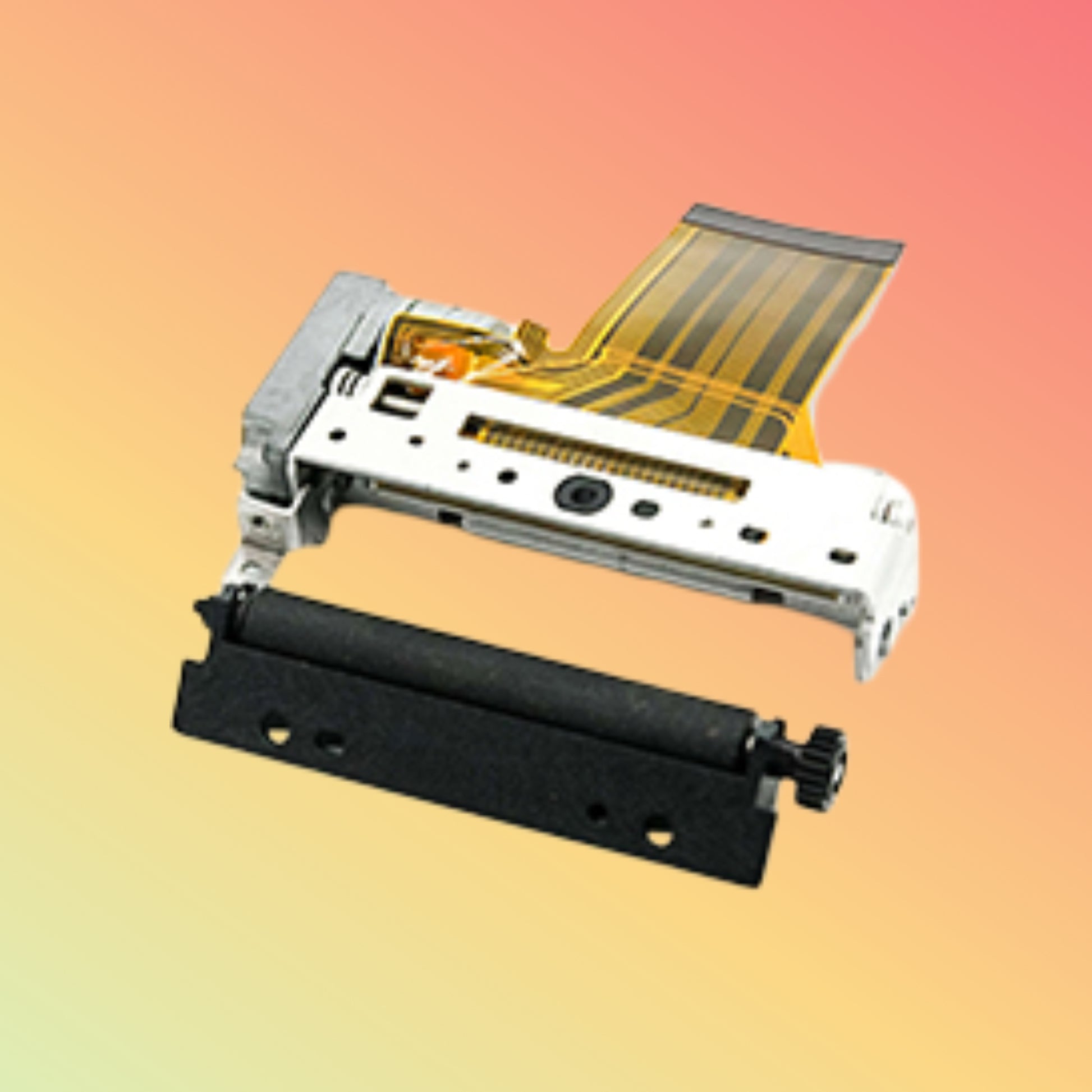

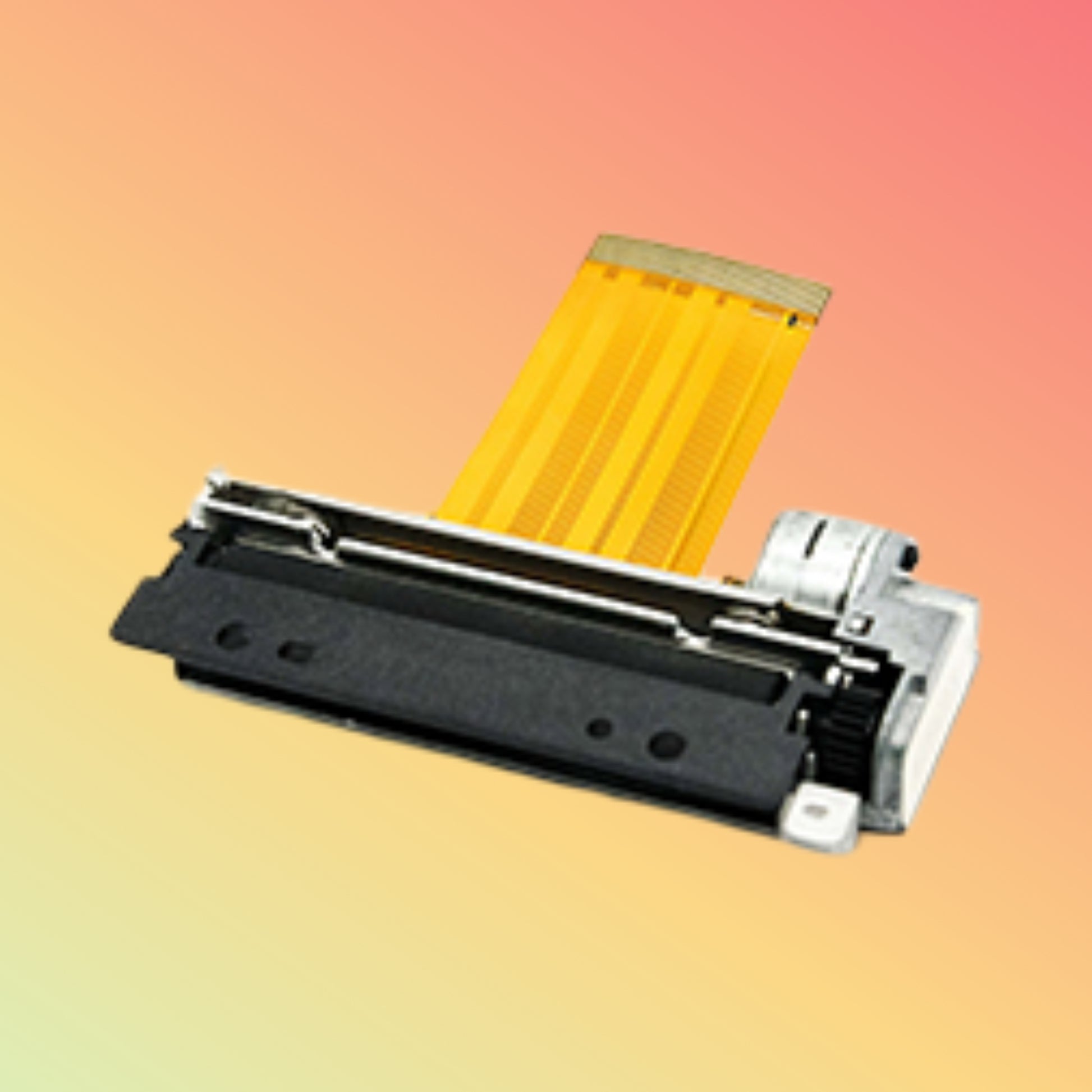

ATP213 Seiko 80 mm thermal engine—200 mm/s, 203 dpi, auto-cutter ready. Perfect for kiosks, POS & embedded systems.
Overview
Level up your kiosk or POS with the Seiko ATP213—an 80 mm direct-thermal print engine built for nonstop use. It pumps out crisp 203 dpi receipts and tickets at up to 200 mm/s, and supports full- or partial-cut auto-cutter modules. Compact metal chassis + jam-free path = 24/7 reliability in retail, banking, ticketing, and more.
Product Description
The ATP213 packs Seiko’s industrial-grade thermal head into a sleek mechanism. No ribbons or ink—just load standard 80 mm rolls on a 12.7 mm core. Its precision motor and optimized paper path deliver smooth, consistent feeds, while optional auto-cutter kits slice receipts cleanly on demand. Rated for MTBF ≥ 30 000 hrs, it’s your go-to for high-volume, low-maintenance printing.
Key Features
-
80 mm print width on 12.7 mm core
-
Up to 200 mm/s high-speed printing
-
Sharp 203 dpi Seiko thermal head
-
Auto-cutter ready (full/partial cut)
-
RS232 & USB 2.0 interfaces
-
Jam-resistant paper path design
-
Rugged metal chassis
-
MTBF ≥ 30 000 hours
Specifications
| Parameter |
Details |
| Model |
ATP213 |
| Print Width |
80 mm |
| Max Speed |
200 mm/s |
| Resolution |
203 dpi |
| Core Diameter |
12.7 mm |
| Interfaces |
RS232, USB 2.0 |
| Cutter Option |
Full-cut / Partial-cut |
| MTBF |
≥ 30 000 hours |
| Power Input |
5 V DC |
| Operating Temp. |
0 °C – 50 °C |
| Dimensions (L×W×H) |
200×125×110 mm |
| Weight |
1.2 kg |
Supported OS / Applications / Industries
-
OS: Windows, Linux, Android (via SDK)
-
Apps: POS firmware, kiosk controllers, ticketing systems
-
Industries: Retail, Banking, Transportation, Vending, Self-service
Benefits & Compatibility
-
Seamless integration via RS232/USB
-
Low upkeep thanks to jam-free design
-
High uptime backed by Seiko MTBF
-
Clean cuts with optional auto-cutter
-
Compact form fits tight enclosures
Purpose of Use
Ideal for embedding in ATMs, self-service kiosks, ticket machines, and POS terminals that demand fast, reliable 80 mm thermal printing.
How to Use
-
Mount ATP213 in your device chassis
-
Connect RS232 or USB cable to host controller
-
Load an 80 mm roll on the 12.7 mm core
-
(Optional) Attach the auto-cutter module
-
Supply 5 V DC and configure via SDK
-
Run a test print; replace cutter blade per schedule
Packaging / Weight / Dimension
-
Includes: ATP213 mechanism, interface cables, mounting kit, user manual
-
Module size: 200×125×110 mm
-
Module weight: 1.2 kg
-
Package weight: ~1.5 kg
