KS400H fixed-mount 2D kiosk scanner—360° omni-scan, 640×480 CMOS, USB HID & TTL-UART. Shop at NEOTECH.
Overview
Upgrade any self-service terminal with the KS400H. Its 360° omni-directional mirror head decodes QR, PDF417, Data Matrix & 1D codes at up to 120 scans/sec. Stream data via USB HID or TTL-UART, all in a rugged bezel-mount form factor that installs flush in any kiosk.
Internal Link: Check out our Embedded Scanner Modules.
External Link: Learn barcode specs on the GS1 site.
Product Description

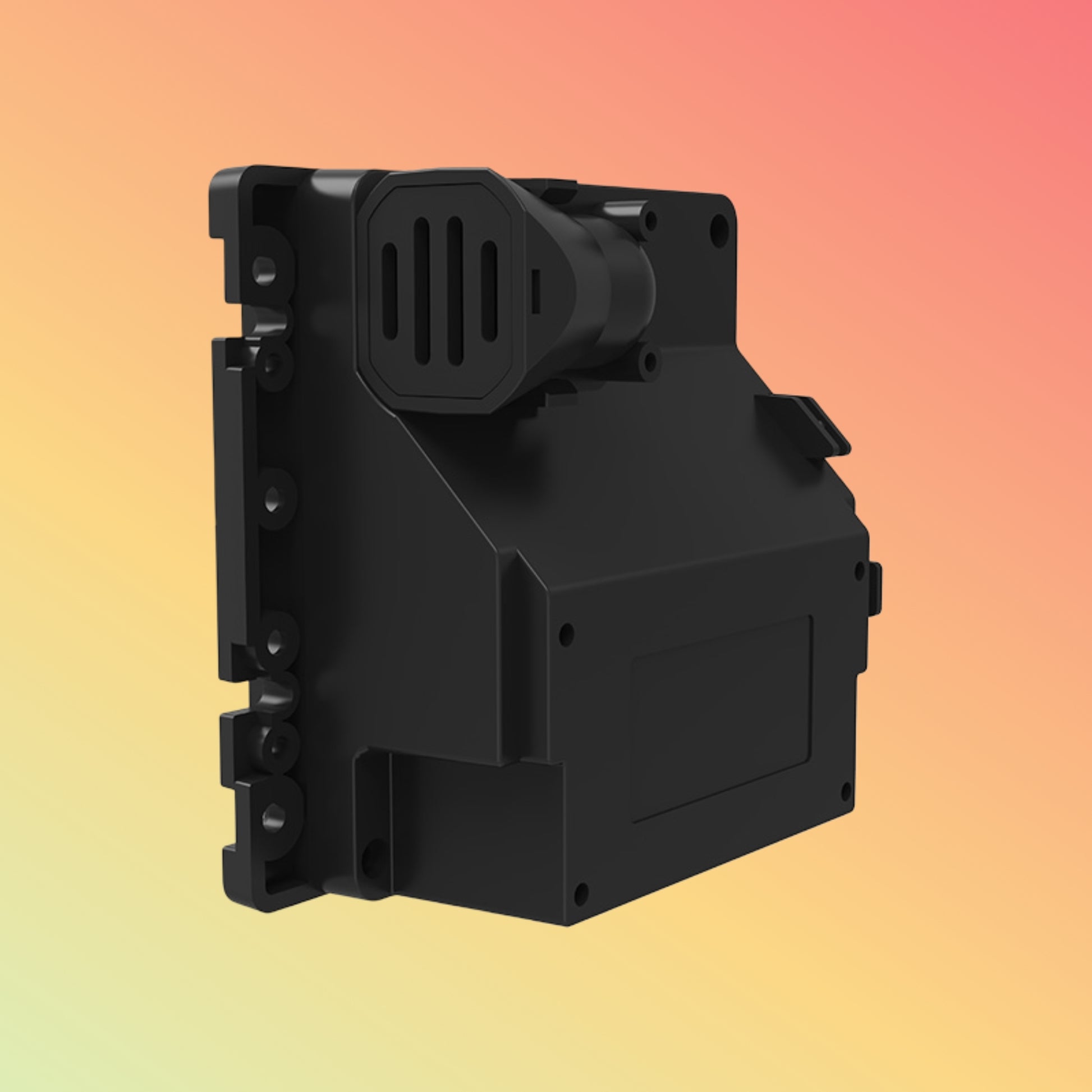

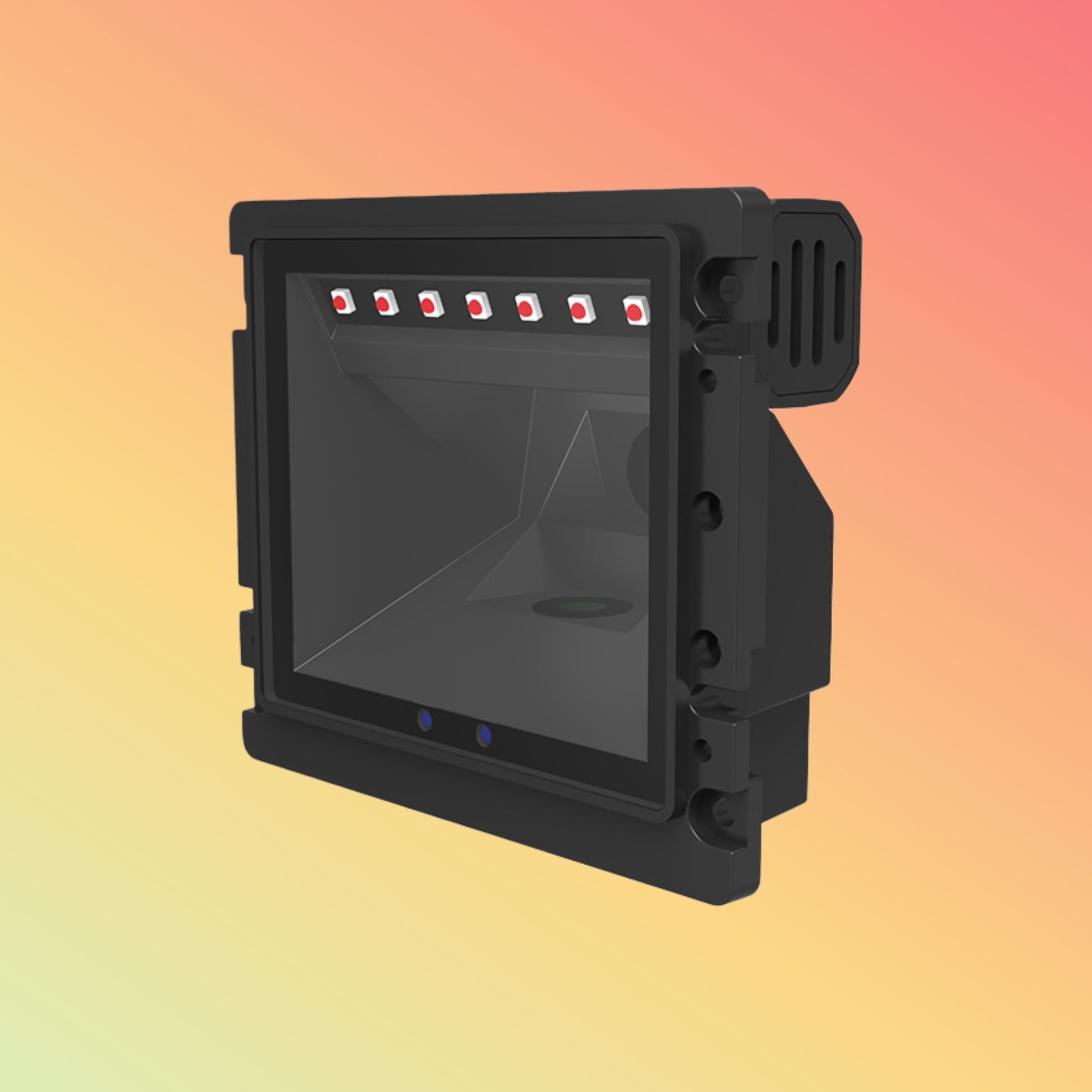

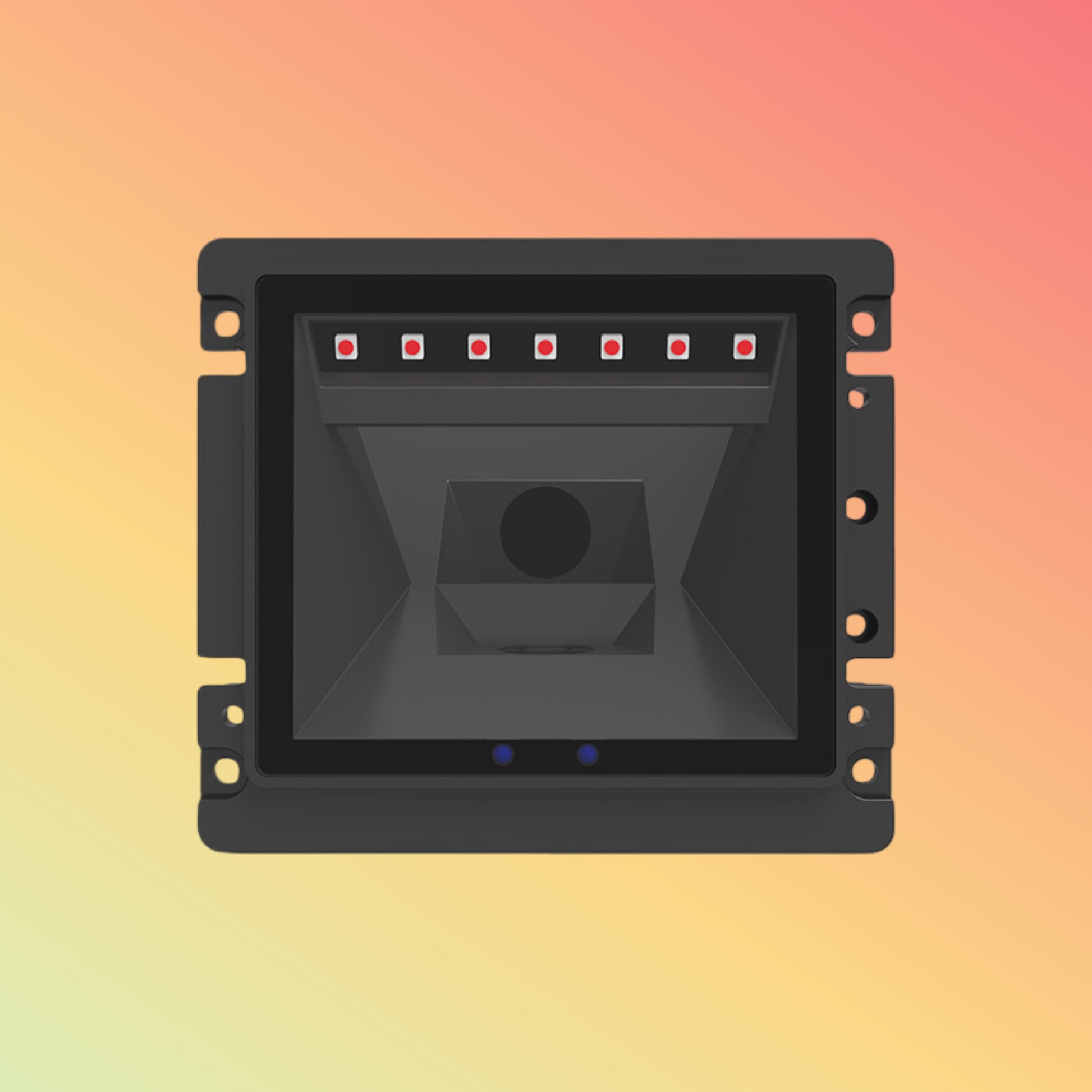

The KS400H packs a 640×480 CMOS sensor and precision mirrors into a low-profile metal bezel (58×48×18 mm). Auto-detects USB HID (keyboard emulation) or 115 200 bps TTL-UART for flexible integration. Bright LED aimer and ≥85 dB buzzer confirm every read, making it ideal for high-traffic kiosks, ticket dispensers, and access-control systems.
Key Features
-
360° omni-directional mirror scan head
-
2D & 1D decoding: QR, PDF417, Data Matrix, UPC/EAN, Code 128
-
High speed: up to 120 scans/sec
-
Interfaces: USB HID & TTL-UART (5 V TTL)
-
Flush-mount bezel: 58×48×18 mm form factor
-
Instant feedback: LED aimer + buzzer (>85 dB)
-
Low power: 5 V DC @200 mA typical
-
Rugged design: metal housing for harsh environments
Specifications
| Parameter |
Details |
| Model |
KS-400H |
| Sensor |
640×480 CMOS |
| Decode Rate |
Up to 120 scans/sec |
| Supported Codes |
1D & 2D (QR, PDF417, Data Matrix) |
| Interfaces |
USB HID, TTL-UART (5 V TTL) |
| Mount Size |
58 × 48 × 18 mm (W×H×D) |
| Power |
5 V DC, 200 mA typical |
| Operating Temp. |
0 °C–50 °C |
| Storage Temp. |
–20 °C–70 °C |
| Indicators |
LED aimer, buzzer |
Supported OS / Applications / Industries
-
OS: Any USB HID host (Windows, Linux, Android)
-
Use Cases: Self-service kiosks, vending, ticketing, access control
-
Industries: Retail, Hospitality, Transportation, Self-service
Benefits & Compatibility
-
Flush-mount design installs slick in bezels
-
Dual interfaces for plug-and-play or UART
-
Omni-directional scanning prevents jams
-
LED + buzzer ensure user confidence
-
Metal housing for long-term durability
Purpose of Use
Perfect for embedding in self-checkout kiosks, ticket dispensers, vending machines, parking gates, and any terminal requiring reliable hands-free scanning.
How to Use
-
Cut bezel opening (58×48 mm)
-
Secure module with included screws
-
Connect via USB or TTL headers
-
Power with 5 V DC
-
Present barcode; data streams via HID or UART
Packaging / Weight / Dimensions
-
Includes: KS400H module, USB cable, UART jumper wires, mounting screws, quick-start guide
-
Module size: 58 × 48 × 18 mm
-
Package weight: ~ 60 g
Warranty & FAQs
-
Warranty: 1 year limited
-
FAQs:
-
Q: Does it scan from mobile screens?
A: Yes—adjustable exposure handles low-contrast displays.
-
Q: How to switch to UART?
A: Auto-detects USB; enable UART via jumper.
-
Q: Is it dust-proof?
A: Bezel is IP54-rated; avoid full immersion.
Performance, Quality, Durability & Reliability
Engineered with industrial optics and a sealed bezel, the KS400H delivers MTBF ≥ 30 000 hrs and first-pass reads on worn or distorted codes.
