All-in-one 15″ Elo PayPoint Plus with Intel® Celeron®, Windows IoT, touchscreen, MSR, printer & scanner. Compact, reliable POS. Order UAE-wide.
Overview

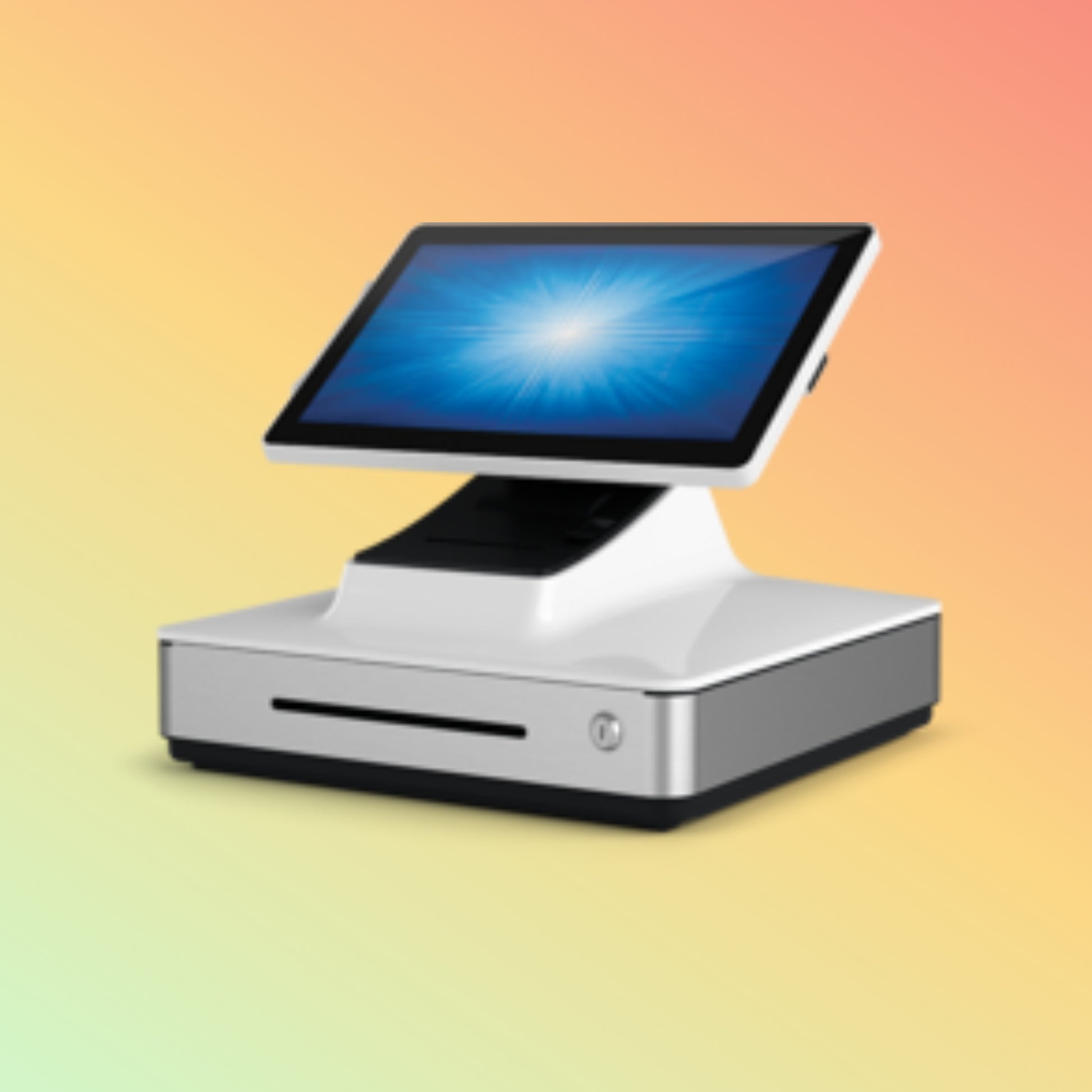

The Elo PayPoint® Plus Windows Edition unifies all your point-of-sale needs into one sleek, 15″ all-in-one terminal. Powered by an Intel® Celeron® quad-core processor and Windows IoT, it delivers rock-solid performance, built-in receipt printing, barcode scanning, MSR and customer display—no extra boxes, no extra headaches.
Product Description
Designed for retail, quick-service, hospitality and healthcare, the PayPoint Plus Windows Edition integrates a projected-capacitive touchscreen, 3-track magnetic-stripe reader, 80 mm thermal printer and high-performance barcode scanner into a single fan-free chassis. With Windows IoT (or Embedded) pre-installed on a 64 GB SSD and 4 GB DDR3 RAM, it boots in seconds and runs any certified POS software. PoE+ simplifies cabling; VESA mounting and optional battery base unlock flexible deployments.
Key Features
-
Display: 15″ 1024×768 P-CAP touchscreen, true-flat glass
-
Processor: Intel® Celeron® J1900 2.0 GHz quad-core
-
Memory & Storage: 4 GB DDR3L; 64 GB SSD (upgradeable)
-
OS: Windows 10 IoT Enterprise (Embedded Standard option)
-
Integrated Peripherals:
-
3-track MSR for payment cards
-
80 mm drop-in thermal printer (203 dpi)
-
Omnidirectional barcode scanner
-
2-line customer-facing LCD display
-
Connectivity: 2× GbE LAN (1× PoE+), 5× USB 3.0, 2× USB 2.0, 2× RS-232 COM, HDMI out
-
Audio: Built-in speaker and line-out jack
-
Design: Fanless cooling, VESA 75×75 mm mount, Kensington lock slot
Specifications
| Specification |
Detail |
| CPU |
Intel® Celeron® J1900 Quad-Core, up to 2.0 GHz |
| RAM |
4 GB DDR3L (1 SO-DIMM slot; max 8 GB) |
| Storage |
64 GB SSD (M.2 slot available for expansion) |
| Display |
15″ Full HD (1024×768) P-CAP, true-flat |
| Touch |
10-point multi-touch |
| Printer |
80 mm drop-in thermal; 203 dpi; auto-cutter option |
| Scanner |
Omnidirectional 1D/2D barcode engine |
| MSR |
3-track, encrypted options |
| Customer Display |
2-line vacuum fluorescent display |
| Network |
2× GbE LAN (1× PoE+), Wi-Fi 5 (optional), BT 4.2 |
| USB |
5× USB 3.0, 2× USB 2.0 |
| Serial |
2× RS-232 COM ports |
| Video Out |
HDMI |
| Audio |
Internal speaker; line-out |
| Power |
12 V DC or PoE+ (802.3at) |
| Dimensions (W×H×D) |
369×268×69 mm |
| Weight |
~3.2 kg |
| Operating Temperature |
0 – 40 °C |
| Front Protection Rating |
IP22 (optional splashproof kit up to IP54) |
| Certifications |
CE, FCC, UL, RoHS |
Supported OS / Applications / Industries
-
Operating Systems: Windows 10 IoT Enterprise, Windows Embedded Standard, Android (OEM image)
-
POS Software: Compatible with major platforms (Windows-based POS, restaurant & retail suites)
-
Industries: Retail, quick-service restaurants, hospitality, healthcare clinics, kiosks
Benefits & Compatibility
-
Space-Saving All-in-One: Consolidate display, printer, scanner and payments into one unit.
-
Rapid Deployment: PoE+ option removes separate power cables—ideal for counter-tight spaces.
-
Silent Reliability: Fanless design keeps dust out and noise down for 24/7 uptime.
-
Seamless Integration: Preconfigured Windows IoT image and certified drivers for plug-and-play.
-
Secure Transactions: Encrypted MSR and TPM 2.0 hardware root of trust safeguard data.
Purpose of Use
Engineered to simplify your checkout, PayPoint Plus Windows Edition handles every transaction step—item lookup, payment, receipt and loyalty scan—without additional hardware clutter.
How to Use
-
Mount & Power: Place on counter or VESA mount; connect PoE+ or 12 V DC.
-
Network & Configure: Plug in Ethernet or set up optional Wi-Fi/BT.
-
Load Software: Use the pre-installed Windows IoT image; install your POS application.
-
Attach Peripherals: MSR, barcode scanner and cash-drawer cables plug into built-in ports.
-
Go Live: Boot up in seconds and start processing transactions immediately.
Pro Tip: Enable PoE power cycling in your switch for remote reboot capabilities.
Packaging / Weight / Dimensions
-
Includes: PayPoint Plus unit, power adapter or PoE injector, MSR module, quick-start guide
-
Unit Weight: ~3.2 kg
-
Package Weight: ~4.5 kg
-
Box Dimensions: 440×340×220 mm
Warranty and FAQs
Warranty: 1-year hardware and peripheral coverage with advance swap option.
FAQs:
Performance, Quality, Durability, and Reliability
Industrial-grade Rockchip and Elo touch components ensure consistent performance. IP22 front and optional IP54 splashproof kit protect against spills; fanless thermal management guarantees silent, maintenance-free operation.
Best Price Guarantee
Find a better local UAE quote on the Elo PayPoint Plus Windows Edition? We’ll match it—no questions asked. Shop confidently with NEOTECH.
Shop Today & Receive Your Delivery Across the UAE!
Enjoy fast, secure delivery to Dubai, Abu Dhabi, Sharjah and all emirates. Bulk or project orders? Ask about priority dispatch for your rollout timeline.
Request for Customer Reviews and Testimonials
Deploying PayPoint Plus? Share your success story to help peers and shape our next-gen POS innovations.
After Sales Support
From installation through ongoing maintenance, our support portal and live-chat team provide 24/7 assistance—keeping your POS network online and transactions flowing.
Get in Touch
Visit the Elo PayPoint Plus product page on NEOTECH’s website to submit an inquiry; our POS specialists will connect with you within one business day.
Stock Availability
Inventory updates daily. For urgent or volume orders, confirm stock before checkout; lead times for custom configurations may be 10–15 business days.
Disclaimer
Specifications and pricing are subject to change without notice. Product images are illustrative. Verify all technical and commercial details with NEOTECH before purchase.
