Fanless mini PC with Intel® N97, 8 GB RAM, 128 GB SSD, TPM 2.0, triple 4K UHD display support. Windows IoT & Linux ready. Order UAE-wide.
Overview

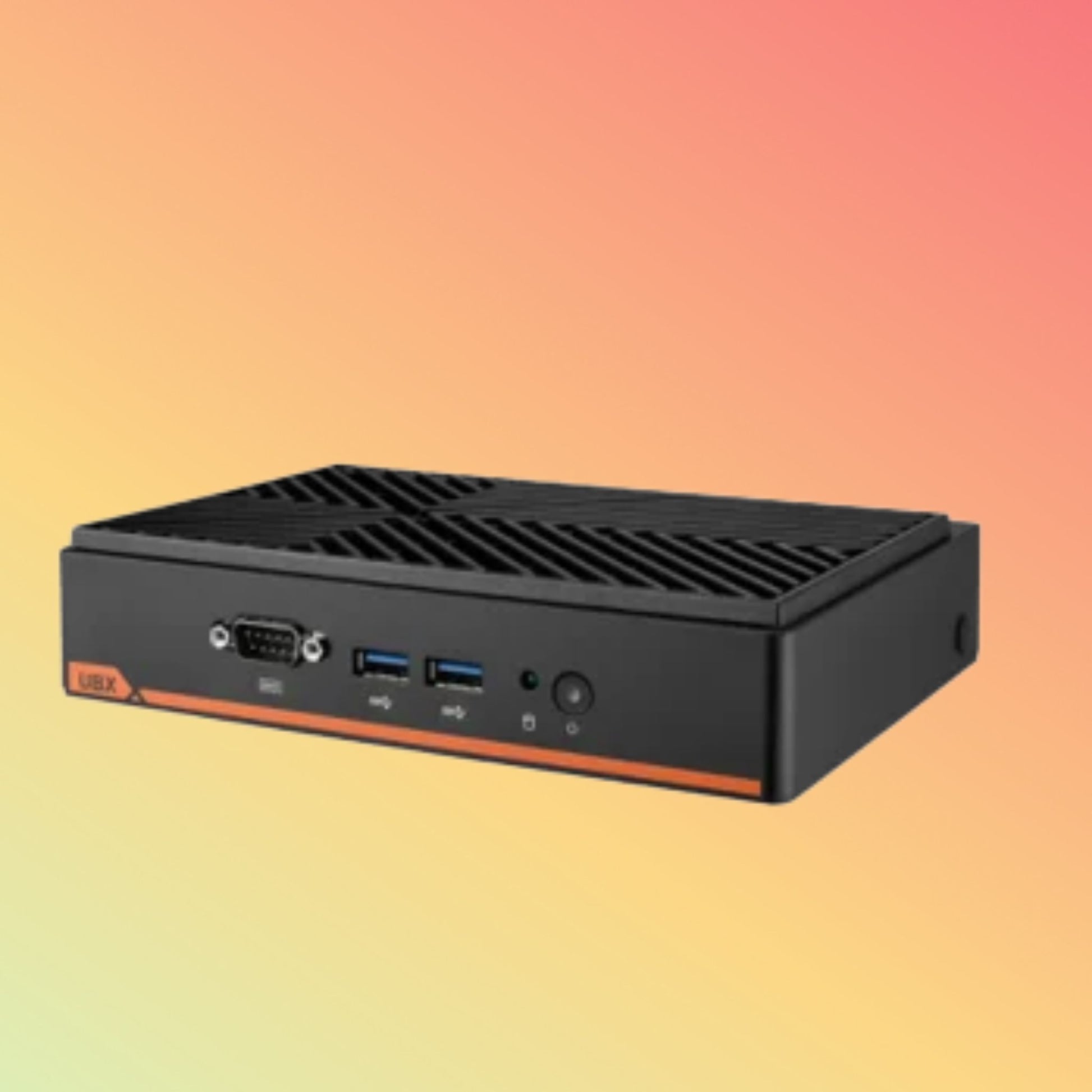

The UBX110K2401-CT is a rugged, fanless edge computer powered by Intel® 12th Gen N97. It drives three 4K UHD displays simultaneously, making it ideal for digital signage, control rooms, and industrial HMI applications—offering silent, maintenance-free performance.
Product Description
Built for 24/7 operation, this compact mini box PC features 8 GB DDR5-4800 memory and a 128 GB SSD, with two additional M.2 slots for storage expansion. Its TPM 2.0 module secures critical data, while the fanless thermal-isolation design keeps the exterior cool to the touch. Choose Windows 10/11 IoT LTSC or your favorite Linux distribution for seamless integration into any IoT or automation ecosystem.
Key Features
-
Processor: Intel® 12th Gen N97 for efficient edge computing
-
Memory & Storage: 8 GB DDR5-4800; 128 GB SSD + 2× M.2 2280 expansion
-
Graphics & Displays: Triple 4K UHD output via 2× HDMI 2.1 + 1× USB-C DP 1.4
-
Security: TPM 2.0 for hardware-based encryption and secure boot
-
Connectivity: Dual GbE (1 Gbps + 2.5 Gbps), Wi-Fi, Bluetooth, 4× USB 3.2 Gen 2, USB-C, COM port, audio out
-
Form Factor: Fanless, VESA-mountable (182.5 × 141.5 × 35 mm), 0.65 kg
Specifications
| Specification |
Detail |
| CPU |
Intel® 12th Gen N97 |
| Memory |
8 GB DDR5-4800 (expandable to 16 GB) |
| Storage |
128 GB SSD; 2× M.2 2280 SATA slots |
| Graphics |
Intel® integrated GPU; triple 4K UHD @ 60 Hz |
| OS Support |
Windows 10/11 IoT LTSC, Linux |
| I/O Ports |
2× HDMI 2.1, 1× USB-C (DP 1.4), 4× USB 3.2 Gen 2, 2× RJ-45, COM, audio |
| Security |
TPM 2.0, Kensington lock slot |
| Dimensions |
182.5 × 141.5 × 35 mm |
| Power Input |
DC 12 V |
| Operating Temp. |
0 – 45 °C |
| Certifications |
CE, FCC, CCC, BSMI, UKCA |
Supported OS / Applications / Industries
-
Operating Systems: Windows IoT LTSC, Ubuntu, Yocto, other Linux distributions
-
Applications: Digital signage, industrial control, IoT gateways, kiosks
-
Industries: Retail, smart manufacturing, transportation, hospitality
Benefits & Compatibility
-
Silent Operation: Fanless design eliminates dust ingress and noise
-
Secure & Reliable: TPM 2.0 and rugged chassis for mission-critical use
-
Flexible Deployment: VESA mount and multiple OS options simplify installation
-
Triple-Screen Support: Drive up to three 4K displays for immersive visuals
-
Expandable Storage: Two additional M.2 slots for data logging or caching
Purpose of Use
Ideal as an edge controller or signage engine in environments requiring silent, reliable performance—such as factory floors, control rooms, digital display walls, and interactive kiosks.
How to Use
-
Mount & Power: Secure via VESA bracket; connect the 12 V DC adapter.
-
Install OS: Flash Windows IoT or Linux image to SSD or M.2 slot.
-
Connect Displays: Plug 2× HDMI and USB-C to your monitors.
-
Network & Configure: Attach Ethernet or enable Wi-Fi/BT.
-
Deploy Applications: Install and run your HMI, signage, or gateway software.
Packaging / Weight / Dimensions
-
Includes: UBX110K2401-CT unit, 60 W DC 12 V adapter, VESA mounting kit, thermal pads, quick guide
-
Unit Weight: ~0.65 kg
-
Package Weight: ~1.1 kg
-
Box Dimensions: 250 × 180 × 70 mm
Warranty and FAQs
Warranty: 1-year limited hardware warranty
FAQs:
Performance, Quality, Durability, and Reliability
The thermal-isolation cover and fanless architecture ensure stable performance under sustained loads, while industrial-grade components guarantee long service life in harsh environments.
Best Price Guarantee
Find a lower price on the UBX110K2401-CT? We’ll match it—shop with confidence at NEOTECH.
Shop Today & Receive Your Delivery Across the UAE!
Enjoy fast, secure delivery to Dubai, Abu Dhabi, Sharjah, and beyond. Bulk or project orders? Ask about priority dispatch.
Request for Customer Reviews and Testimonials
Used the UBX110K2401-CT in your deployment? Share your experience to help peers and guide future innovations.
After Sales Support
Our technical team is available via live chat and portal ticketing to resolve issues and ensure your system stays up.
Get in Touch
Visit the product page on NEOTECH’s website to submit an inquiry. Our experts will connect with you promptly.
Stock Availability
Inventory updates daily. For urgent or volume orders, confirm availability before checkout; specialized kits may require 10–15 business days.
Disclaimer
Specifications subject to change without notice. Images are illustrative. Verify all technical and pricing details with NEOTECH before purchase.
